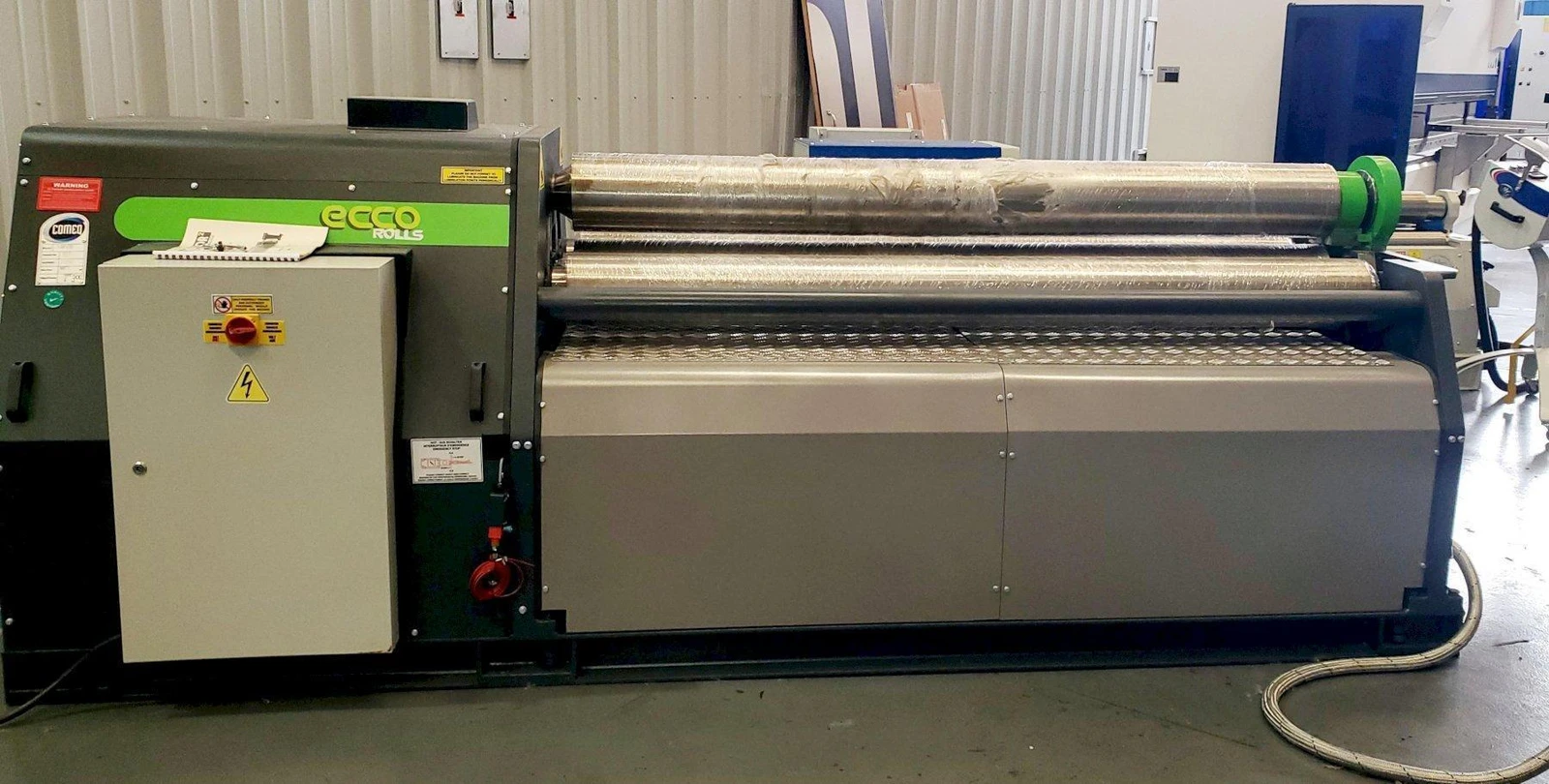

New Americor Hydraulic 4-Roll Double Pinch Plate Bending Roll
Model 4RDP 100/4
Capacity - mild steel - 4' x 11 Ga.
Overall length of rolls - 50"
Diameter of all rolls - 3.93"
Motors - 1.5 HP drive motor; 1 HP hydraulic system motor
Net weight - approximately 2970#
All steel frame
Most rigid frame, drop end and clamping roll parallelism unit
Machine frame stress relieved
Upper and lower pinch rolls driven
All rolls mounted in ball or roller bearings
Powered hydraulic adjustment of the lower pinching roll
Powered hydraulic adjustment of the rear bending roll, with push
button control and electronic digital readout for roll position
Design for lineal guided rear roll to minimize flat ends

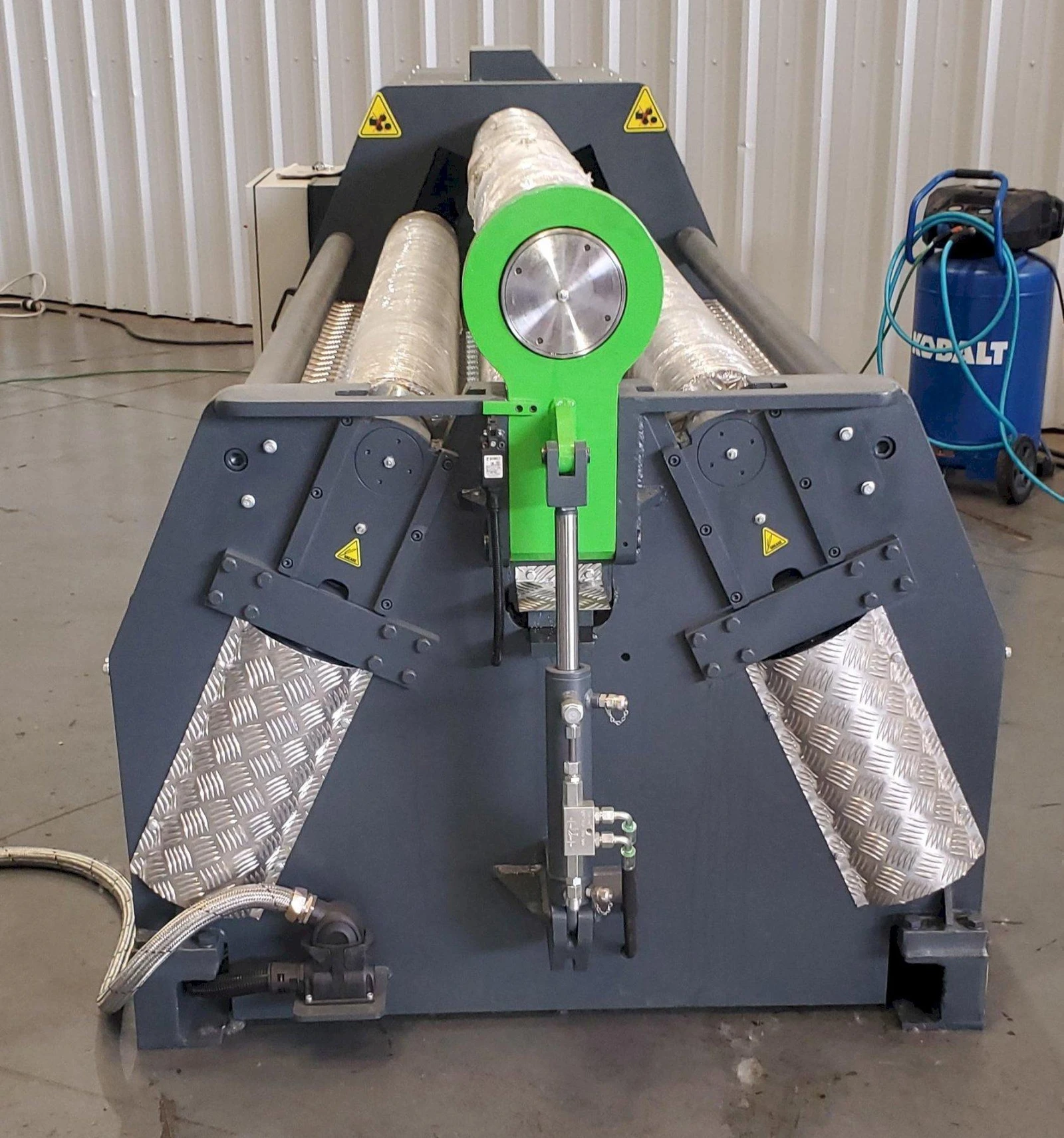

Hydraulic drop end
Top roll permanently balanced when the drop end is opened
Main drive motor with magnetic brake
Hydraulic unit with motor and controls for lower roll and rear bending
roll adjustment and for the hydraulic drop end
SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc

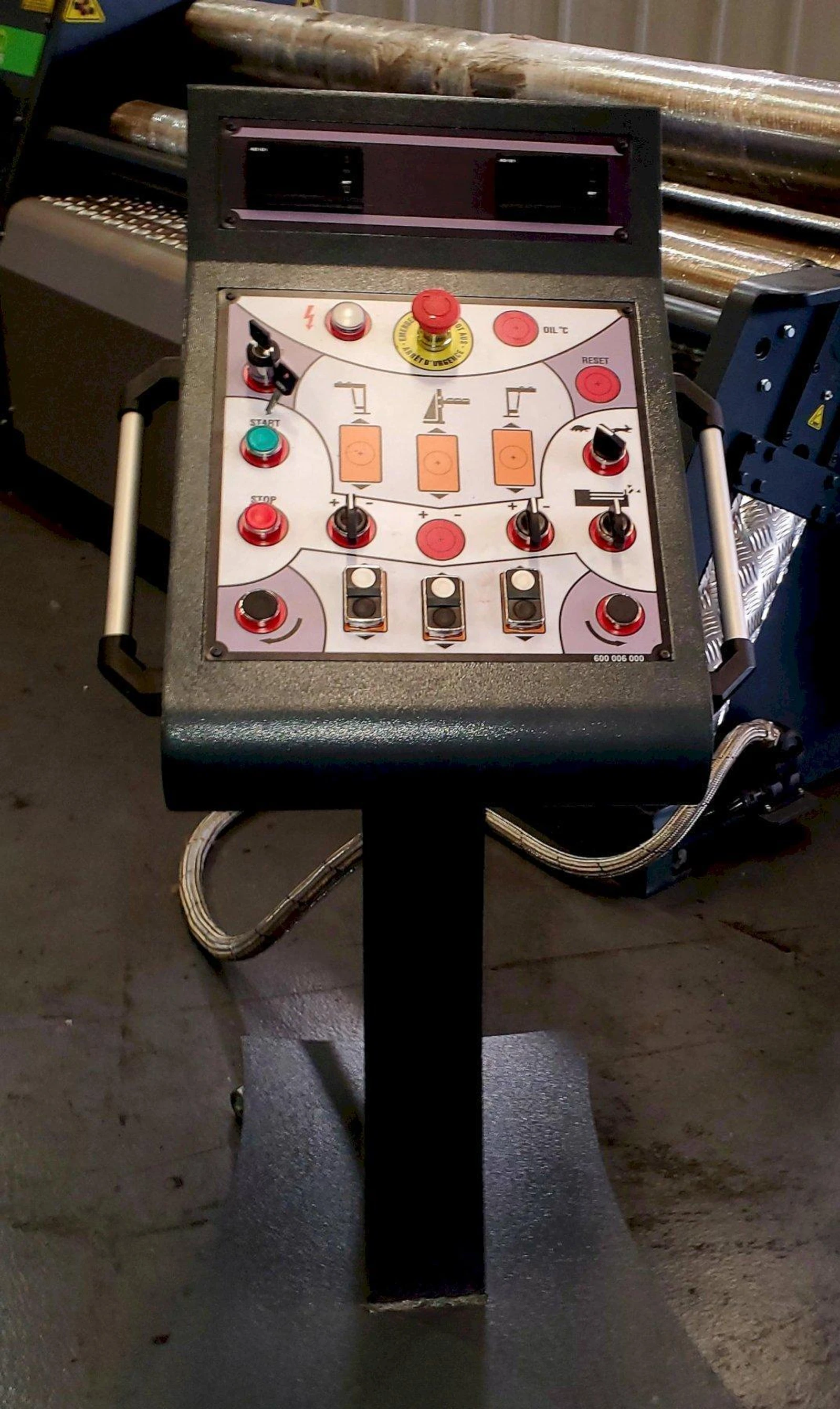

Portable control console mounted on wheels for operator convenience
(allows operator to position for his/her convenience)
Components from American and European sources
Electrics for 3/60/220 or 440, with overload and undervoltage protection.
Low voltage at the controls. Safety cable at front and rear of
Cone bending attachment
Powered tilting of rear bending roll for cone rolling
Electronic digital readout to indicate position of the rear bending roll
Grooves in lower rolls for 1/4", 3/8", 1/2" round bar (must be ordered
from the factory to be included at no charge)
