Tonnage | 300 |
Stroke | 10 inches |
Shut Height | 30 inches |
Adjustment | 10 inches |
Bed Size | 96" LR x 48" FB |
Ram Area | 96" LR x 48" FB |
SPM | 0-70 |
Standard Specifications

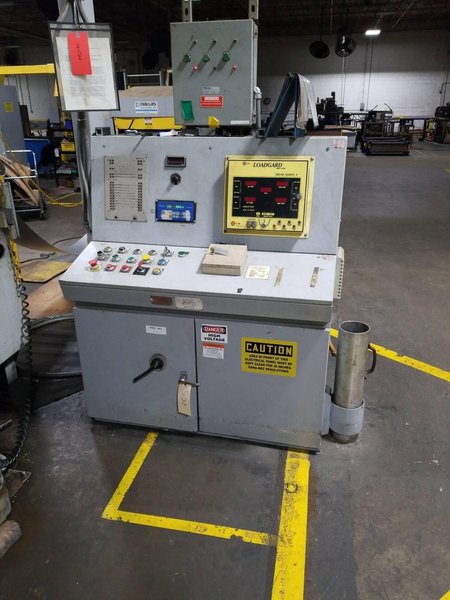

300 ton Capacity 10" Stroke 30" Shut Height 24" Die Height on Bolster 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 0-70 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Link Press Controls Omni Link Light Curtains 6" Thick Bolster Plate Helm LoadGard Trend Series 4 Free Standing Console Controls 42" Floor to Top of Bolster Twin End Drive 32" Wide Windows Floor Standing 191" Max Overall Height 129" x 88" Footprint 118,000 lbs Overall Weight Can be seen under power in the S & G Press Livonia Warehouse! |
