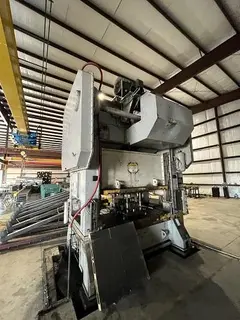

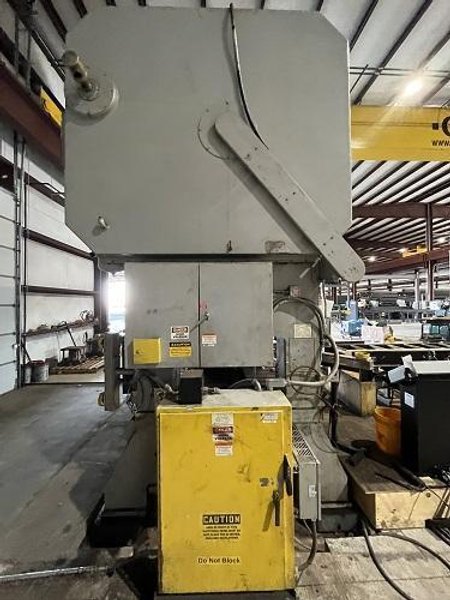

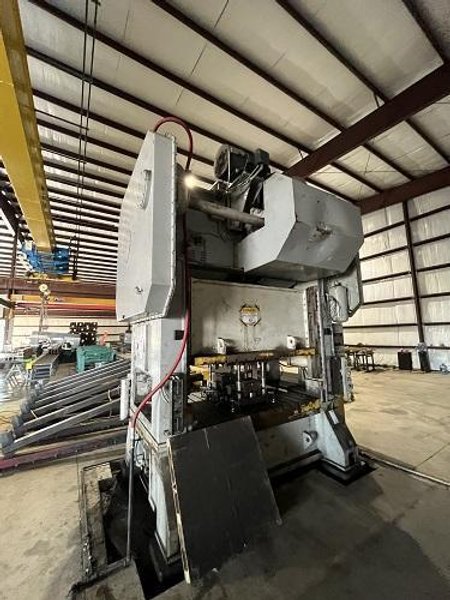

BLOW 250 TON STRAIGHT SIDE TWIN END BACKSHAFT DRIVEN MECHANICAL PRESS
Brand
Category
Model
Not specified
Stock #
116765
Year
Not specified
Condition
Used
Location
Not specified
|
BLOW 250 TON STRAIGHT SIDE TWIN END BACKSHAFT DRIVEN MECHANICAL PRESS
SPECIFICATIONS:
CAPACITY.... ...................250 TONS
MODEL NUMBER....... SE2-250-84-42
SERIAL NUMBER..... SDG-250-291-90
YEAR OF MANUFACTURE..... 1990
BED AREA............................ 84" X 42"
SLIDE AREA....... 84" X 42"
STROKE............................10"
ADJUSTMENT....................8"
SHUT HEIGHT.....................19" SDAU OVER BOLSTER
STROKES PER MINUTE.......20-40
WINDOWS....... 22" WIDE
BOLSTER PLATE..... 6" THICK T-SLOTTED
OVERALL HEIGHT...... 15'10"
FOOTPRINT DIMENSIONS... 108" LR X 84" FB
FLOOR STANDING
EQUIPPED WITH:
AIR CLUTCH AND BRAKE
AIR COUNTERBALANCES
RECIRCULATING LUBE SYSTEM

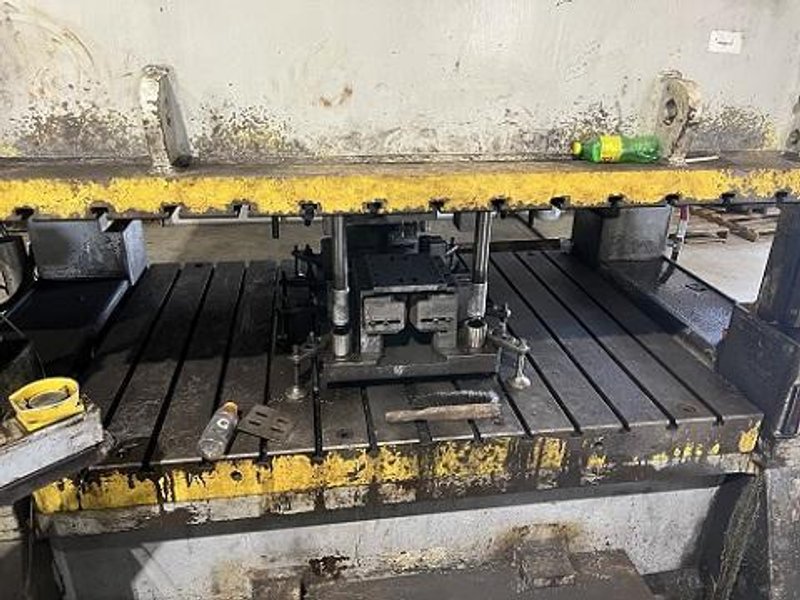

T-SLOTTED RAM AND BOLSTER
6" BOLSTER PLATE
T-SLOTS 6" CENTERS- STANDARD 1" T-SLOTS
8 POINT GIBBING

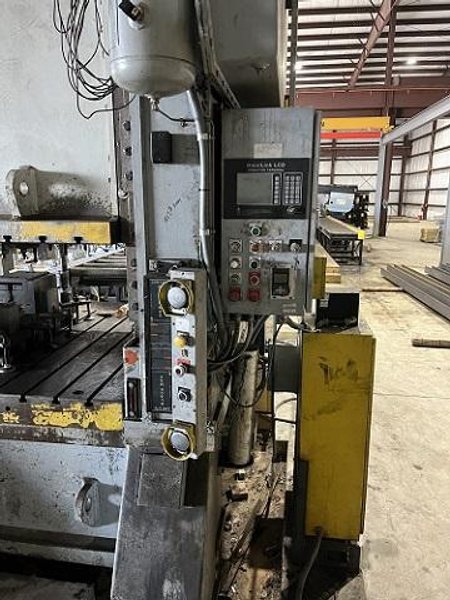

ELECTRICAL CONTROL CABINET
LINK LOGIC BRAKE MONITOR
GEMCO PLS 1995
ALLEN BRADLEY AC VARIABLE SPEED DRIVE MODEL 1336
VARIABLE SPEED MOTOR
MOTORS AND CONTROLS
PALM BUTTONS
DUAL ROSS AIR VALVE
MOTORIZED RAM ADJUSTMENT
MAIN MOTOR FWD./REVERSE
FLOOR STANDING
APPROXIMATE WEIGHT 80,000LBS
|
