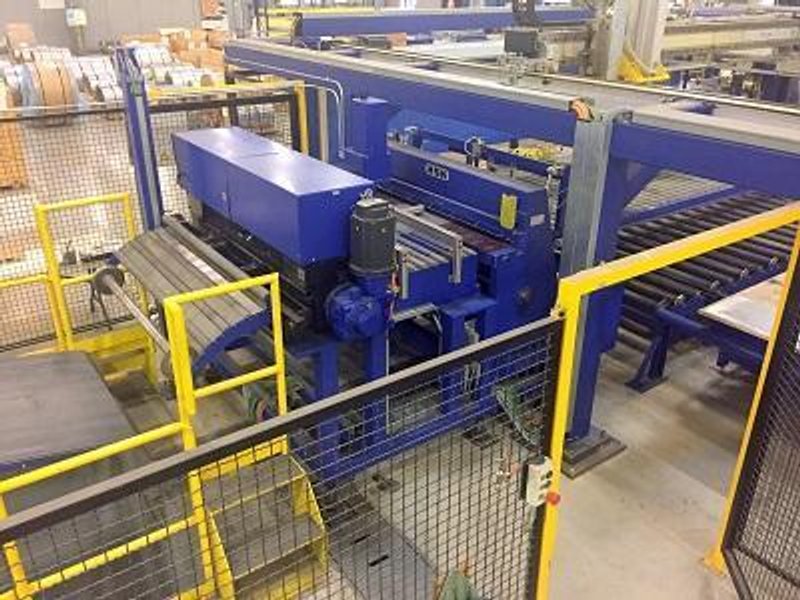

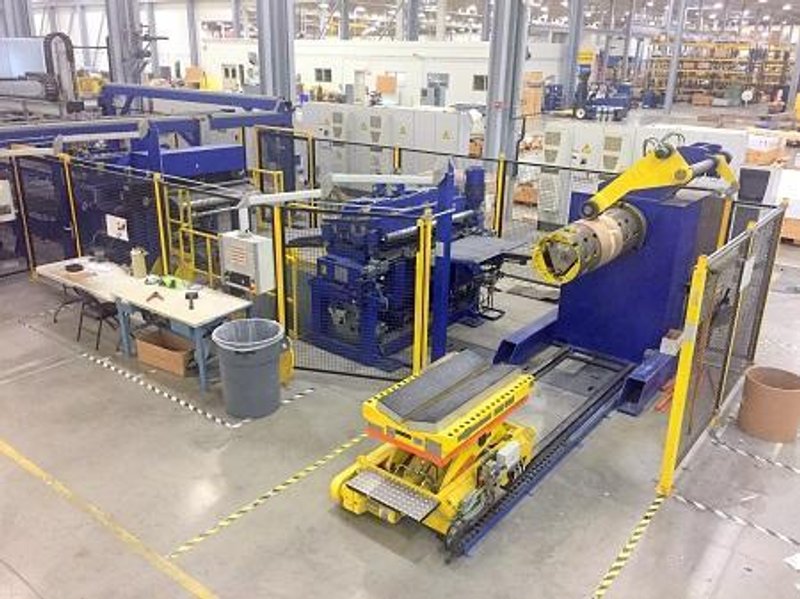

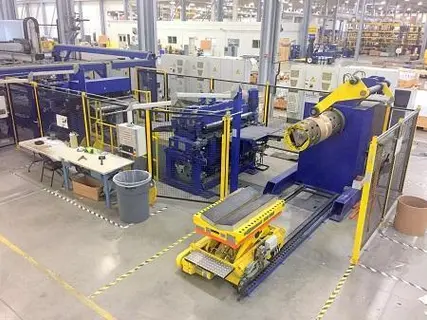

60" (1525MM) x .078" (2.0MM) x 30,000# (15 TON) DREHER CTL LINE, NEW 2007

Name: 60" (1525MM) x .078" (2.0MM) x 30,000# (15 TON) DREHER CTL LINE, NEW 2007
Brand: DREHER
SKU: 113410
Availability: InStock

Brand

DREHER

Ohio

Max Weight	15 ounces
Max Stock Thickness Capacity At Full Width	60 inches
Link To Our Website Listing	http://uen.hsix.com/q/webinv/005700=x,113410

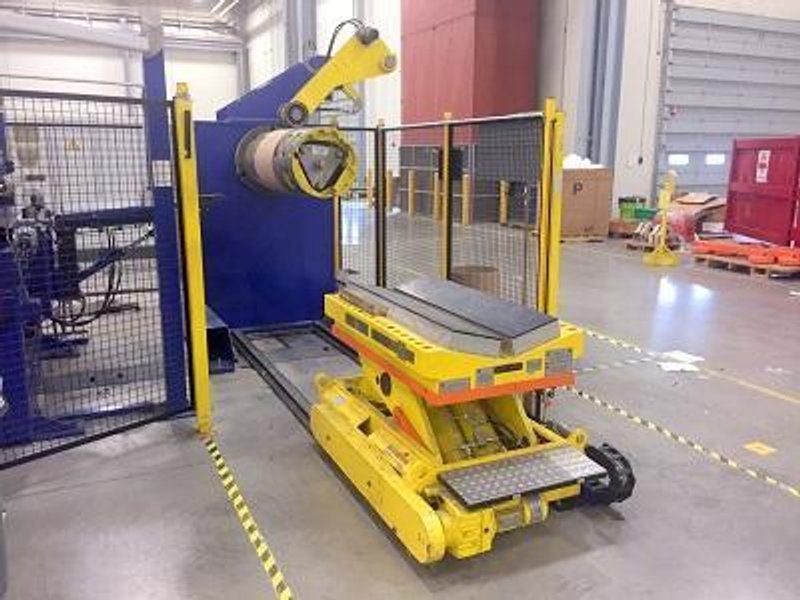

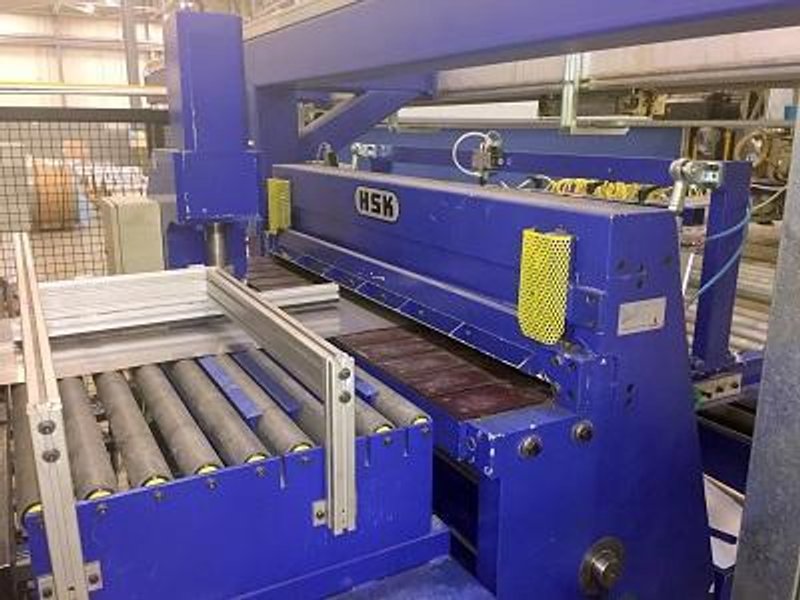

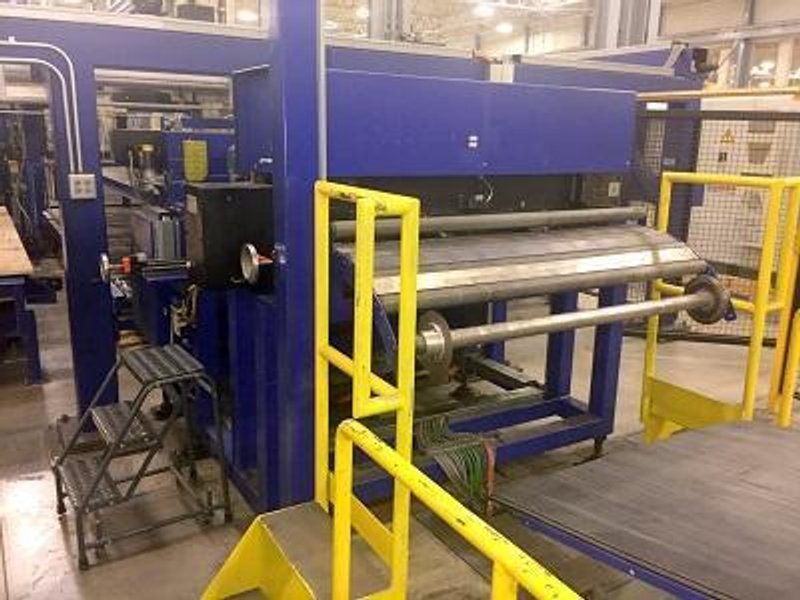

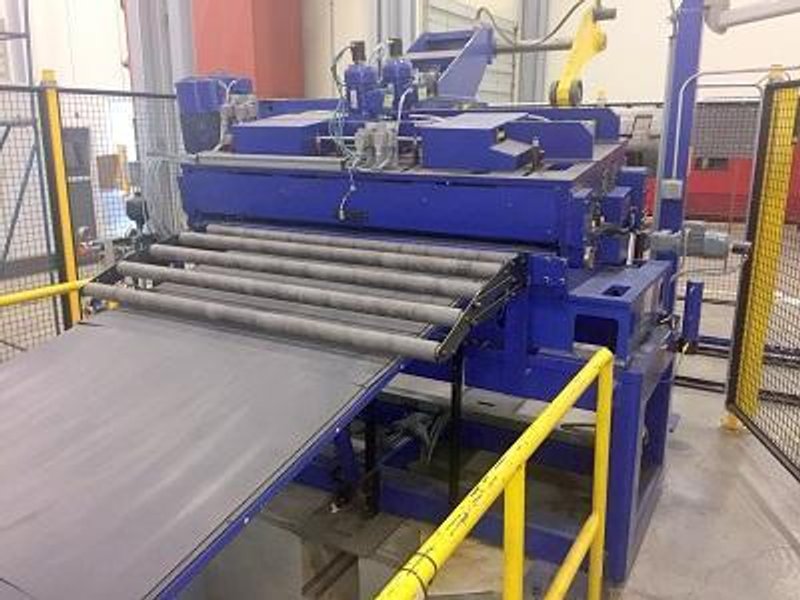

Manufacturer - Dreher Year - 2007 Strip width - 8"-60" (200mm-1525mm) Coil capacity - 30,000# (15 ton) Strip thickness - .015"-.078" (.4mm-2.00mm) Flattener - 9 Rolls w/ 2 pinch rolls (11 total rolls) Shear SPM - 100 Max Stacker Weight - 8,800 Lbs (4000 Kg) Voltage - 480 V, 60 Hz, 3 Ph Line Direction – Right to Left Line Components: Scissor Type Traversing Coil Car Capacity - 15 Ton Stroke - 27.5" (700mm) Travel - 117" Approx (3000mm Approx.) Coil OD Range - 27.5"-70" (700mm-1800mm) Mandrel Uncoiler Hydraulic Expansion & Hold Down Roll Capacity - 15 ton Strip width - 60" (1500mm) Coil ID Range - 17.5"-23" (450mm-590mm) Coil OD Range - 70" (1800mm) 9 Roll Flattener w/ 2 Entry Pinch Rolls Strip Width - 8"-60" (200mm-1525mm) Thickness Range - 0.4mm-2.0mm (.015"-.078") Roll Diameter - 1.965" (50mm) Pinch Roll Diameter - 3.14" (80mm) Huttenlocher & Schafer Shear Model - HSK/W Machine Number - 3409 Max Cutting Width - 60" (1530mm) Max Cutting Thickness - .058" (1.5mm) SPM - 100 Electrics and Controls - 2007 Siemens
