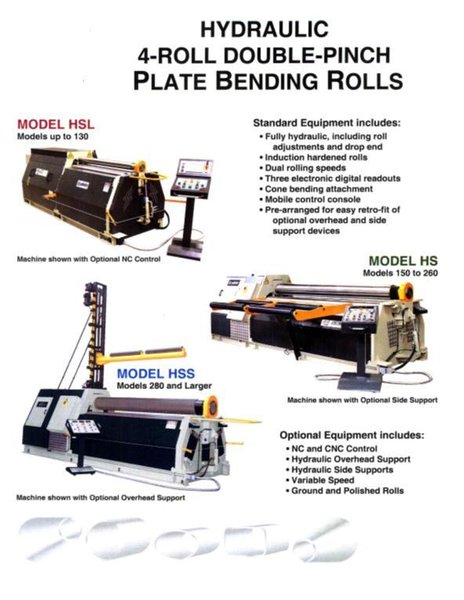

New COLE-TUVE by Sahinler Hydraulic Plate Bending Roll, Model 4R HS 20-190. Four-Roll, Double-Pinch Type.

      Capacities based on steel up to 38,000 PSI Yield Strength:

               - Circular Bending to diameters 5 times upper roll diameter and larger         6’ x 5/16”

               - Circular Bending to diameters 1-1/2 times upper roll diameter and larger  6’ x 1/4”

               - Prebending to diameters 5 times upper roll diameter and larger                     6’ x 1/4”

               - Prebending to diameters 1-1/2 times upper roll diameter and larger             6’ x 5/32”

                With prebending, resulting flat ends are 1-1/2 to 2 times plate thickness or less.

               Proportional capacities in other material, widths and thicknesses.

Features:

               Four-roll design and construction.  Compact design for minimal floor space.

               Welded, all-steel, heavily proportioned, thermally stress-relieved frame and drop end.

               Roll shafts journaled in radial bearings.

               Induction-hardened SAE 1050 steel bars, hardened to 58 - 60 Rockwell C are used for the rolls.  Rolls are precisely

                  machined with crowning to compensate for deflection under load.

               Fully hydraulic. Two-roll drive. The upper and lower central rolls are driven from a central hydraulic system, equipped

                 with overload protection, by a hydraulic motor through a planetary gearbox.

               The lower central roll and the two side bending rolls are hydraulically and individually adjustable and tiltable.

                 Each side roll is adjustable hydraulically and independently to provide double pre-bending; therefore each

                 end of the workpiece can be prebent and then rolled with only one insertion of the workpiece into the machine.

               Orbital movement of the side rolls (with hydraulic pistons) for faster rolling and easier prebending of light to medium

                 capacities.

               Dual rolling speeds.

               Hydraulic balancing system for rolls parallelism.

               Robust drop end, hydraulically operated.

               Controls for all functions and electronic digital readouts in a rolling console.

               Cone bending attachment is standard equipment; and the side rolls can be tilted for more effective cone rolling,

                 after which they can be easily paralleled for normal bending.

               All the advantages of asymmetrical, pyramid and double-pinch bending.

               3 - Electronic digital readouts (LED) for the positions of the side rolls and the lower roll, each with programmable

                 roll position pre-set and memory.

               Components are from world-renowned sources.

               Pre-arranged for easy retro-fit of overhead and side support devices if required after machine has been put

                 into operation.

               Built according to stringent European standards for design, production and quality and bearing the

Specifications:

                Overall working length of the rolls - 80.7”

                Diameters of the upper and lower central rolls - 7.48”

                Diameter of each side roll - 5.91”

                Rolling speeds, dual - 5 and 19-1/2 FPM

                Motor HP - 7

                Dimensions, L x W x H, excluding control console - 174” x 42” x 50”

                Weight - 7,700#

Standard Equipment:

                Two-roll drive. The upper and lower central rolls are driven by a hydraulic motor through a planetary gearbox.

                Induction hardened and crowned rolls.

                Hydraulic adjustment of the lower central roll and of the side rolls, each independently.

                Hydraulic drop end for easy removal of the completed cylinder.

                Hydraulic system complete with controls.

                Orbital movement of the side rolls.

                Dual rolling speeds.

                Hydraulic balancing system for parallelism of the rolls.

                Manual central lubrication.

                Cone bending attachment.

                Operating controls in a rolling console for all functions including adjustment of the lower and side rolls,

                  for paralleling and tilting the side rolls (for cone rolling) and for operation of the drop end.

                3 - Electronic digital readouts (LED) for the positions of the side rolls and the lower central roll are mounted

                  in the rolling control console, each with programmable roll position pre-set and memory.

                Electric motor and controls. Electrics for 3/60/220/440.  Low voltage at the controls.

                Overload and under voltage protection. Emergency stop wires at the front and rear of the machine.

                Hydraulics by Rexroth, Bosch, Duplomatic or Parker.

                Electrics by Siemens, NAIS or Telemecanique.

                Bearings by FAG and SKF.

                   2 - Operating Manual/Parts List

FOB: Maryland
