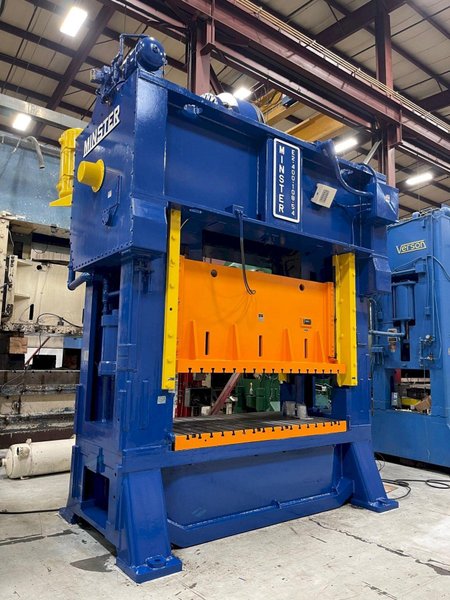

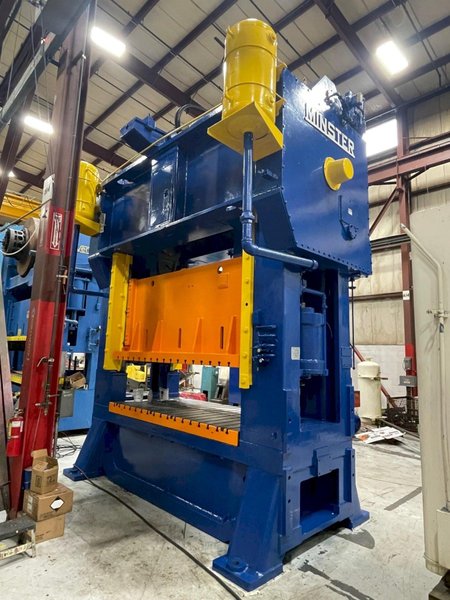

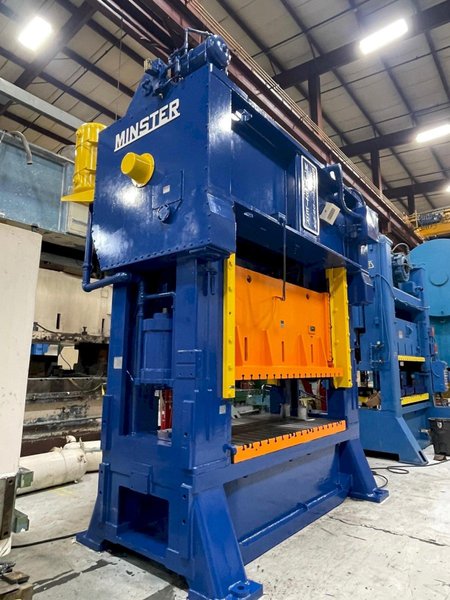

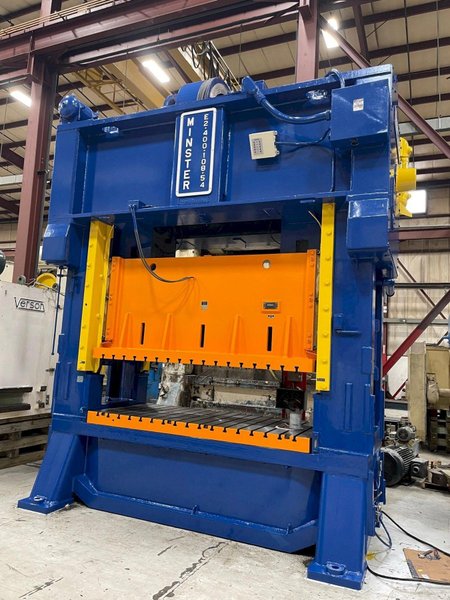

400 ton Minster E2-400-108-54 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Rebuilt
Brand
Category
Model
E2-400-108-54
Stock #
2674
Year
1986
Condition
Reconditioned
Location
Michigan
| Tonnage | 400 |
| Stroke | 12 inches |
| Shut Height | 32 inches |
| Adjustment | 6 inches |
| Bed Size | 108" LR x 54" FB |
| Ram Area | 108" LR x 54" FB |
| SPM | 0-70 VSPM |
|
Standard Specifications
400 ton Capacity 12" Stroke 32" Shut Height 6" Motorized Adjustment 108" LR x 54" FB Bed Area 108" LR x 54" FB Slide Area 0-70 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Monitor Flow Recirculating Lube System T-Slotted Ram and Bolster 6" Thick Bolster Plate Wintriss Shadow V Light Curtains Wintriss Autoset 1500 Vibro Dynamic Floor Pads 31" Wide Windows Floor Standing Overall Height: 18' 9" Tall Footprint: 152.5" LR x 86" FB Press is being offered with full mechanical rebuild. For more information and details regarding the scope of work please contact your sales associate. Can be seen under power in the S & G Press Livonia Michigan Warehouse upon completion! |
|
