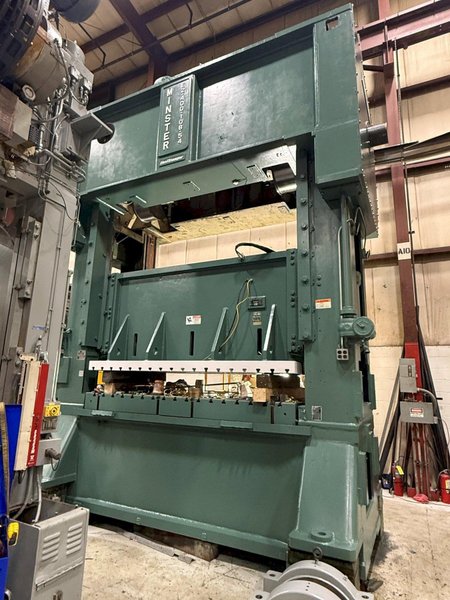

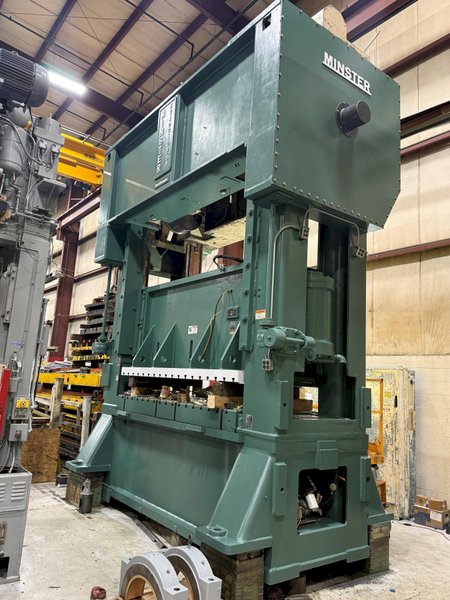

400-ton Minster E2-400-108-54 Hevi-Stamper Progressive Die Metal Stamping Press, Rebuild in Process
Brand
Category
Model
E2-400-108-54
Stock #
2916
Year
Not specified
Condition
Not specified
Location
Michigan
| Tonnage | 400 |
| Stroke | 14 inches |
| Shut Height | 40 inches |
| Adjustment | 10 inches |
| Bed Size | 108" x 54" |
| Ram Area | 108" x 54" |
| SPM | 20-40 VSPM |
|
400-ton Minster Straight Side
Mechanical Metal Stamping Press Model Hevi-Stamper Press Model E2-400-108-54 Serial Number E2-400-16968 400-ton Capacity 14" Stroke 40" Shut Height on Bed 31" Die Height on Bolster 10" Motorized Adjustment 108" LR x 54" FB Bed Area 108" LR x 54" FB Slide Area 20-40 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Single Geared - Twin End Drive 3 Crossbar Knockouts in Ram 8 Adjustable Bronze Lined Gibs Recirculating Lube System 9" Thick Bolster Plate T-Slotted Ram and Bolster Hydraulic Tie Rod Nuts Dual Ross Air Valve Distance Floor to Top of Bed: 33" 8 Point Gibing Motors and New Electrical Controls 38" wide Windows Floor Standing Price included "New" well equipped Toledo Press Controls (other Control Brand Options available upon request) This 400-ton Minster Hevi-stamper Mechanical Metal Stamping Press is currently in process of being fully rebuilt with new electrical controls. Please ask your salesperson for more details and a full scope of work. Upon completion of Rebuild this 400-ton Minster Hevi-Stamper can be seen under power in the S&G Press Livonia Michigan Warehouse! Click for more 400-ton Press Options. Rebuilt 400-ton Minster Hevi-stamper Press For Sale, Straight Side Mechanical Presses, Used Presses, Minster Press, Rebuilt / Reconditioned Presses |
|
