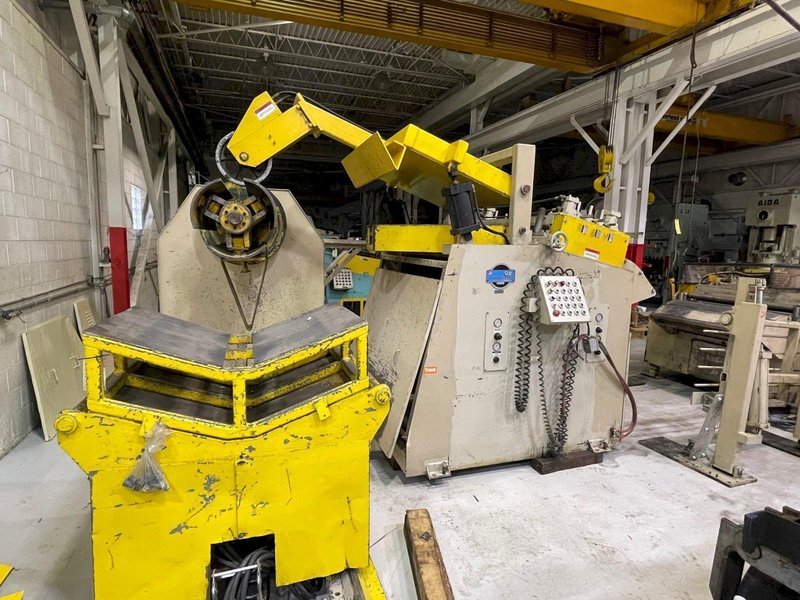

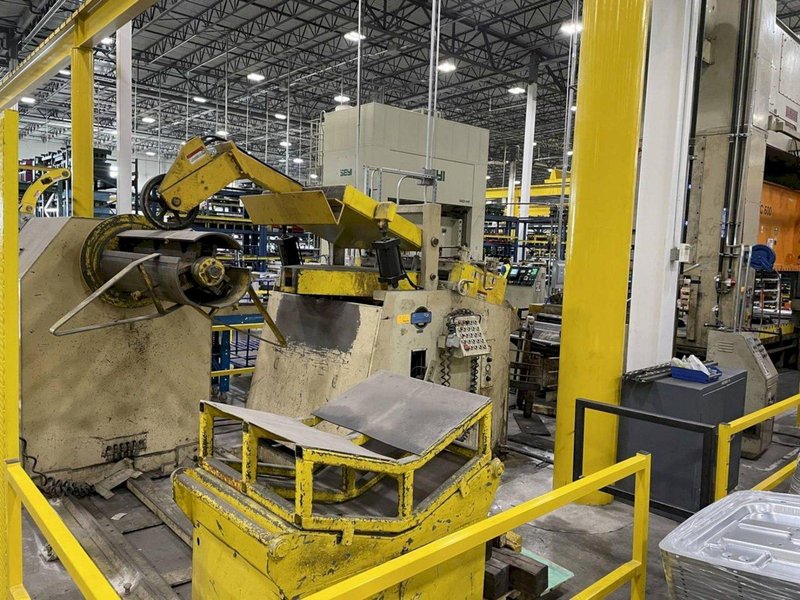

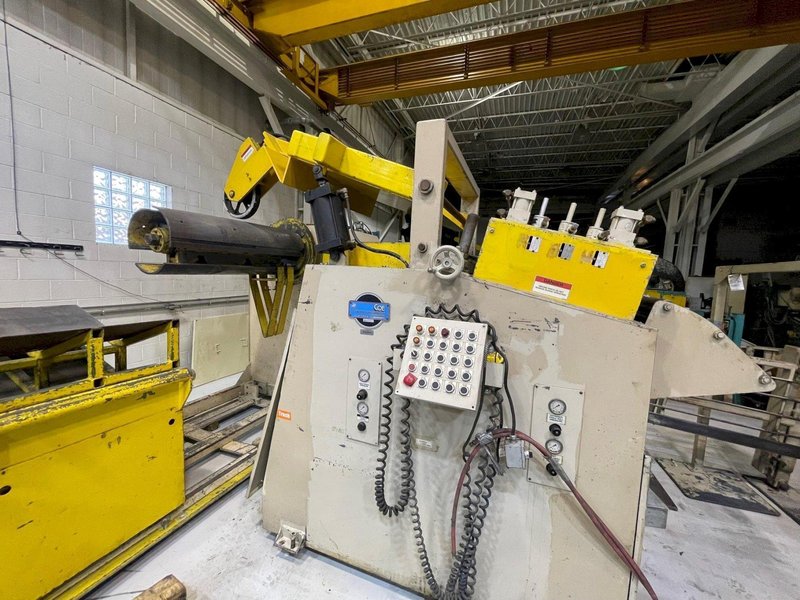

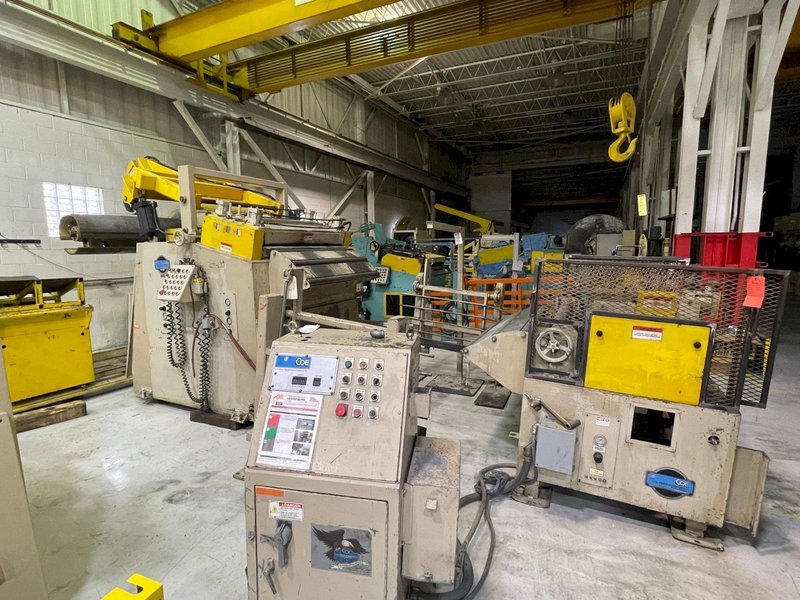

Coe Press Coil Feed Line 15,000 lb x 48" Wide
Brand
Category
Type
Model
CPR PO-15048 / CPPS-300-48 / CPRF-448
Stock #
5298
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 15000 pounds |
| Stock Width Capacity | 48 inches |
| Max Stock Thickness Capacity At Full Width | .070 inches |
| Minimum Expansion Range: | 19.25 inches |
| Maximum Expansion Range: | 24.75 inches |
| Coil O.D. Capacity: | 72 inches |
|
Coe Press Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 15,000 Lbs. Coil width capacity: 48" Stock thickness capacity: .070" x 48" Wide Expansion range: 19.25" - 24.75" Coil O.D. capacity: 72" Coe Press Conventional Complete Coil Feed Line Equipment and Features: Coe Press Coil Reel Uncoiler Model No.: CPR-PO-15048 Three leaf mandrel coil reel Heavy duty wedge type hydraulic coil reel mandrel expansion Coil reel keeper arms Threading drive for jog forward and reverse Air brake mounted on main coil reel spindle Adjustable tensioning Traveling coil load car Powered lift and travel Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-48 Entry and Exit powered coil straightener pinch rolls with air operated adjustments Seven 3.0" diameter coil straightening rolls Manual upper straightener rolls adjustments via screw jacks Hand crank stock width edge guides Inclined powered coil straightener head Exit cascade loop support rollers Stock peeler / de-bender / hold down station Motorized end wheel on coil hold down arm Hand held pendant control for jog forward and reverse Variable speed powered coil straightener drive and control package Common operator control station Auto/Run cycle Variable speed loop control Coe Press Exit Threading Table Model No.: ETT Bombay door style Air operated actuation Coe Press Servo Roll Feed Press Feed Model No.: CPRF-448 Upper and lower matte chrome finished servo feed rolls four inch diameter Air operated upper servo feed roll lift / pilot (dual cylinder) Cabinet base mounted with pass line adjustments Hand crank entry stock width edge guides Price includes new Coe Servo Master 6" control upgrade on feeder (lead time to be confirmed) Reference line layout available Warranty: Standard MDNA 30 day return privilege Terms: Prepaid prior to removal |
|
