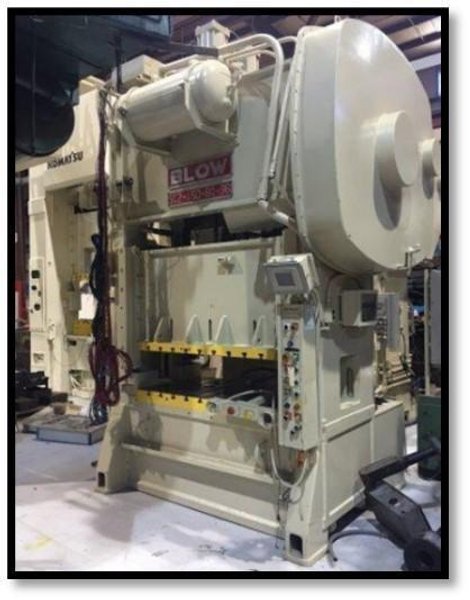

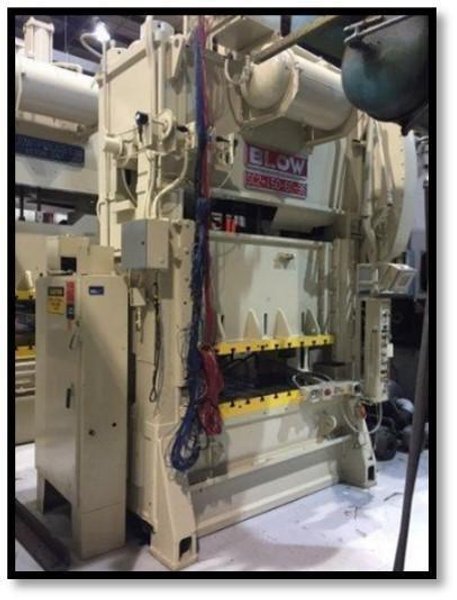

Blow SC2-150-60-36 Straight Side Press, Used

Press Specifications:

·         150 U.S. Tons Capacity (1334 kN)

·         6.00 in. Stroke (152 mm)

·         4.00 in. Shut Height Adjustment (102 mm)

·         18.00 in. Shut Height (457 mm)

·         60.00 x 36.00 in. Ram Area (1524mm x 914 mm)

·         60.00 x 36.00 in. Bolster Area (1524mm x 914 mm)

·         21.00 in. Side Window Opening (533 mm)

·         30 - 60 SPM Speed Range

Equipped With:

·         Air clutch & brake

·         Air Counterbalances

·         Recirculating Lube System

·         T-Slotted Ram Plate and Bolster

·         8 point gibbing

·         Electrical Control Cabinet

Equipped With (cont’d):

·         Motors and Controls

·         Palm Buttons

·         Simatic Panel Siemens

·         Baumer Electric Rotating Cam Limit Switch

·         Dual Ross Air Valve

·         Motorized Ram Adjustment

·         Main Motor Fwd./ Reverse

• Imco Tonnage Monitor

Note:  All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
