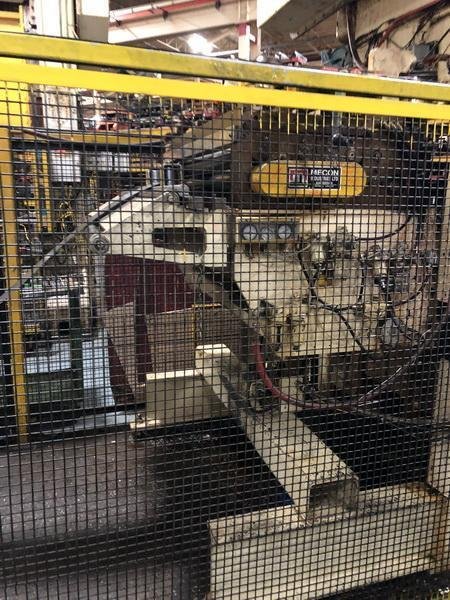

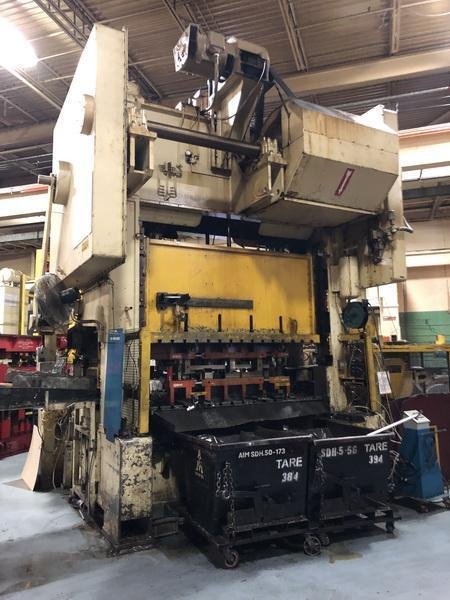

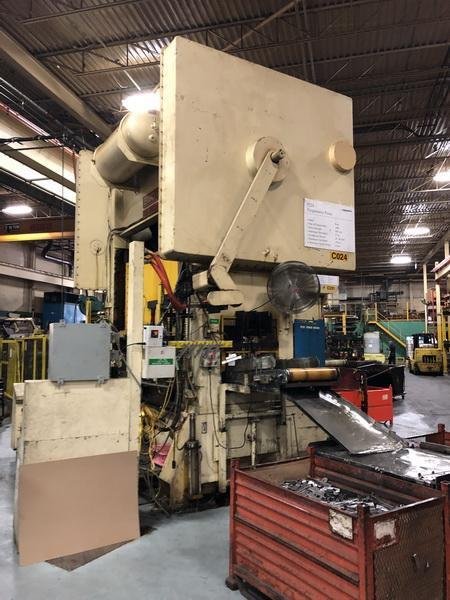

400 Ton Blow Progressive Press
Brand
Category
Model
Not specified
Stock #
102165
Year
Not specified
Condition
Used
Location
Not specified
| Tonnage | 400 tons |
| Stroke | 10 inches |
| Shut Height | 28 inches |
| SPM | 40 |
| Vari Speed (Yes/No) | yes |
| Bed W | 96 inches |
| Bed L | 48 inches |
|
Bed Size: 96" x 48"
Max Shut Height: 28”
Set Die Build Height: 27”
Slide Adjustment: 10”
Slide Stroke: 10”
SPM (min): 20
SPM (max): 40
Method of Scrap Removal: Shaker Trays
BOLSTER
Length (L to R): 96”
Width (F to B): 48”
Die Build Passline (from top of bolster): 12”
Top of Bolster to Floor Height (operator stand): 47.5” (33.5”)
Bolster Thickness: 7.5
RAM
Length (L to R): 96”
Width (F to B): 48”
Ram Thickness: 4.5”
Left Hand Window: 30” x 30”
Right Hand Window: 30” x 30”
T-Bolt Size: 1” |
|
