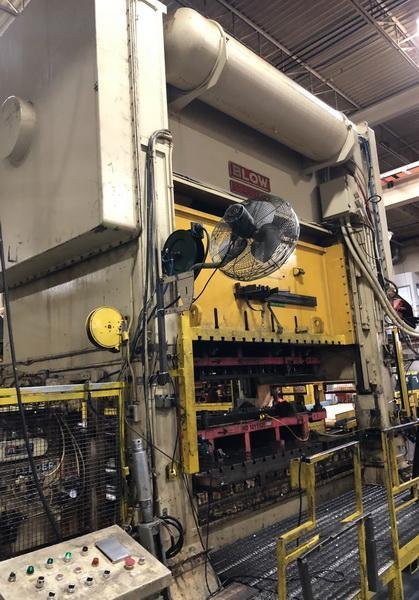

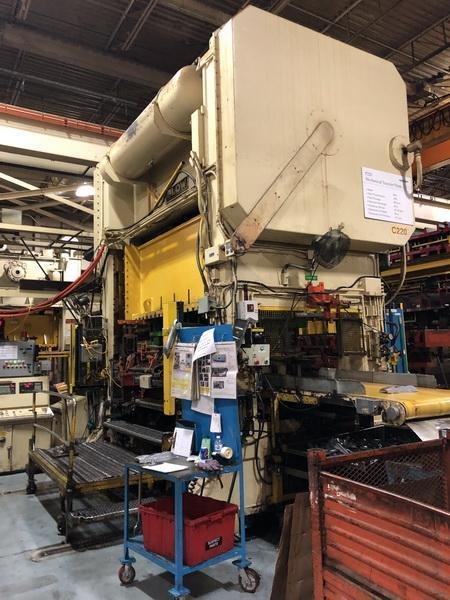

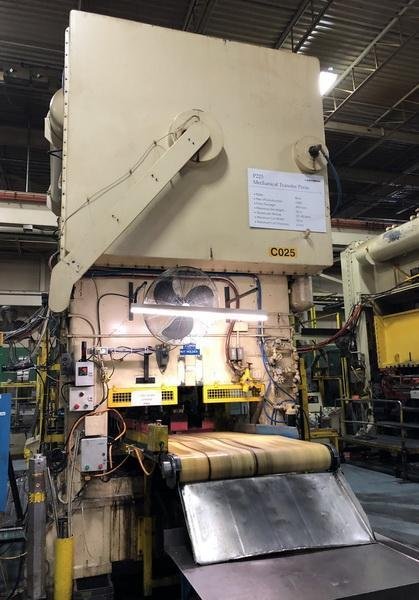

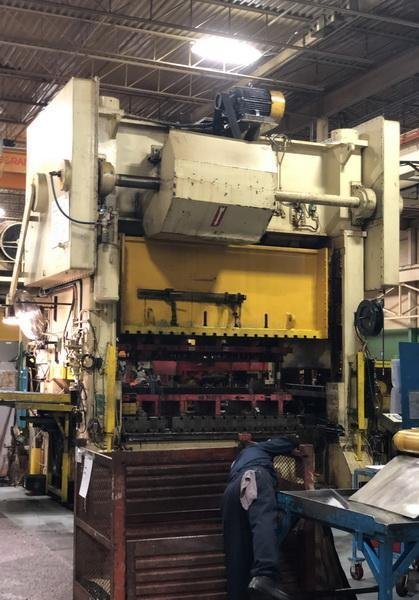

400 Ton Blow Progressive Press
Brand
Category
Model
SC2-400-120-60
Stock #
102164
Year
Not specified
Condition
Used
Location
Not specified
| Tonnage | 400 tons |
| Stroke | 16 inches |
| Shut Height | 30 inches |
| SPM | 40 |
| Vari Speed (Yes/No) | yes |
| Bed W | 120 inches |
| Bed L | 60 inches |
|
Bed Size: 120" x 60"
Type of Press: Straight Side
Tonnage: 400 ton
Type of Operation: Progressive
Max Shut Height: 30”
Set Die Build Height: 26.125”
Slide Adjustment: 10”
Slide Stroke: 16”
SPM: 20 - 40
Method of Scrap Removal: Shaker Trays / Conveyor
BOLSTER
Length (L to R): 120”
Width (F to B): 60”
Die Build Passline (from top of bolster): 15.125”
Top of Bolster to Floor Height (operator stand): 47” (25.5”)
Bolster Thickness: 6
RAM
Length (L to R): 120”
Width (F to B): 60”
Ram Thickness: 4.25”
Left Hand Window: 60” x 30”
Right Hand Window: 60” x 30”
T-Bolt Size: 1” |
|
