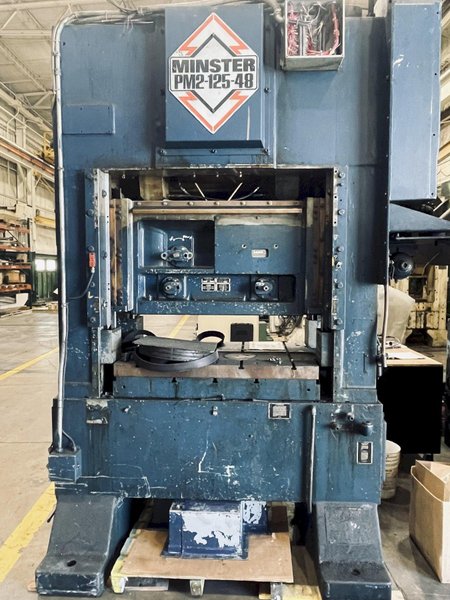

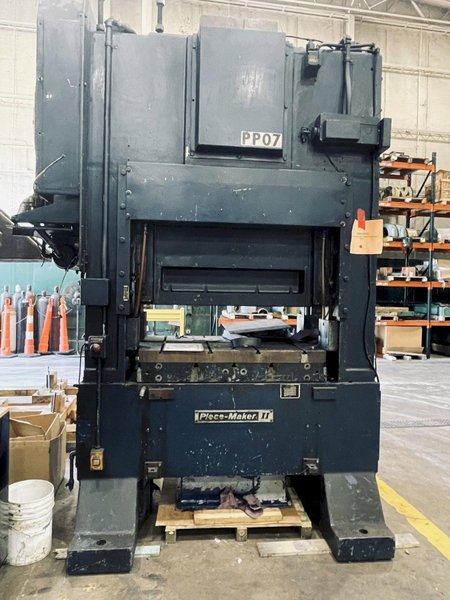

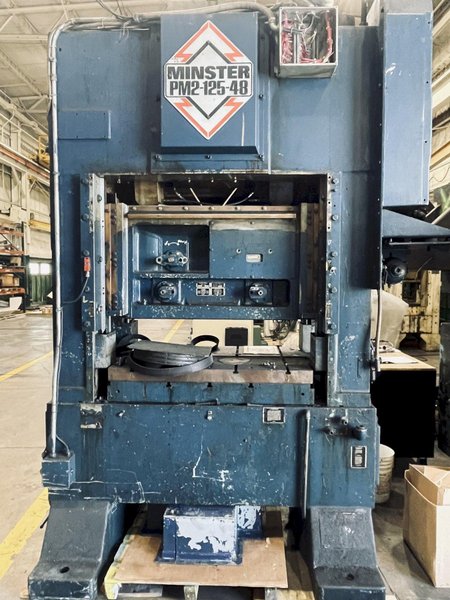

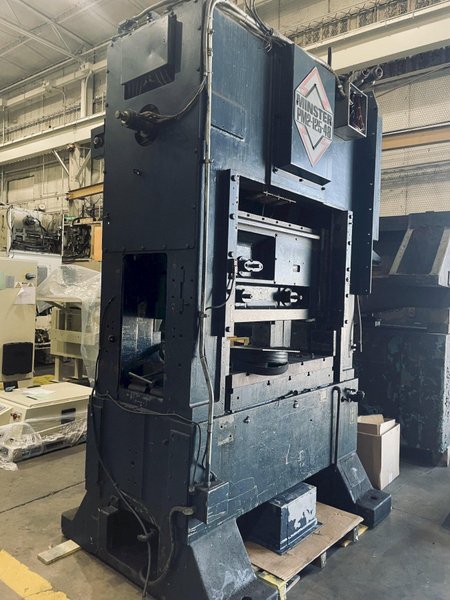

Minster PM2-125-48 Double Eccentric “High Speed” Press

Press Specifications:

·         125 U.S. Tons Capacity (1125 kN)

·         1.25 in. Stroke (32 mm)

·         2.00 in. Slide Adjustment (51 mm)

·         15.00 in. Shutheight, SDAU, on Bed (381 mm)

·         48.00 x 20.50 in. Slide (1219 mm x 521 mm)

·         48.00 x 32.00 in. Bed Area (1219 mm x 813 mm)

·         38.00 in. Distance, Floor to Top of Bed (965 mm)

·         50.00 in. Between Gibs (1270 mm)

·         15.00 in. Upright Opening (381 mm)

·         0 – 700 SPM (full energy above 300 spm)

·         40 HP, 1800 RPM Drive Motor (28.83 kW)

·         480 VAC, 60 hz, 3 ph incoming power

·         156.00 in. Overall Height (3962 mm)

·         134.00 in. Motor/guard removed (3404 mm)

·         31,400 lbs. Approximate Press Weight (14,243 kg)

Equipped With:

·         Flywheel Type

·         Right hand drive with extension on opposite end

·         Minster Air Operated Clutch and Brake

·         Air Operated flywheel brake electrically interlocked

·         Frame of cast four-piece tie rod construction

·         Minster “Monitorflow” recirculating oil lubrication system

·         Long barrel type manual slide adjustment arranged for detachable air operated wrench

·         Eight adjustable bronze lined gibs, F and B Includes

hydrostatic gibs

·         Auxiliary locking arrangement on each connection screw

·         Minster integral dynamic balancing unit located on top of press which will permit operating up to full speed without being bolted down. Balancing unit is based on upper die weight of 500 lbs.

Note:  All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.

Pedestal Control Enclosure is ergonomically designed to include

illuminated indicators and operator/set-up buttons as well as to use minimal floor space. Also included is the press motor and clutch control circuit with a disconnect switch. The pedestal is located on the right-hand side and is wired with rigid standpipe and flexible overhead conduit to junction box on front of crown.

Control Station Includes:

·         Mounted on pedestal

·         Clutch Selector Switch to select Control Operator Mode

·         (Inch-Setup-Continuous)

·         Power Off-On Locking Selector Switch

·         Supervisory Control Lock Selector Switch

·         Function Enable Illuminated Pushbutton

Set-up Station:

·         Mounted on left hand upright. Facilitates material threading and die set-up and includes:

·         Two Hand Inching Arrangement

·         Stop Button

Run Station includes:

·         Two Guarded Run Buttons to operate press

·         Continuous Arm Illuminated Pushbutton

·         Top Stop Button

·         Stop Button

·         Master Stop Button

Two (2) Die Safety Block Receptacles (less blocks) located on

side of control pedestal

Clutch and Motor Control Circuits including pushbuttons,

operate on 110 VAC from control transformer.

IEC High Voltage Control Components

Variable Frequency Press Drive Motor System New ABB 40HP

variable frequency drive system. Features the latest in press drive technology with Auto-Tune Setup, improved torque response, and high efficiency throughout the operating speed range.

MINSTER PRODUCTION MANAGEMENT CONTROL includes the

following features:

·         High Resolution Industrial 15” Flat Panel Touchscreen Display with “Blind Node” PC

·         Allen Bradley PLC Processor

·         16-Pole Programmable Limit Switch

·         Brake Monitor / Press Stopping Time Readout

·         200 Tool Storage Capacity with 24-Digit Alpha Numeric I.D. Codes

·         System Prompts and Diagnostic Messages

·         Motor Start/Stop/Speed/Load Control

·         Dual Clutch Valve Monitor

·         Stock Lubricator Interface Output

·         Auxiliary output interface for secondary control elements

o    2nd blowoff

o    Lubricator

o    diverter tables, etc.

·         Blowoff Valve Interface Output

·         Production Counters

o    Totalizers

o    Preset/Batch

·         Maintenance Reminders

o    Activated by Predetermined Hours

o    Clutch Engagements

o    Number of Parts Made

·         Press Lifetime Production Record

o    Hours

o    Cycle

o    Clutch Engagements

·         Minster PMConnect Production Monitoring System Interface capability

·         Relay Based Primary Machine Control
