SPM | 650 |
Tonnage | 80 metric-tons |
Stroke | 75 millimeters |
Shut Height | 380 millimeters |
Vari Speed (Yes/No) | yes |
Bed W | 900 millimeters |
Bed L | 1500 millimeters |
Crank (Single/Double) | double |
Air Clutch (Yes/No) | yes |
Feed | VAMCO SR150 FEED includes Siemens Control |

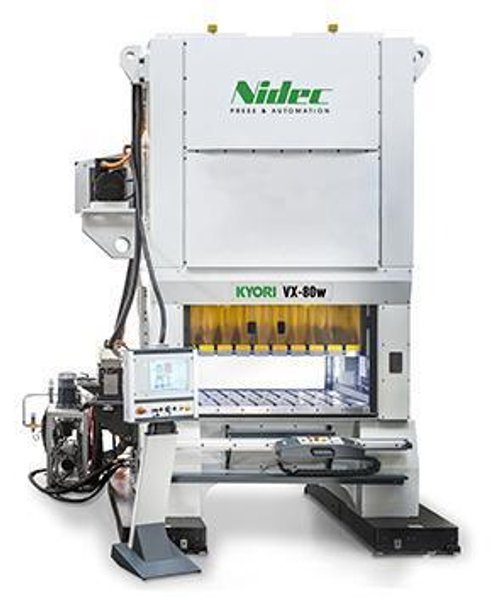

SPECIFICATIONS Model Number........................................................... VX-80W Force × Distance off Bottom..................................... 800 kN (88 US Ton) Drive Arrangement.................................................... Flywheel w/ Dynamic Balancer Drive Location........................................................... Left Hand Side Approximate Press Weight........................................ 27,000 kg (59,525 lbs) Shutheight Indicator Readout.................................... Metric Shop Air Pressure, Minimum.................................... 5.9 bar (86 PSI)
Slide Specifications Stroke Length, Speed Range..................................... 7 distinct increments 25 mm (0.98 in) @ 650 SPM 30 mm (1.18 in) @ 550 SPM 35 mm (1.38 in) @ 470 SPM 40 mm (1.57 in) @ 400 SPM 50 mm (1.96 in) @ 330 SPM 60 mm (2.36 in) @ 270 SPM 75 mm (2.95 in) @ 150 SPM Shutheight, Maximum (SDAU)................................ 380 mm (14.96 in) on Bolster Shutheight Adjustment.............................................. 80 mm (3.15 in) Electric Slide Adjustment Device............................. Servo Motor Area of Slide.............................................................. 1380 x 580 mm (54.33 x 22.83 in) Slide Machining......................................................... Standard T-Slots Maximum Recommended Upper Die Weight........... 550 kg (1212 lb.) @ Stroke 25-65mm (0.98-2.56 in) 450 kg (992 lb.) @ Stroke 66-75mm (2.60-2.95 in)
Bolster Specifications Bolster Plate Material................................................ FC300 Steel Area of Bolster........................................................... 1500 x 900 mm (59.05 x 35.43 in) Opening in Bolster..................................................... 1160 x 210 mm (45.66 x 8.26 in) Bolster Plate Thickness.............................................. 100 mm (3.94 in) Bolster Plate Machining............................................. Standard T-slots
Press Frame Specifications Floor to Top of Bed................................................... 960 mm (37.8 in) Upright Opening, F-B................................................ 380 mm (14.9 in) Opening in Bed, R-L x F-B....................................... 1200 x 250 mm (47.2 x 9.8 in) Approx. Overall Area (Length x Width)................... 2850 x 1825 mm (112 x 73 in) Approx. Overall Height from Floor........................... 4070 mm (160 in) |
