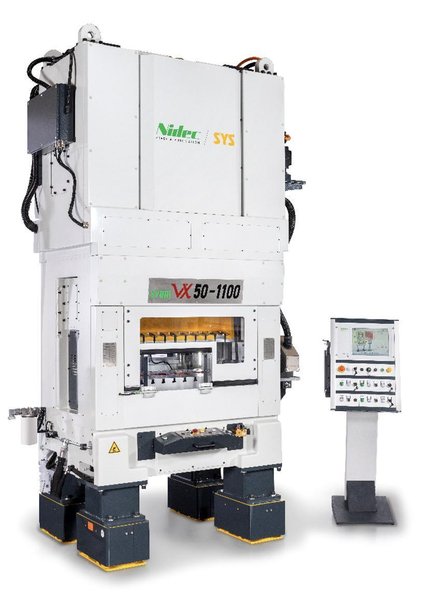

Kyori VX50-1100 SYS Feed System

Brand

Not specified

Location

Not specifiedGermany

REQUEST FINANCING

Specifications
Files & Videos

Speed	420 -1150 SPM
Capacity	500kN
Tool Loading Area L-R X F -B	1100 x 600 mm
Adjustable Stroke Length	16, 19, 25, 32, 38, 44, 51, 57, 64 mm
Power Infeed	76 kVA
Servo Motor Power	47 kW
Die Shutheight	235 – 290 mm (can be customized)
Slide Adjustment	55 mm
Strip Inlet Width	max. 280 mm
Strip Inlet Height	100 – 140 mm
Highly dynamic, link motion adjustable stroke design Modern, high-performance press control PCS100 in modular design Highly efficient drive technology ensuring lower Co2 footprint Stroke adjustment doesn’t change the shut height Bottom-dead-center position and crank angle position will not be changed Industry 4.0 capable via OPC-UA interface Press force Integrated tool monitoring Integrated servo-feed-system SYS Feed System PV100 Strip width nom. 100 mm Strip width max. 150 mm Roller diameter. 62,4 mm Roller width 60 mm Strip thickness min. 0,05 mm Strip thickness max. 2,0 mm
