36" x 0.075" 20,000# Iowa Precision Cut To Length Line
Brand
Category
Type
Model
Not specified
Stock #
2396
Year
1979
Condition
Good
Location
Ohio
| Max Weight | 20000 pounds |
| Max Coil Width Capacity | 36 inches |
| Max Stock Thickness Capacity At Full Width | 0.075 inches |
|
Iowa Precision Universal Coil Processor

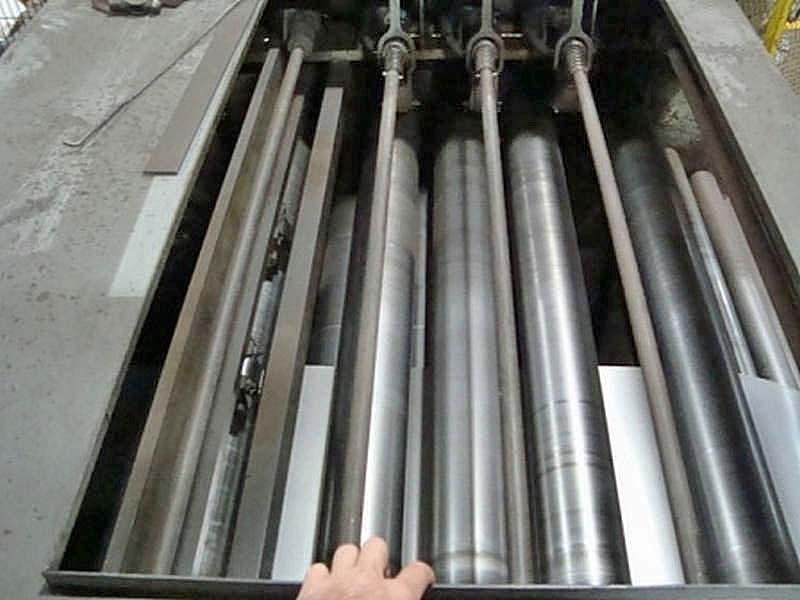

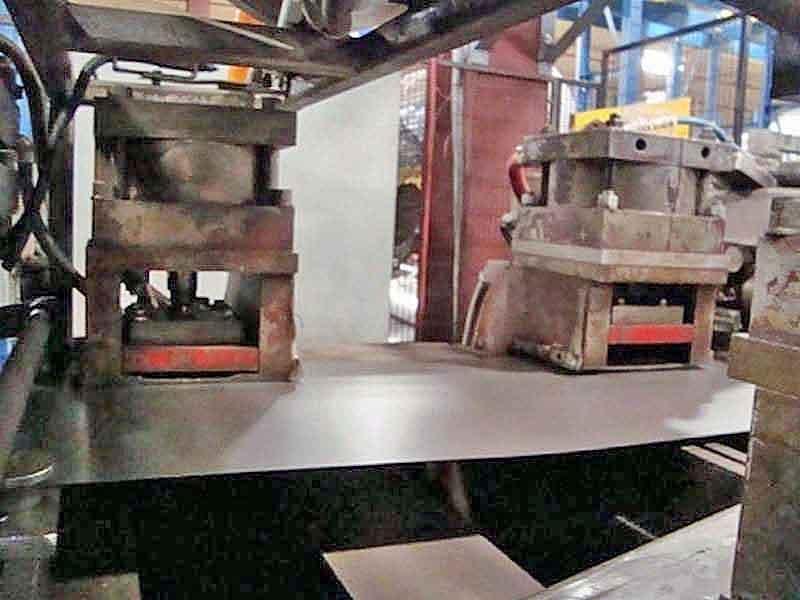

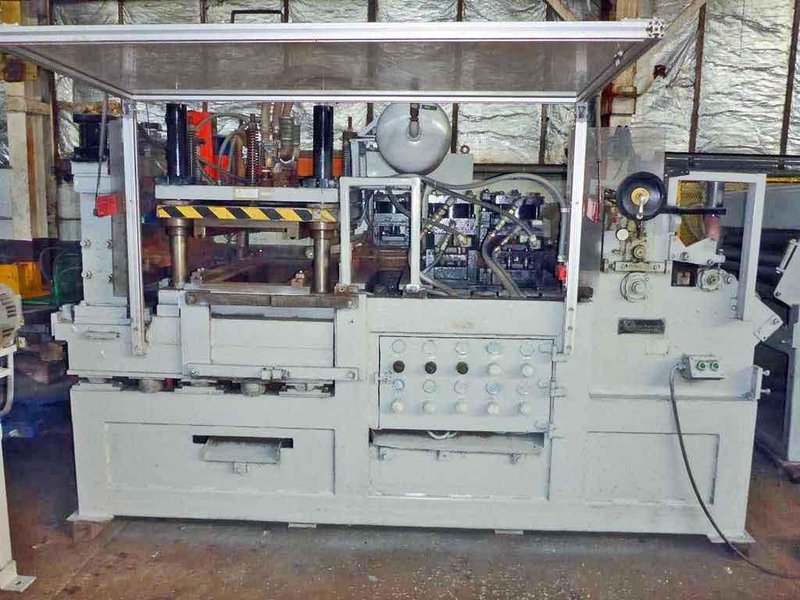

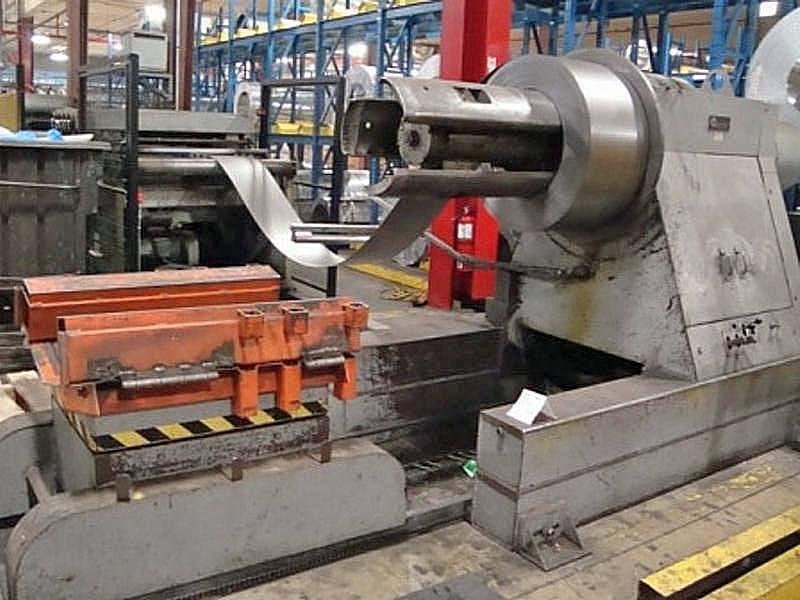

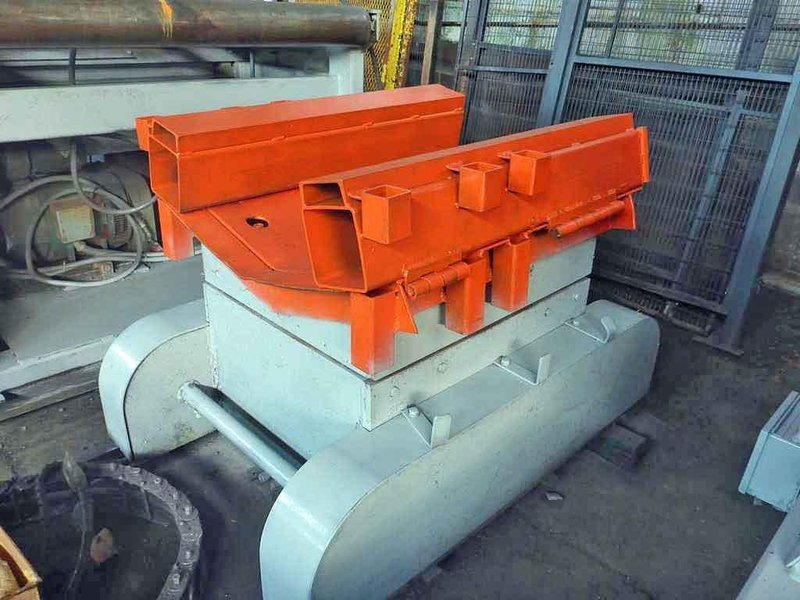

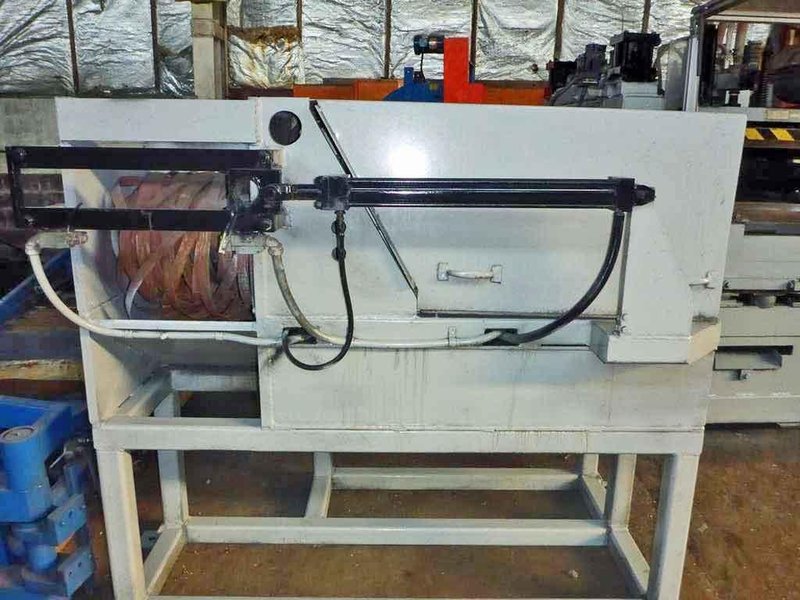

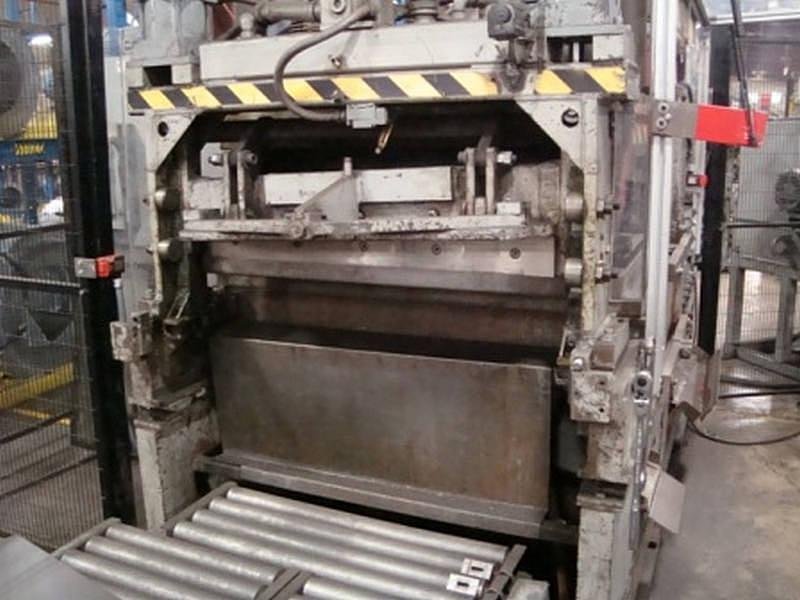

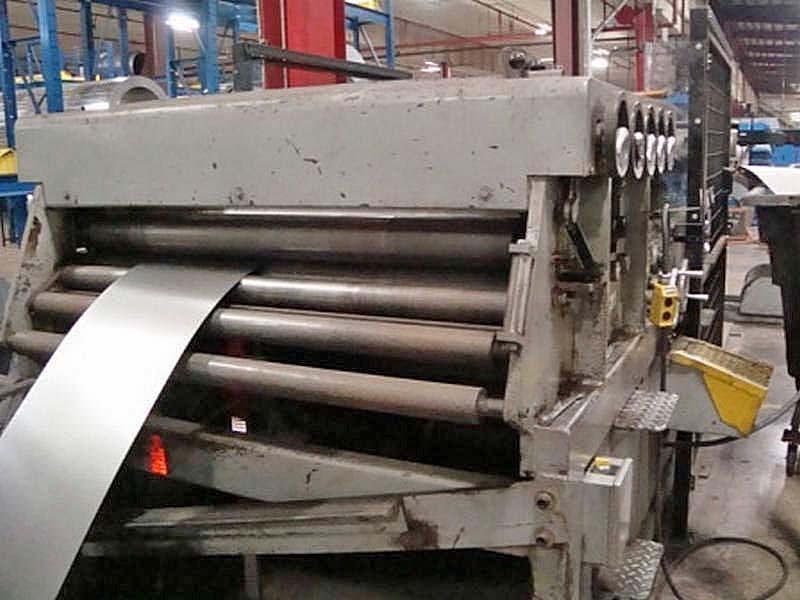

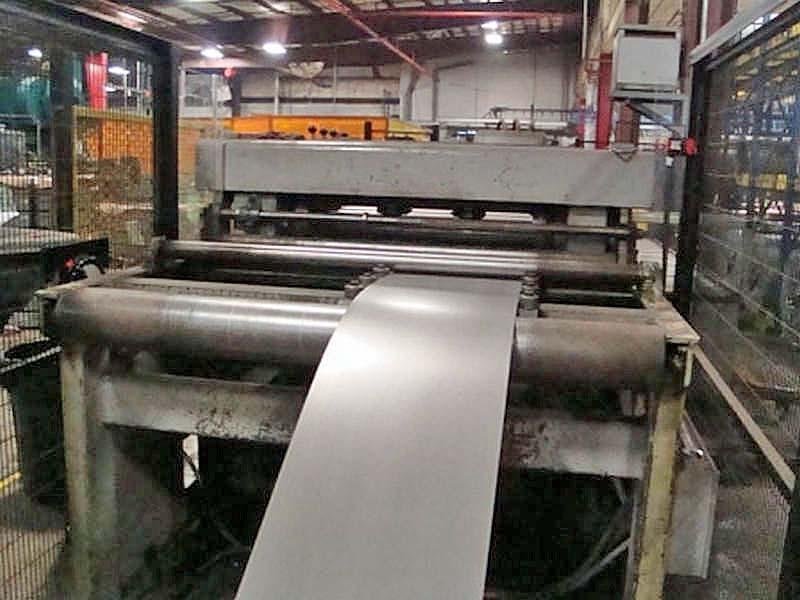

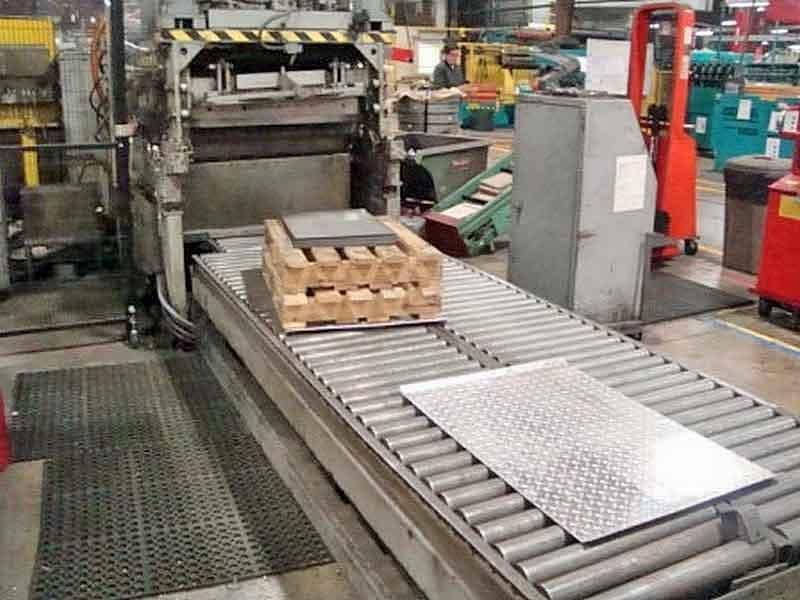

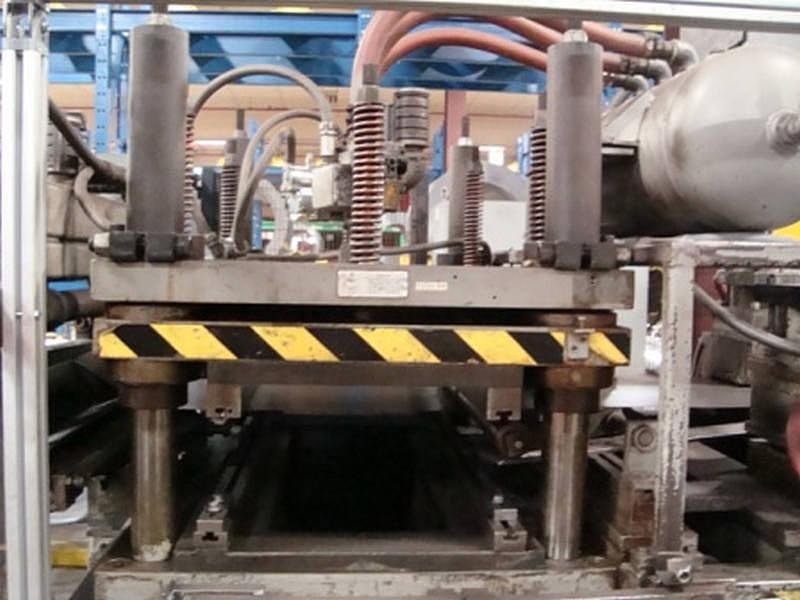

Model: FTS3614 Capacity: 36" x 14 Gauge (0.075") Mild Steel Line Direction: Right to Left Consisting of: -Entry Coil Car: Model: CC020 20,000# Capacity Serial #CC7914 Powered Lift and Traverse Overall Size: 48" L x 38" W x 42" High -Uncoiler: Model: 20-48 20,000# Capacity Serial No.: UC79027 Expansion Range: 18" - 24" Hydraulic Expansion Loop Control Arm Overall Size: 114" L x 60" W x 82" High -Main Slear Unit: Entry Passline Roll Roller Edge Guides, Manual Width Adjustment Slitter Head Mounted on Entry side of Straightener Straightener: Entry Pinch Rolls 6 Straightening Rolls, 3 over 3, W/Backups Hardened & Ground Rolls Exit Pinch Rolls (Measuring Rolls) Exit Catenary Rolls Overall Size: 98" L x 86" W x 72" High -Roller Conveyor Section: Overall Size: 144" L x 46" W x 52" High -Punching and Notching Unit w/Shear: Entry Catenary Rolls Entry Pinch Rolls 4 Punching / Notching Stations 2 on each side before Air Ram Shear Air Ram 4 Post Die Section 36" Wide Capacity Shear Hydraulic Operation 36" Wide Capacity Overall Size: 112" L x 79" W x 72" High -Scissor Lift Exit Conveyor: Conveyor Roller Top Overall Size: 144" L x 46" W x 40" High -Scrap Winder: Oscillate Wind Hydraulic Power Unit Overall Size: 80" L x 53" W x 61" High -Operators Control Panel: Overall Size: 30" L x 24" W x 48" High -Electrical Cabinet with Unico Analog Drive System: Overall Size: 36" L x 20" W x 72" High -Line was designed as a Looping Line with Pit (Currently No Pit required. Ran at 90 - 100 FPM) -Line Speed: 125 FPM Max. -Drawings are included. |
|
