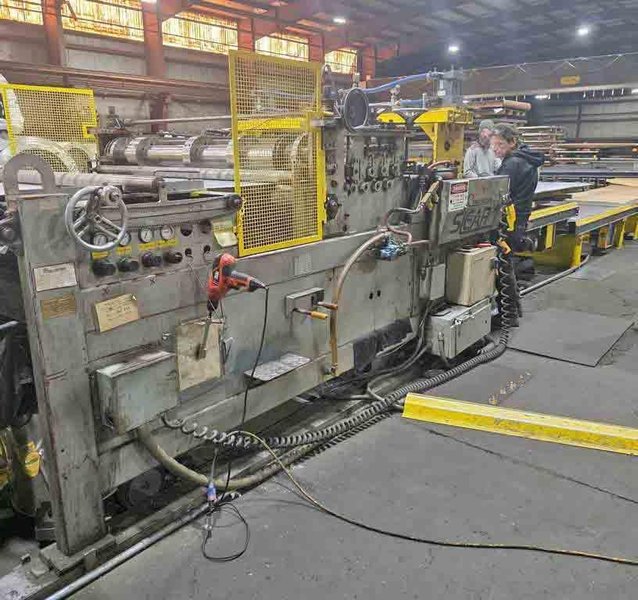

60" x 0.060" x 20,000# Iowa Precision Slear Line

YEAR: 1991

60" x 0.060" x 20,000# Iowa Precision Slear Line

-Maximum Coil Weight: 20,000 lbs.
-Maximum Coil Width: 60"
-Thickness Range: 0.012" - 0.060"
-Coil I.D.: 19" - 24"
-Coil O.D.: 60"
-Stack Length: 12" - 120"
-Maximum Speed: 70 - 100 FPM
-Minimum Edge Trim Per Side: 0.250"
-Minimum Slit Width: 4"
-Maximum Bundle Weight: 5,000 lbs.
-Slit Width Accuracy: 0.0625"
-Length Accuracy: 0.0625"
-Maximum Number of Cuts: 10
-Maximum Number of Mults: 9
-16 Gauge Maximum Mults: 6 (-0 + 0.125")
-18 Gauge Maximum Mults: 7 (-0 + 0.125")
-Line Direction: Left to Right

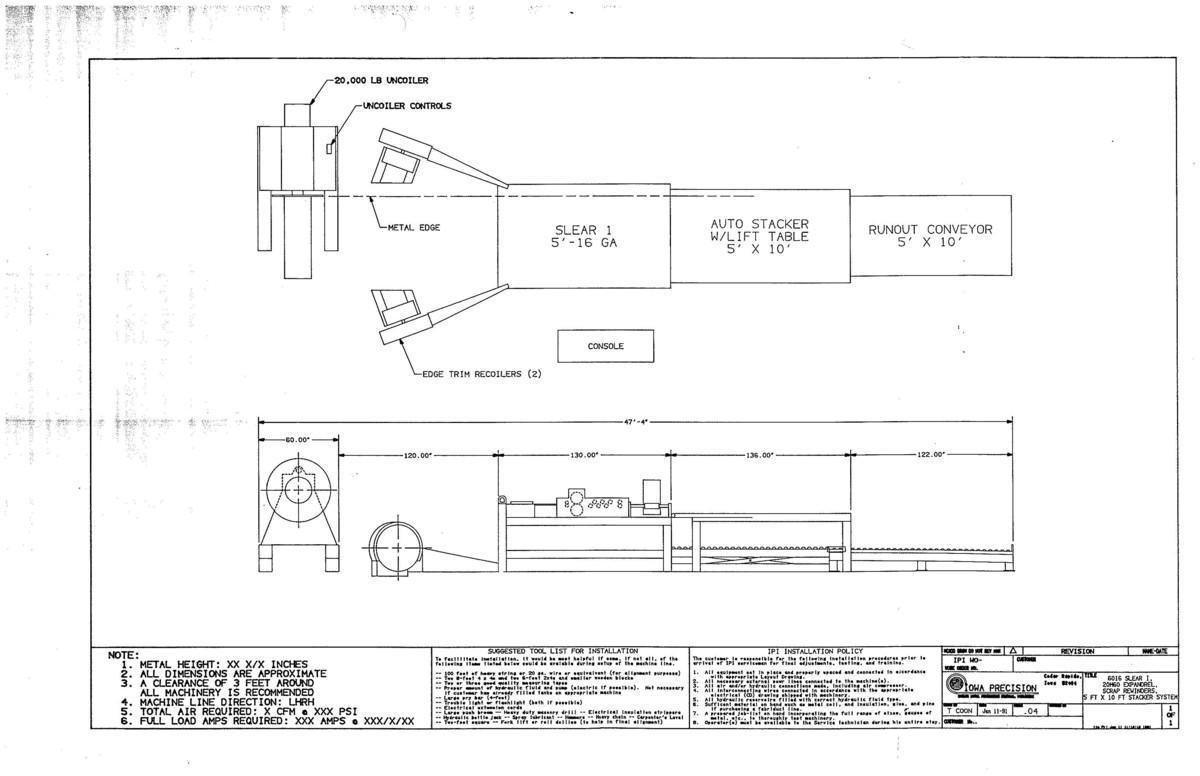

Consisting of:

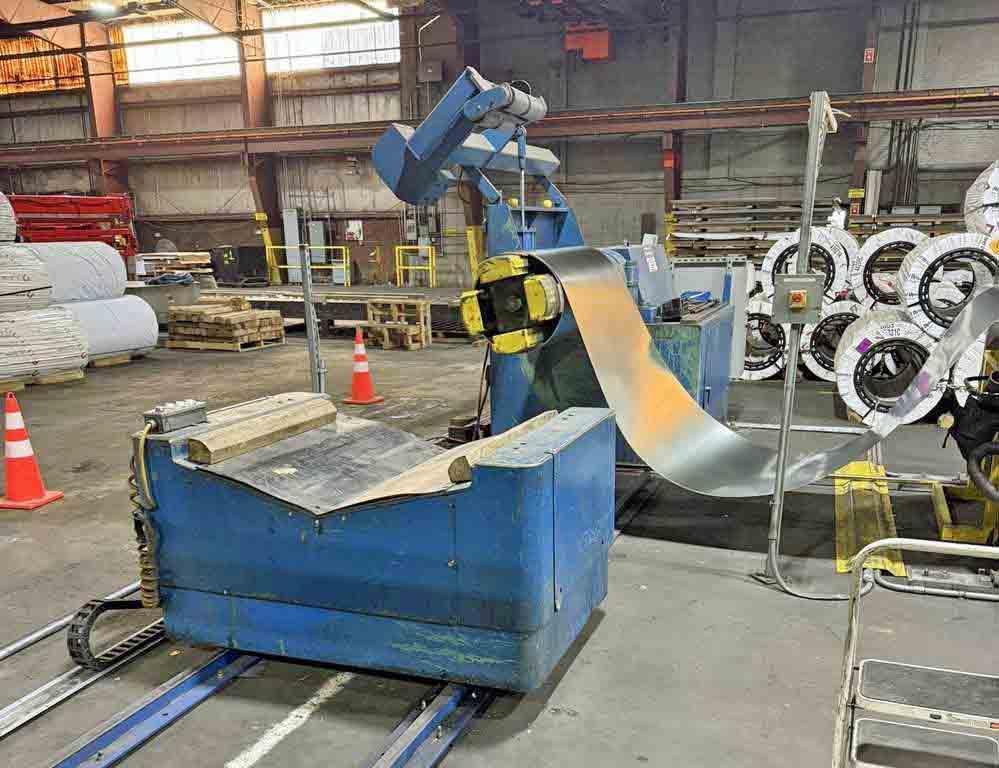

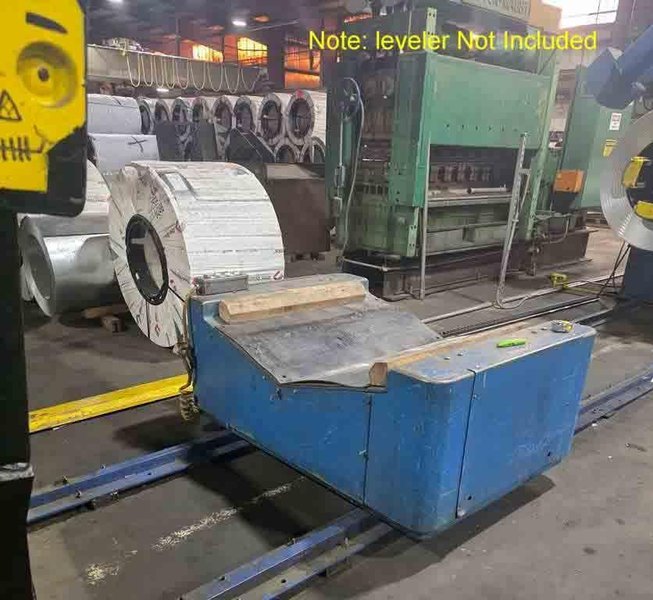

-Entry Coil Car: Rowe
Electric Motor Operated
Hand Pendant Control

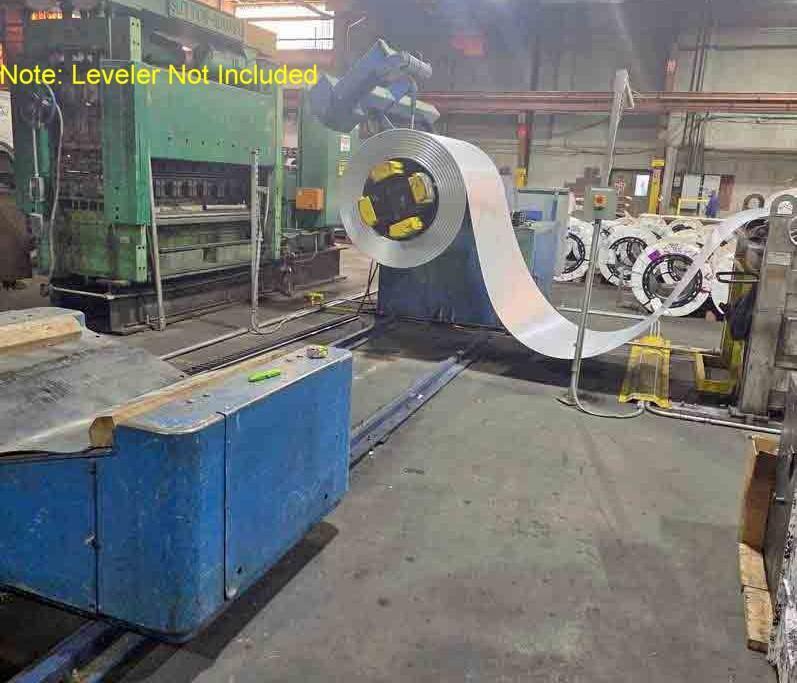

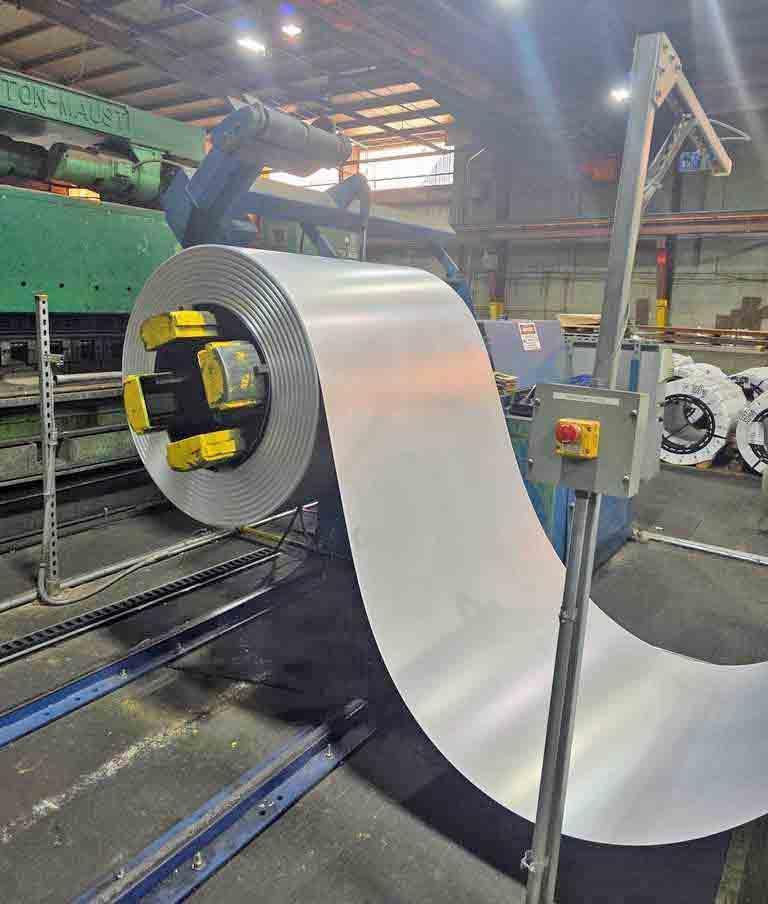

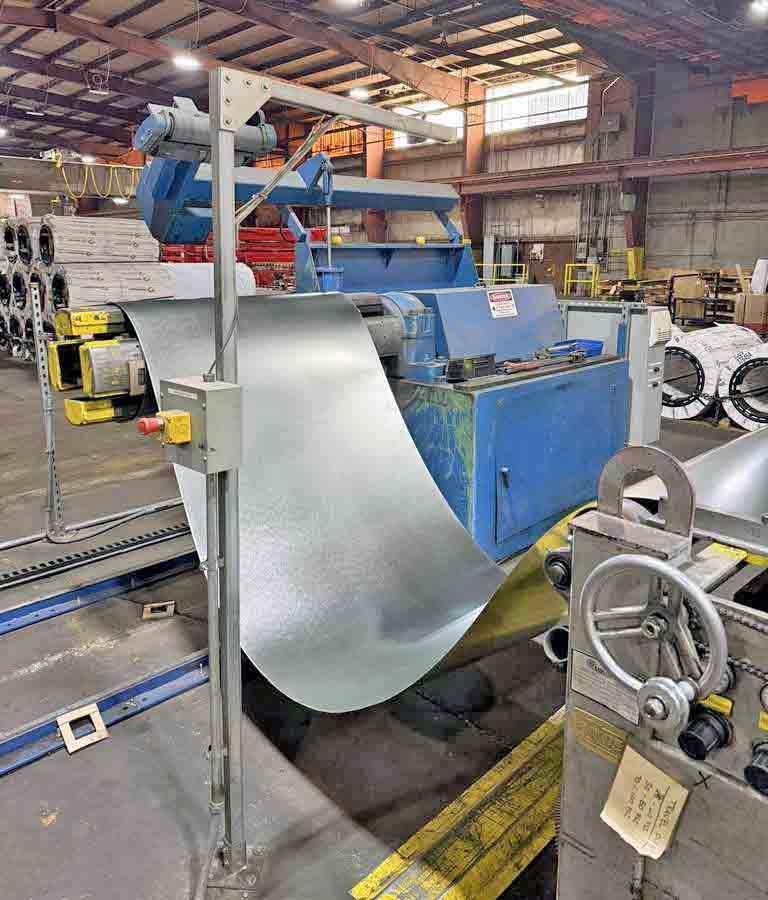

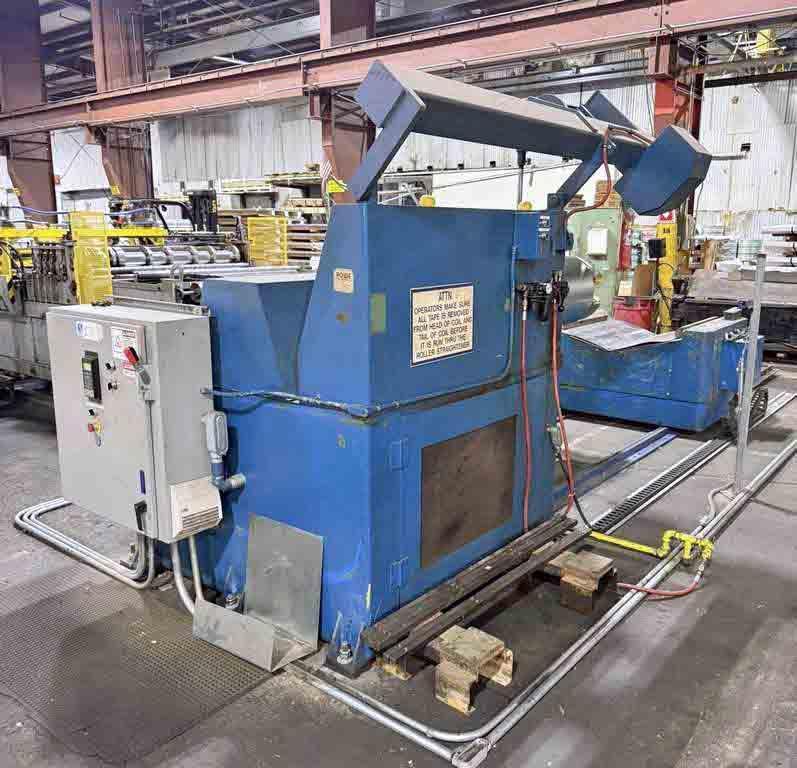

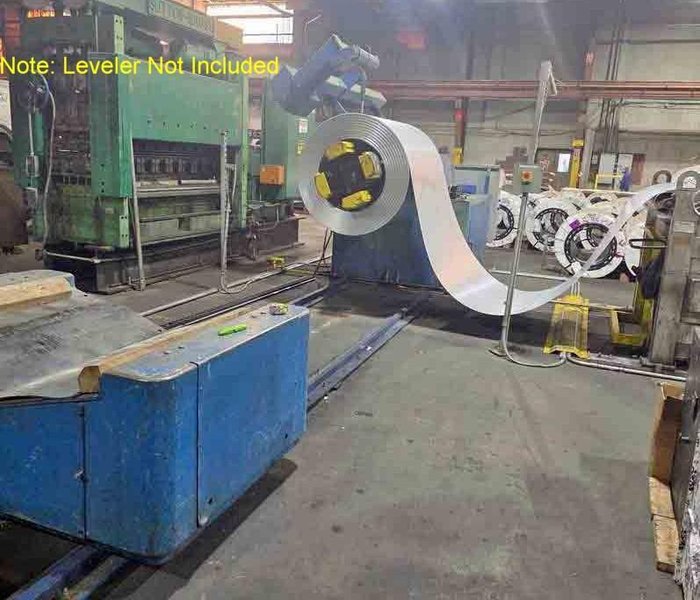

-Uncoiler: Rowe
Model: 20060-DSV
Powered Expansion
4 Segment Mandrel
Threading Drive
Holddown Roll
Fixed Base

-Loop Control Sensor:

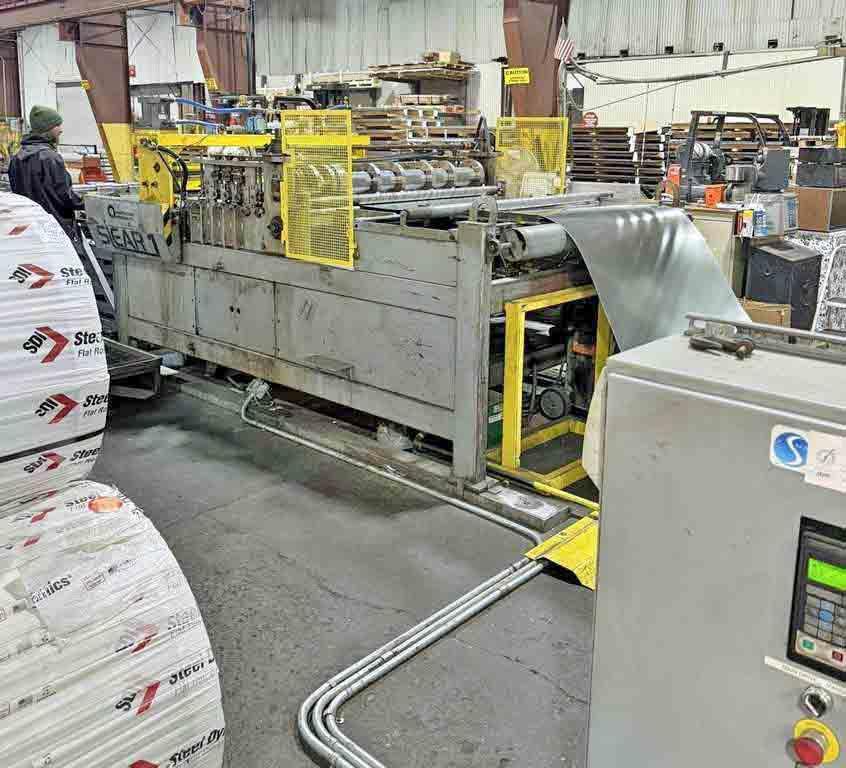

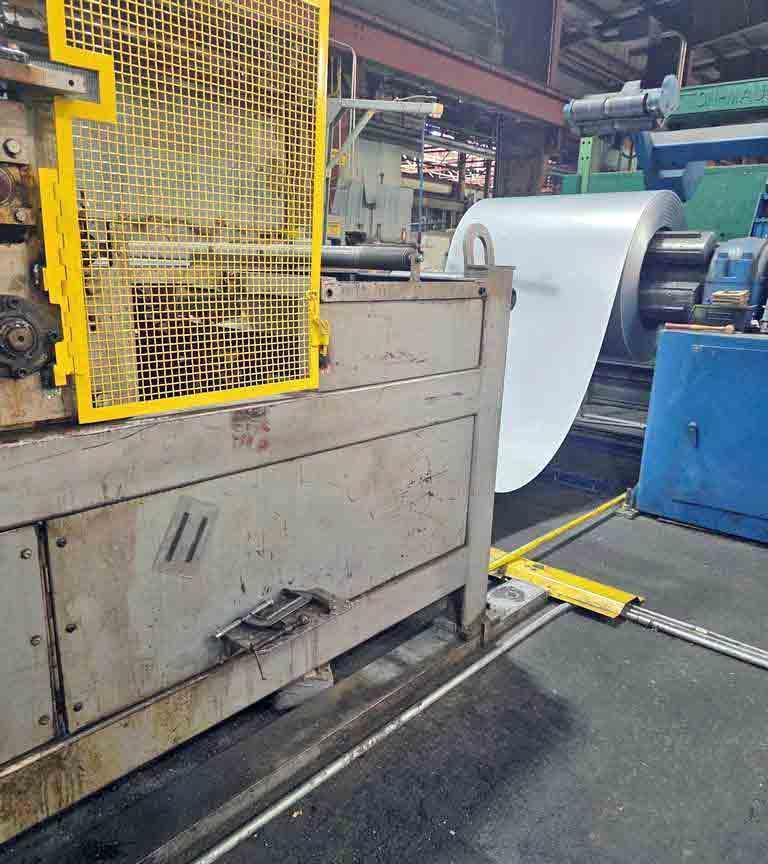

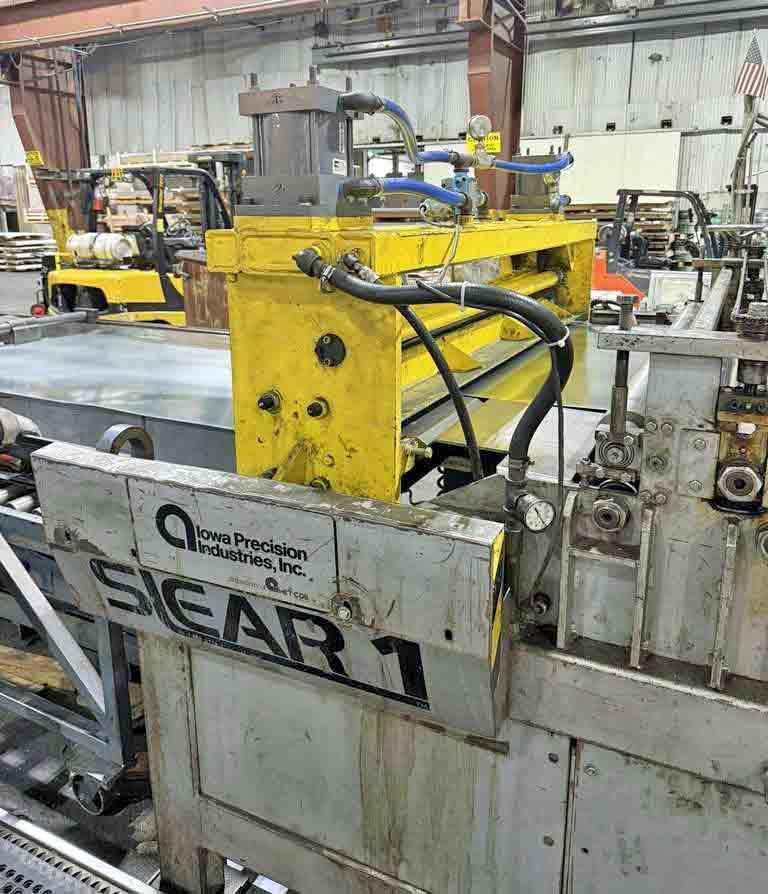

-Iowa Slear Unit:
Model: SLR6016-1

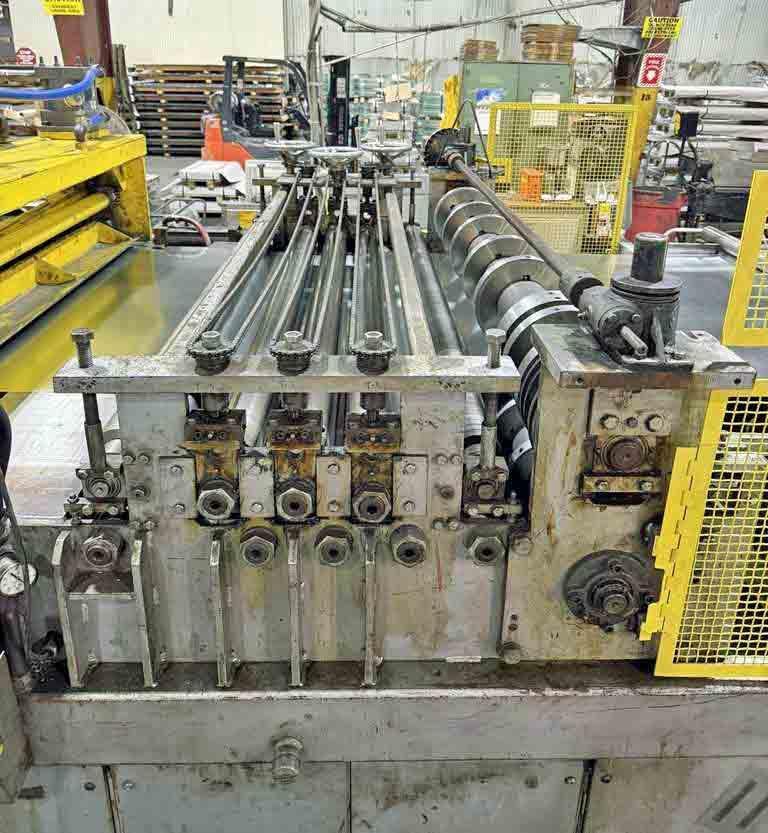

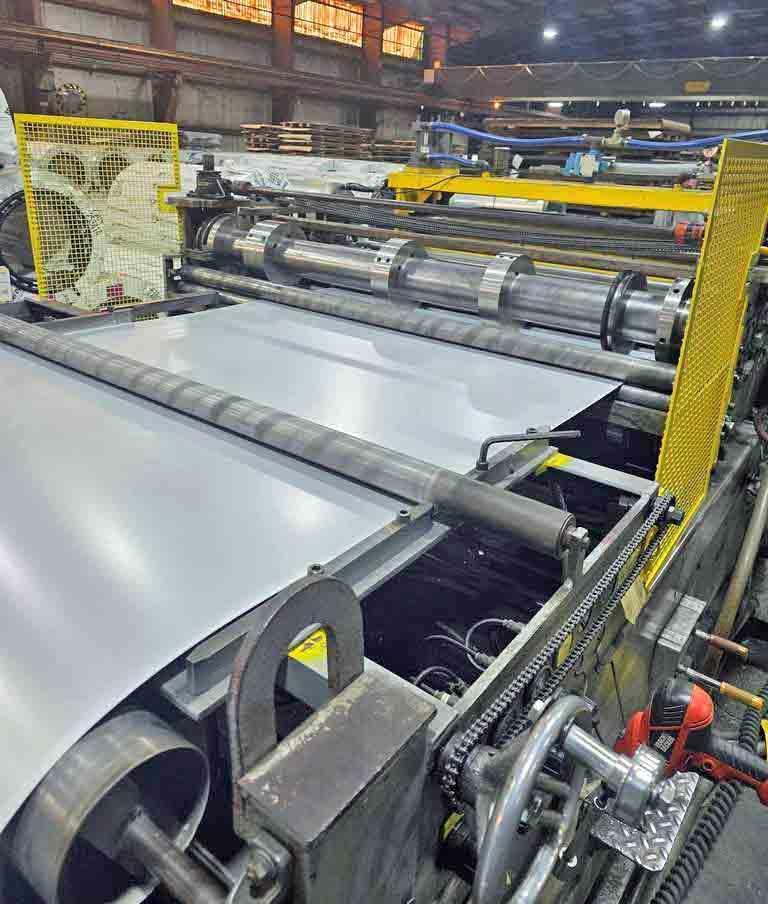

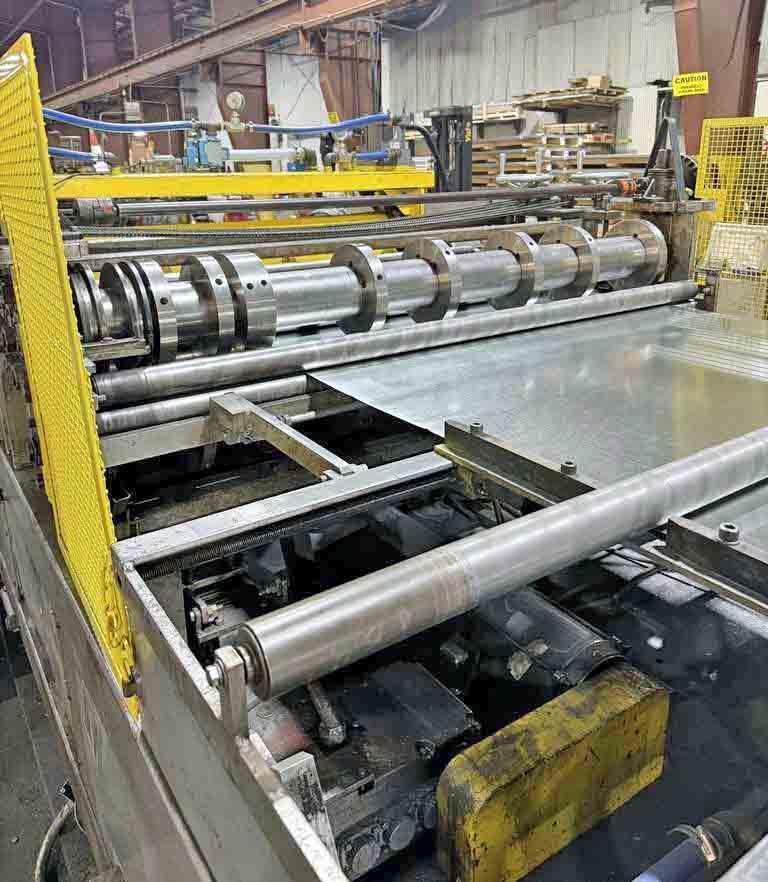

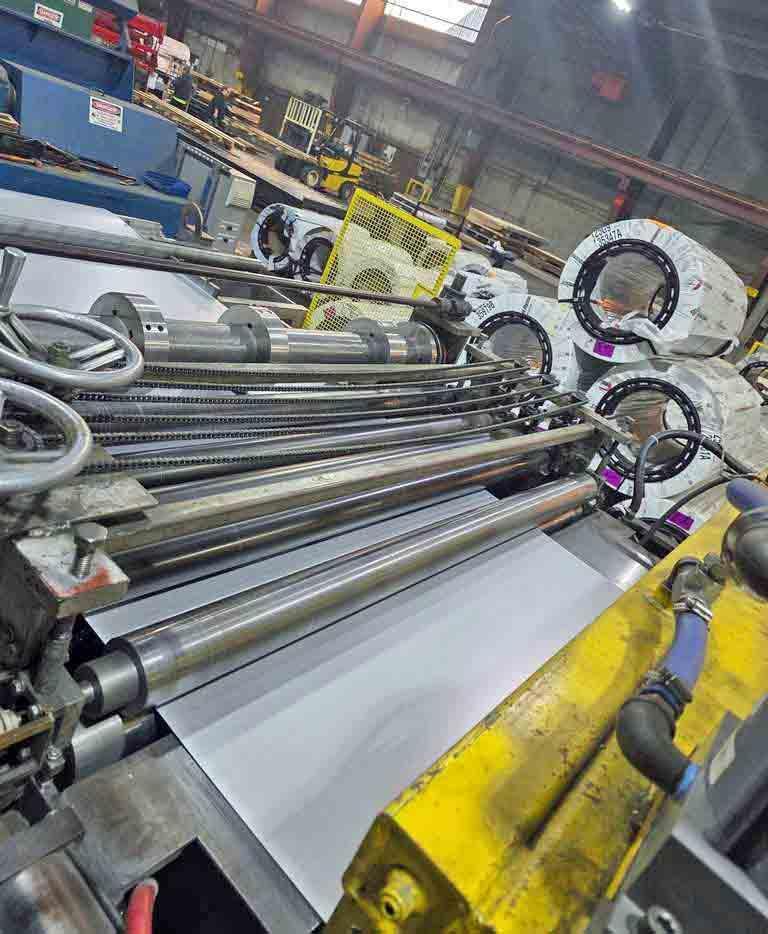

Slitter Head - 5" Dia. Arbors
Straightener - 6 Rolls, 3.375" Dia.
Measuring Roll
Flying Shear

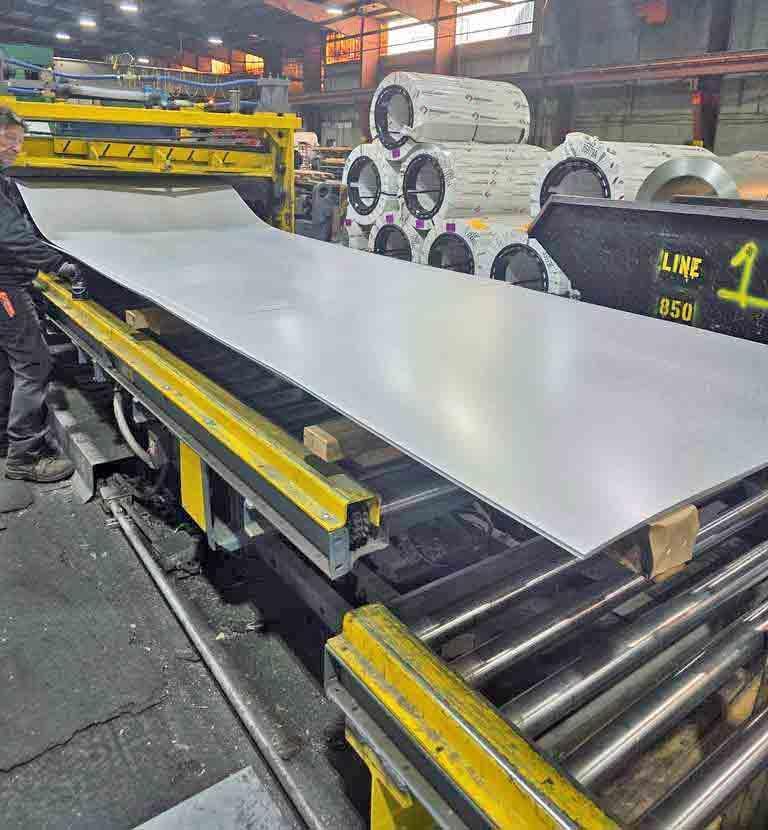

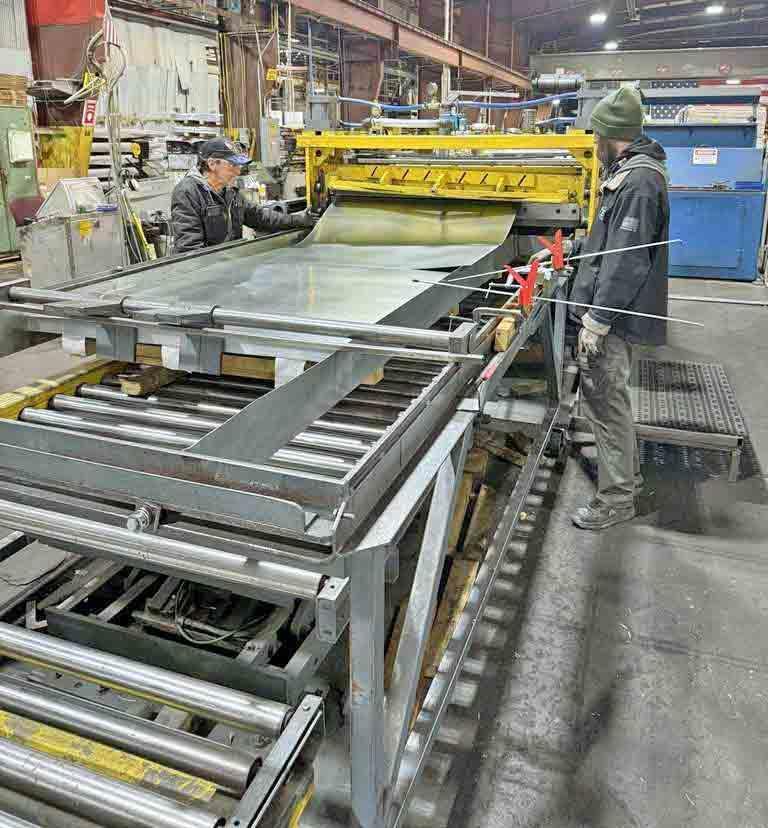

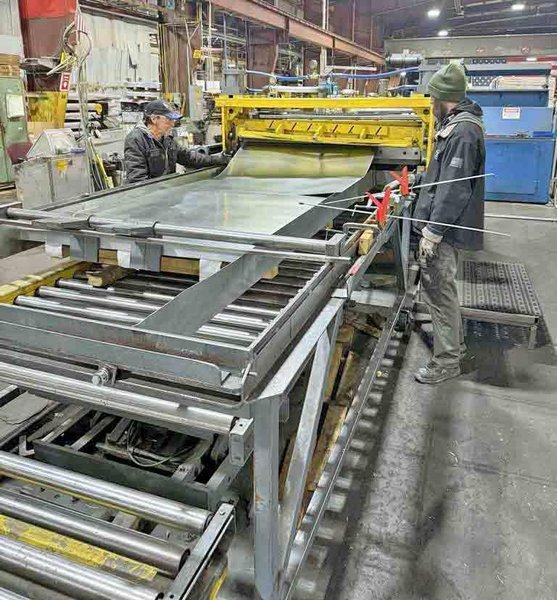

-Stacker:
10 Ft. Long
Scissors Lift Table

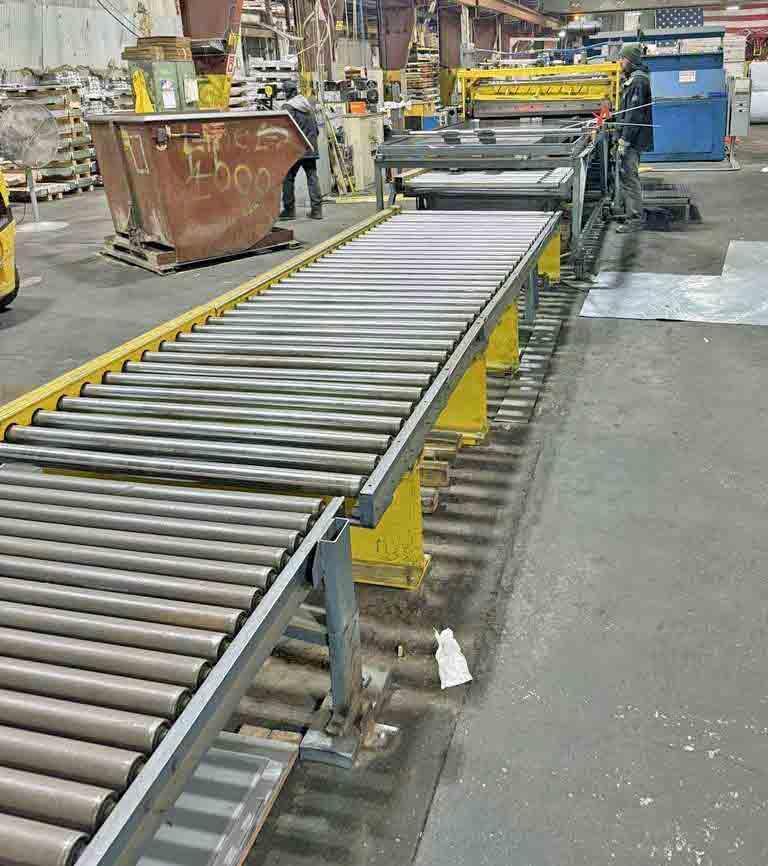

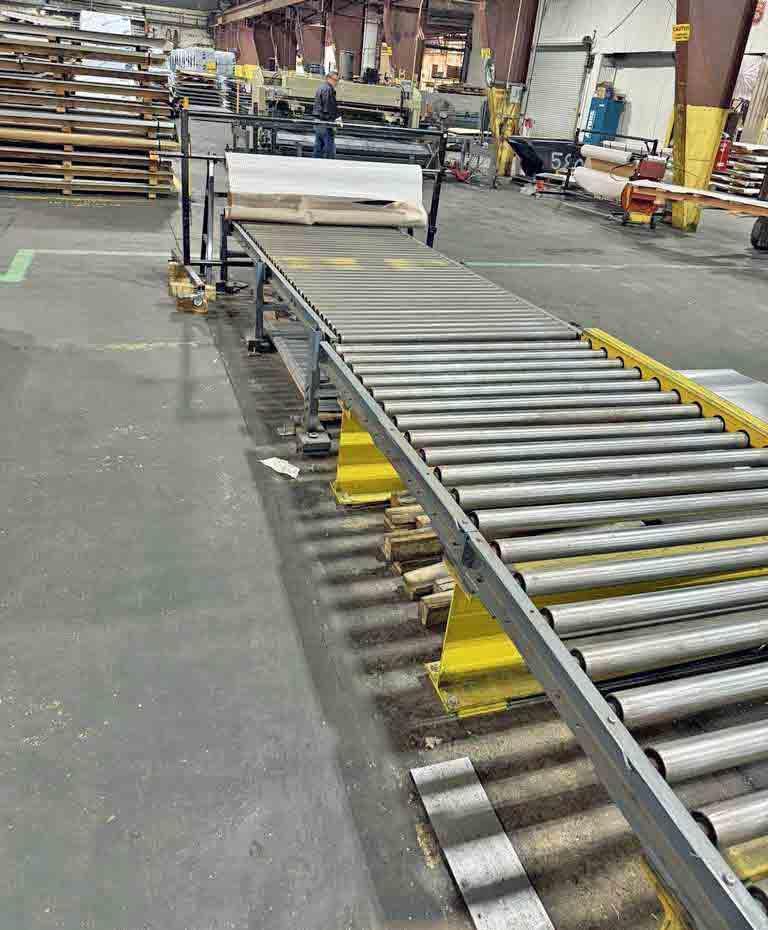

-Runout Conveyor:

-(2) Scrap Winders:
Model: SWA

-Installed and Running
