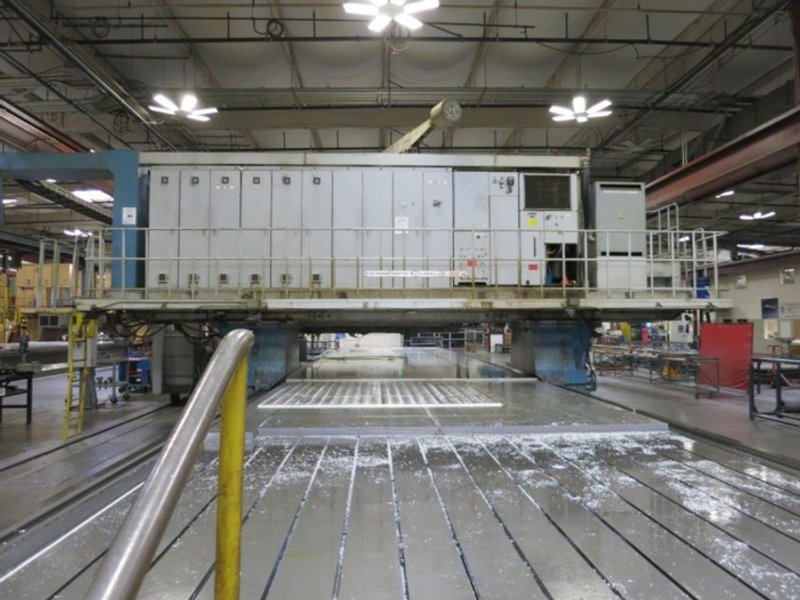

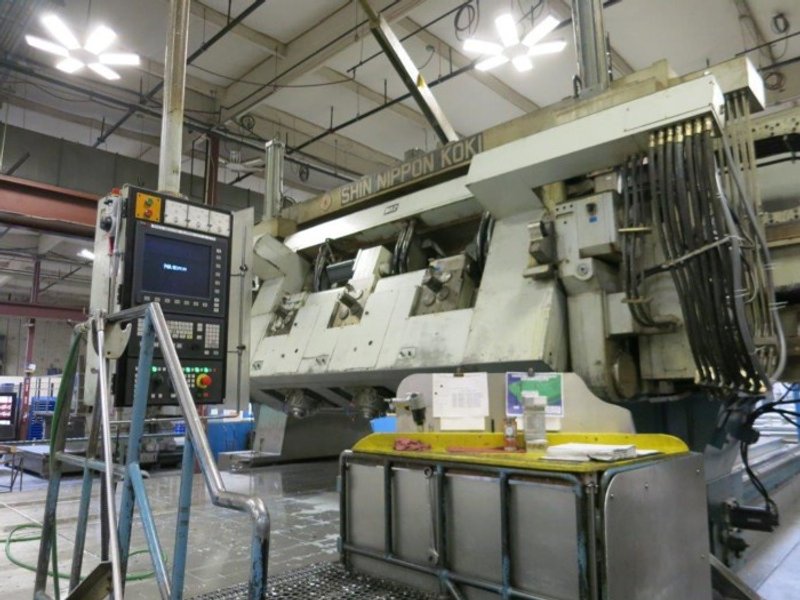

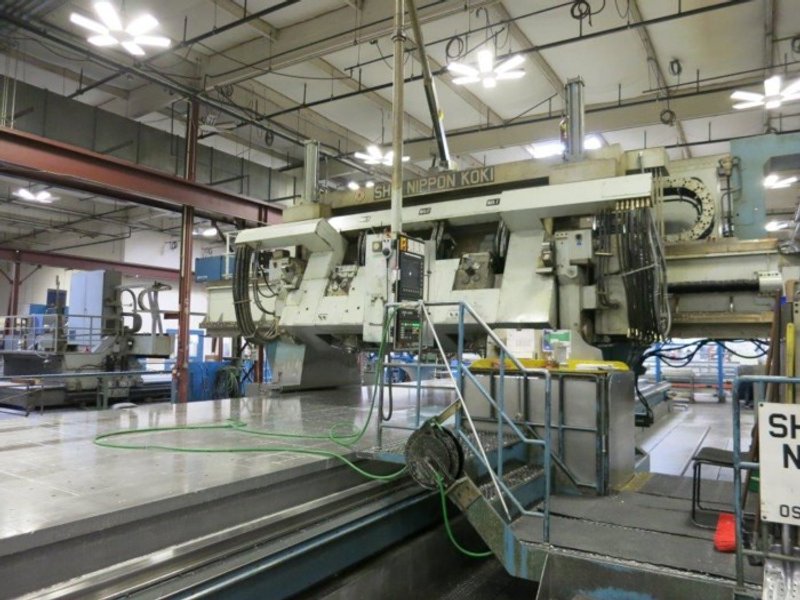

SNK 3 Spindle 5 Axis Gantry Profiler

Brand
SNK
Category
Milling Machines
Type
Profilers
Model
Not specified
Stock #
20144A-IS
Year
1987
Condition
Used
Location
Not specified

Description

Product: SNK 3 Spindle 5 Axis Gantry Profiler
Model:
Stock #: 20144A-IS
Serial No.: 8745807
Year: 1987, Retrofit 2015

Specifications:

Table / Bed Length 72'
Table / Bed Width 160 5/8”
X Axis Travel 60’ estimated
Y Axis Travel 164”
Z Axis Travel 28"
A Axis +/-25 Deg
B Axis +/-25 Deg
Feedrates (X, Y, Z) To 200 IPM
Feedrates (A & B) To 100 IPM
Spindle Center Distance 40”
Spindle RPM 4,000 max
Spindle Motors 30 HP
Equipped With:

Fagor 8065 CNC Control (retrofit 2015)
New Fagor Axis Drives & Motors (2015)
New Mitsubishi Spindle Drives (2015)
New Hydraulic System (2015)
