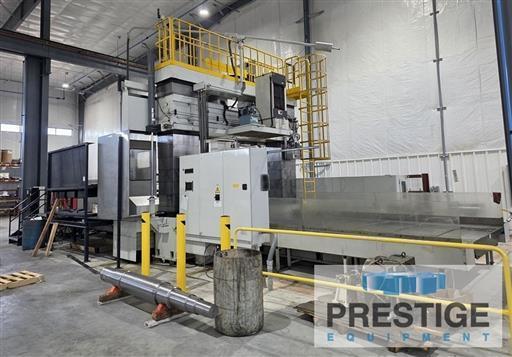

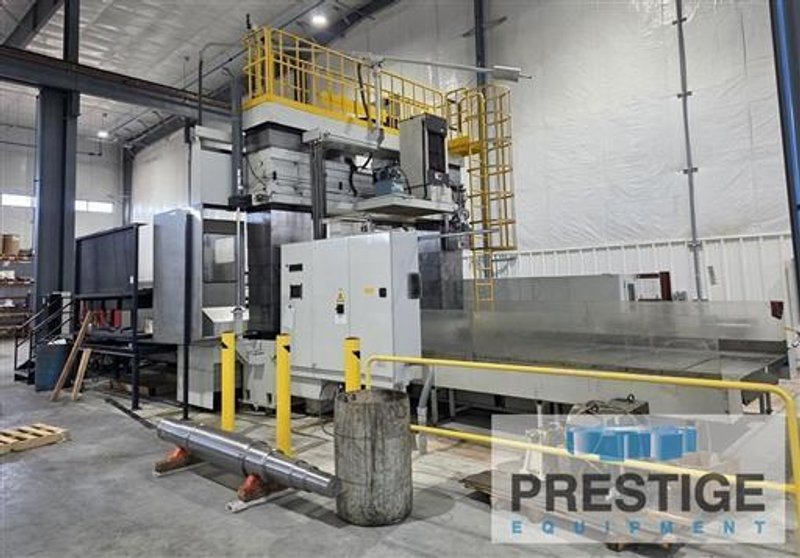

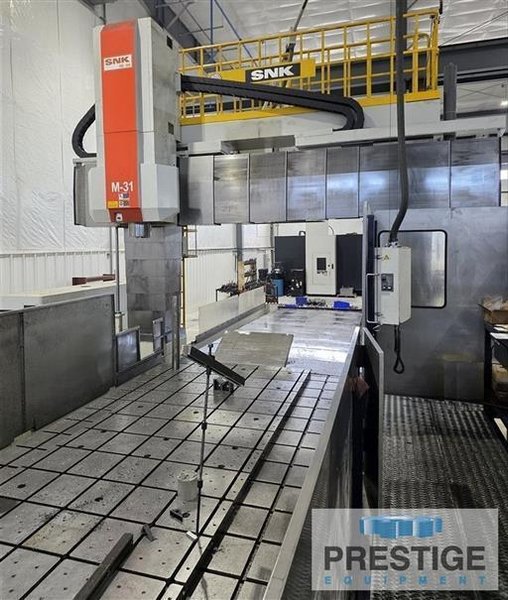

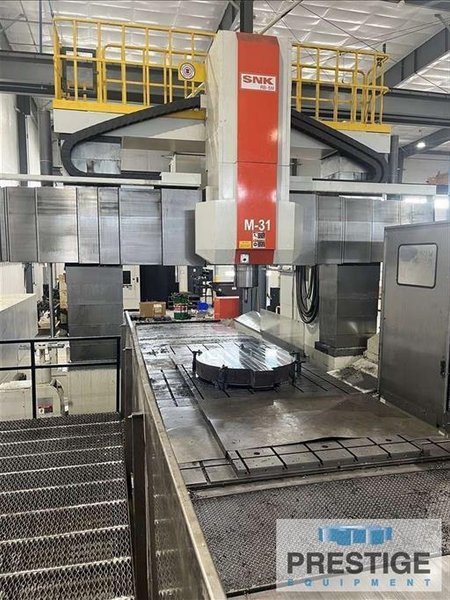

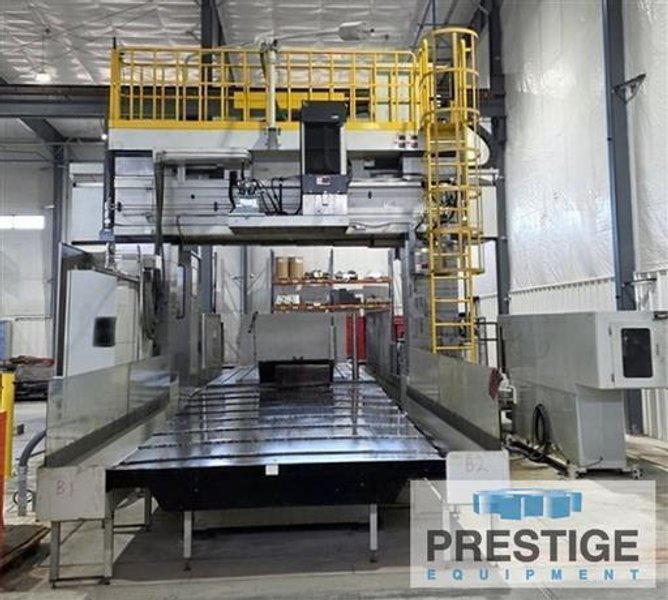

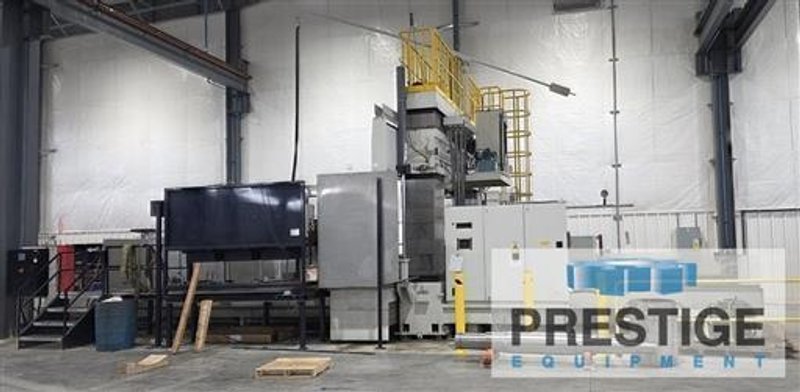

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
X-Axis, Table Travel 206.6"
Y-Axis, Spindle Head Travel 133.8"
Z-Axis, Quill Stroke 31.5"
W-Axis, Cross Rail Vertical Travel..... 55.1" 55.1"
Distance Between Columns 122"
Table Size 196.85" x 98.42"
Table Weight Capacity 33,000 Lbs
Right Angle Head Indexing 1-Degree
Spindle Speeds 40-4500 RPM
Spindle Taper CAT 50
Spindle Motor.......................... 60.3 HP/49.6 HP 60.3 HP/49.6 HP



Equipped With:

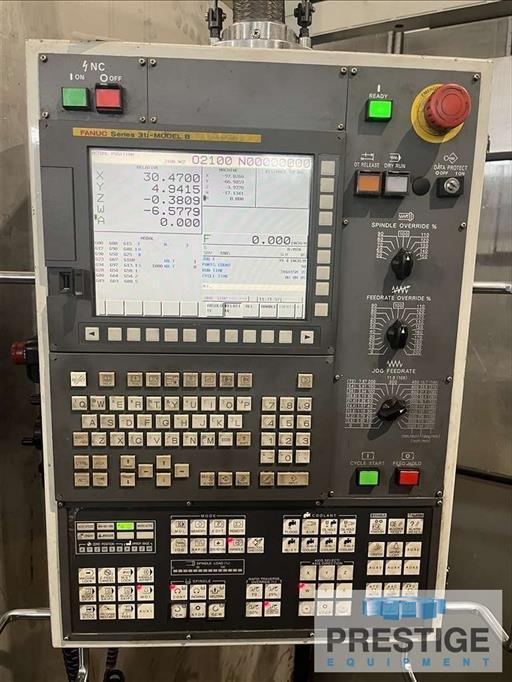

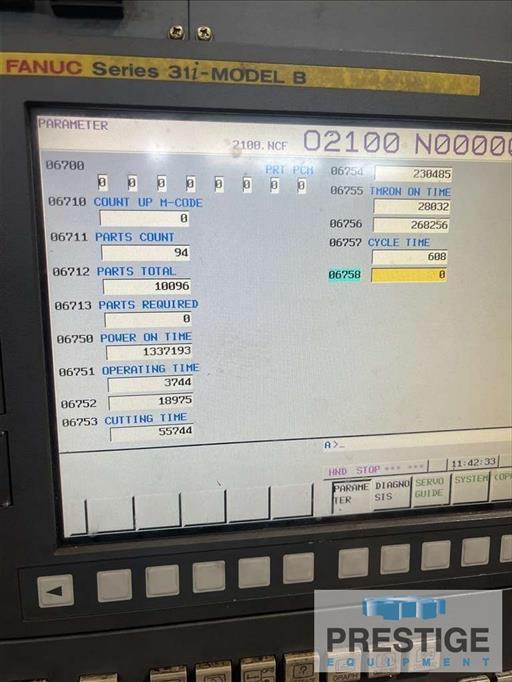

Fanuc 31-iB 4-Axis CNC Control
60-Station Automatic Tool Changer
Automatic Attachment Changer
High Power Spindle 60 HP/49 HP
Auto Indexing Right Angle Head
Right Angle Attachment Changer
Thru-Spindle Coolant
Renishaw RMP60 Probe
Henning Chip Conveyor & Coolant Pump System


LOCATION: Under Power In Midwest Manufacturing Facility
