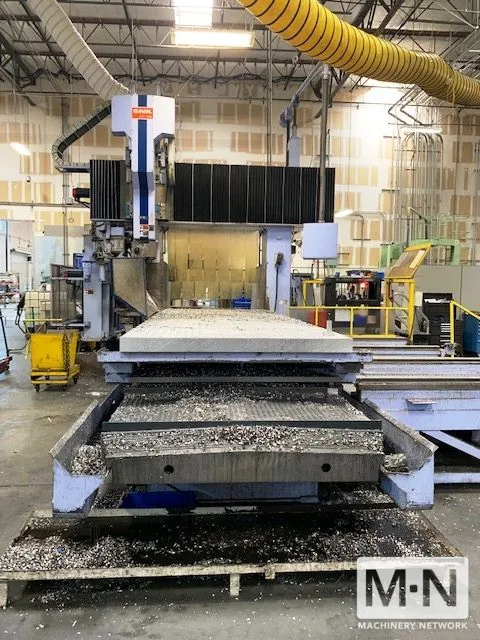

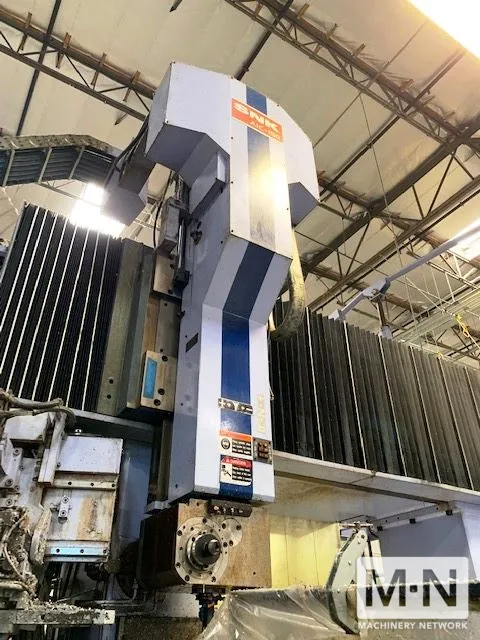

SNK AIC-150 MULTI-CENTER BRIDGE TYPE 5-FACE MACHINING CENTER W/ APC

SNK AIC-150 MULTI-CENTER BRIDGE TYPE 5-FACE MACHINING CENTER W/ APC

Brand

MALCO

Overview

Type:

Gantry Machining Centers (incld. Bridge & Double Column)

Manufacturer:

SNK

Model:

AIC-150

Condition:

Fair

Year:

2001

Stock #:

38072

Status:

Pending Sale

Description

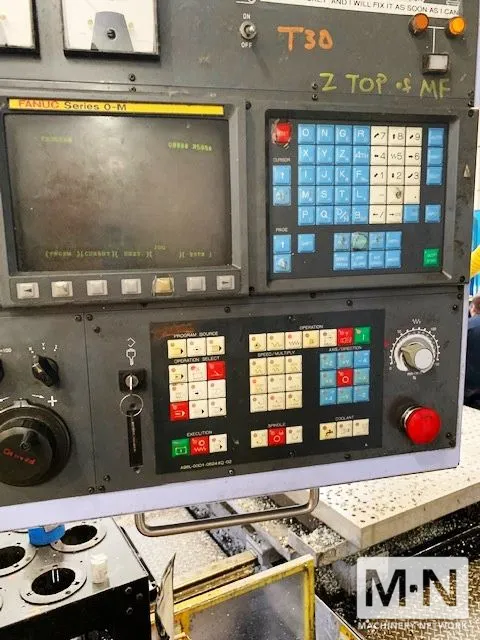

Fanuc OM-C CNC Control, 157” x 106” x 39.3”, 60 atc, BT50

Specifications

ImperialMetric

X Axis	157"	3,987.8 mm
Y Axis	106"	2,692.4 mm
Z Axis	39.3"	998.22 mm
Distance between Columns	78.7"	1,999 mm
Spindle Speed	3,000 RPM	3,000 RPM
ATC Capacity	60	60
Taper	BT50	BT50
Table-W	138"	3,505.2 mm
Table-L	59"	1,498.6 mm
Control	CNC (FANUC OM-C)	CNC (FANUC OM-C)
Weight	70,400	70,400

Equipped With:

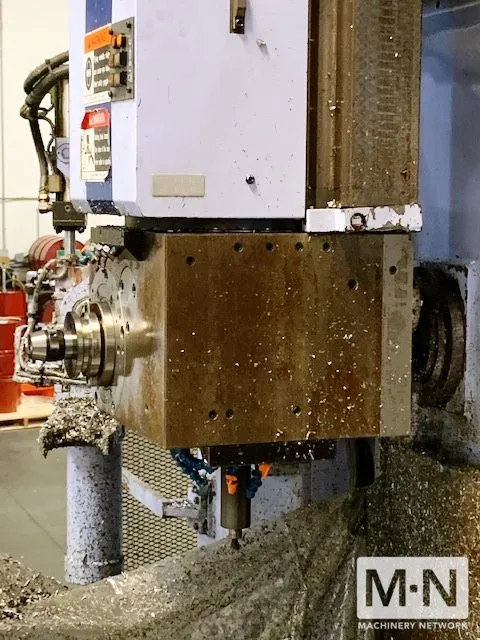

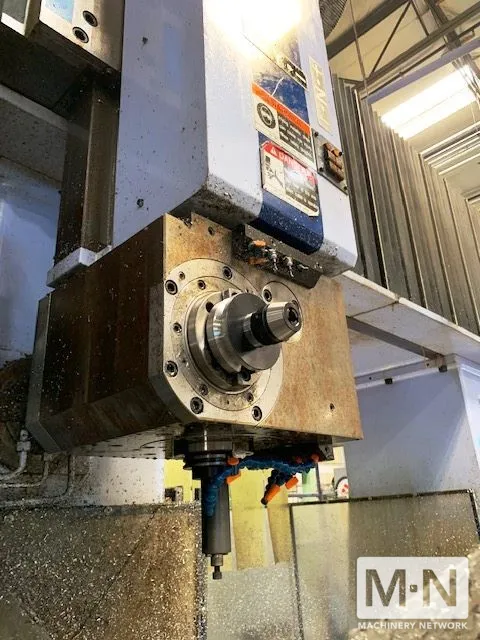

COMBINATION VERTICAL/HORIZONTAL 5-FACE SPINDLE HEAD WITH 5 DEGREE INDEXING
COOLANT SYSTEM WITH COOLANT TANK
