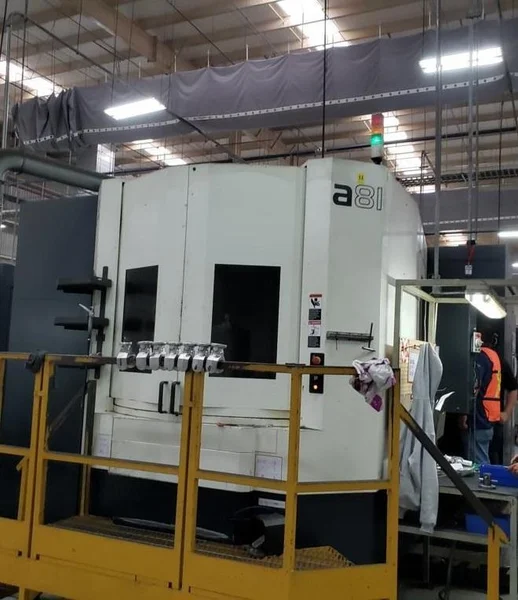

Makino a81 CNC Horizontal Machining Center
Brand
Category
Model
a81
Stock #
13466
Year
2012
Condition
Used
Location
Not specified
| Year | 2012 |
| CNC Control | yes |
| Type of CNC Control | Professional 5 |
| # Axis | 4 |
| Pallet Length | 24.8 inches |
| Pallet Width | 24.8 inches |
| Pallet Capacity | 2640 pounds |
| Pallet Indexing (B-Axis) | 0.001° |
| X-Axis Travel | 35.4 inches |
| Y-Axis Travel | 31.5 inches |
| Z-Axis Travel | 40.1 inches |
| Rapid Traverse Rate (X/Y/Z) | 1916 ipm |
| Spindle Taper | CAT 50 |
| Spindle Speed | 10,000 rpm |
| Spindle Motor (HP) | 47/33.5 hp |
| Tool Changer Capacity | 60 |
| Coolant Through Spindle | yes |
| Machine Dimensions | 215" x 126" x 119" |
| Machine Weight | 41000 pounds |
|
- Professional 5 Control (Fanuc 31i)
- High Pressure Coolant Thru Spindle - Chip Conveyor - Coolant Tank & Pumps |
|
