2005 MAKINO A61 | Machining Centers, Horizontal

2005 MAKINO A61 | Machining Centers, Horizontal

Name: 2005 MAKINO A61 | Machining Centers, Horizontal
Brand: MAKINO
SKU: 32768
Availability: InStock

Brand

MAKINO

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Machining Centers, Horizontal

Manufacturer:

MAKINO

Model:

A61

Year:

2005

Stock #:

32768

Description

Makino A61 4-Axis HMC, 2005, 19.7" Pallets, 28.7"x25.6"x28.7" Travels, 12K RPM, CT40, Makino Pro 3 Ctrl, Renishaw Probe, Coolant, 60 ATC, Full 4th Axis

ImperialMetric

X-Axis	28.7"	728.98 mm
Y-Axis	25.6"	650.24 mm
Z-Axis	28.7"	728.98 mm
Power	25 hp	18.6 kW
RPM	12,000 RPM	12,000 RPM
# ATC	60	60
Taper	CAT 40	CAT 40
Pallet-W	19.7"	500.38 mm
Pallet-L	19.7"	500.38 mm
# Axis	4	4

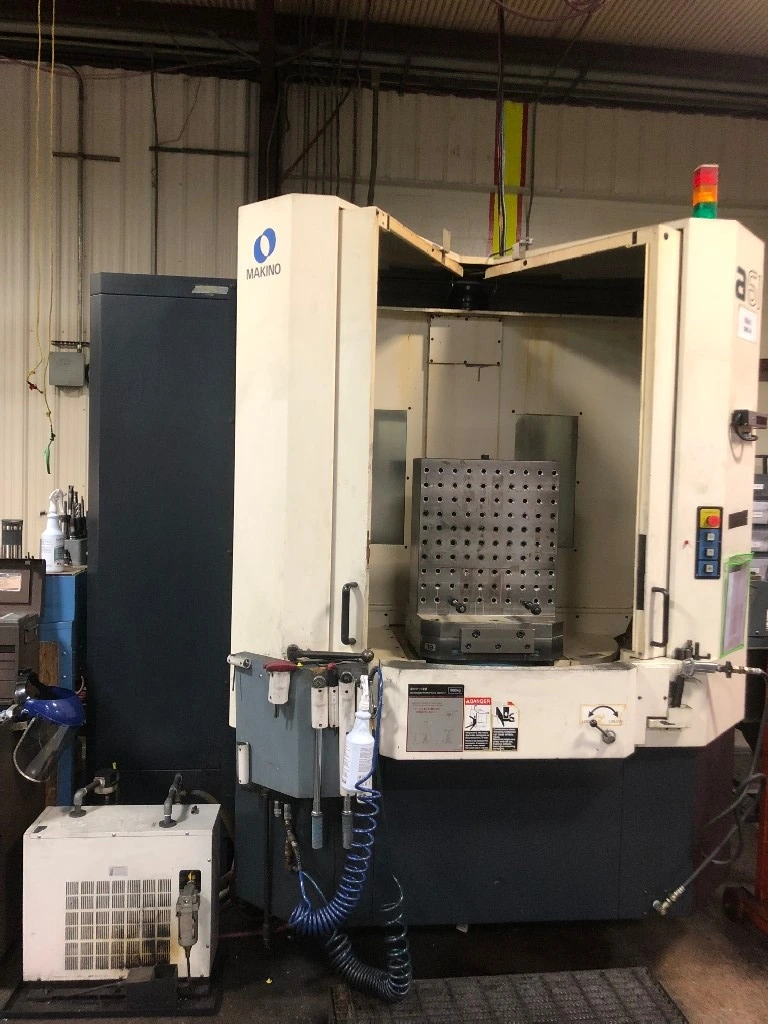

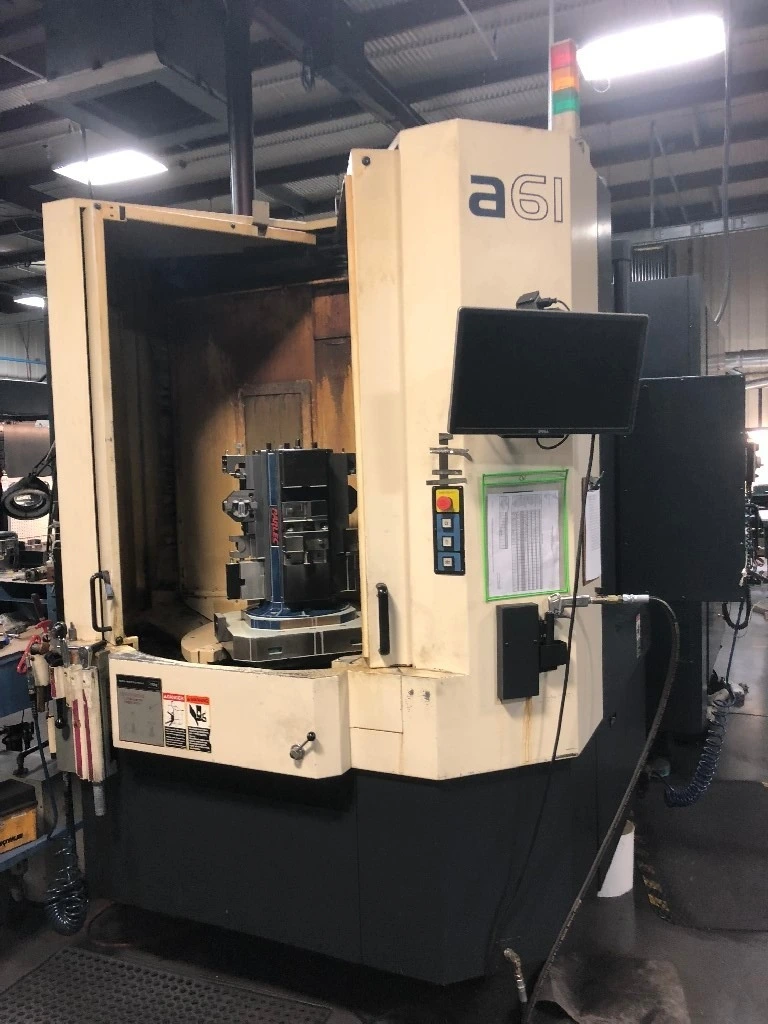

Makino A61 4-Axis CNC Horizontal Machining Center - 2 Available!

New: 2005; s/n 68

New: 2004; s/n 26

Specifications:

Pallet Size: 19.7" x 19.7" Tapped

Travels:

X-Axis: 28.7"

Y-Axis: 25.6"

Z-Axis: 28.7"

Spindle Nose to Pallet Center: 2.76" - 31.5"

Spindle Center to Pallet: 3.15" - 28.74"

Number of Pallets: 2

Pallet Change Time: 8 Seconds

Max Payload: 500 kg

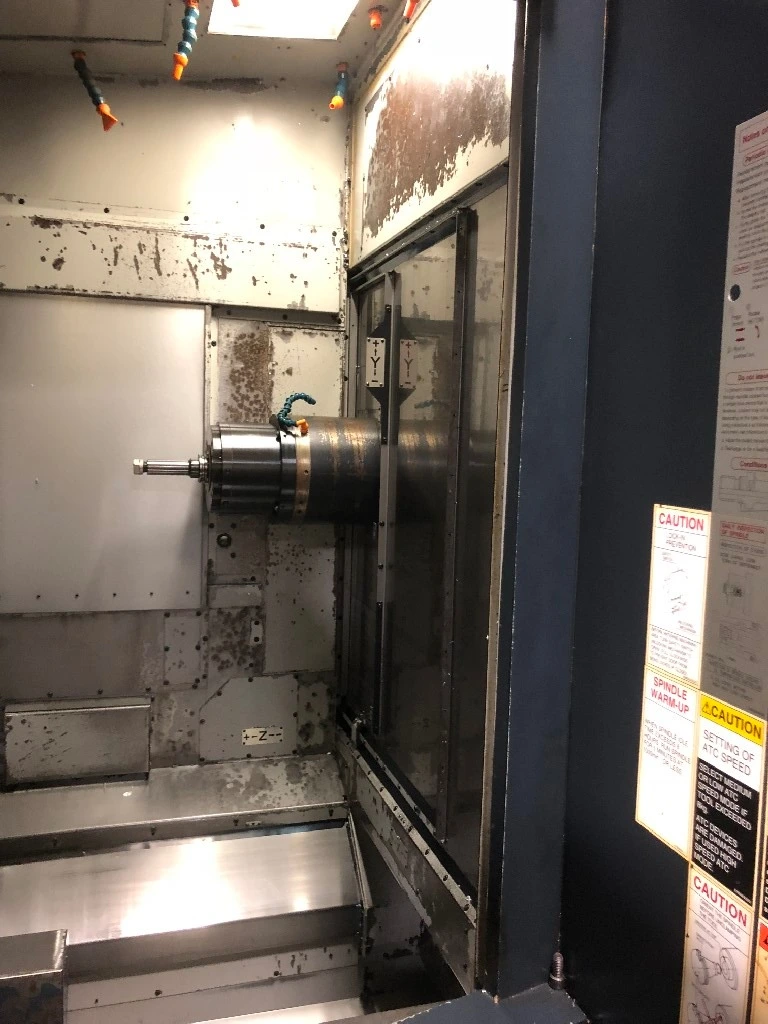

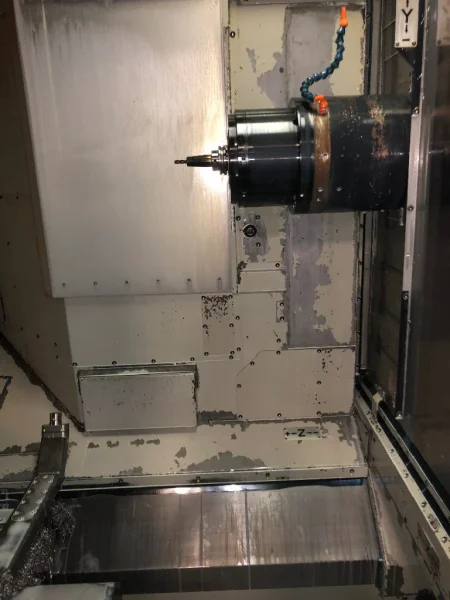

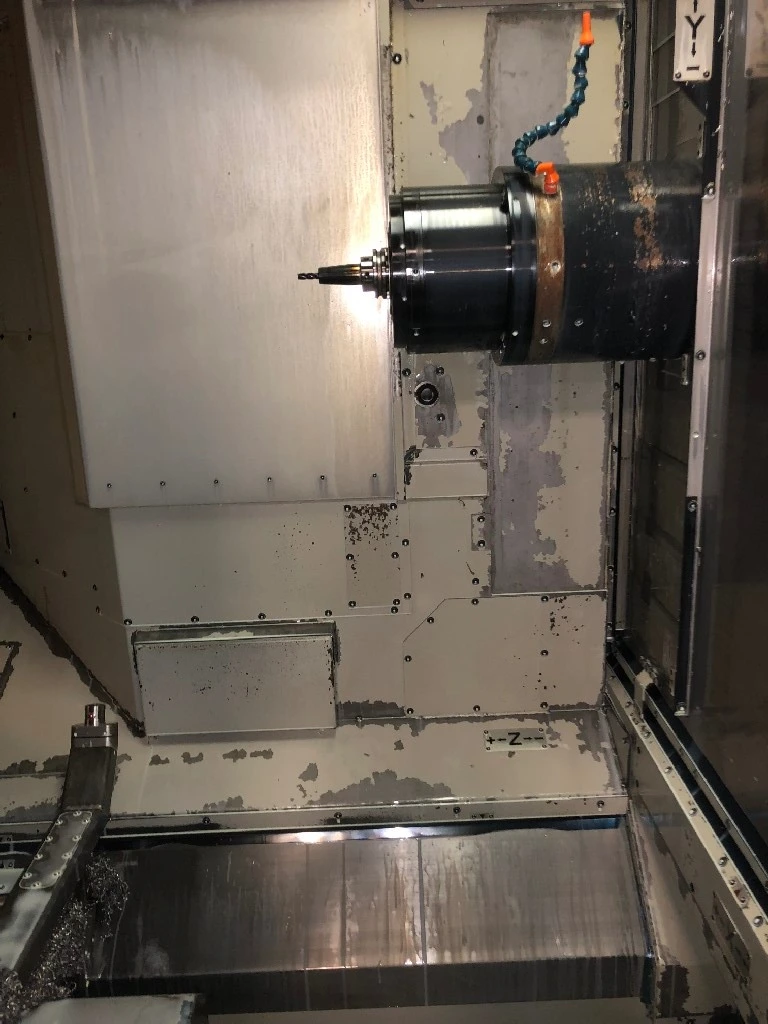

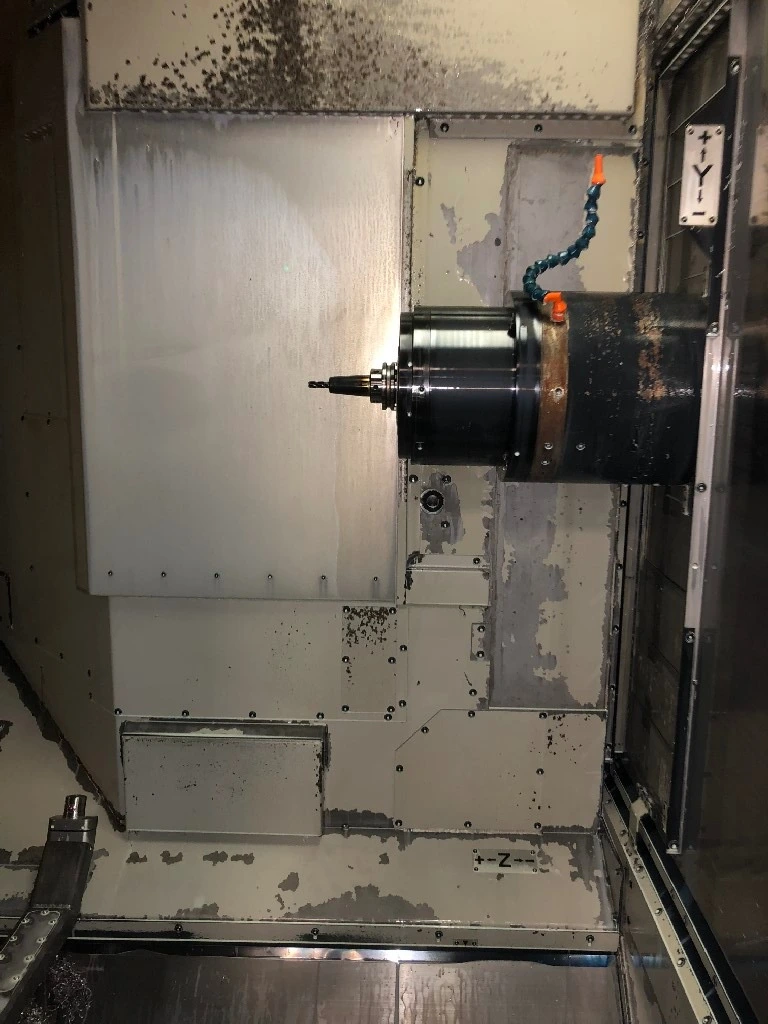

Spindle Speed: 12,000 RPM

Spindle Motor: 25 HP Continuous

Spindle Taper: CAT 40

Equipped With::

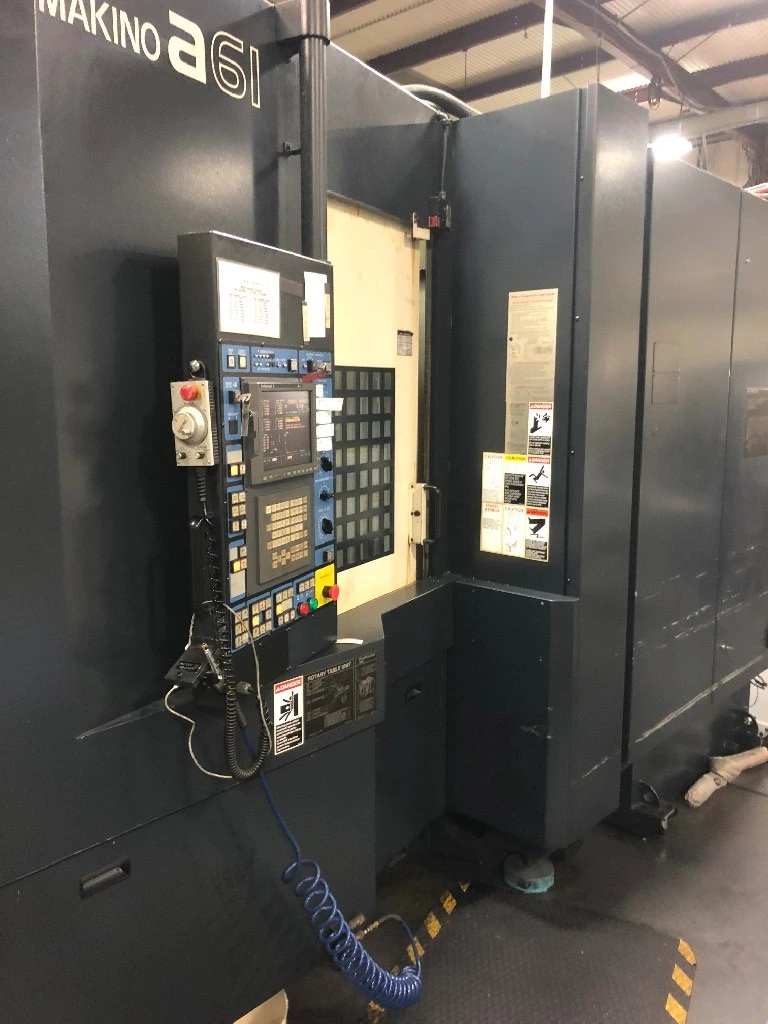

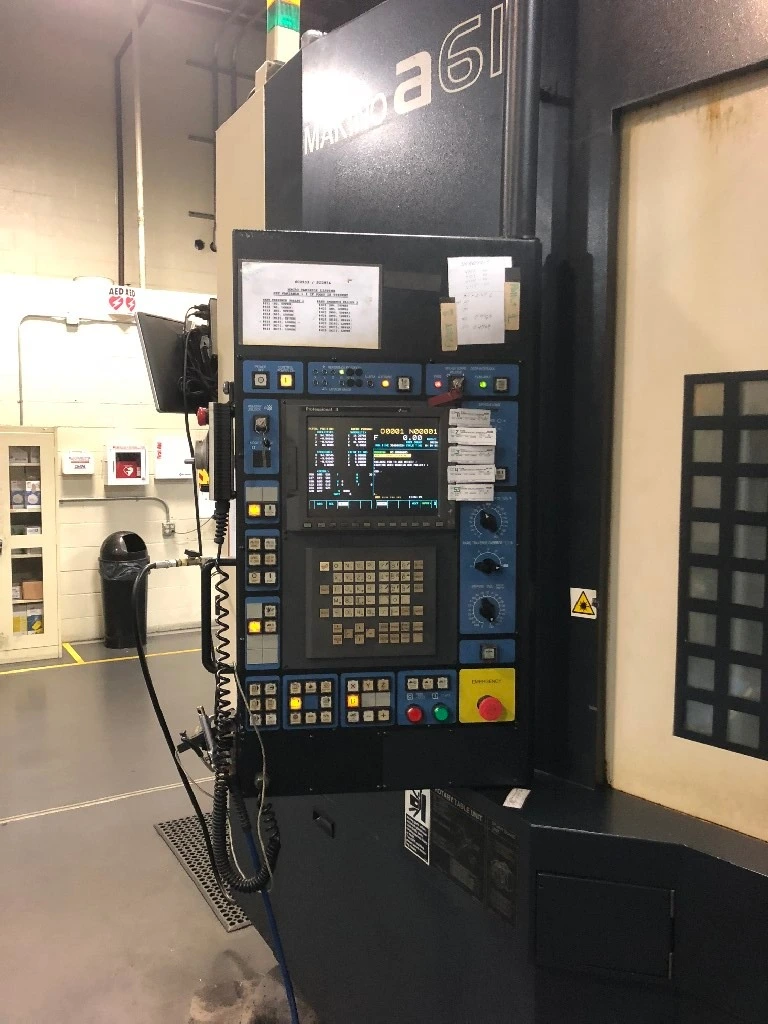

Makino Professional 3 CNC Control

Super GI.3 Control for faster processing (2004 machine)

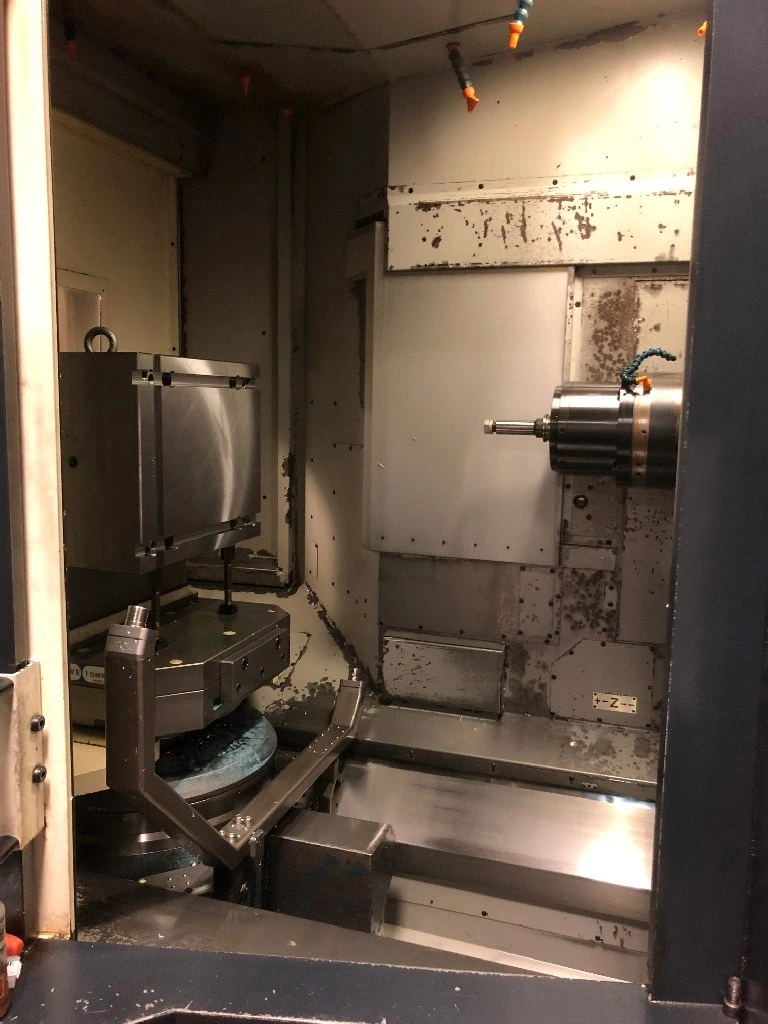

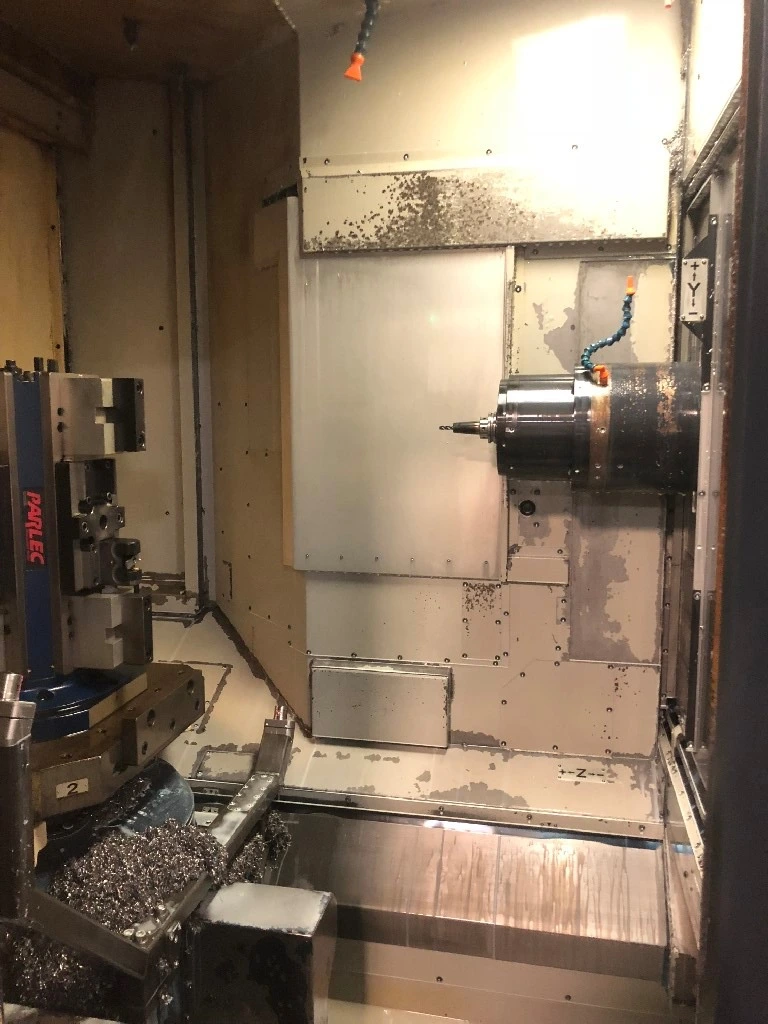

Full 4th Axis NC Rotary Table

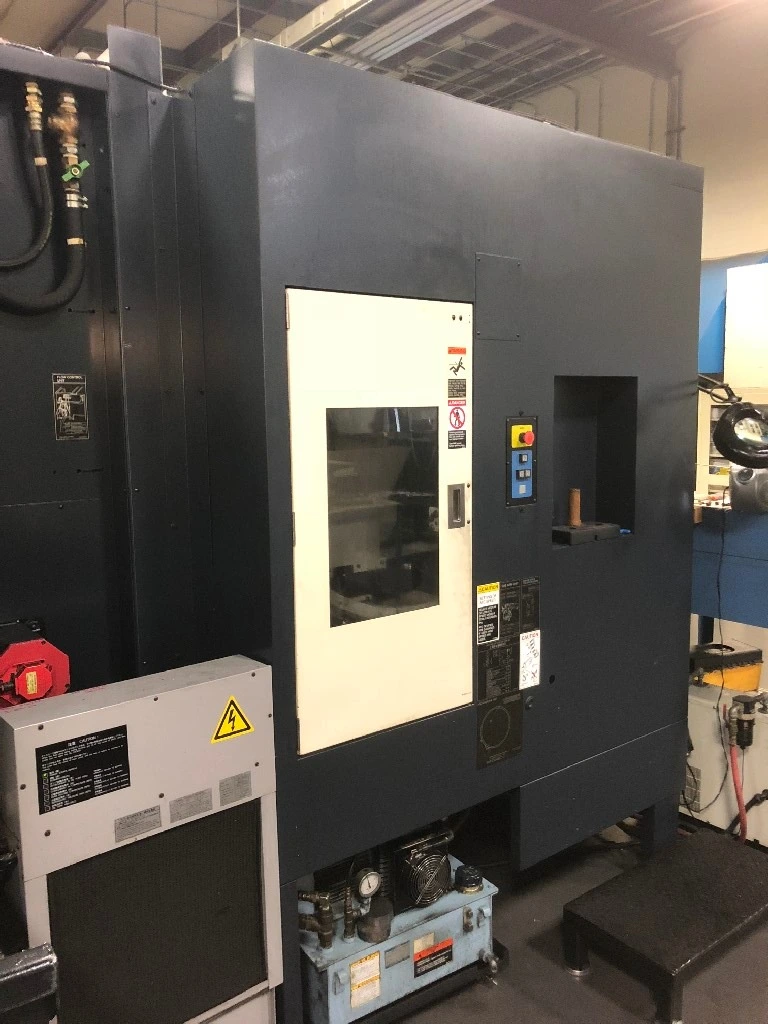

60 Tool ATC

Renishaw Probe

NC4 Tool Breakage Detection (upgraded from NC1 Laser in 2015)

JS Retention Stud

Pallet Changer w/ Safety Cover, Door Interlock

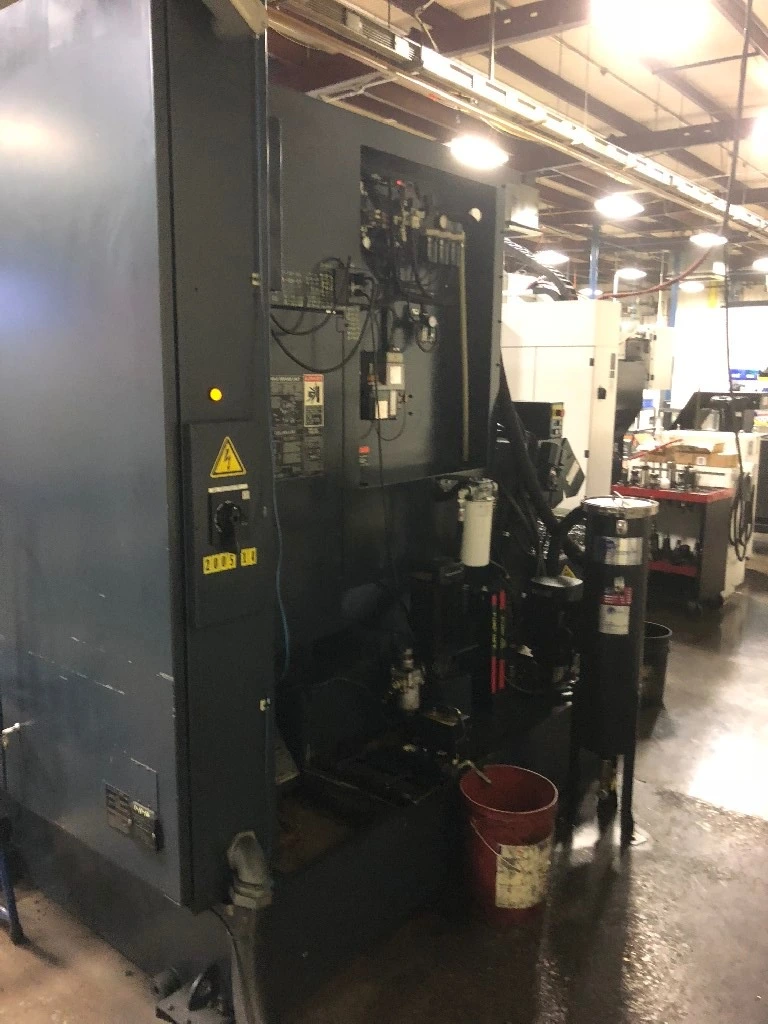

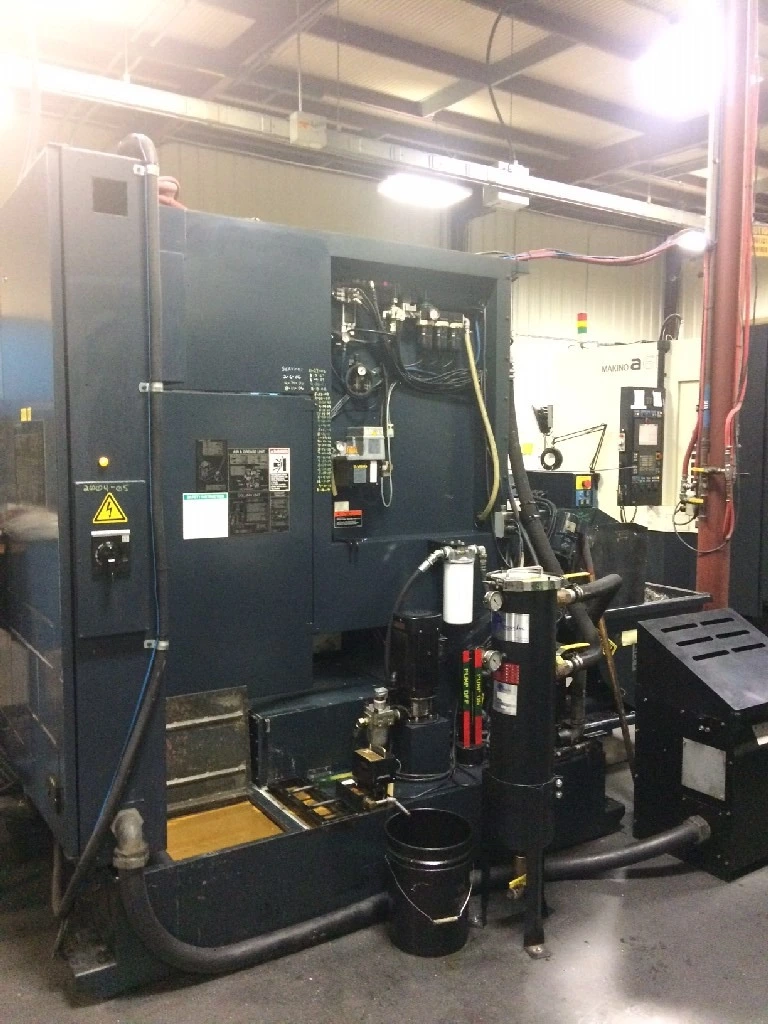

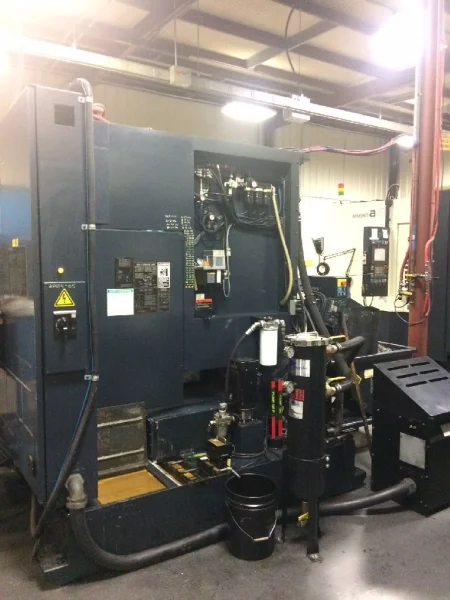

300 PSI Thru Spindle Coolant

Coolant System w/ 26 Nozzles

Lift-up Chip Conveyor

Splash Guard

Transformer

Helical Interpolation

Tool Offset

Macros

Helical Interpolation

Run hour parts display

Data server

Increased program storage (1280m)

Custom i/o m-codes

Tool offset memory Type “C”

Additional 48 work offsets

High speed skip function

600 Macro common variables

Cutting Hours: 32452 (2004 machine), 41129 (2005 machine)

$360,000 New Price As Equipped
