2008 MAKINO A61 | Machining Centers, Horizontal

2008 MAKINO A61 | Machining Centers, Horizontal

Name: 2008 MAKINO A61 | Machining Centers, Horizontal
Brand: AVELAIR
SKU: 33365
Availability: PreOrder

Brand

AVELAIR

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Horizontal

Manufacturer:

MAKINO

Model:

A61

Year:

2008

Stock #:

33365

Status:

For Sale

Description

2008 Makino A61 CNC Horizontal Machining Center

Makino A61 CNC Horizontal Machining Center
New: 2008

Specifications:
Travels:
X-Axis: 28.7"
Y-Axis: 25.6"
Z-Axis: 28.7"
Table Positioning: 360,000 positions (.0001 degree)
Spindle Center to Pallet Top: 3.1" - 28.7"
Spindle Nose to Pallet Ctr: 2.75" - 31.5"
Spindle Drive Motor: 25 HP
Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40
Tool Changer: 134 ATC
Pallet Size: 19.7" x 19.7"
Table Payload: 500 Kg

Equipped With::

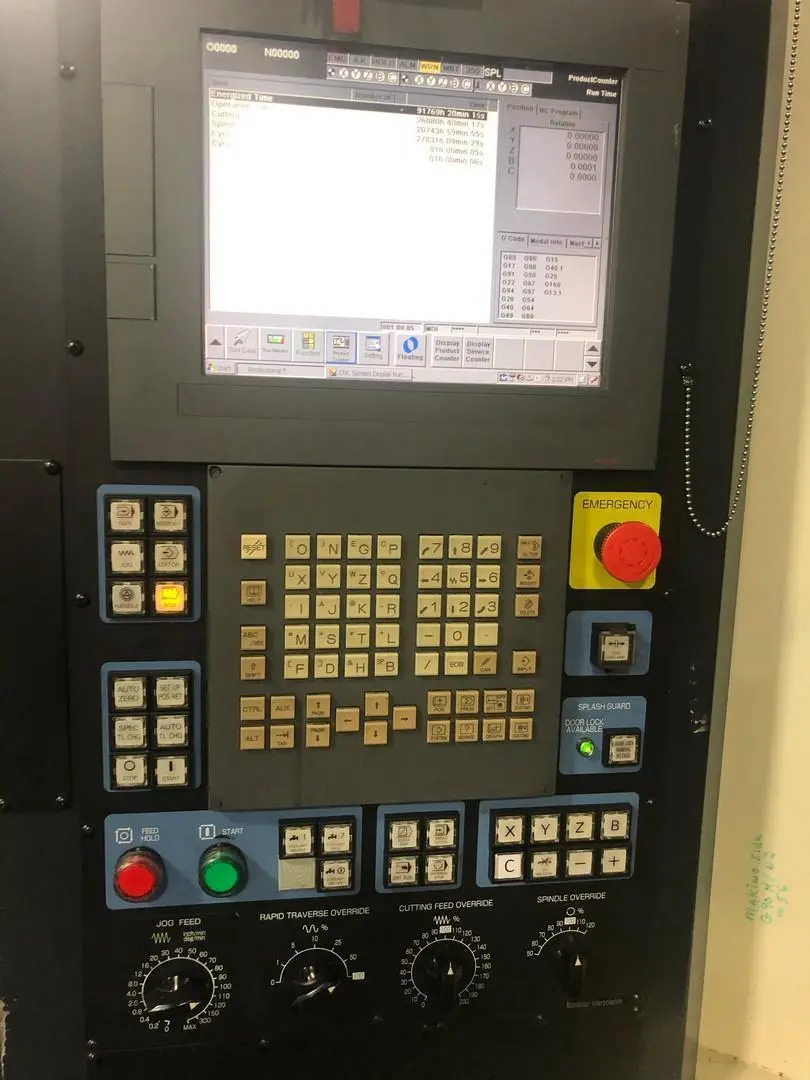

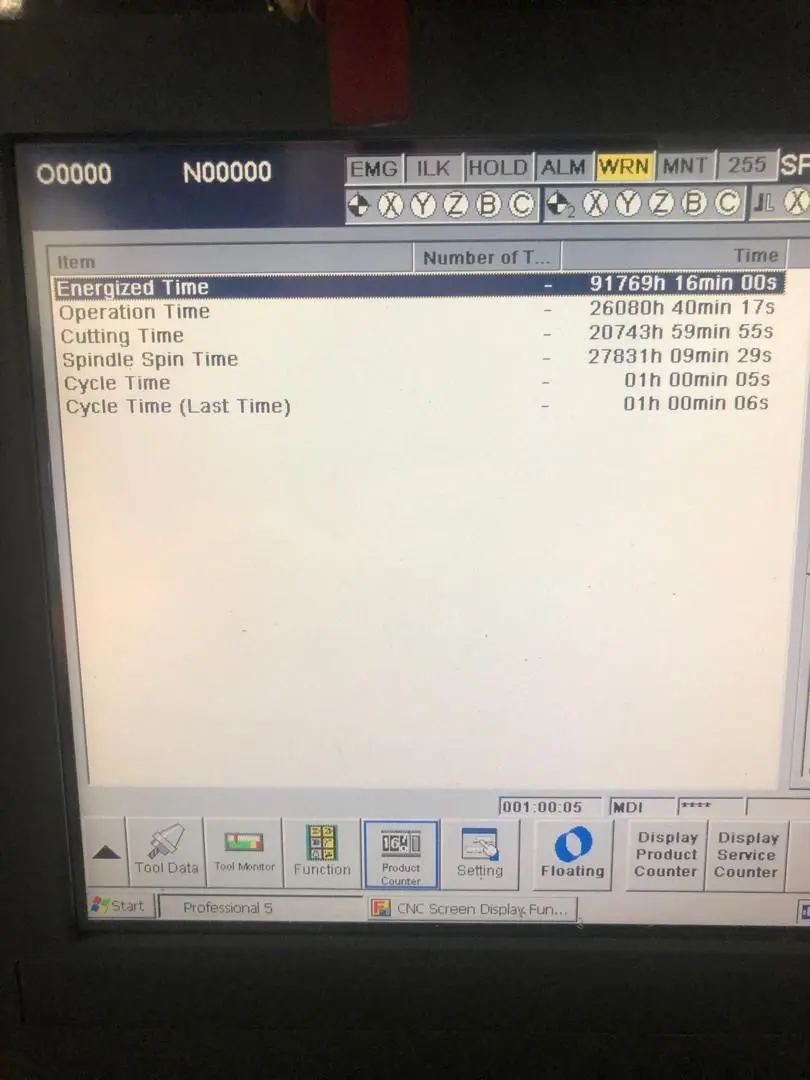

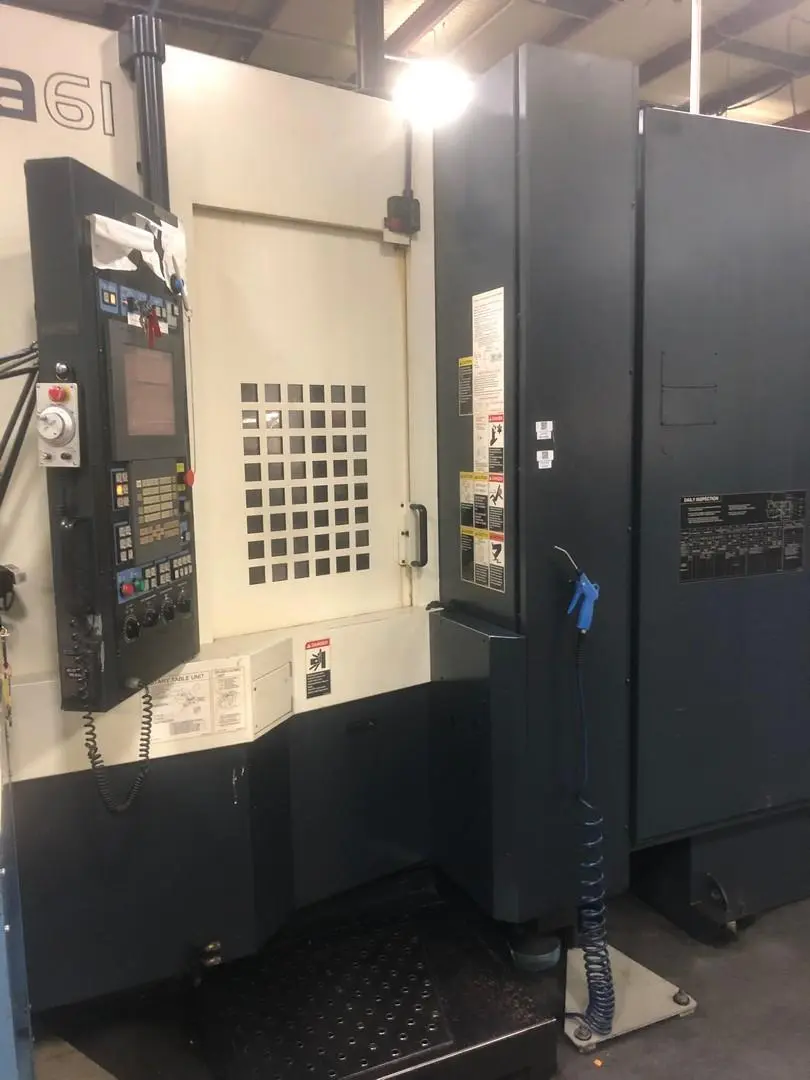

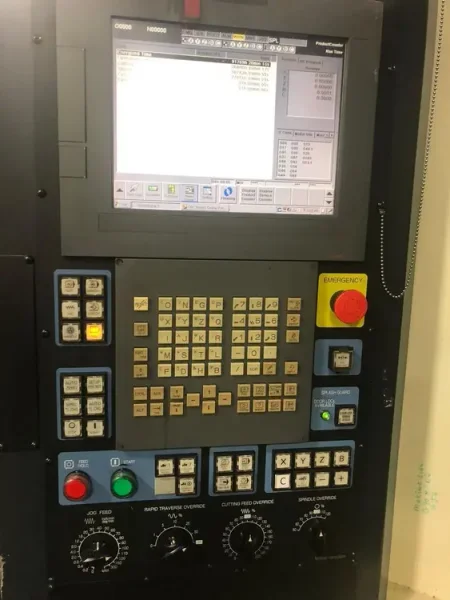

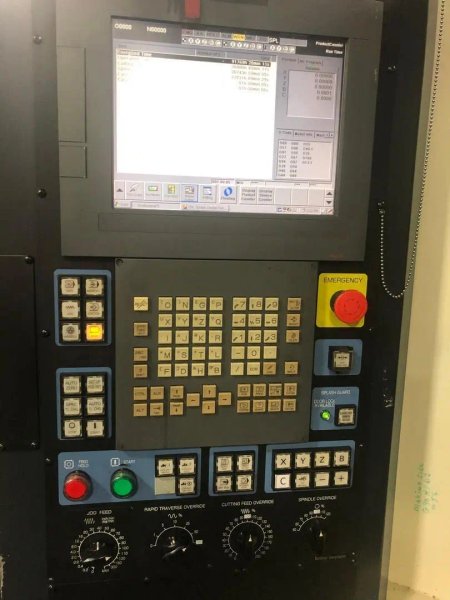

Makino Professional 5 CNC Control

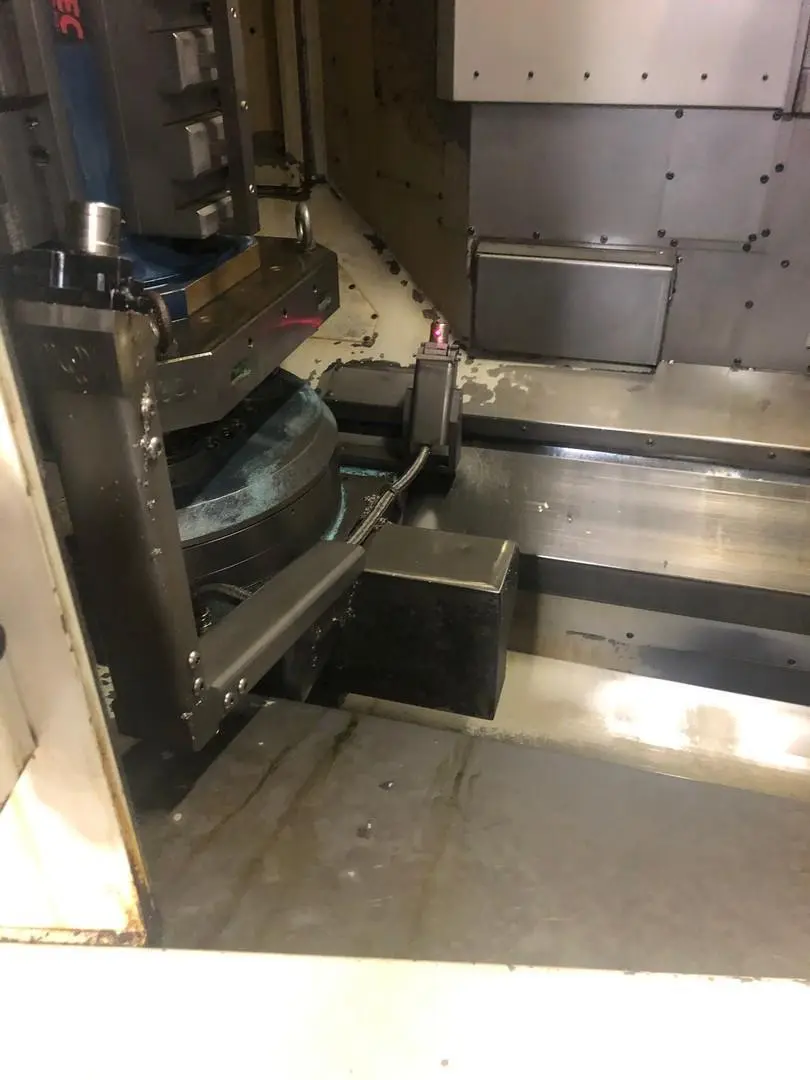

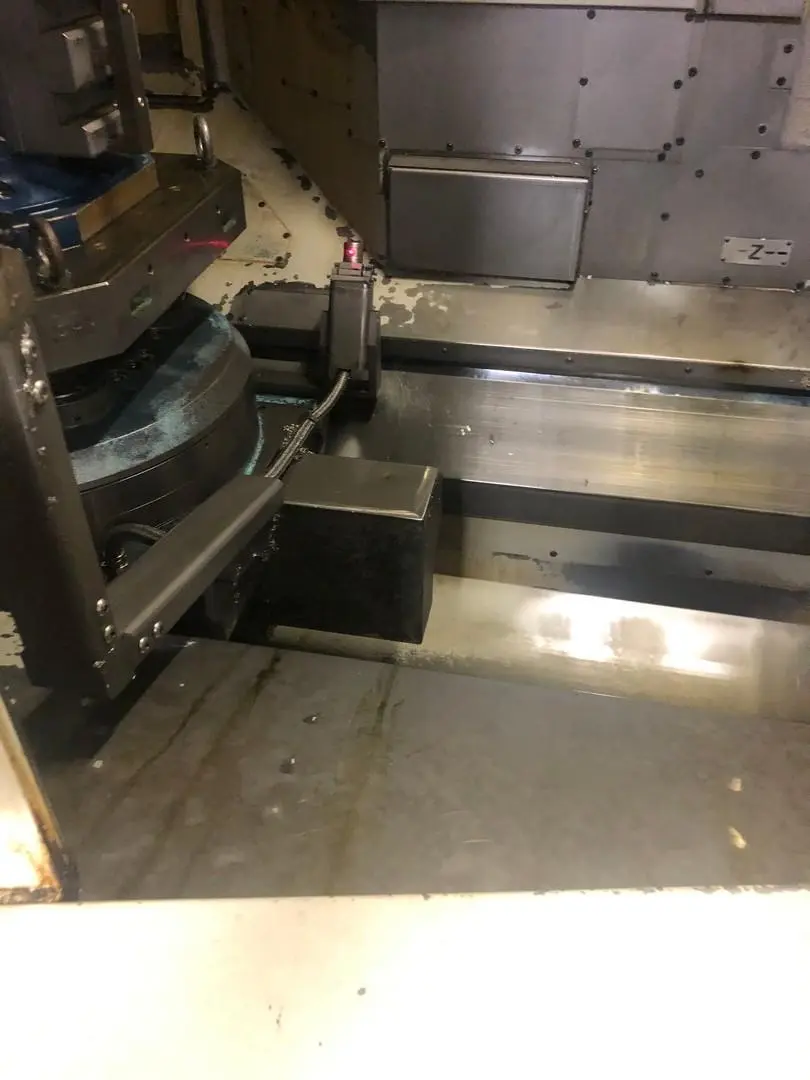

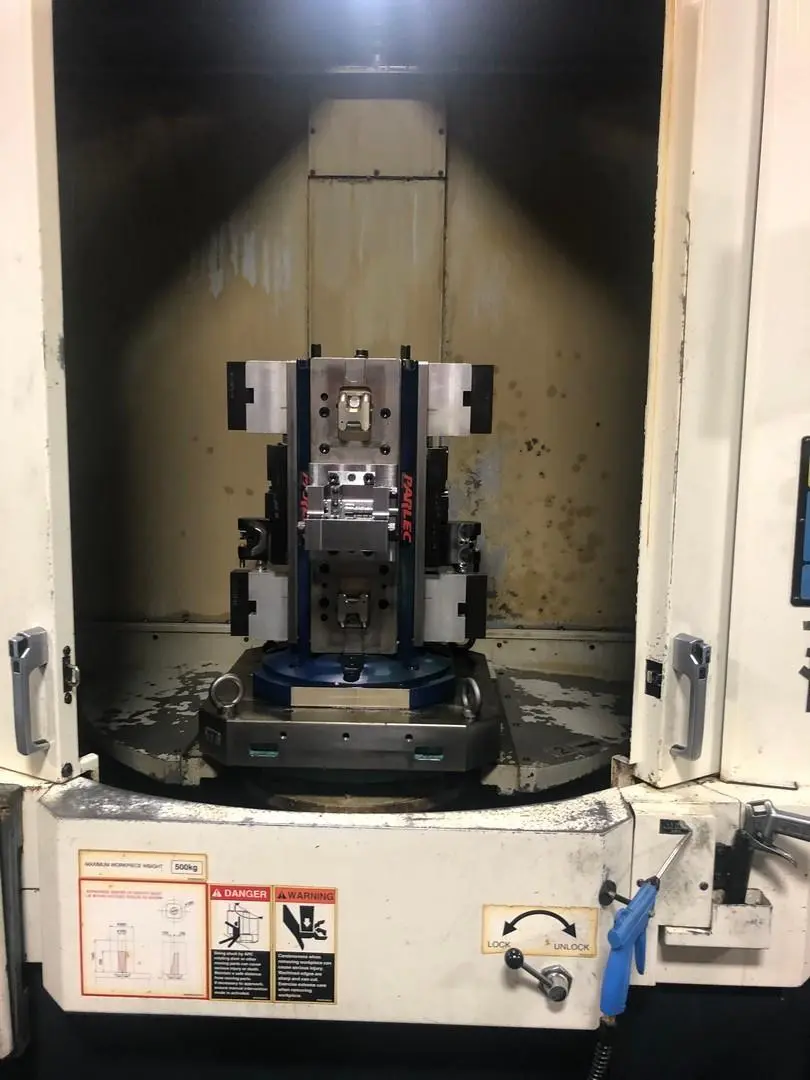

NC Rotary Table
Data Server
Pallet Changer w/ Random Pallet Selection
High Pressure Coolant Thru Spindle 300 PSI
Overhead Shower Coolant System
Automatic Splash Guards
Lift up Chip Conveyor
Daikin Automatic Lubrication Unit
GI .3 Control
Custom Macro
Automatic Air Blower Nozzle

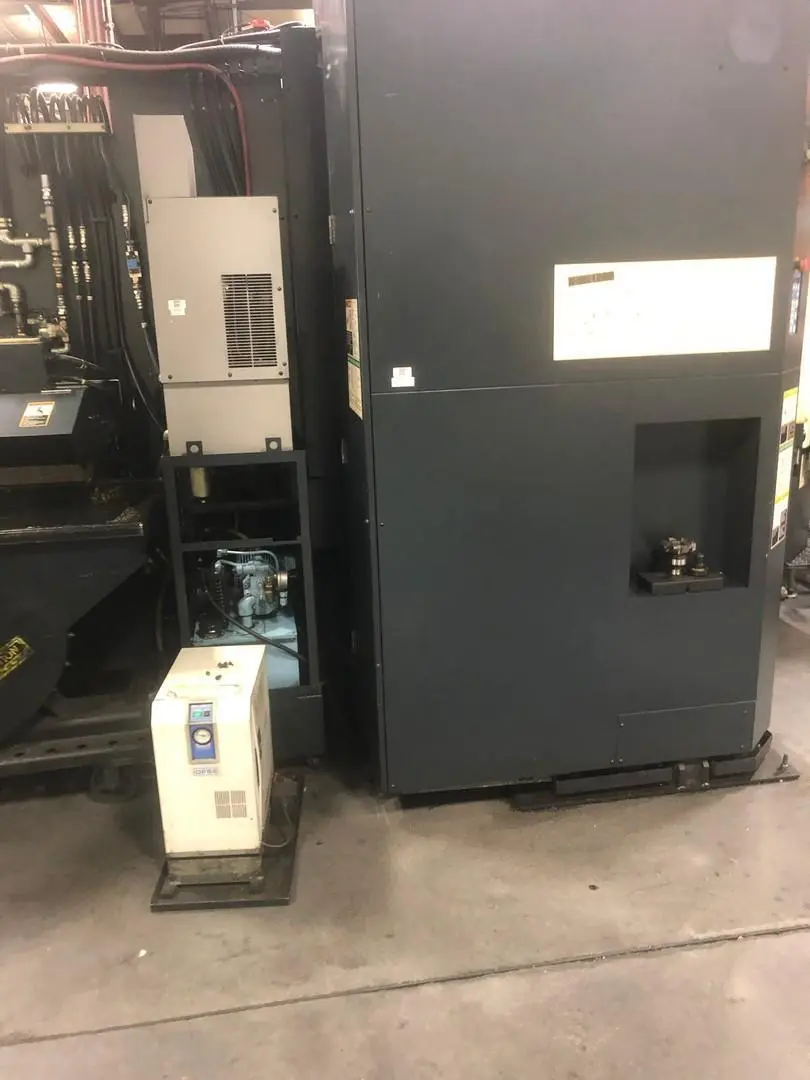

Air Dryer
Helical Interpolation
Manual Pulse Generator
200 Tool Offset
Macros
Probing: Automatic Renishaw System (Renishaw MP700 and NC4 ATLM System)
