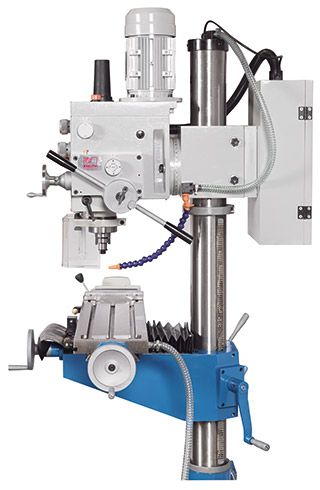

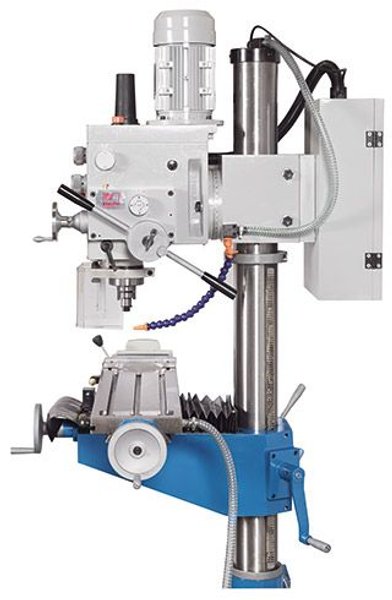

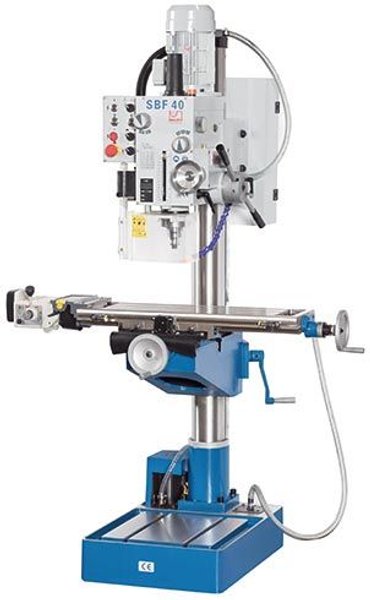

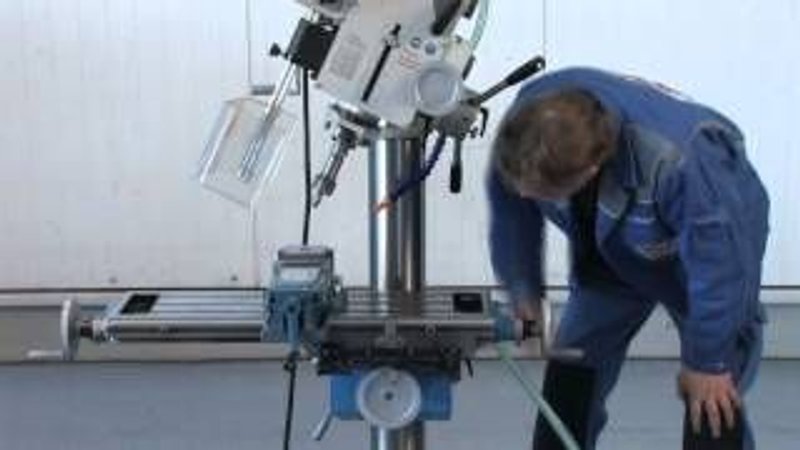

KNUTH MODEL SBF 40 TV 1000 DRILL PRESS/MILLING MACHINE

Brand
KNUTH
Category
Presses (Stamping)
Type
Presses, Drill
Model
SBF 40 TV 1000
Stock #
16278
Year
Not specified
Condition
New
Location
Not specified

Working Area
Table set up area29x8 in
Table load capacity (max.)220 lbs
Number of table T-slots3 positions
T-slot table (width x spacing)0.55x2.48 in
T-slot foot (qty)2 positions
T-slot foot (width x spacing)0.55x7.87 in
Quill stroke5 in
Throat11 in
Column diameter5 in
Spindle nose-to-table surface distance24 in
Spindle nose-to-foot distance46 in
Drilling capacity1.57 in
Drilling capacity in steel / ST372 in
Head swivel range± 45¡
Tapping capacity, steel(ST 37) M16
Travels
Travel X-axis19.7 in
Travel Y-axis7 in
Z1 / Z2 axis travel21 in
Headstock
Speed range(12) 75 - 3,200 rpm
Spindle mountMK 4
Rapid Feed
Rapid feed24 in/min
Feed
Work feed0 - 17 in/min
Drive Capacity
Motor rating main drive2 Hp
Main drive, continuous load1.48 Hp
Motor rating coolant pump0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)33x30x73 in
Weight858 lbs
Part No. 101573

  • Drilling and Milling - A true added value for a low price
  • Large compound sliding table with automatic infinitely variable feed on X for coordinate drilling and light milling work
  • Quiet operation with oil-bath lubricated gears for long tool life and durability
  • The milling machine's high-quality spindle bearing can withstand higher loads for the long term
  • Manual drill feed can be switched to high-precision feed via a hand-wheel
  • Controllable automatic feed with 3 gear steps
  • Adjustable height of gear head and table
  • Table guides are adjustable with high precision via taper gibs
  • Gear head swivels to both sides
  • Cutter mounts are secured by a drawbar
  • Tapping feature
  • Integrated coolant system

  • tapping unit
  • table feed TV 1000
  • draw bar
  • drill chuck
  • tool-holder bits
  • coolant system
  • operator manual
