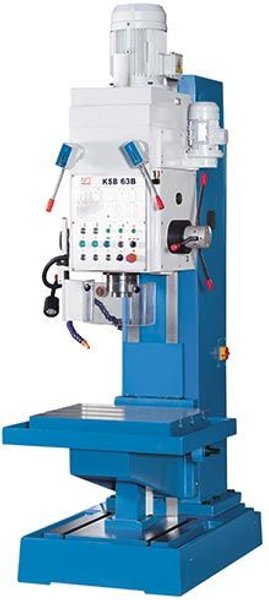

NEW KNUTH KSB SERIES BOX COLUMN DRILL PRESS

Name: NEW KNUTH KSB SERIES BOX COLUMN DRILL PRESS
Brand: KNUTH
SKU: 16228
Availability: InStock

Brand

KNUTH

Not specified

	KSB 32A	KSB 40B	KSB 50C	KSB 63B
Working Area
Drilling capacity	1.26 in	1.57 in	1.97 in	2.48 in
Feed force, axial (max.)	9	16	16	30
Throat	11 in	13 in	13 in	15 in
Vertical head travel	8 in	8 in	8 in	10 in
Quill stroke	8 in	10 in	10 in	10 in
Feed Z-axis	(9) 0.0022 - 0.0709 in/R	(9) 0.0022 - 0.0709 in/R	(9) 0.0022 - 0.0709 in/R	(6) 0.0039 - 0.0307 in/R
Spindle nose-to-table distance (max.)	27 in	26 in	29 in	34 in
Table stroke	12 in
T-slots, width	0.6 in	0.7 in	0.7 in	0.9 in
Number of T-slots	3 positions
Table set up area	16x22 in	19x22 in	19x22 in	26x22 in
Headstock
Spindle Torque (max.)	1,416 ft.lb.	3,098 ft.lb.	3,098 ft.lb.	7,080 ft.lb.
Spindle mount	MT 4	MT 4	MT 5	MT 5
Spindle speed	(9) 50 - 2,000 rpm	(12) 31.5 - 1,400 rpm	(9) 45 - 850 rpm	(9) 40 - 570 rpm
Drive Capacity
Motor rating main drive	3 Hp	4 Hp	5.4 Hp	7.4 Hp
Motor rating coolant pump	0.1 Hp
Measures and Weights
Flow rate	6.6 gal/min
Overall dimensions (length x width x height)	38x34x93 in	41x36x100 in	41x36x100 in	39x58x110 in
Weight	2,090 lbs	2,750 lbs	2,750 lbs	5,500 lbs
