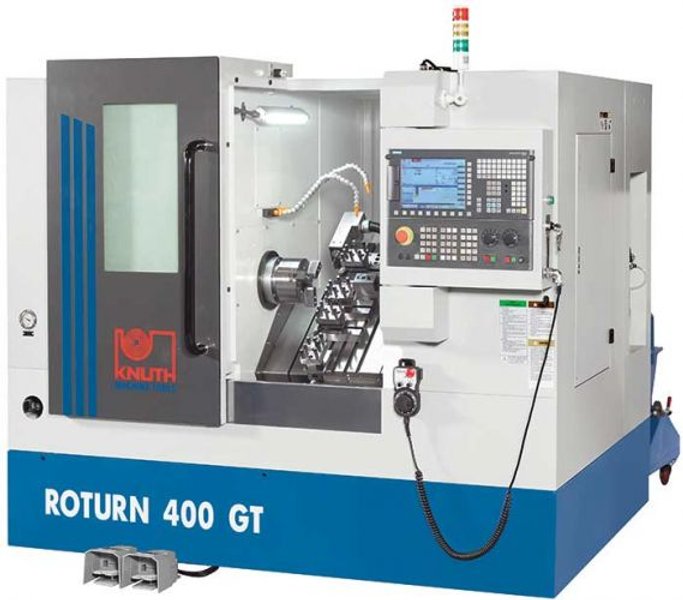

Working AreaWorkpiece length (max.) | 15 in | Center height | 8 in | Turning diameter over bed | 16 in | Turning-¯ over support | 6 in | TravelsTravel X-axis | 18 in | Travel Z-axis | 16 in | HeadstockSpeed range | 60 - 5,000 rpm | Spindle mount | A2-5 | Spindle bore | 2 in | Spindle bore with draw tube | 1.5 in | Tool HeadTool change type | Linearwechsler | Tool shank dimensions | 0.8x0.8 in | Boring bar mount diameter | 1.5 in | Rapid FeedRapid feed X-axis | 984 in/min | Rapid feed Z-axis | 984 in/min | Driven tools (optional)Number of driven tools | 1 positions | Speed range, driven tools | 7,500 rpm | Collet | ER 25 | Drive CapacityMain motor rating | 7,5 / 5,5 Hp | Motor rating coolant pump | 0.2 Hp | Measures and WeightsOverall dimensions (length x width x height) | 76.77x59.05x68.9 in | Weight | 5,500 lbs |

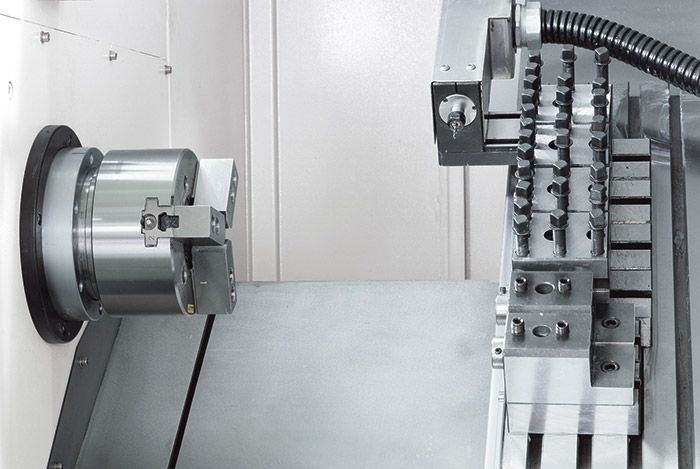

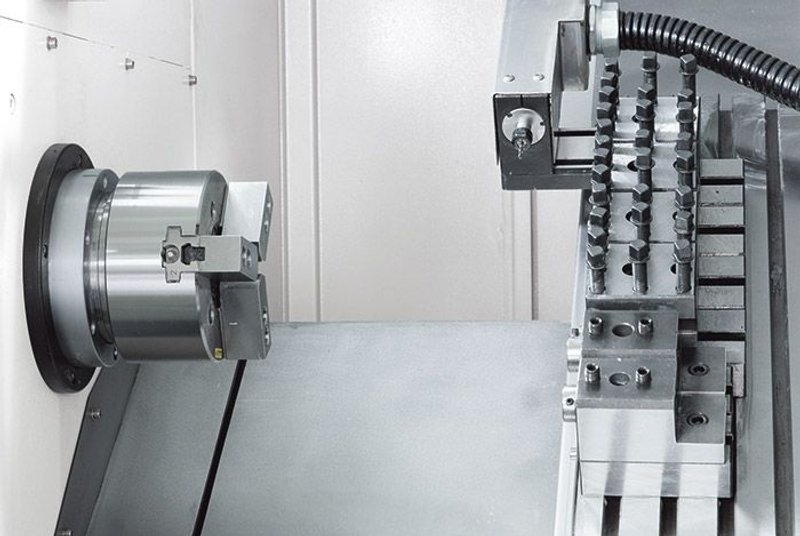

- Linear tool changers are ideal for the serial production of smaller workpieces - shortest tool changing times and absolutely reliable features ensure increased productivity

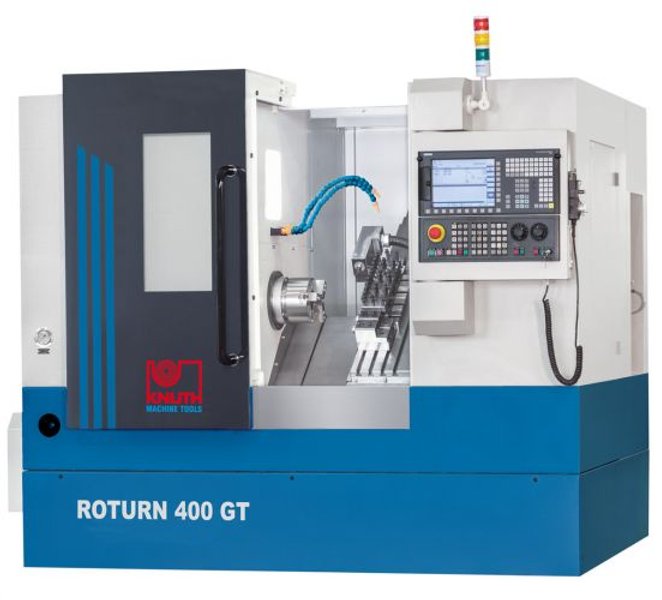

- Machine frame with inclined bed construction for high rigidity and easy chip removal
- Hardened linear guides on X and Z ensure maximum precision and reliability
- Totally enclosed workspace for optimum protection and cleanliness and a large sliding door provides easy Access

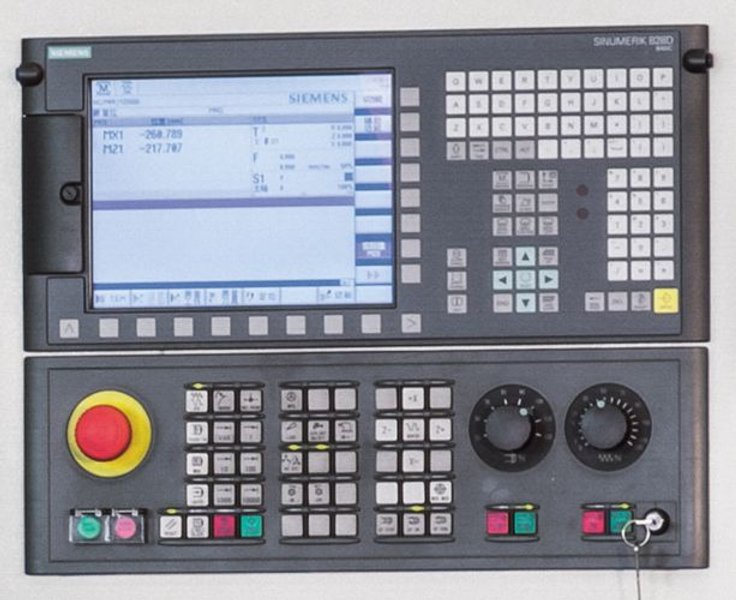

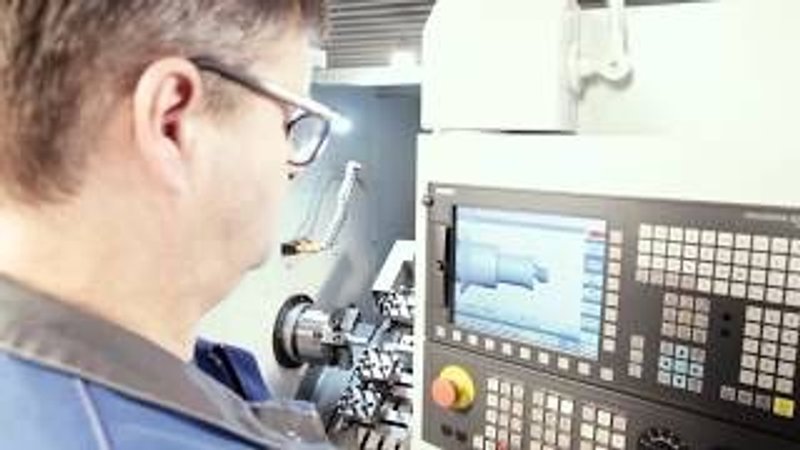

- The tried and tested SIEMENS 828 D Basic control meets all requirements for advanced control technology
- Main spindle driven by a powerful servo Motor
- A hydraulic 6 in 3-jaw chuck is included in the standard Equipment
- Chip conveyor and powerful coolant system are also included in the standard Equipment
- Automatic central lubrication system ensures reliable lubrication of guideways
- The machine can be equipped with an optional driven tool for radial and axial machining
- Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
- High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
- Maintenance-free operator panel front, e.g. no fan, battery or hard disk
- Highest machining precision with 80-bit NANOFPaccuracy
- New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
- ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
- Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
- Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
- programGUIDE: fastest machining time and maximum flexibility for large series productions
- Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
- G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
- Animated Elements: Unique operating and programming support with moving picture sequences
- modern data transfer options via USB stick, CF card and network (Ethernet)
- SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
- Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
- Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
- Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions- Operator panel variants for horizontal or vertical operator panel housings
- Proximity/clearance sensor for smart display control
- Integrated QWERTY full CNC keyboard with short-stroke keys
- Additional Ethernet interface at the rear of the CNC for connection to factory network
- Additional USB interface at the rear of the CNC for machine control panel
- Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
- I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
- Up to 5 axes/spindles
- 1 analog spindle
- 1 machining channel/mode group
- Integrated tool management with tool life monitoring
- Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
- SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
- Integrated data archiving procedure for simple data updates
- Siemens 828 D control
- Hydraulic 3-jaw lathe chuck, ¯ 6 inch with bore
- Automatic central lubrication
- hinged belt conveyor
- Heat exchanger for electric control cabinet
- enclosed work space
- LED work lamp
- coolant system
- operating tools
- operator manual
|
