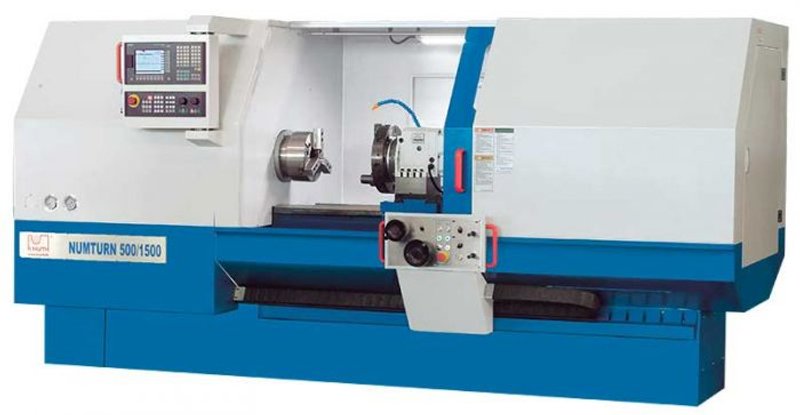

Working Area| Workpiece length (max.) | 57 in | | Turning-¯ over bed (max.) | 20 in | | Turning-¯ over support | 12 in | | Turning length (max.) | 48 in | Details| Control | Fagor 8055i | Travels| Travel X-axis | 10.2 in | | Travel Z-axis | 56 in | Headstock| Speed range | 60 - 2,000 rpm | | Spindle mount | A2-8 | | Lathe chuck diameter | 10 in | | Spindle capacity with draw tube | 3 in | Rapid Feed| Rapid Feed X-axis | 157.48 in/min | | Rapid Feed Z-axis | 314.96 in/min | Tool Head| Number of tool stations | 8 positions | Accuracies| Positioning accuracy X-axis | ± 0.0005 in | | Positioning accuracy Z-axis | ± 0.0006 in | | Repeatability X-axis | ± 0.0004 in | | Repeatability Z axis | ± 0.0006 in | Tailstock| Tailstock taper | MT 5 | | Tailstock quill diameter | 3 in | | Tailstock quill stroke | 6 in | Drive Capacity| Motor rating main drive | 20.1 Hp | | Main drive, continuous load | 14.75 Hp | | Torque of drive X | 89 ft.lb. | | Torque of drive Z | 133 ft.lb. | | Motor rating coolant pump | 0.2 Hp | Measures and Weights| Overall dimensions (length x width x height) | 144x70x73 in | | Weight | 7,260 lbs |
- Heavy ribbing of the machine frame and wide hardened V-guides for heavy-duty machining
- Headstock and main spindle are designed for constant precision and optimum
temperature balance
- High-quality spindle bearings ensure error-free continuous operation
- The heavy-duty tailstock is easy to handle and features high clamping force
- The automatic 8-station VDI tool turret is part of the standard package and ensures maximum flexibility and productivity
- Hydraulic chuck with adjustable holding force included in standard equipment
- The machine housing can be completely closed and is easily accessible through a wide opening sliding door
- The machine housing can be completely closed and is easily accessible through a wide opening sliding door
- Smart central lubrication system for low-maintenance operation
- The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
- A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
- The graphically displayed cycles can be used individually or they can be linked within a user application
- The Fagor 8055i/A Version TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
- Profile Editor
- DIN ISO programming is also possible
- Fixed cycles with options for graphic geometry definition
- With multi-threaded thread cycle
- Thread repair with cycle
- Graphic simulation with solid body display, including simultaneous for editing
- Easy to use tool management
- USB port
- RS232 port
- Look Ahead function (75 blocks)
- Block Processing Time: 1.5 ms
- Compact Flash with storage expansion up to 2 GB
- Optional C axis function prepared for lathes
- Optional up to 1 MB RAM user memory
- Optional free M-Codes, inputs and outputs
- hydr. tailstock
- control Fagor 8055i FL-TCO
- 2 electronic hand-wheels
- 8-station VDI tool turret
- hydr. 3-jaw chuck ¯ 10"
- automatic central lubrication
- work lamp
- operating tools
- operating manual and programming instructions
|
