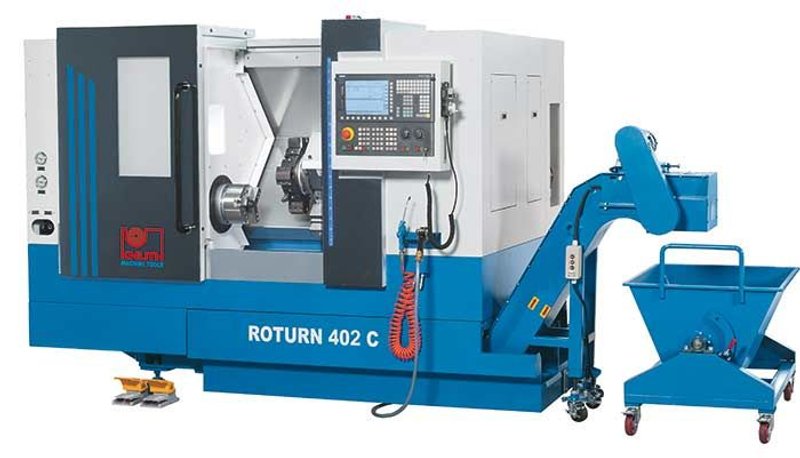

KNUTH ROTURN 402 C CNC INCLINED BED LATHE

Brand
Model
Roturn 402 C
Stock #
16315
Year
Not specified
Condition
New
Location
Not specified

Working Area
Workpiece length (max.)17 in
Center height8 in
Turning diameter over bed16 in
Turning diameter over support10 in
Travels
Travel X-axis7.9 in
Travel Z-axis18 in
Headstock
Lathe chuck diameter10 in
Speed range50 - 2,000 rpm
Spindle mountA2-8
Spindle bore3 in
Spindle bore with draw tube3 in
Rapid Feed
Rapid Feed X-axis629.92 in/min
Rapid Feed Z-axis787.4 in/min
Tool Head
Number of tool stations8 positions
Tool shank dimensions1x1 in
Boring bar mount diameter1.6 in
Tailstock
Tailstock taperMT 5
Tailstock quill diameter3 in
Tailstock quill stroke3 in
Drive Capacity
Main motor rating15 / 11 Hp
Motor rating coolant pump0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)150x74x76 in
Weight7,480 lbs
Part No. 180628

  • Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
  • Precise linear guides in X and Z for high stability and accuracy even at highest loads
  • The enclosed work space is easily accessible through a large sliding door
  • Future-proof: the Siemens 828 D Basic control meets all requirements for advanced control technology

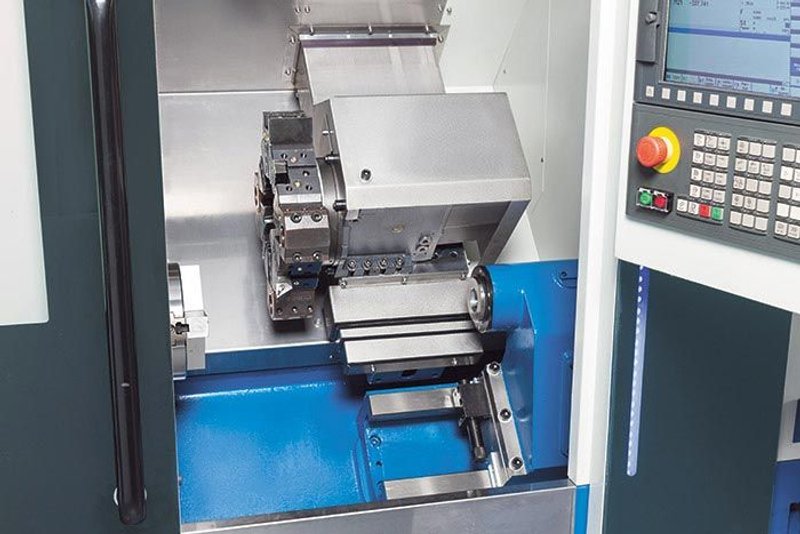

  • The 8-station tool turret ensures a large work area and quick and precise tool changes
  • A powerful 20 HP headstock motor delivers high torque across the entire speed range
  • Hydraulic 8 in 3-jaw chuck with through-hole
  • Tailstock with hydraulically operated quill with a maximum stroke of 3 in
  • Automatic central lubrication system ensures reliable lubrication of guideways
  • Hinged belt conveyor and high-performance coolant system included in standard equipment

Proven record:

  • Easy, dialog-guided user interface
  • Complete bandwidth of technology cycles
  • High performance and precision

  • Siemens 828 D Basic control
  • Hydraulic 3-jaw lathe chuck, ¯ 8 inch with bore
  • hydr. tailstock
  • automatic central lubrication
  • Chain-type chip conveyor
  • Heat exchanger for electric control cabinet
  • enclosed work space
  • LED work lamp
  • coolant system
  • compressed air gun
  • coolant gun
  • operating tools
  • operator manual
