12" x 3.50" x 5,000# Torrington Slitting Line

12" x 3.50" x 5,000# Torrington Slitting Line

Name: 12" x 3.50" x 5,000# Torrington Slitting Line
Brand: TORRINGTON
SKU: 2069
Availability: InStock

Brand

TORRINGTON

Location

Ohio

Specifications
Files & Videos

Max Width Of Workpiece

12 inches

Materials:                      HRS, CRS
Max. Coil Width:                12"
Thickness Range:                0.010" - 0.065"
Max. Coil Weight:               5,000#
Max. Shear:                     50,000 PSI
Max. Yield:                     50,000 PSI
Coil I.D. (Entry):              15" - 18"
Coil I.D. (Exit):               16" and 20"
Max. Coil O.D.:                 60"
Line Direction:                 Right to Left
Mode of Operation:              Pull Thru
Line Speed:                     0 - 400 FPM

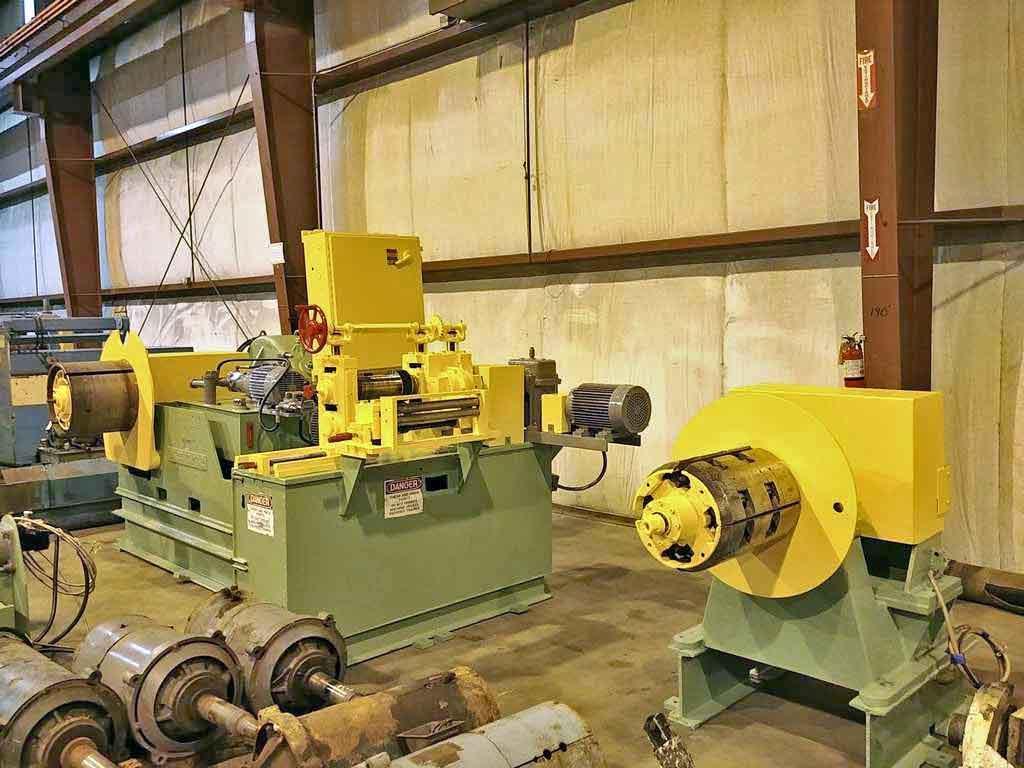

Consisting of the following:

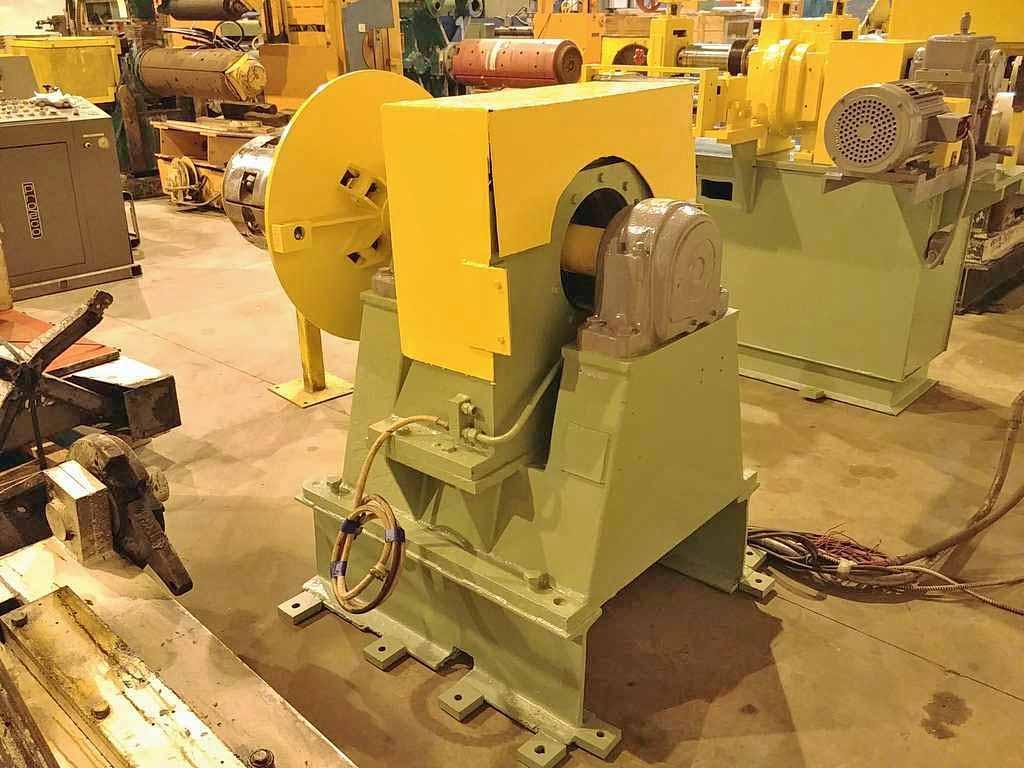

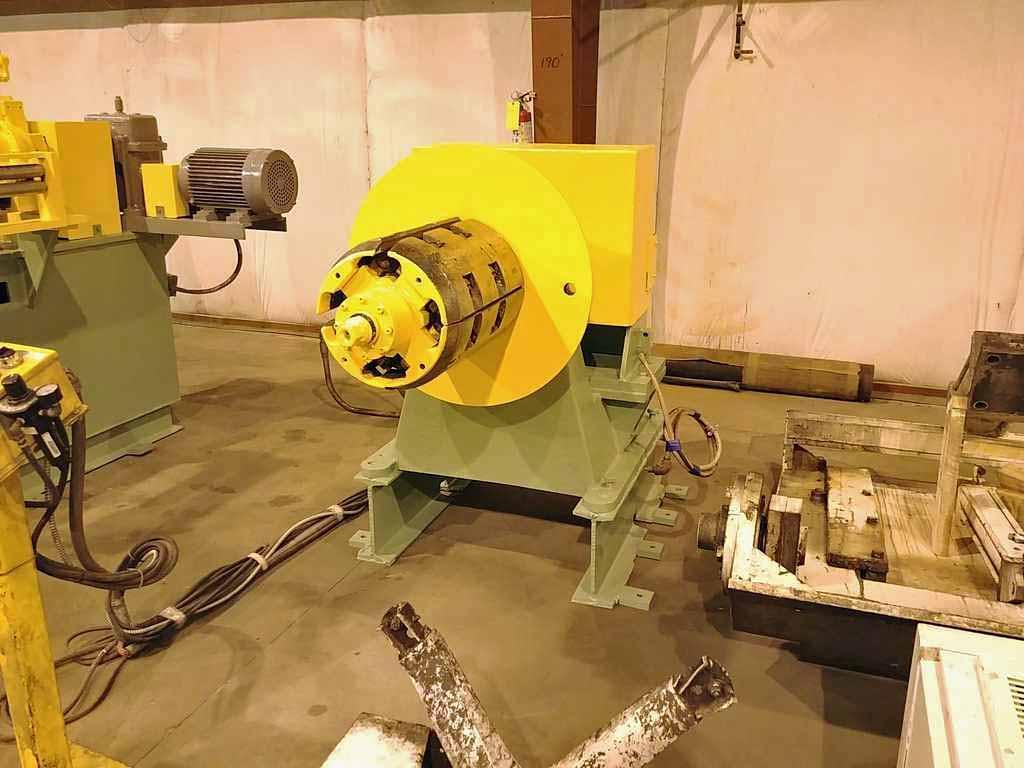

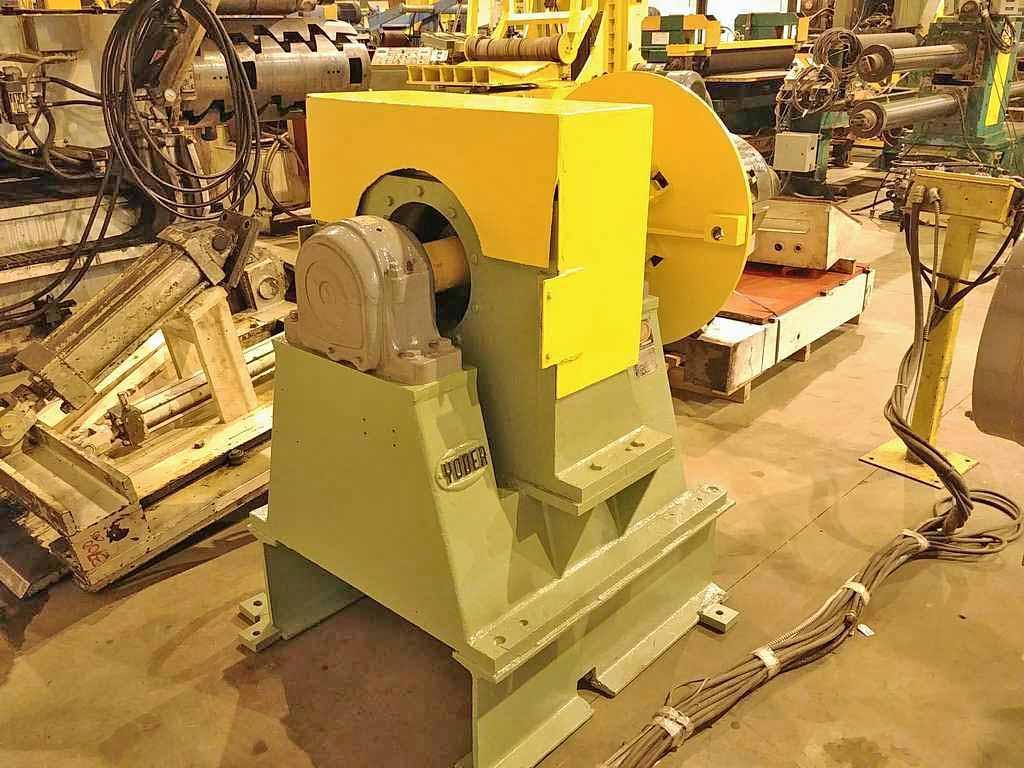

-Uncoiler:
Single Mandrel Type
  4.5" Dia. Main Shaft
18" Face Mandrel
14.5" - 18" Expansion Range
Manual Expansion
  Fawick Air Brake
  Passline: 40.5" from Floor to center of Mandrel
            (Mounted on 12" I-Beam Base)
Overall Size: 70" L x 44" W x 54" High

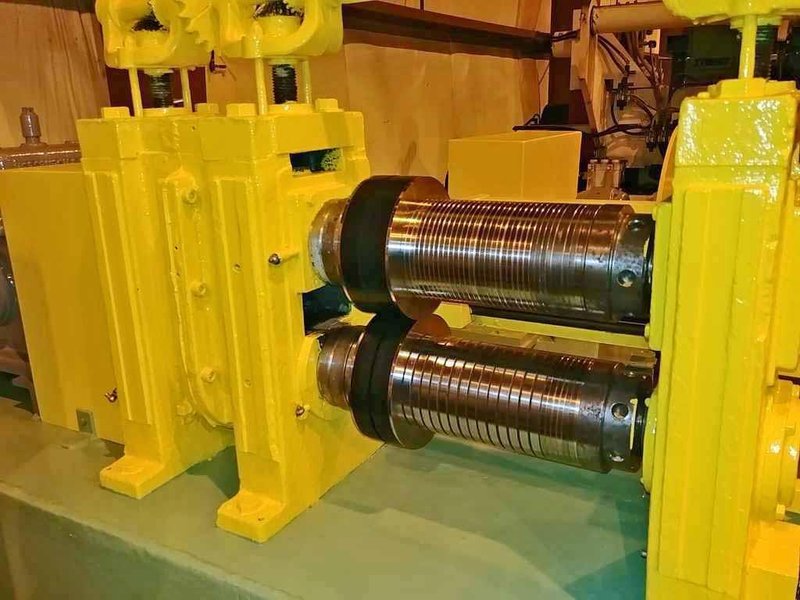

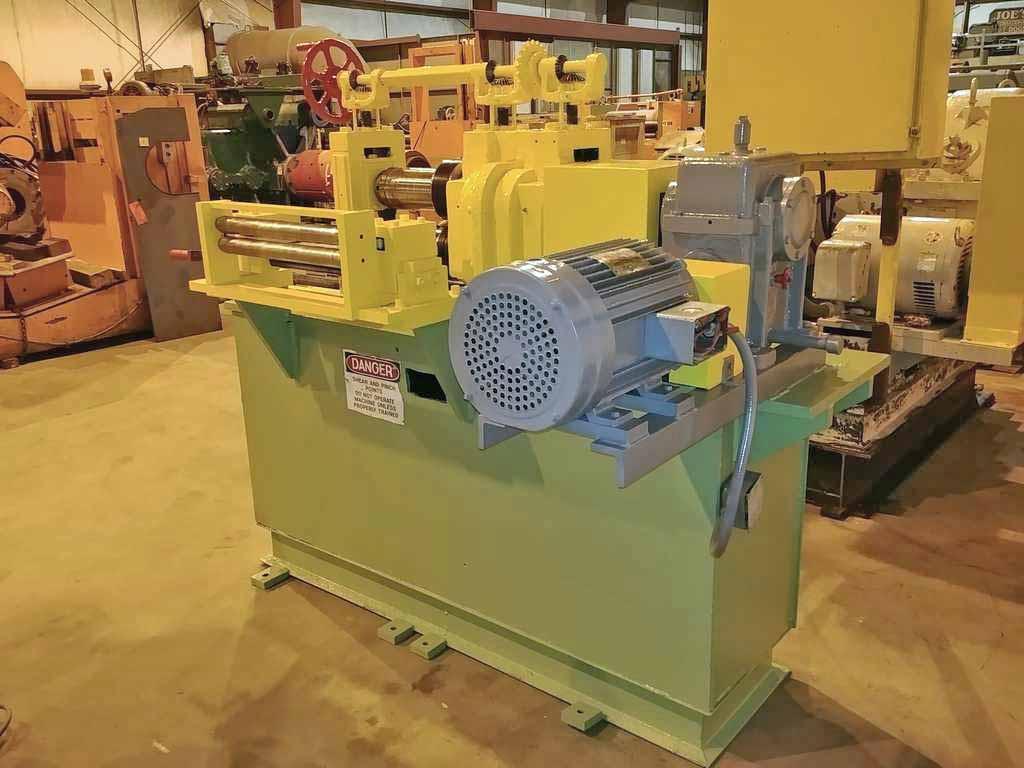

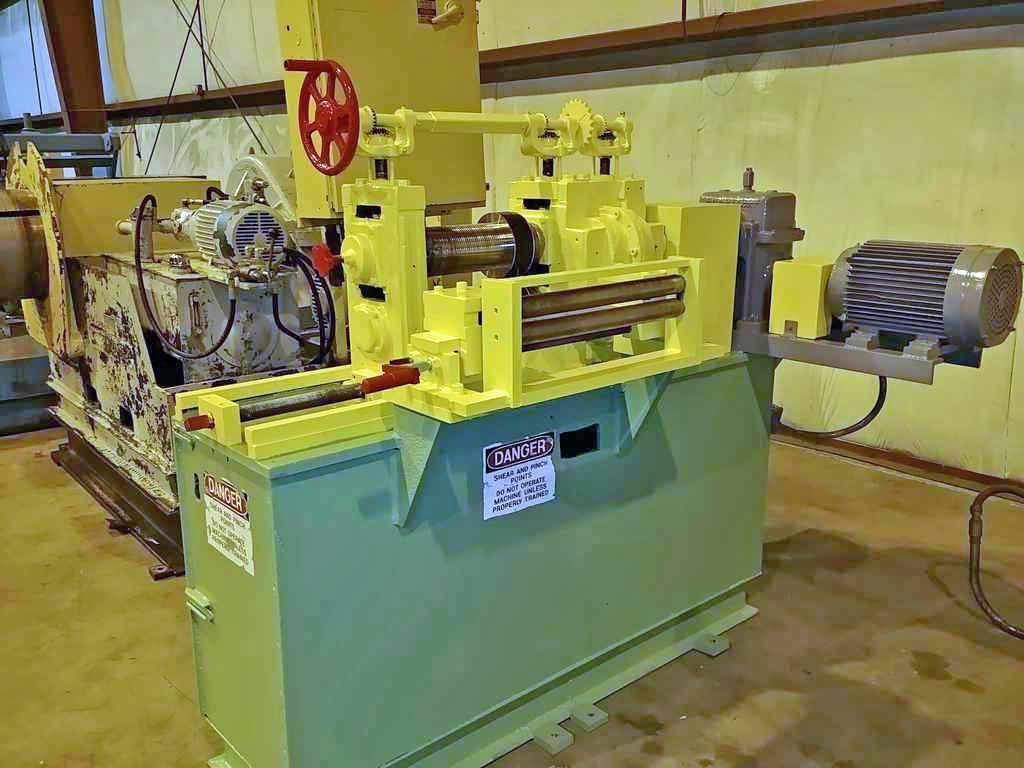

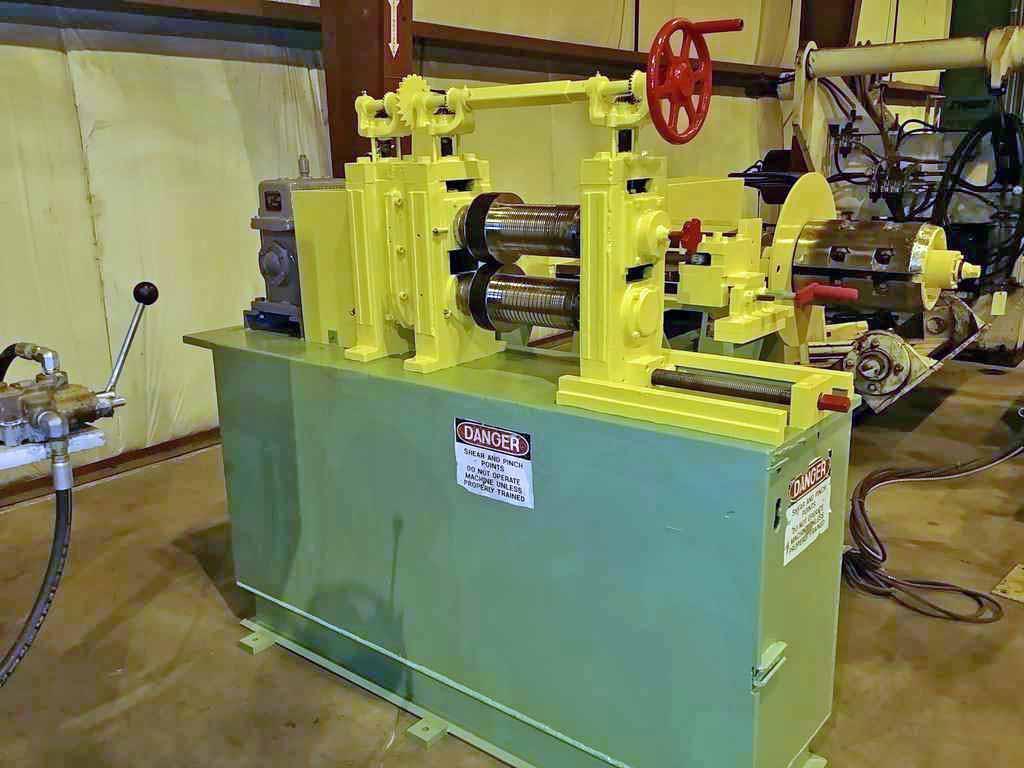

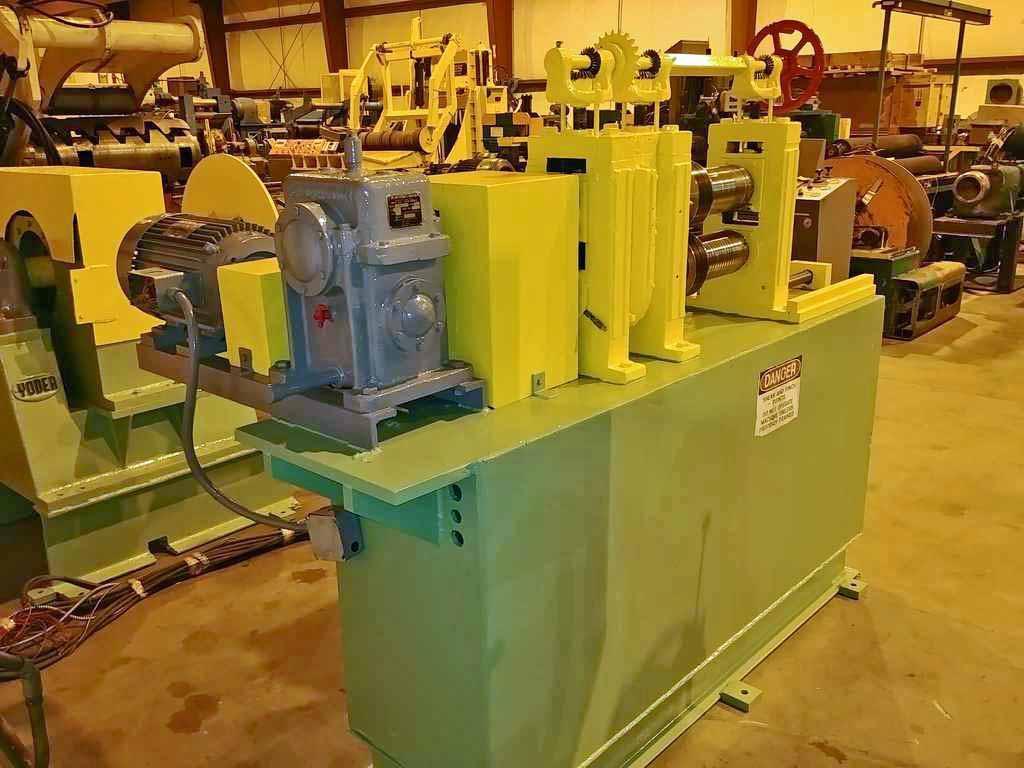

-Slitter Head:
Entry Passline Rolls
  Entry Side Guides, Manual Adjustment
  3.5" Dia. x 14" Face Arbors
  Manual Outboard Retraction
  Manual Parallel Arbor Adjustment
  5 HP AC Motor, 1170 RPM, 230/460 V
H&S Right Angle Reducer w/25:1 Ratio
Passline: 50"
Overall Size: 82" L x 48" W x 71" High

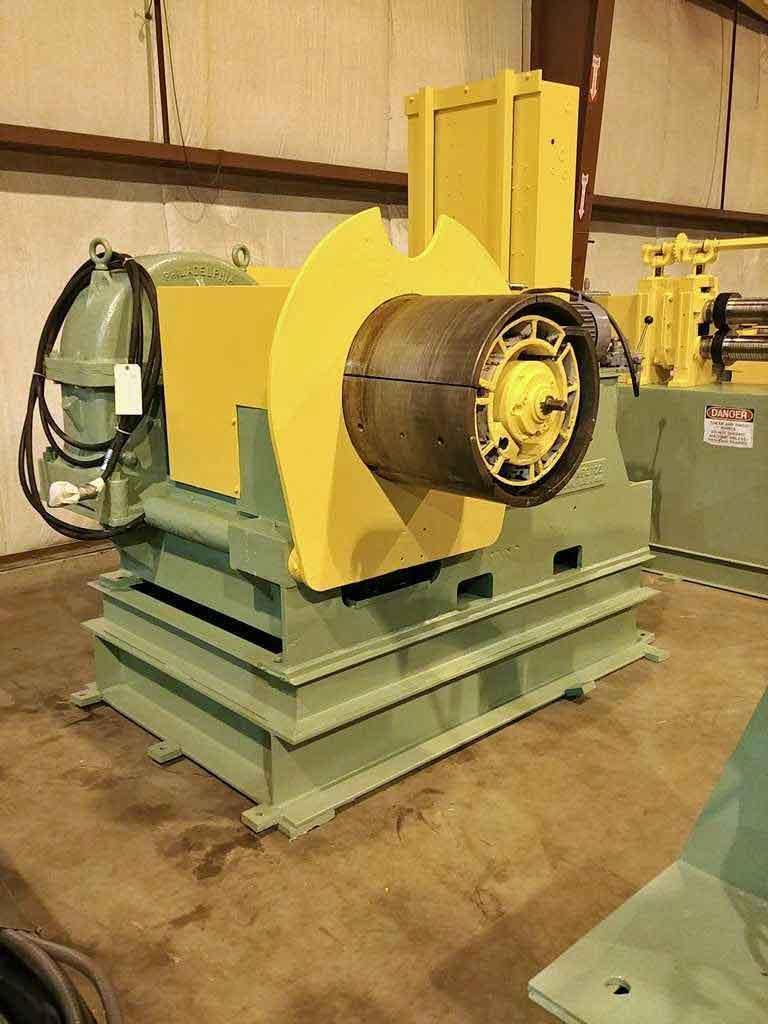

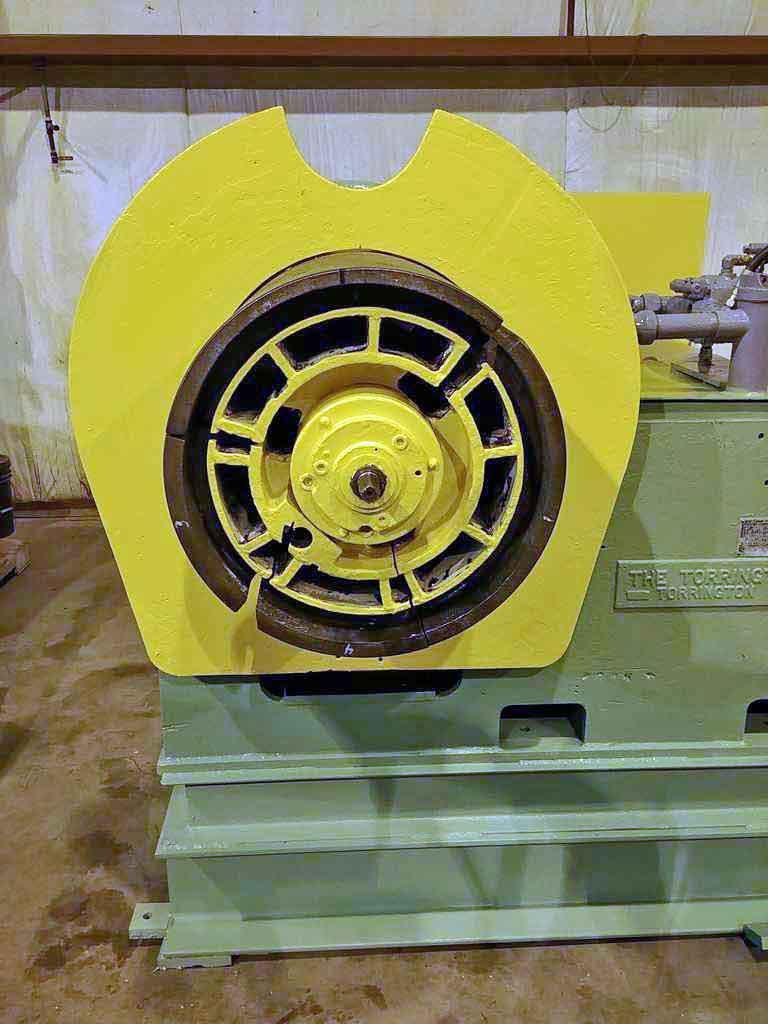

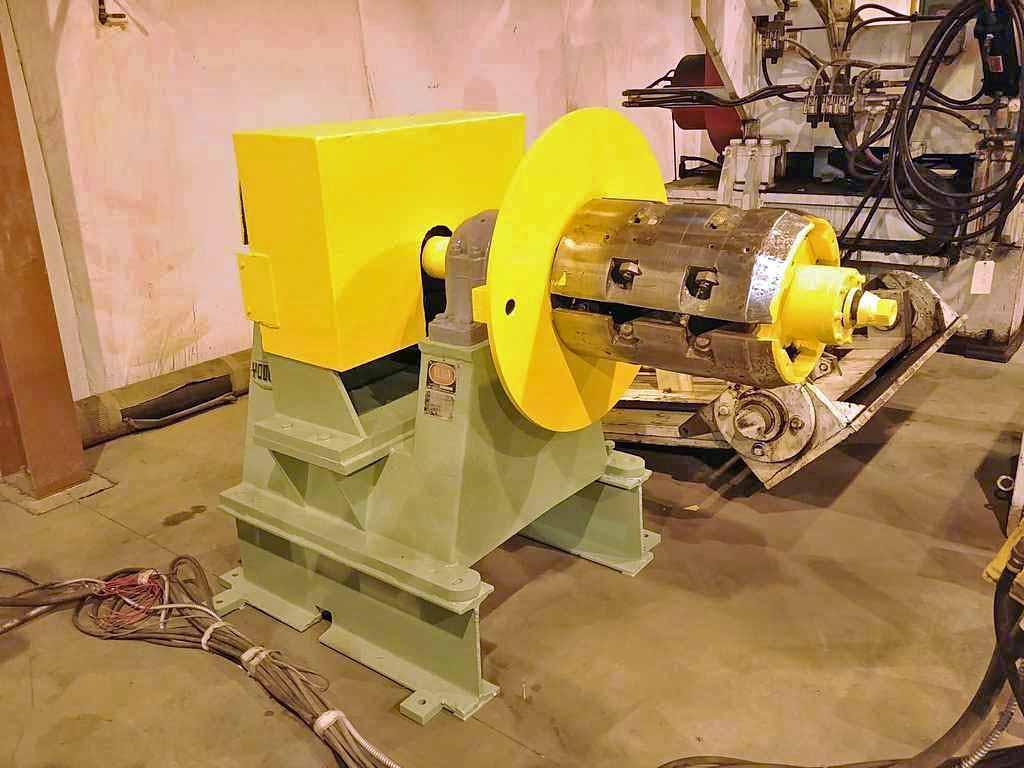

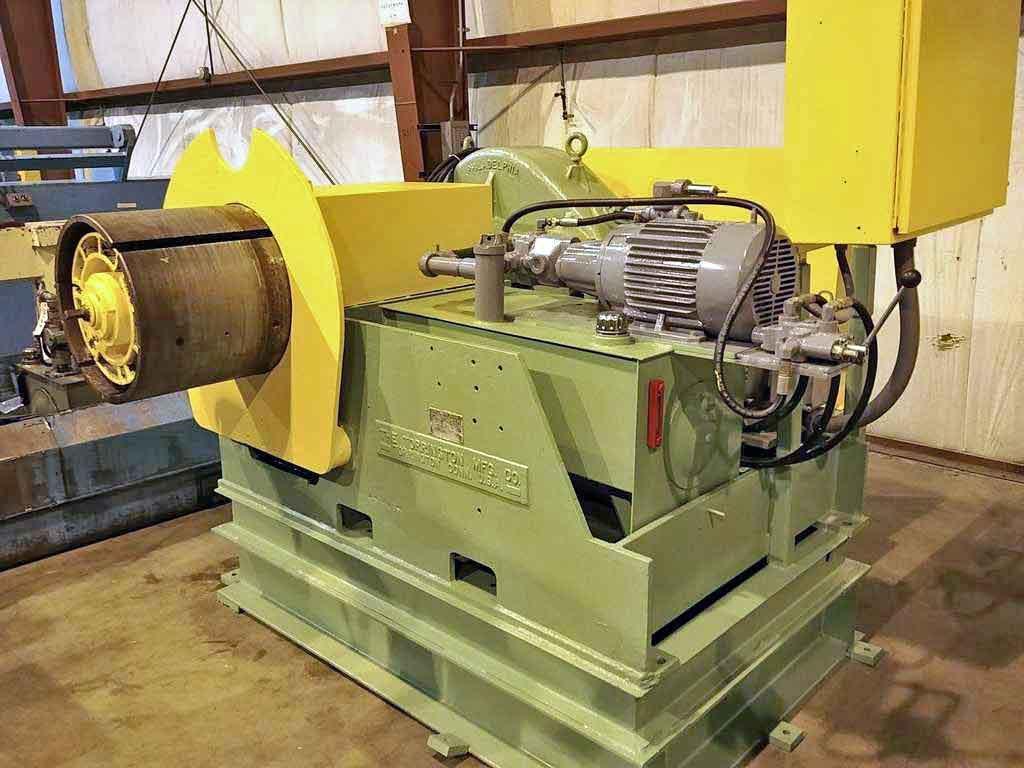

-Recoiler:
16" Dia. x 16" Face Drum
20" Dia. x 17" Face Bolt-On Pads
Manual Expansion
  4.75" Dia. Main Shaft
Gripper Slot (Gripper Bar Missing)
  Hydraulic Pushoff
30 HP Baldor AC Motor, 1160 RPM, 230/460 V
  Philadelphia Gear Reducer w/6:1 Ratio
    Belt Drive from DC Motor w/3:1 Ratio
    Total Reduction: 18:1
Self-Contained Hydraulic Power Unit
    3 HP, 460 V
    Vickers Pump
Passline: 47" from Floor to center of Drum
            (Mounted on 10" I-Beam Base)
Overall Size: 92" L x 89" W x 92" High

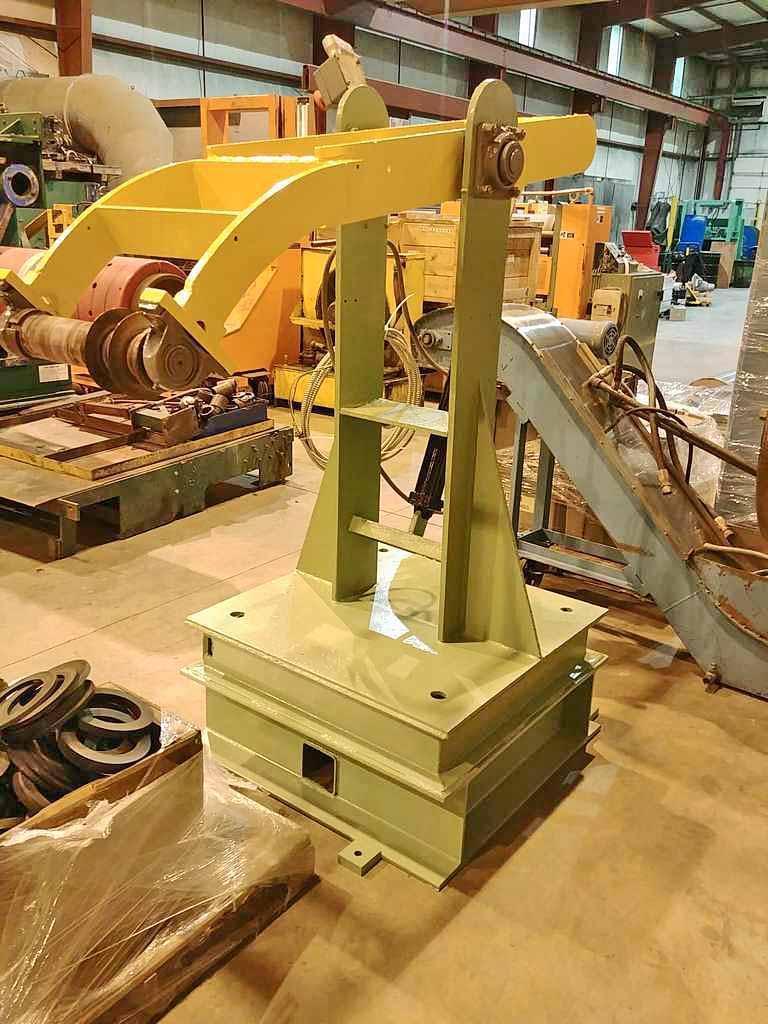

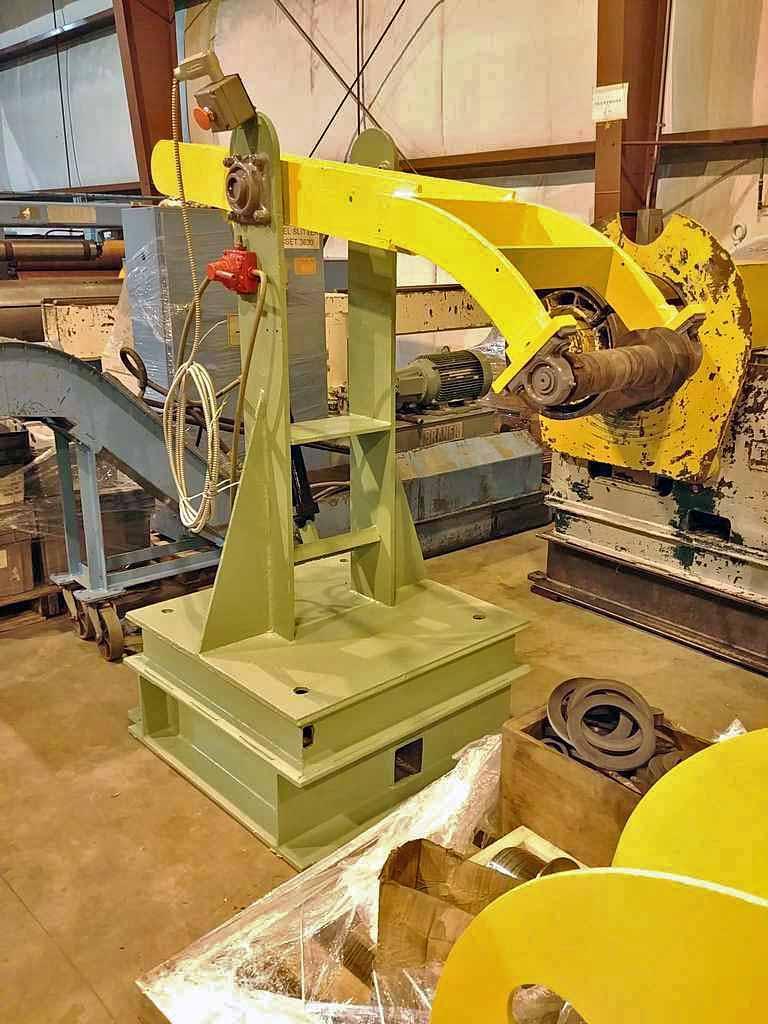

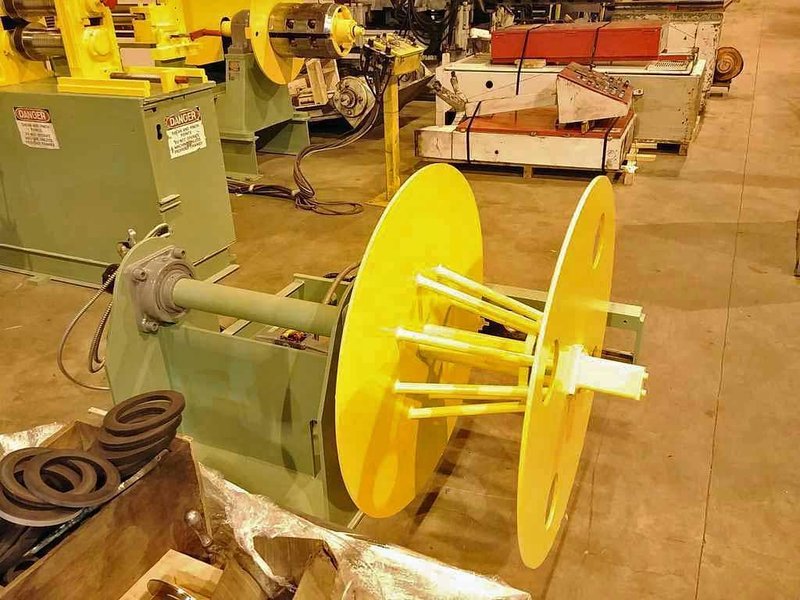

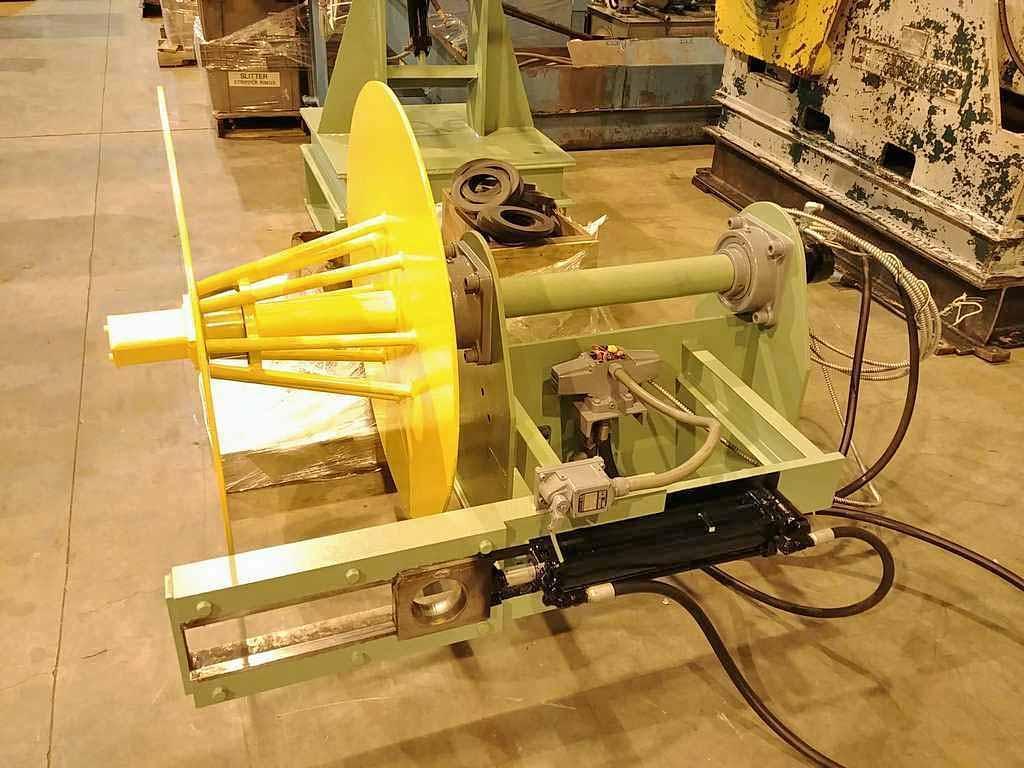

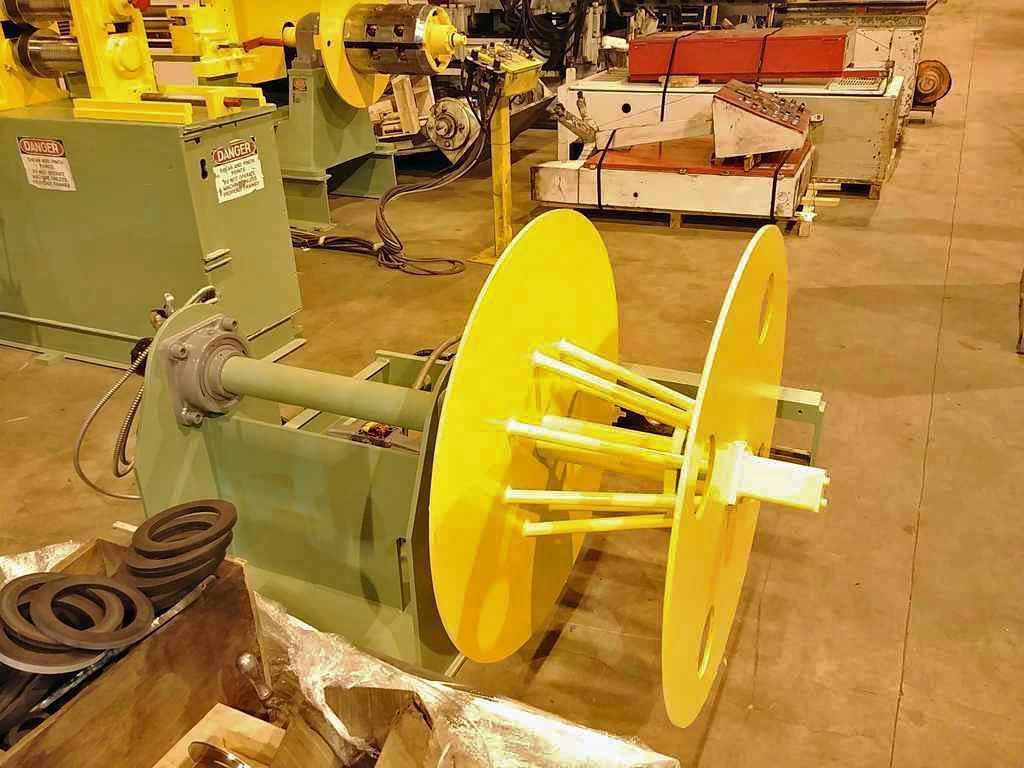

-Free Standing Overarm Separator:
  2.5" Dia. x 14" Face Tooling Shaft
Air Cylinder Operated
Overall Size: 67" L x 37" W x 80" High

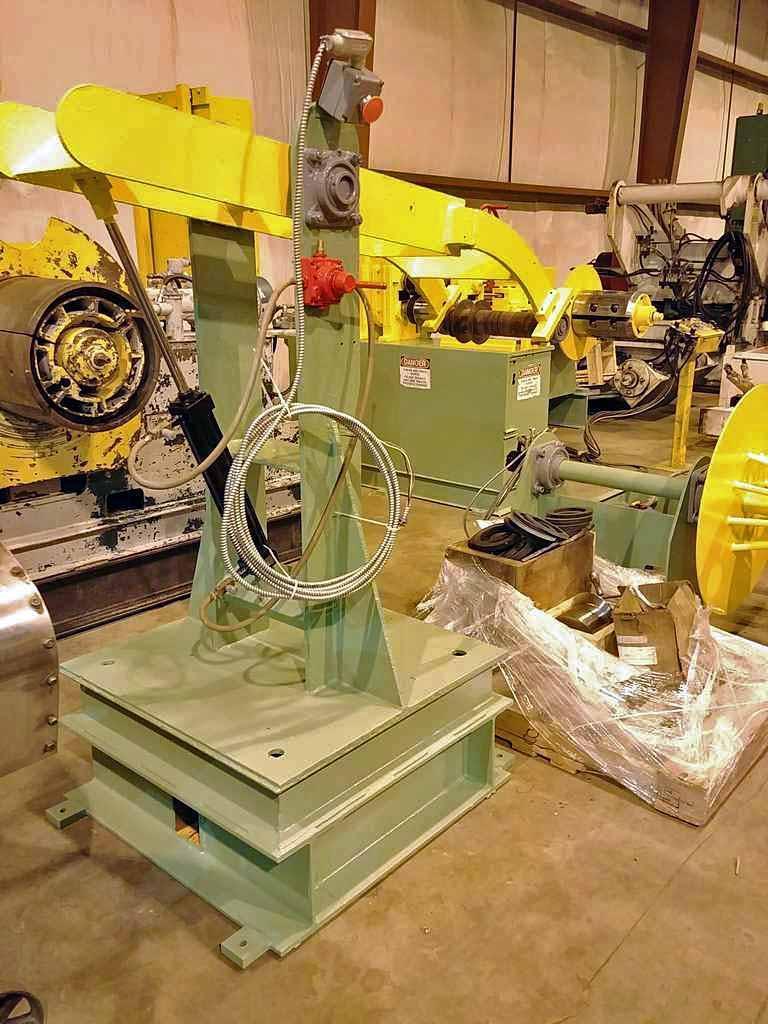

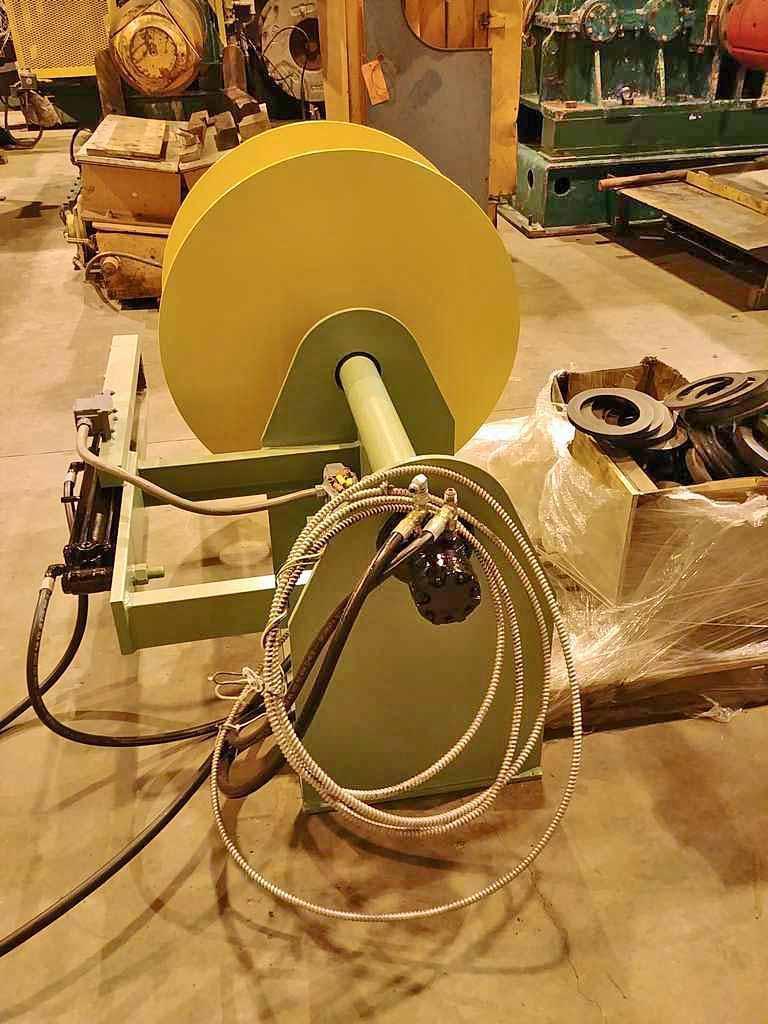

-Scrap Winder:
15" W x 30" Dia. Scrap Ball Capacity
Hydraulic Motor Powered, Eaton/Char-Lynn Motor
Level Wind w/Air Cylinder
Manual Scrap Dump
  Overall Size: 65" L x 48" W x 42" High

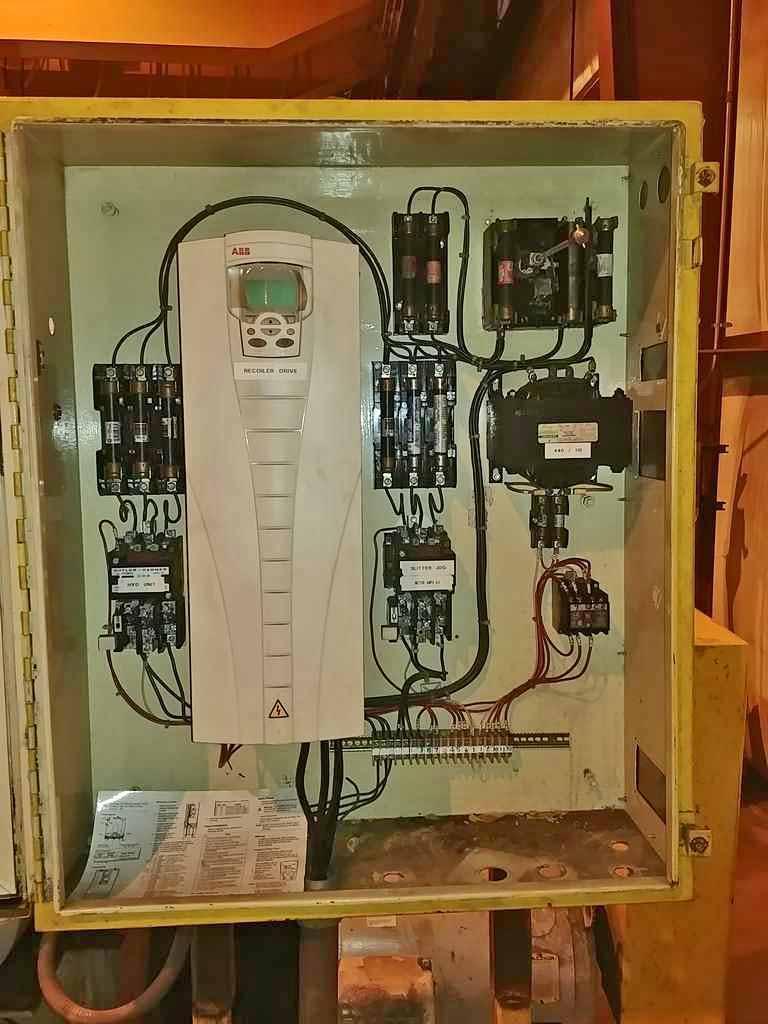

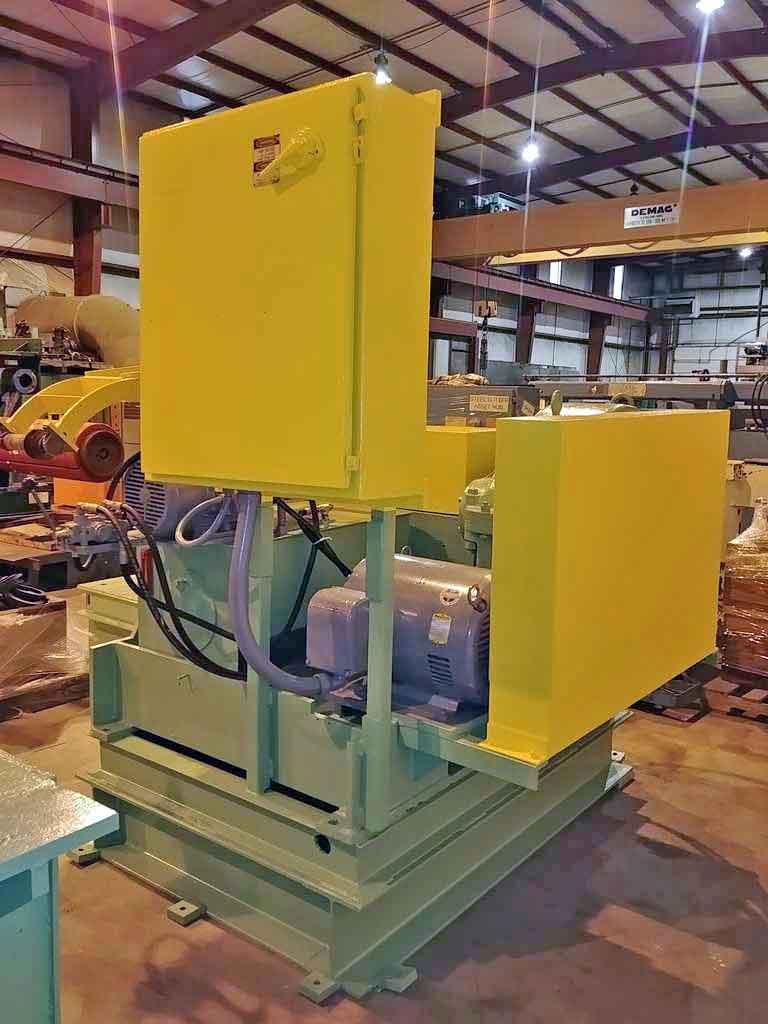

-Electrical Controls:

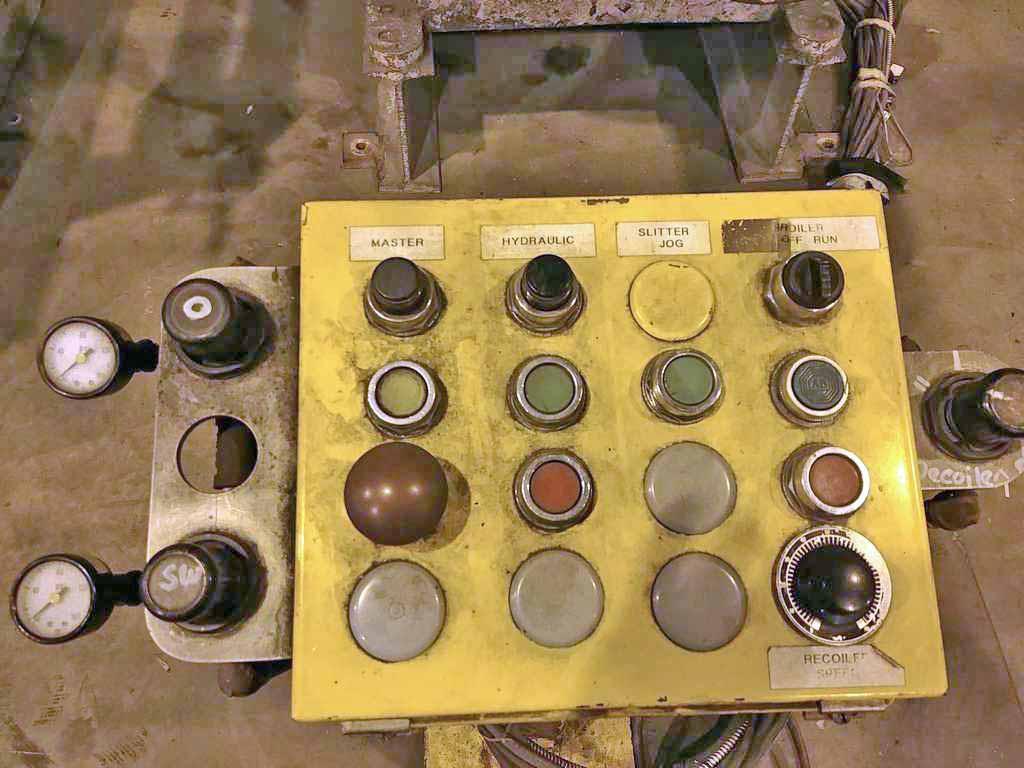

Main Operators Control Pedestal

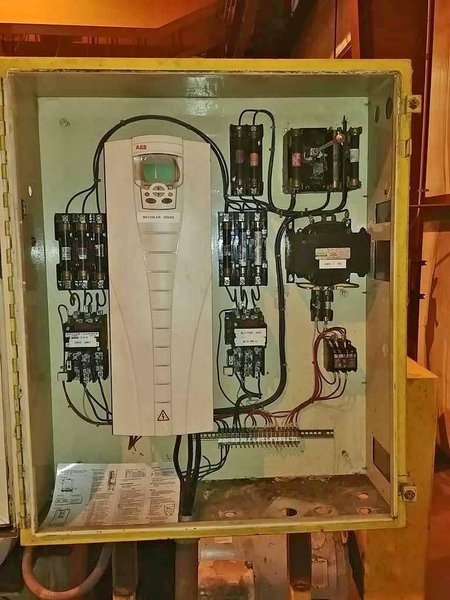

  AC Control Cabinet
  ABB Variable Speed Recoiler Drive, Model ACS 550-U1

-Slitter Tooling:
Knives, (36) - 7" O.D. x 0.187" Wide, w/3/8" x 5/8" keyway
Steel Spacers
  Rubbers
  Overarm Separator Tooling
