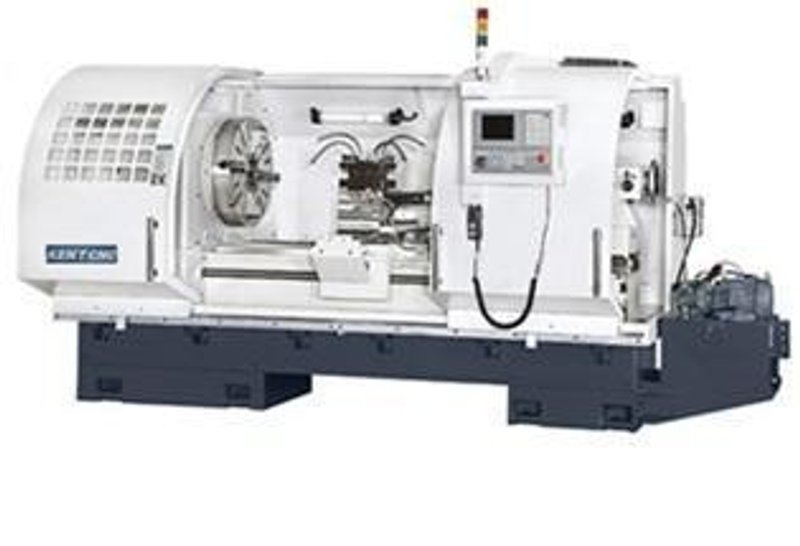

Capacity

Swing over bed ways

26” (670mm)

Swing over cross slide

14.96” (380mm)

Swing over gap

N/A

Gap length (w/ face plate)

N/A

Bed width

18” (460mm)

Distance between centers

60”(1500mm)/80”(2000mm)/120”(3000mm)

Headstock

Spindle bore

4” (104mm)

Spindle nose

A2-11

Spindle nose reducer sleeve

MT#

Spindle speed

13-1200 rpm(4 Steps)

Carriage

Cross-slide(X) ball screw

Φ32mm x p.5

Cross-slide(X) Servo Motor

Fagor FKM 42  1.9kw(1:2 output)

Longitudinal(Z) ball screw

Φ50mm x p 10

Longitudinal(Z) Servo Motor

Fagor FKM 44 3.6kw(1:2 output)

Cross-slide(X) feed

0-5M/min

Longitudinal(Z) feed

0-5M/min

Tailstock

Tailstock travel

9” (230mm)

Tailstock diameter

4.1” (105mm)

Tailstock taper

MT#5

Power

Main spindle motor

Fagor spindle motor - 20HP(15KW)

Coolant motor

1/4HP(0.1875KW)

Dimension

Shipping dimension (LxWxH)

Weight

Net weight (approx)

8,800 lbs.(4,000 Kgs.)/

9,680 lbs.(4,400 Kgs.)/

11,440 lbs.(5,200 Kgs.)
