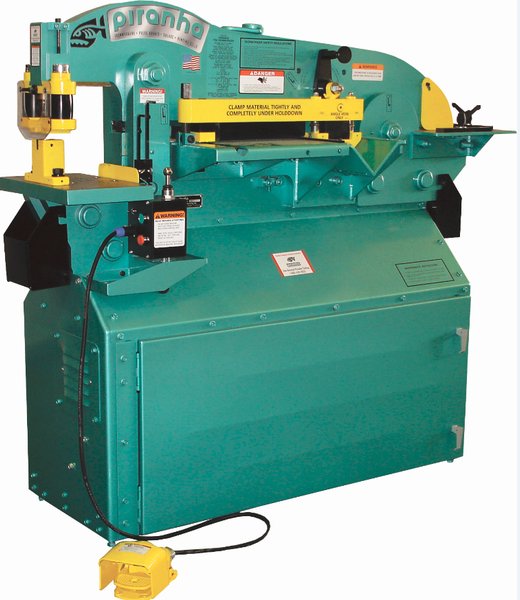

NEW PIRANHA P65 HYDRAULIC IRONWORKER

Brand
Model
P65
Stock #
33797
Year
Not specified
Condition
Used
Location
Not specified

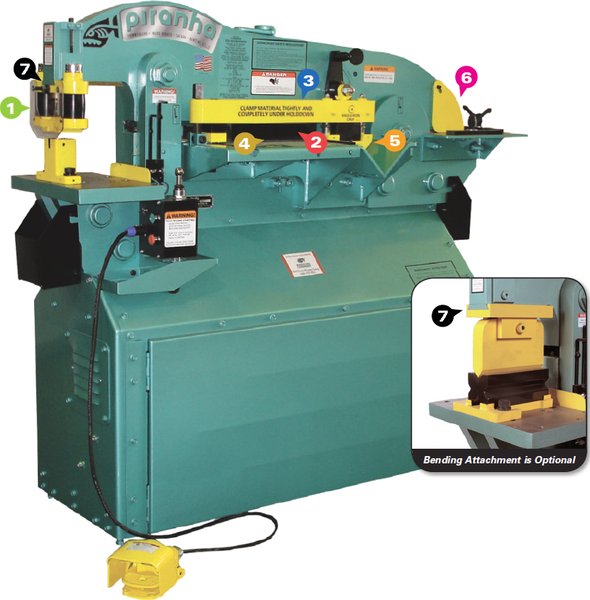

STANDARD FEATURES

1. Urethane Stripper Attachment-  keeps material flat through the punching process, eliminating
distortion.  The shorter required stroke gives you a faster punching cycle.

2. Automatic Urethane Hold-downs-  clamps and releases material automatically with each stroke.  Part movement is eliminated by clamping the part throughout the entire shearing cycle.

3Visibility-  a direct line of sight over the hold down bar allows the operator to easily and accurately line up cuts to the shear blades.

4. Flat Bar Shear-  the low rake angle shear design results in flatter and higher quality sheared parts.  Shear blades have four useable edges giving you a longer life and less expensive blades.

5. Angle Shear-  the floating upper blade seats in the center of the angle prior to cutting minimizing
distortion giving you a higher quality cut.

6Coper Notcher-  the low rake angle keeps part flat and under control during notching.

7. Quick Change Tooling– the unique Piranha dovetail design allows for quick installation and removal of all standard and optional tools.

 MAXIMUM SPECIFICATIONS (rated on mild steel)

Punching (65 Tons)

1-1/16” diameter through 3/4” plate

Throat Depth

8”

Bending (Optional)

8” up to 24” w/4-way die block

Round Bar Shear

1/4” through 1-1/2”

Square Bar Shear

1/2” through 1”

Flat Bar Shear

15” x 5/8”, 10” x 3/4”

Angle Shear

5” x 5” x 3/8”

Coping/Notching

2-3/4” x 4” x 1/4”

Motor

7.5 HP

Weight

2,600 Lbs.

STANDARD EQUIPMENT

Automatic Hold Down                                                                   Coupling Wrench

Punch Holder, Stripper, & Die Block                                       3/8” Allen Wrench

5 Punch & Die Sets 9/16” through 1-1/16”                            Set of Chip Buckets

Set of Angle Knives                                                                        Extra Filter Element

Set 1” Round Bar Knives                                                               Foot Switch

Set of 12-1/8” Plate Shear Knives                                             Instruction/Parts Book/Video

Set of Coper Knives

No files or videos to display
