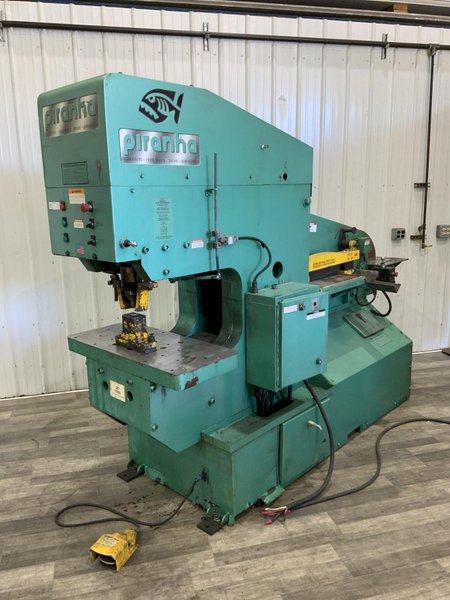

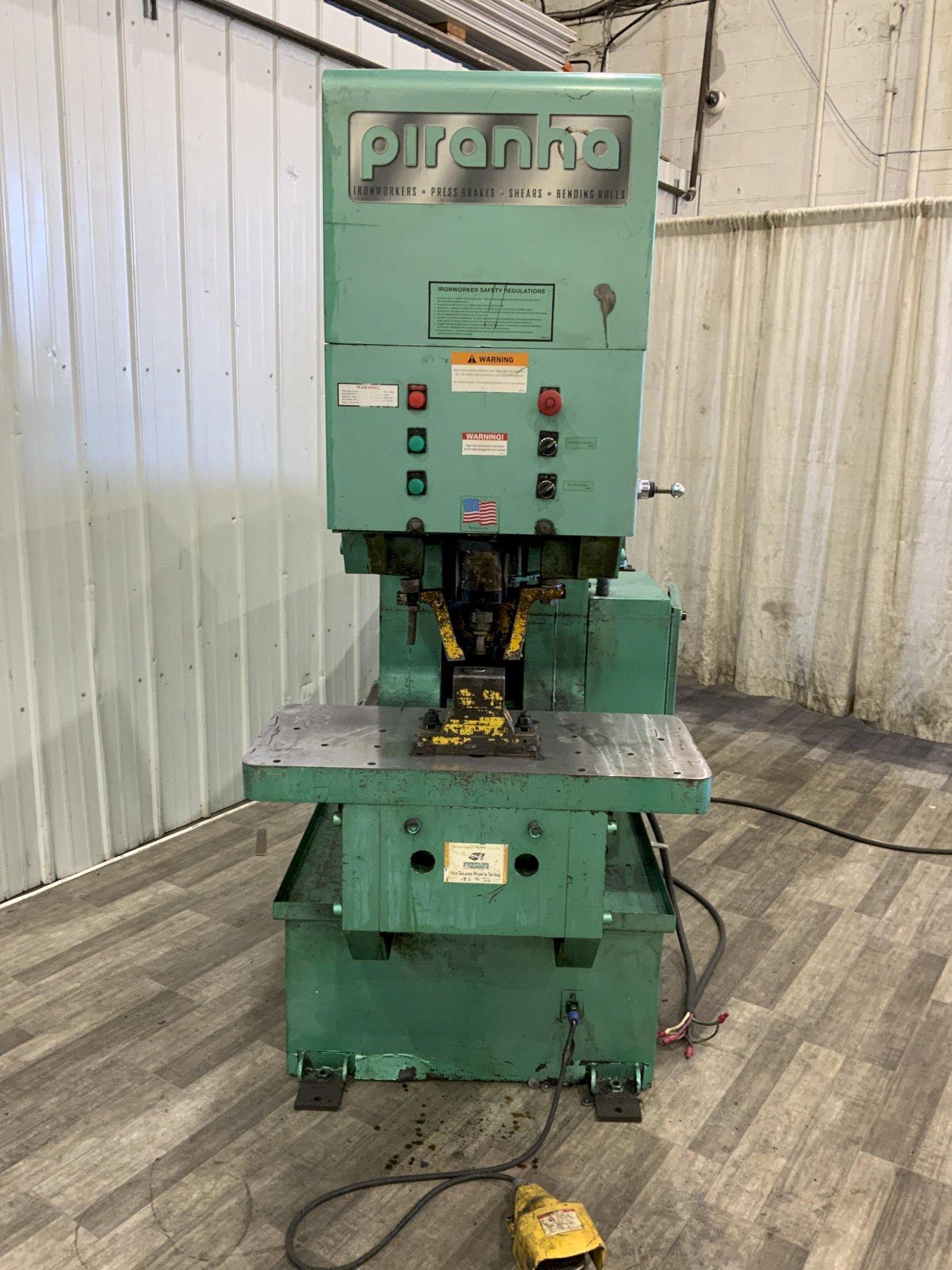

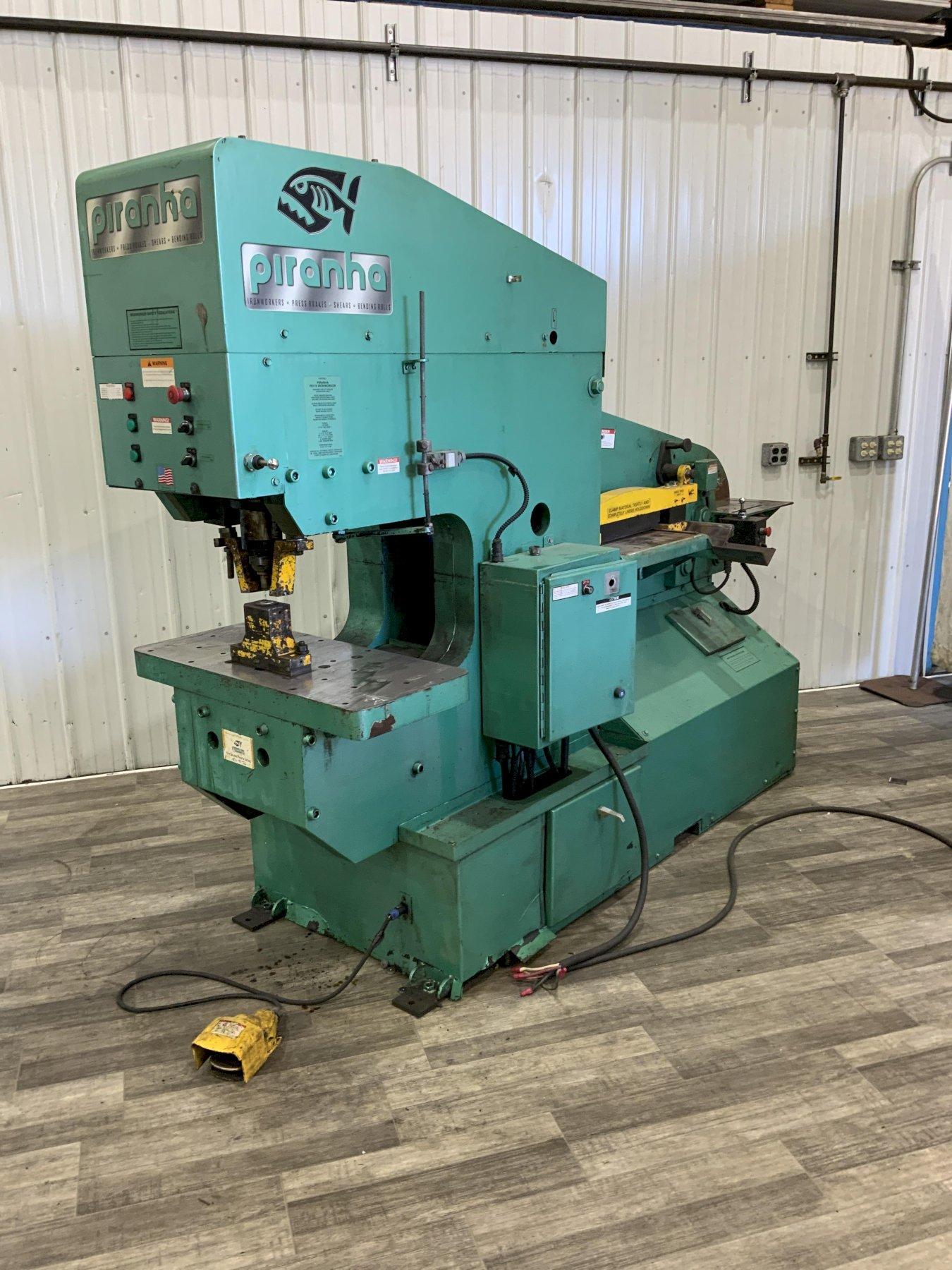

110 TON PIRANHA PII110 HYDRAULIC IRONWORKER: STOCK #81006

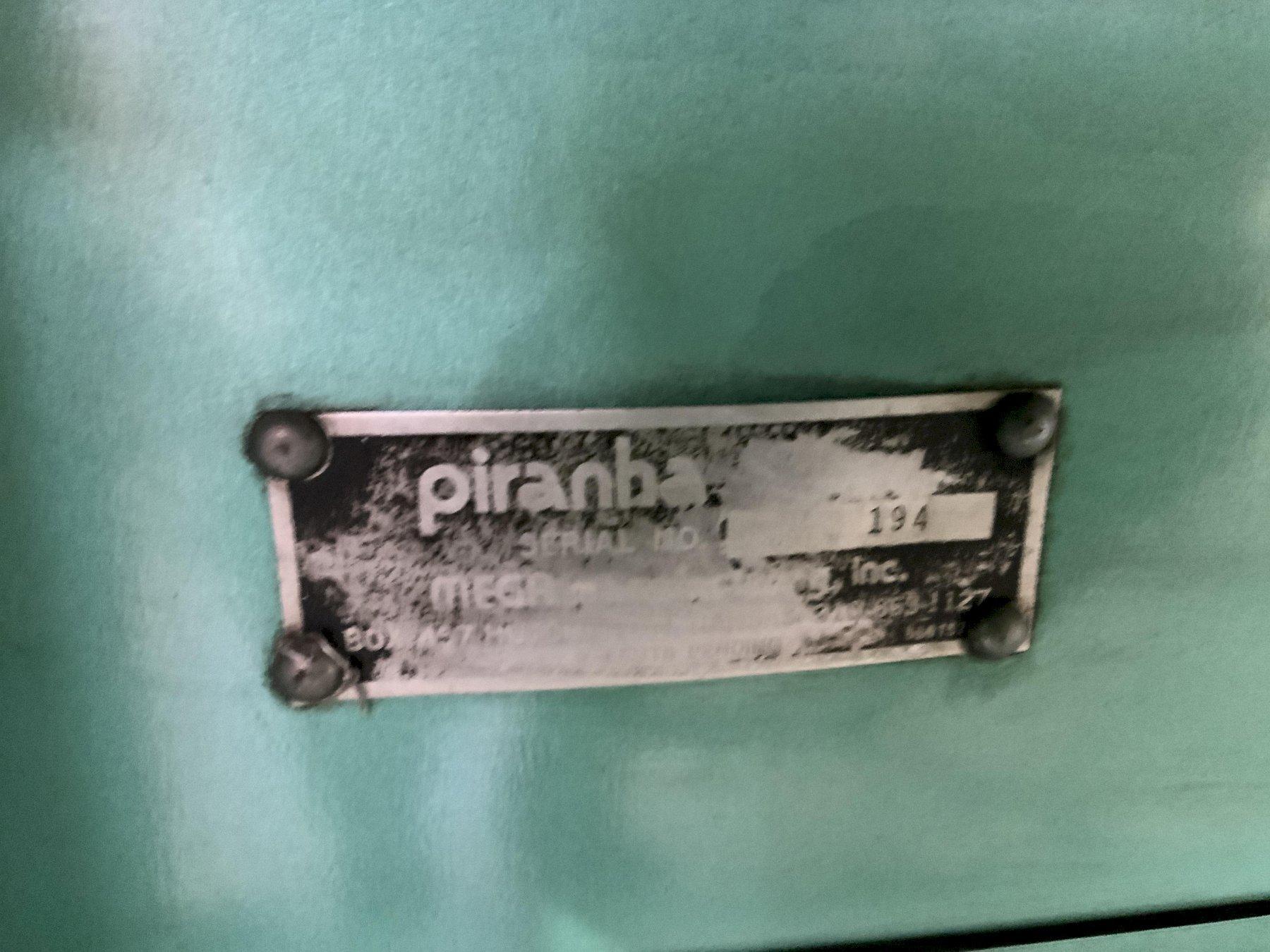

SERIAL ................................ PII-194

MODEL ................................. PII-110

YEAR NEW ............................. 12-2005

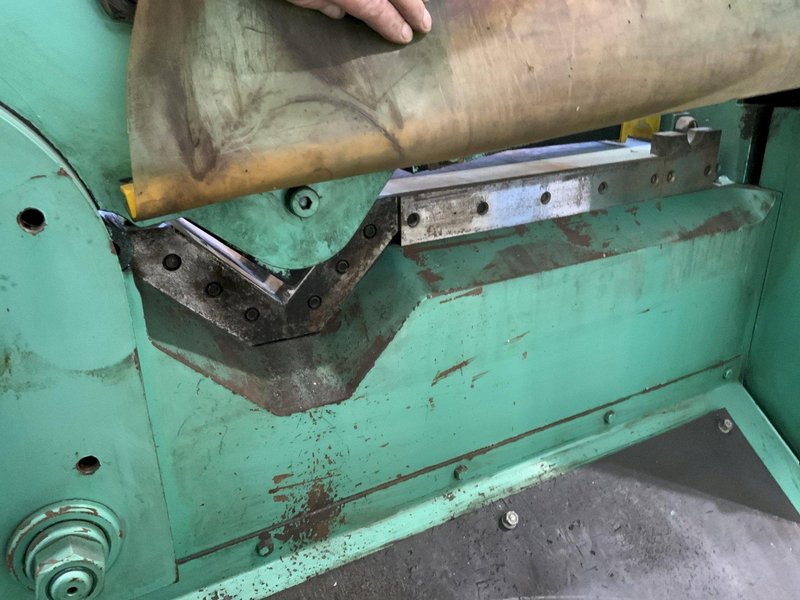

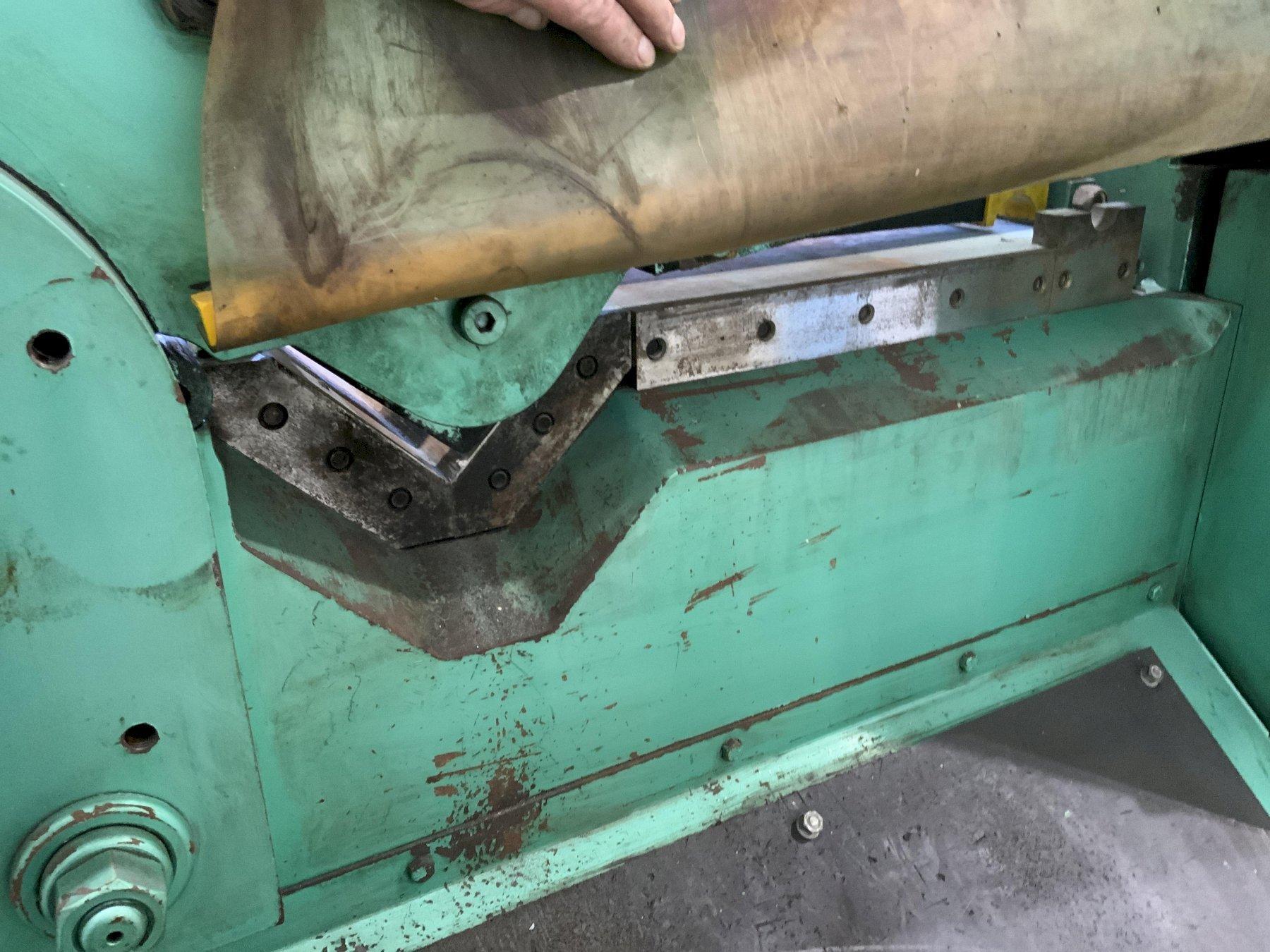

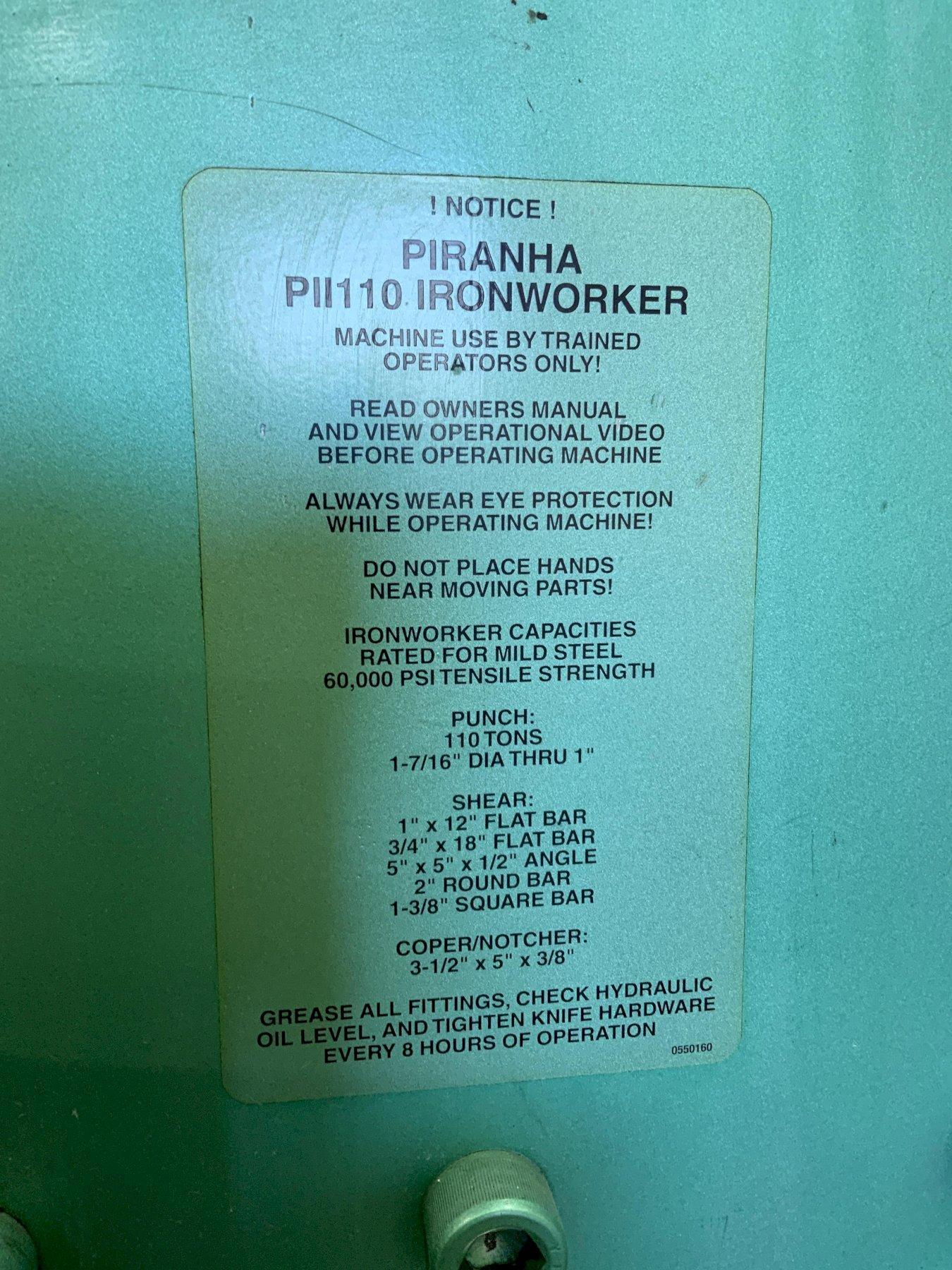

ANGLE SHEAR CAPACITY .................. 6" X 6" X 5/8"

PUNCH CAPACITY, TONNAGE ............... 140

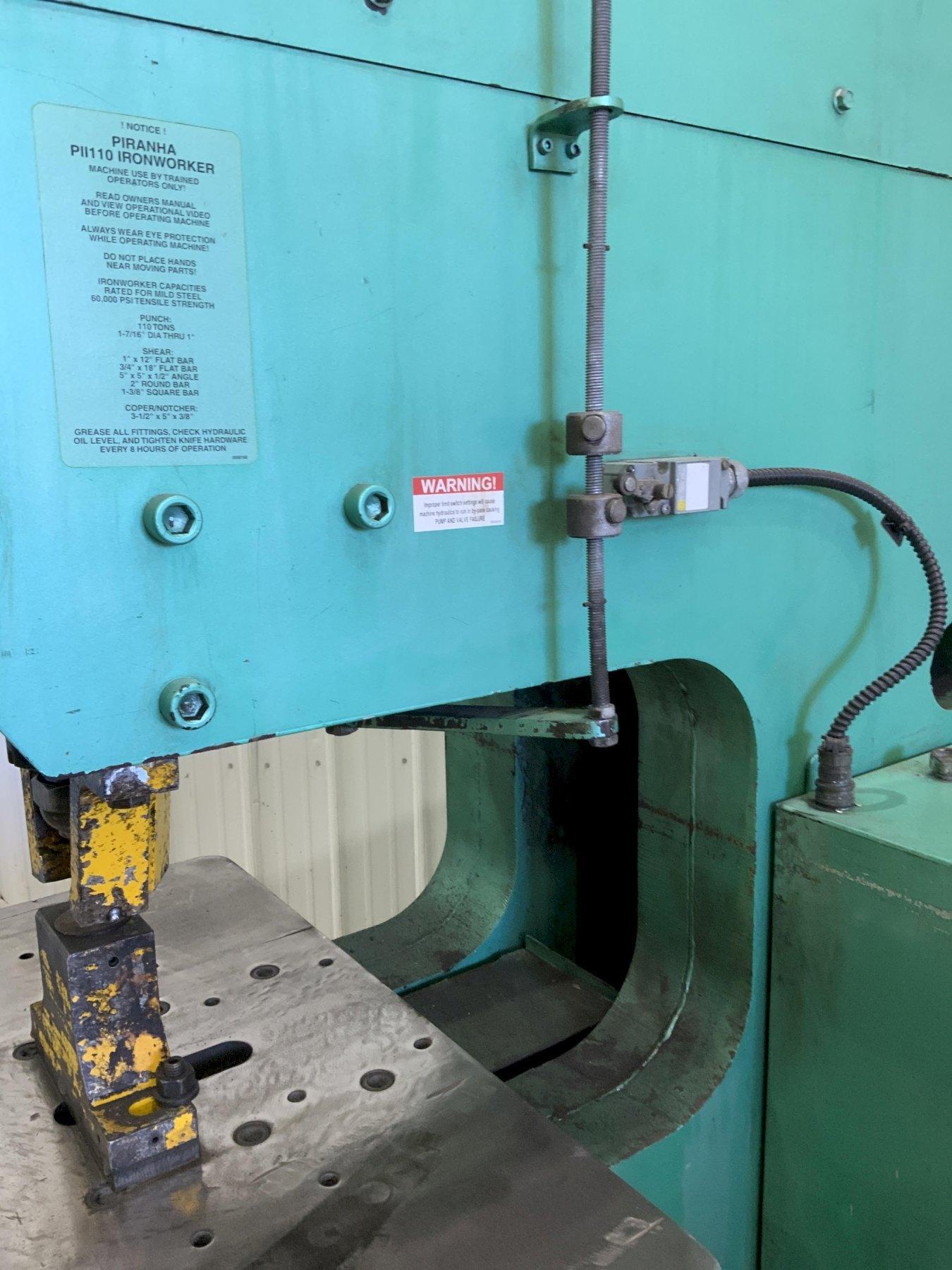

THROAT DEPTH .......................... 20.5"

ROUND BAR SHEAR (MIN. TO MAX.) ........ 1/2" TO 2"

SQUARE BAR SHEAR (MIN. TO MAX.) ....... 1/2" TO 1-3/8"

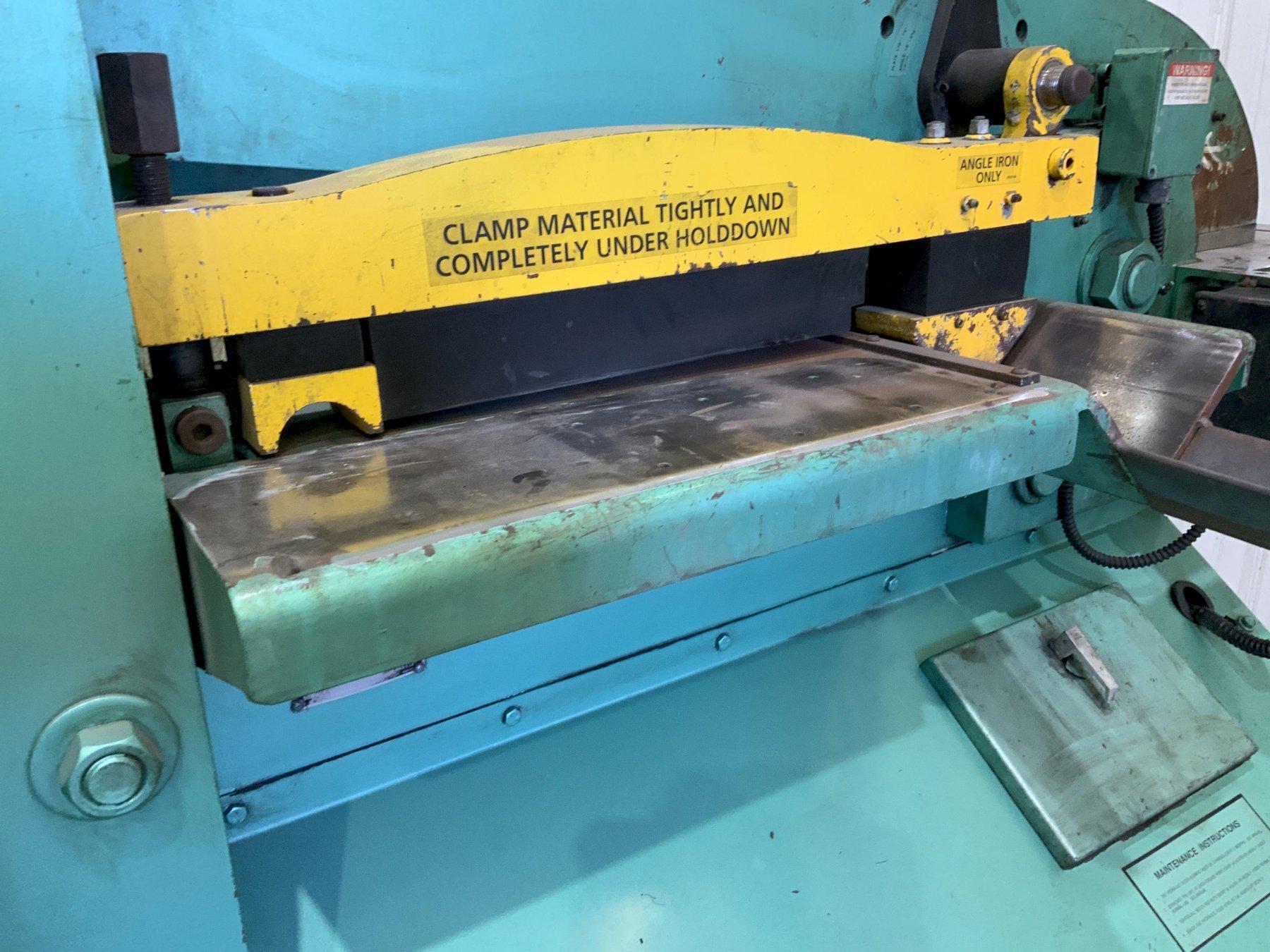

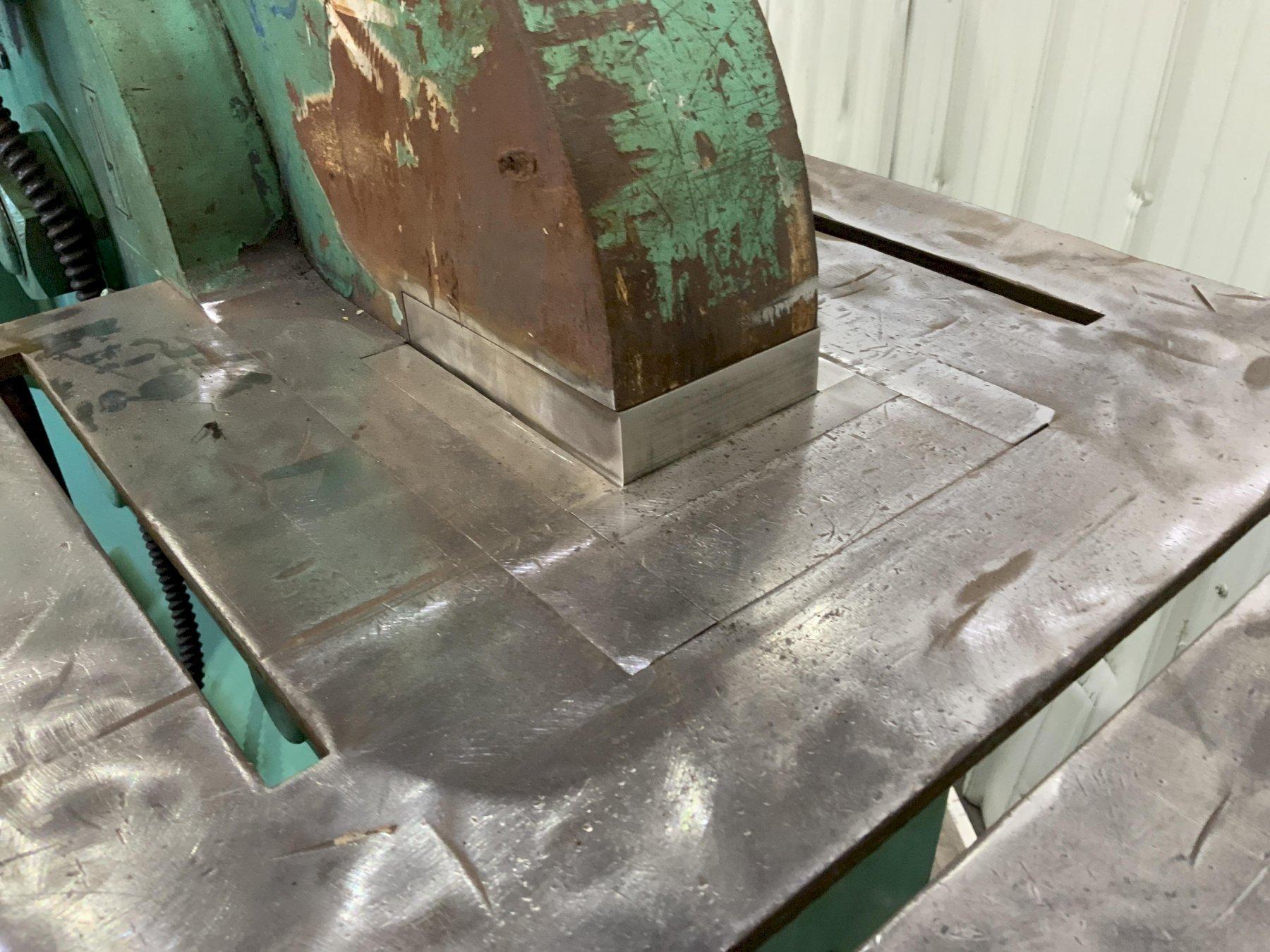

PLATE SHEAR, BLADE LENGTH ............. 20"

PLATE SHEAR (MIN. TO MAX.) ............ 1" X 12" TO 3/4" X 18"

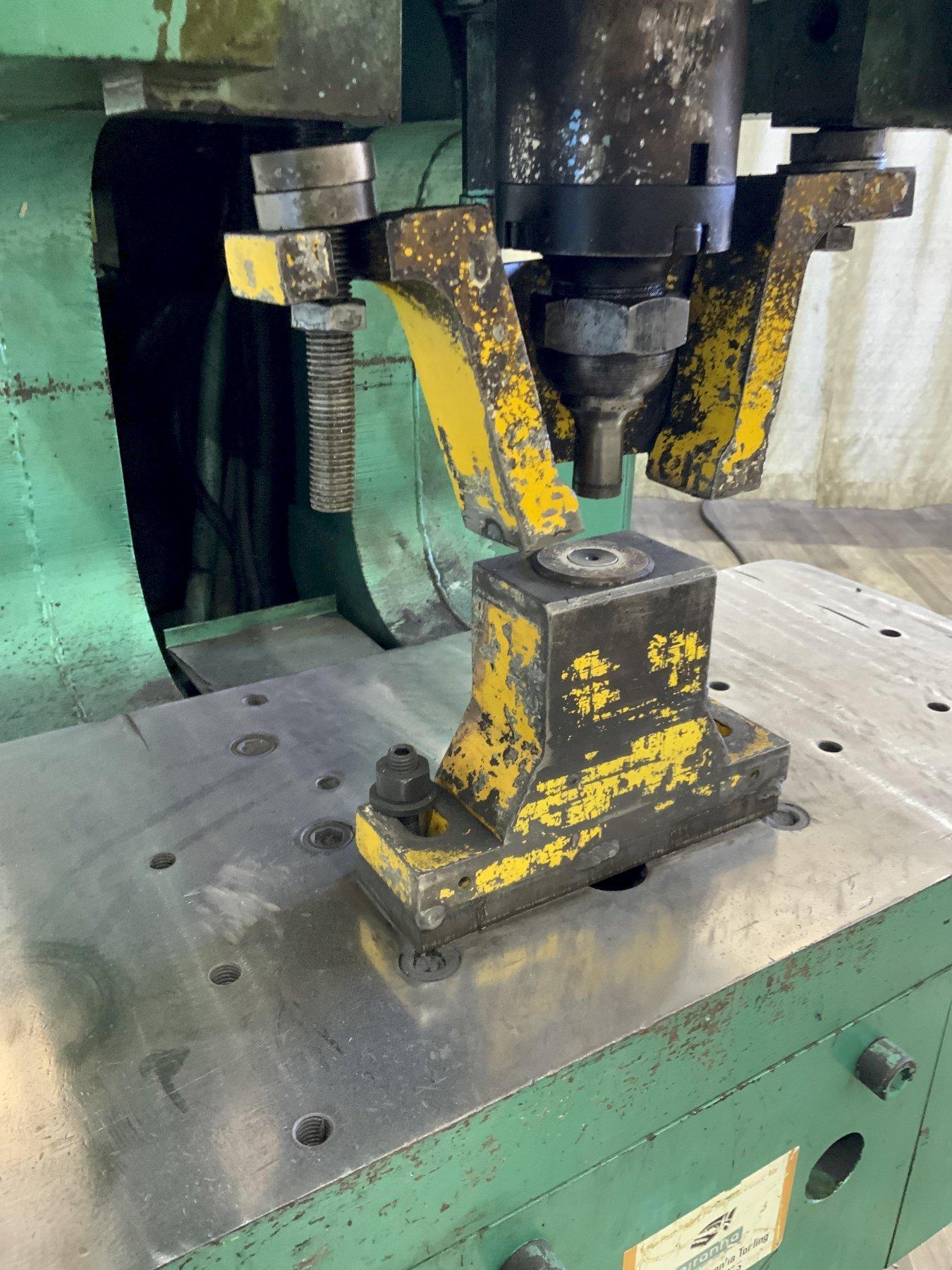

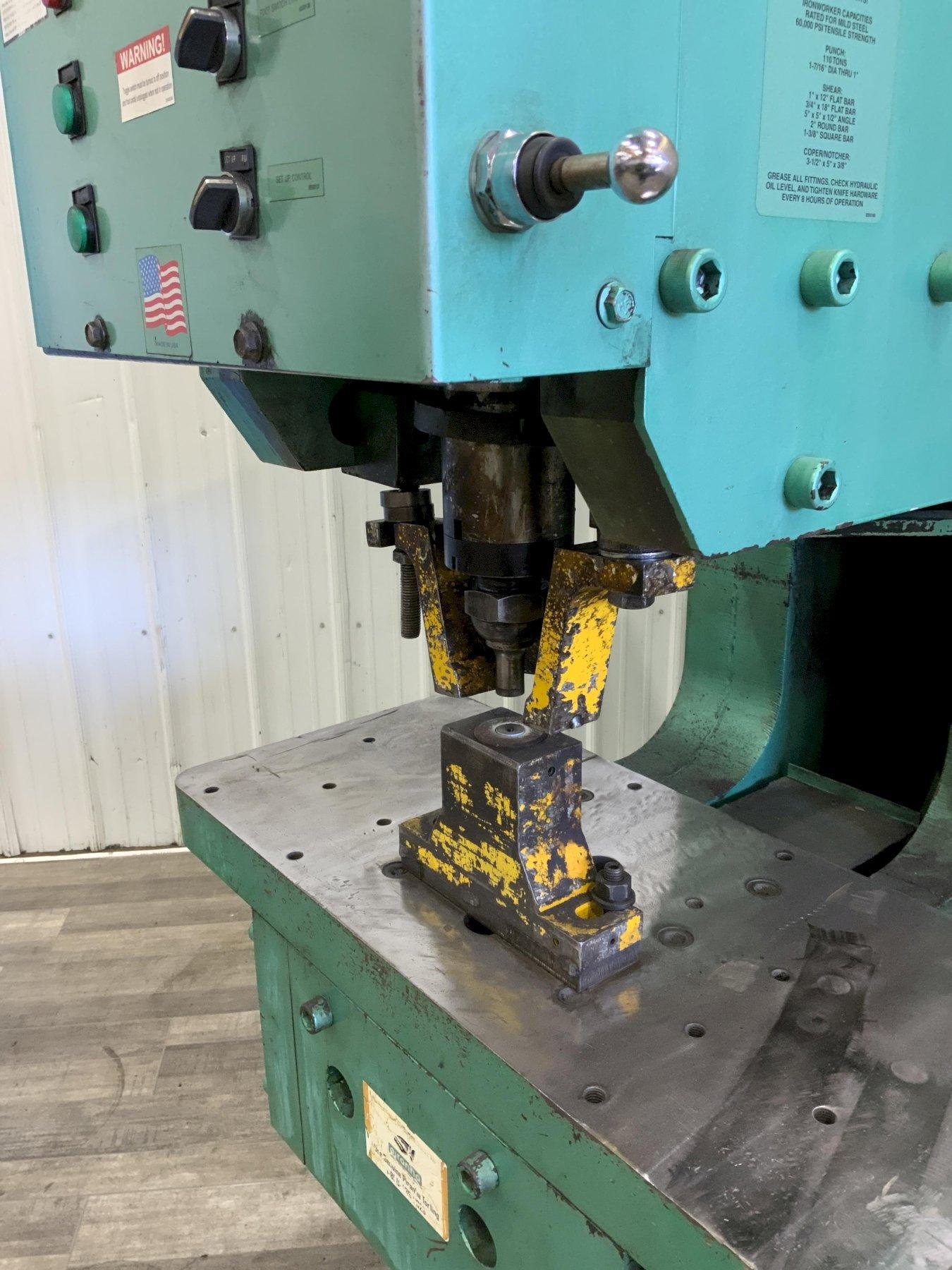

PUNCH (MAX.) .......................... 1-7/16" THRU 1"

PUNCH TABLE SIZE ...................... 16"F-B X 36" R-L

COPER/NOTCHER TONNAGE ................. 95

COPER/NOTCHER SIZE .................... 3.5" X 5" X 3/8"

STROKE LENGTH ......................... 7"

OPEN HEIGHT/ CLOSED HEIGHT ............ 14"& 7" W/O DIE BLOCK

STROKE PER MINUTE ..................... 25 @ 1"

JOY STICK CONTROLS .................... YES

MOTOR ................................. 15 HORSEPOWER
