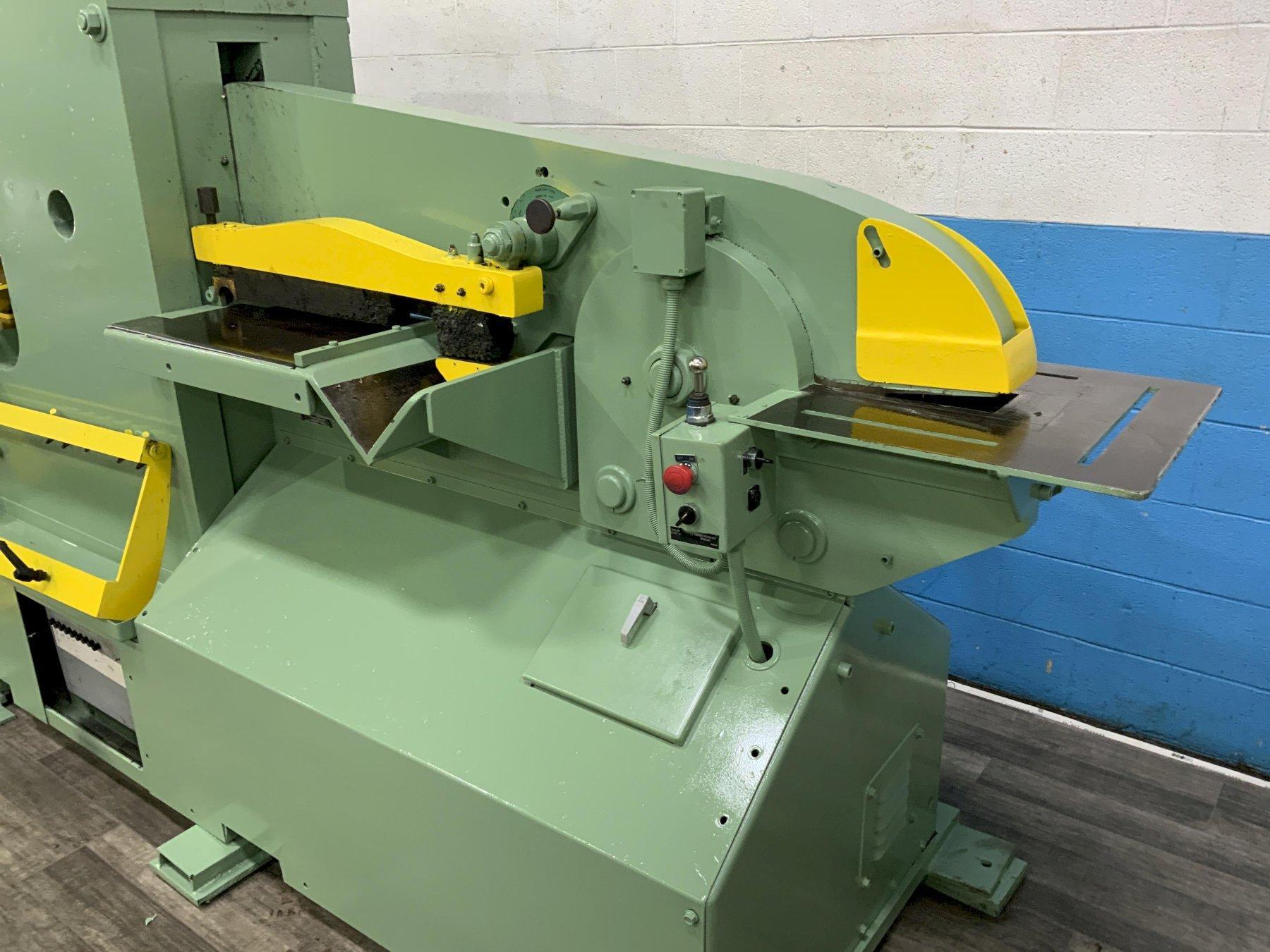

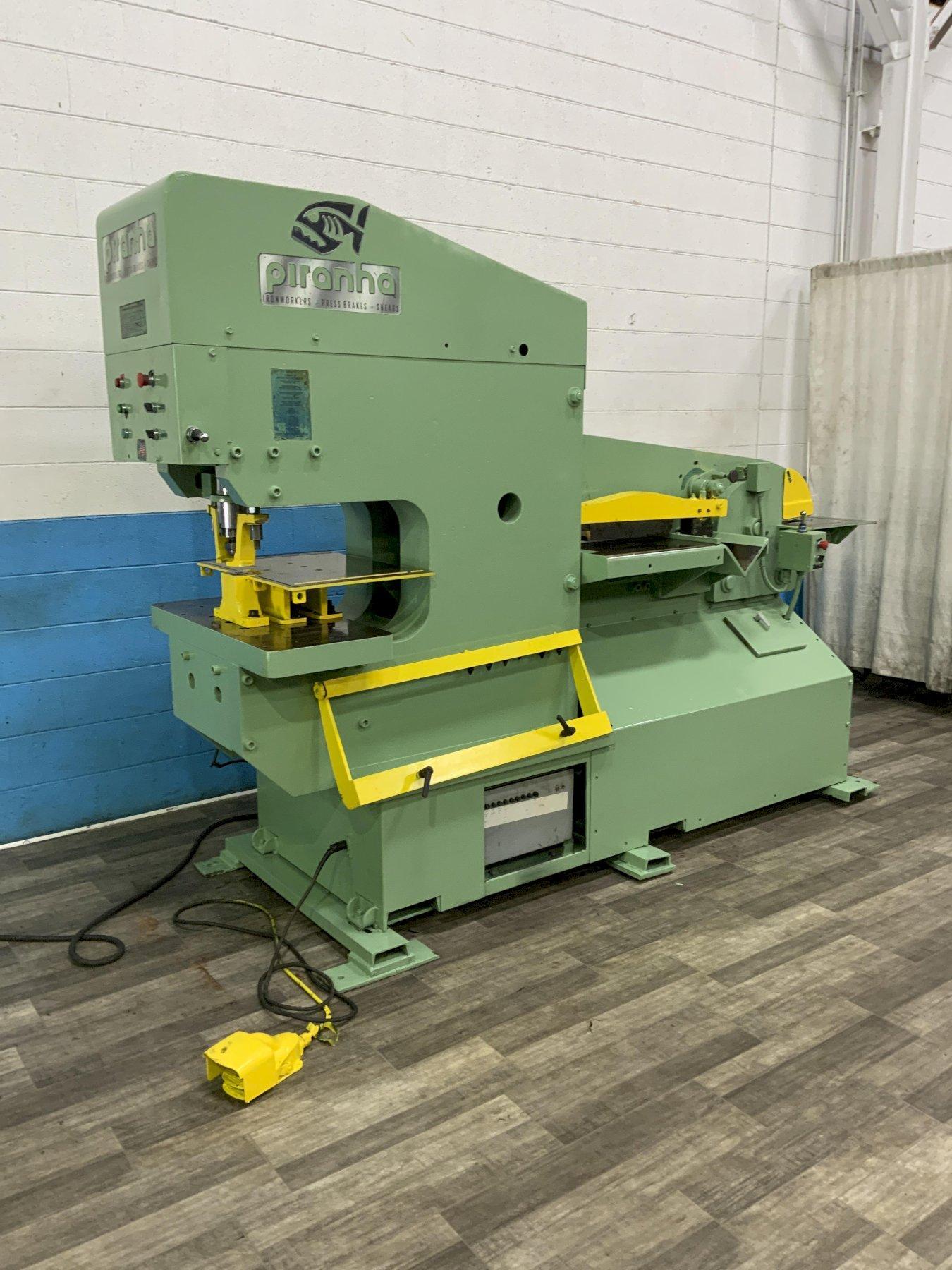

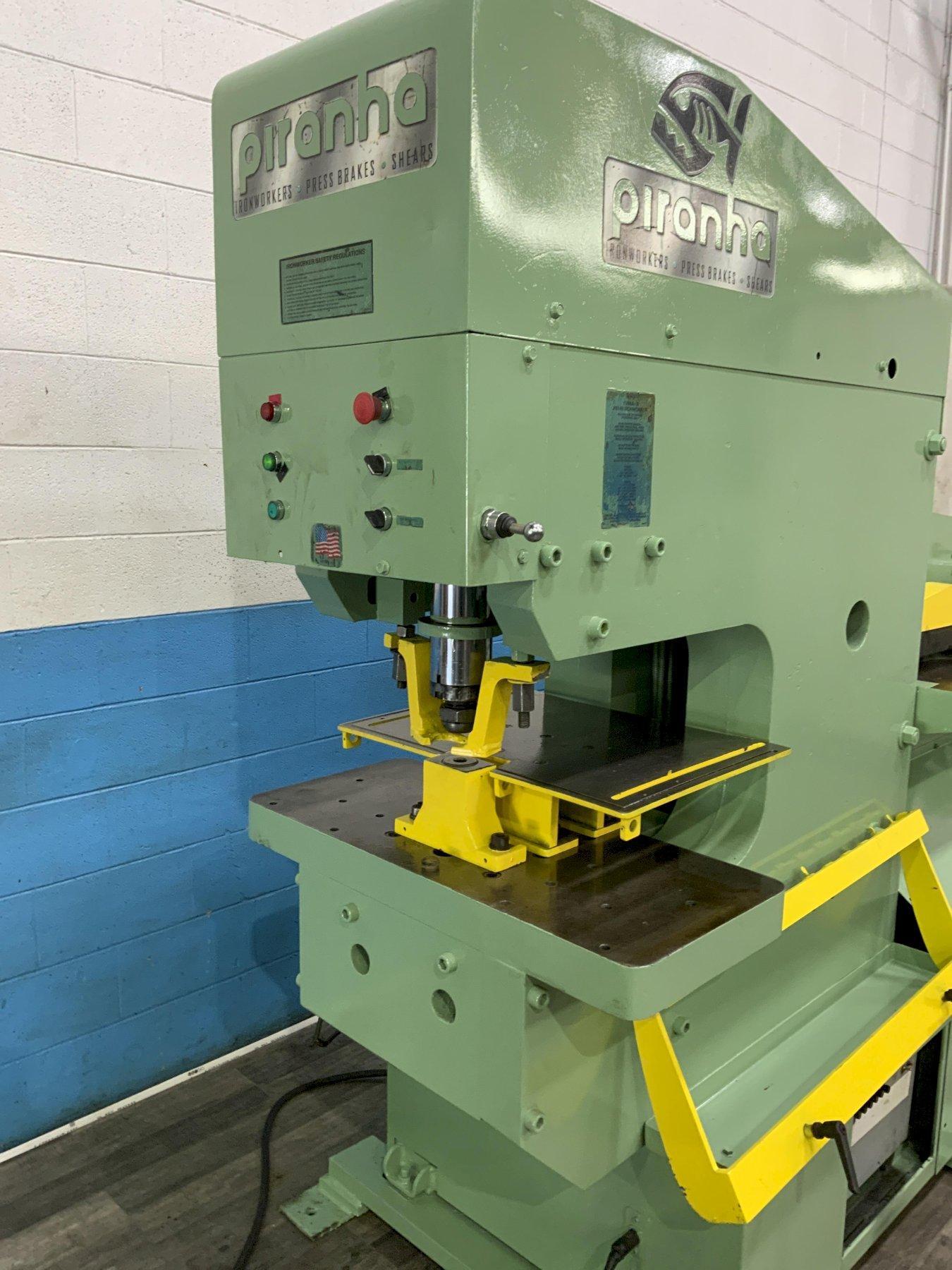

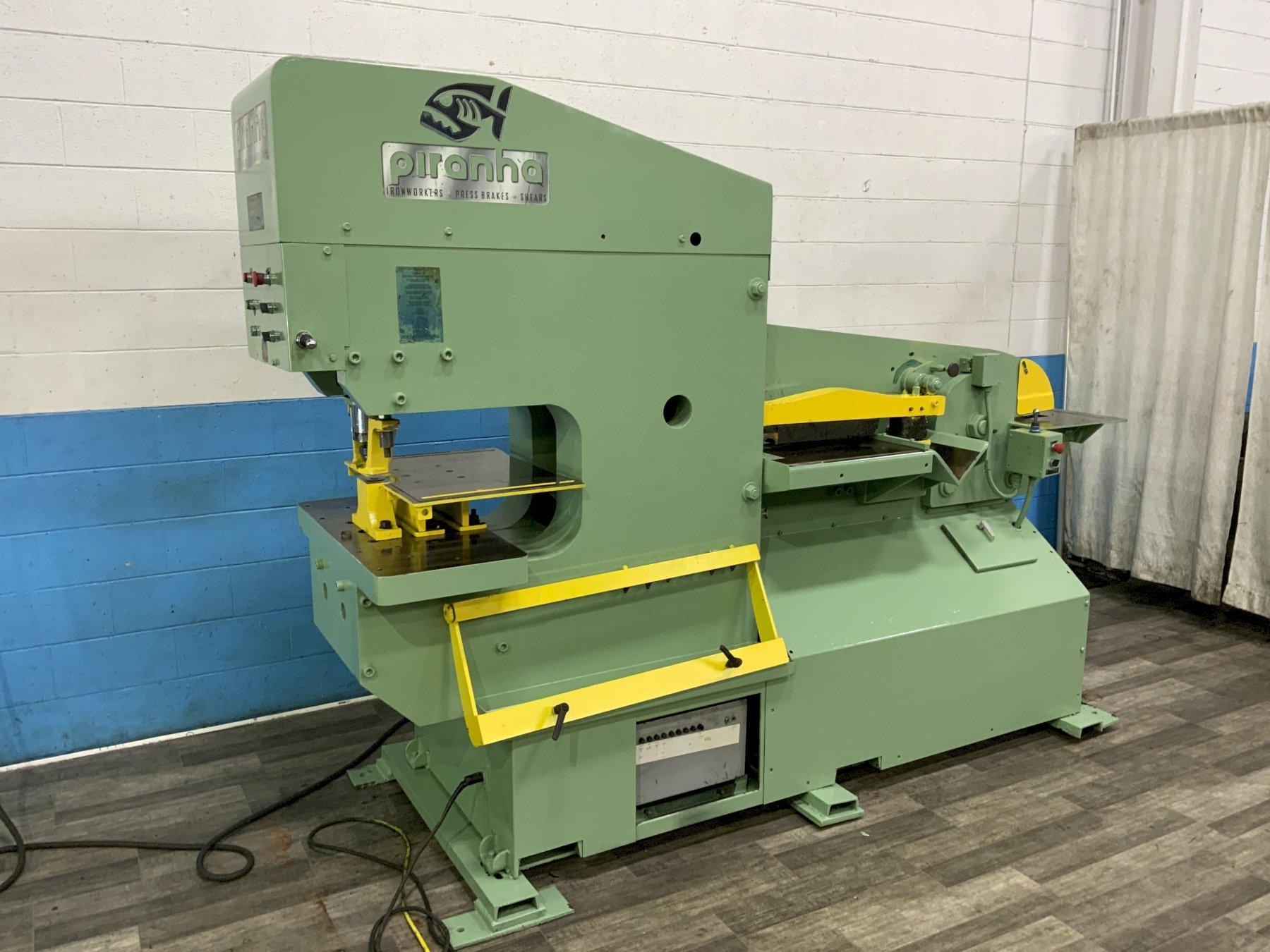

140 TON PIRANHA PII-140 HYDRAULIC IRONWORKER: STOCK #80755

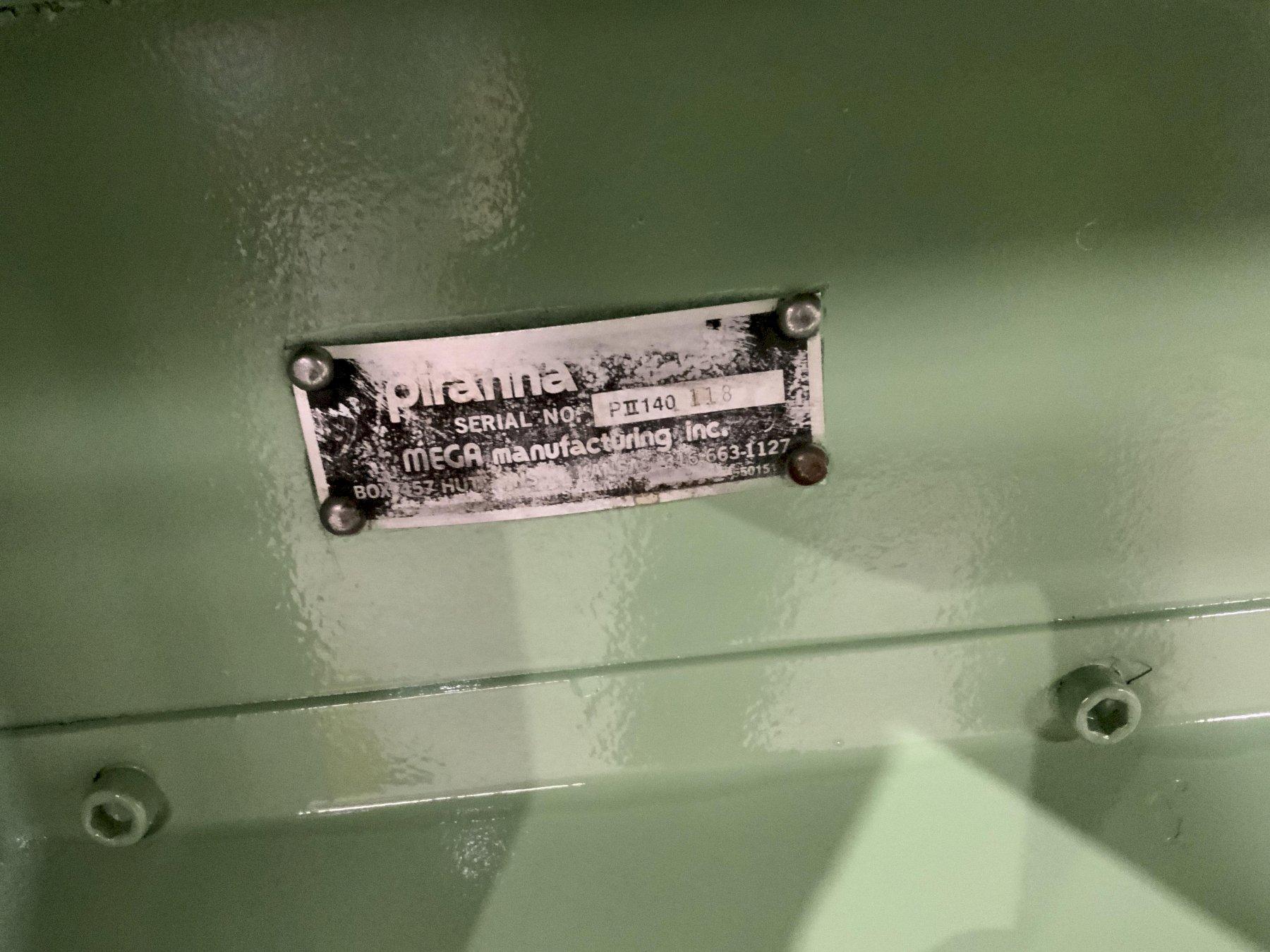

SERIAL ................................ PII-118

MODEL ................................. PII-140

CONSTRUCTION .......................... HYDRAULIC OPERATION

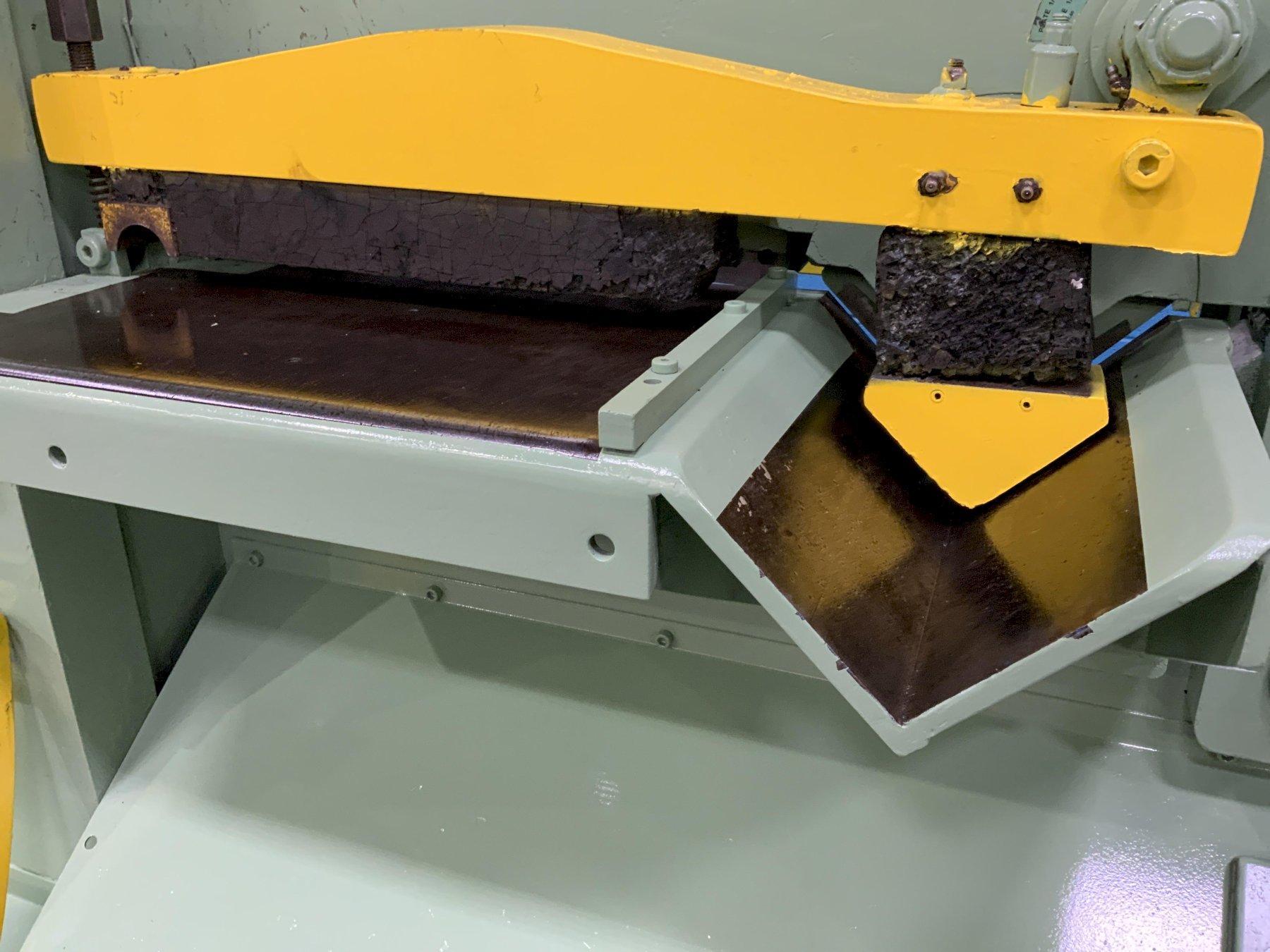

ANGLE SHEAR CAPACITY .................. 6" X 6" X 5/8"

PUNCH CAPACITY, TONNAGE ............... 140

THROAT DEPTH .......................... 20.5"

ROUND BAR SHEAR (MIN. TO MAX.) ........ 1/2" TO 2"

SQUARE BAR SHEAR (MIN. TO MAX.) ....... 1/2" TO 1-3/8"

PLATE SHEAR, BLADE LENGTH ............. 20"

PLATE SHEAR (MIN. TO MAX.) ............ 1" X 14" TO 1/2" X 20"

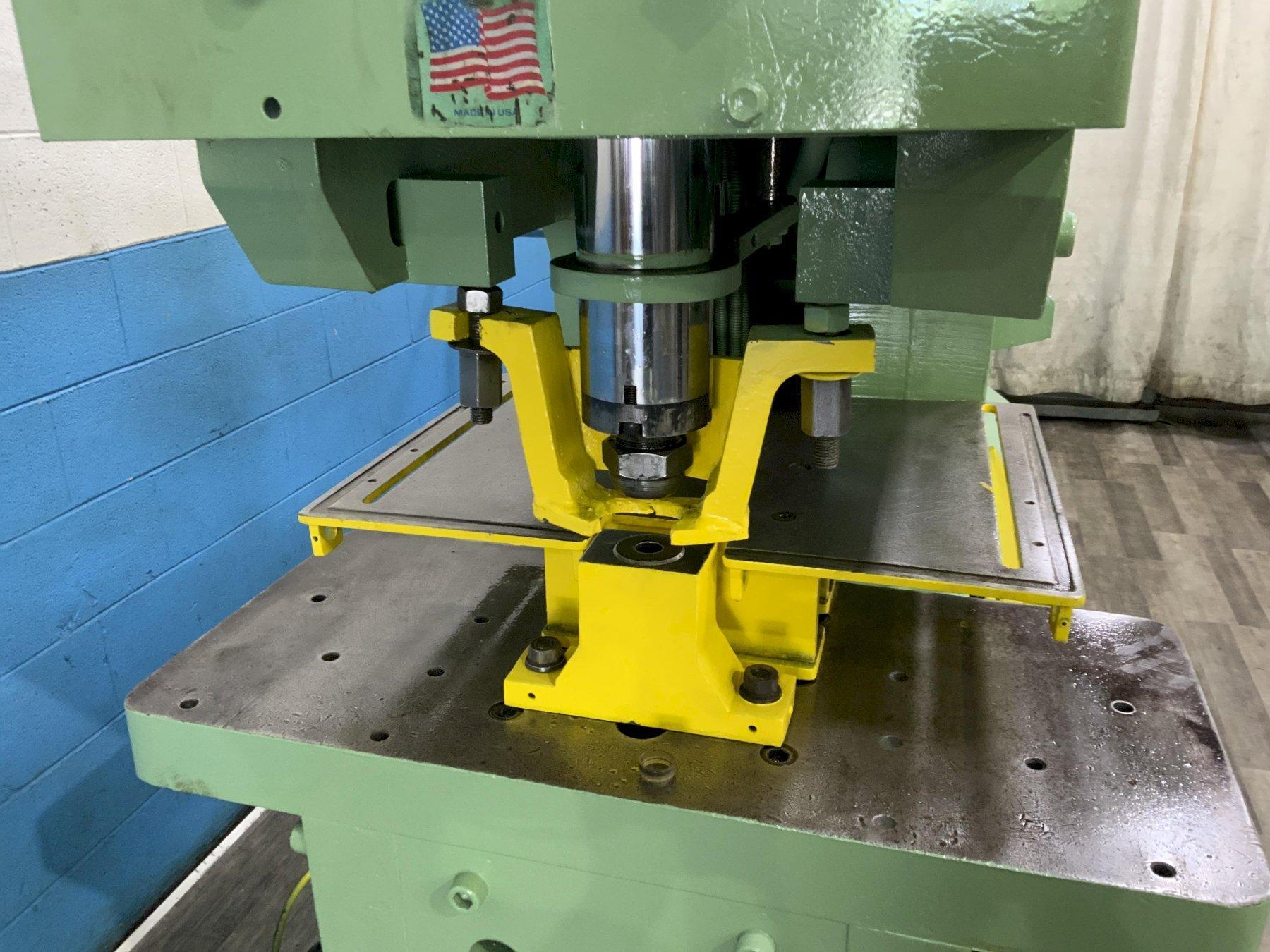

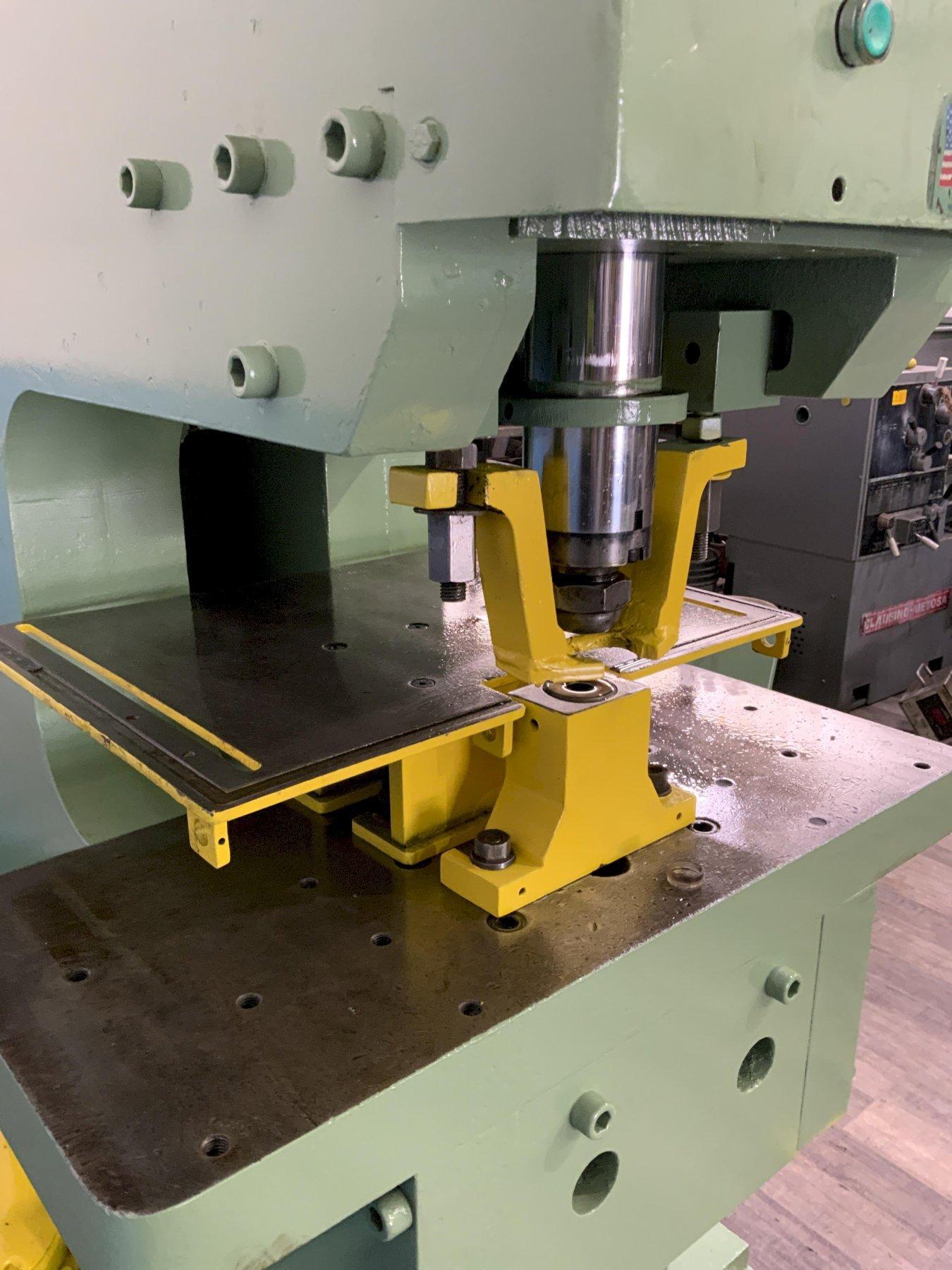

PUNCH (MAX.) .......................... 1-3/8" THRU 1-1/4"

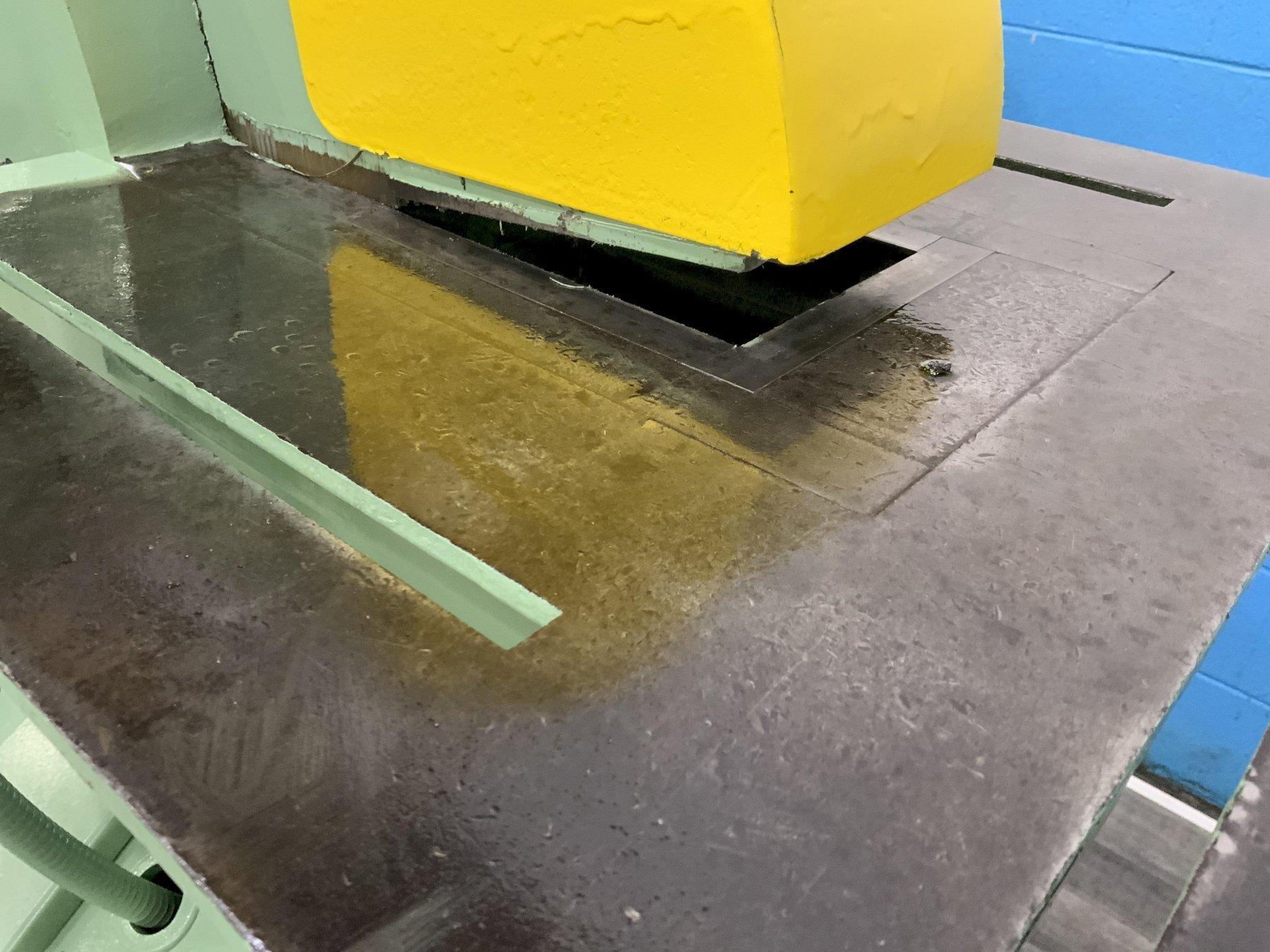

PUNCH TABLE SIZE ...................... 16"F-B X 36" R-L

COPER/NOTCHER TONNAGE ................. 95

COPER/NOTCHER SIZE .................... 4" X 6" X 3/8"

STROKE LENGTH ......................... 7"

OPEN HEIGHT/ CLOSED HEIGHT ............ 14"& 7-3/4" W/O DIE BLOCK

STROKE PER MINUTE ..................... 24 @ 1"

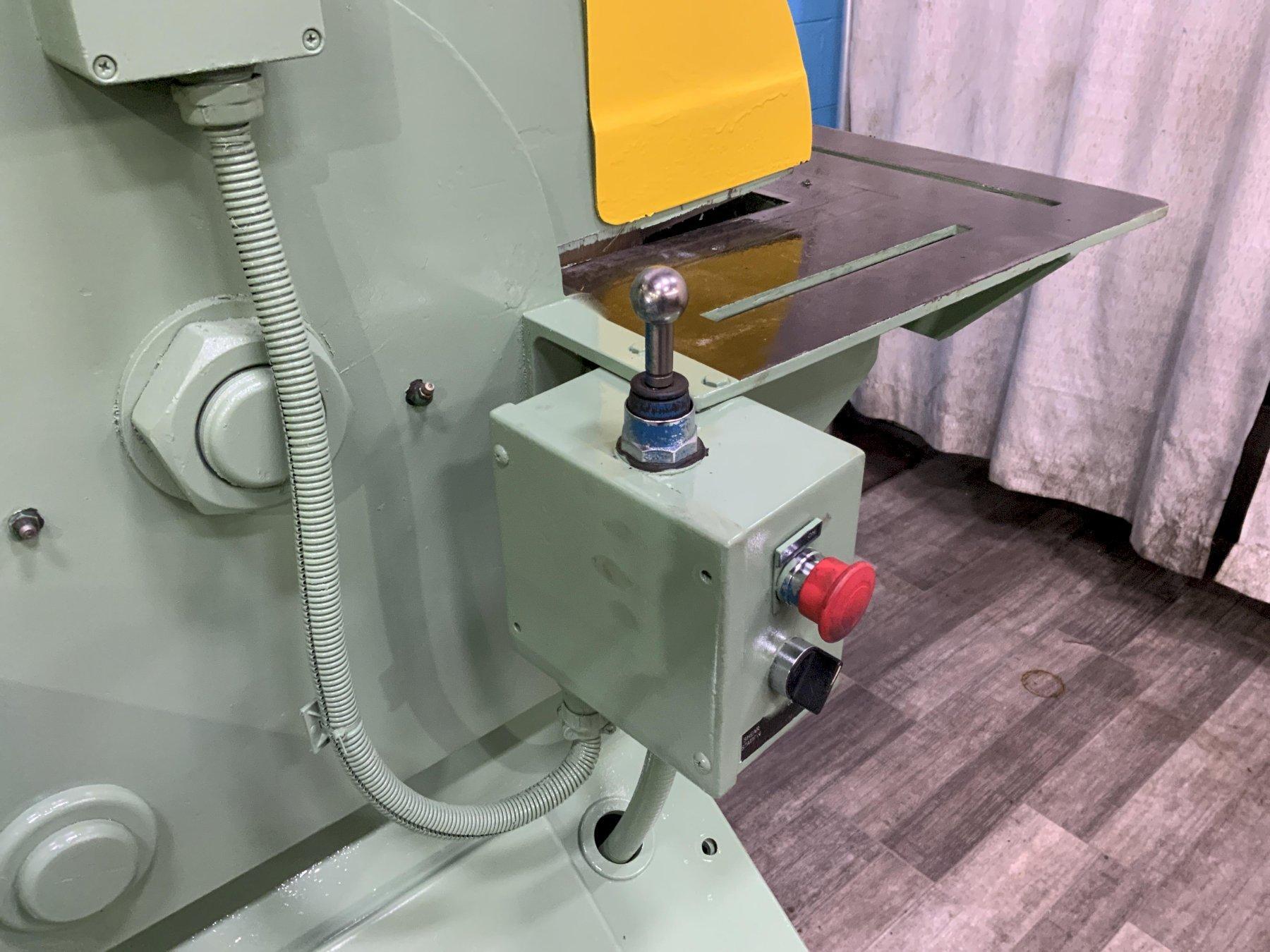

JOY STICK CONTROLS .................... YES

MOTOR ................................. 20 HORSEPOWER
