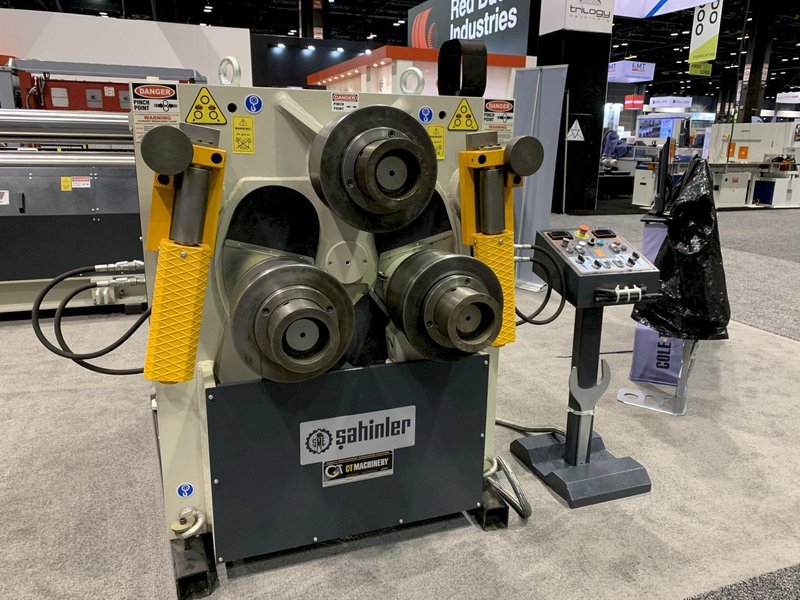

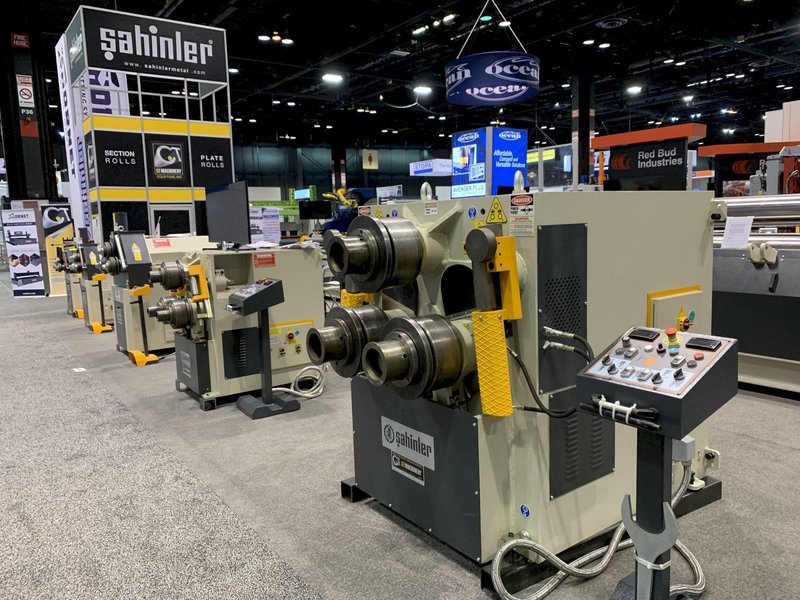

New COLE-TUVE by Sahinler Angle and Shape Bending Roll, Model HPK 100. Hydraulic. Double-Pinch Type. Heavily proportioned welded steel frame for rigidity and stability. All three rolls are driven. Hydraulic adjustment of the lower rolls for double prebending capability. Shafts are hardened and ground and rotate on amply-sized bearings. Standard rolls are hardened and handle many shapes. Operates in horizontal or vertical plane. 2 - Electronic digital readouts (LED) for the positions of the adjustable rolls, each with programmable roll position pre-set and memory. 3-axis mechanical guide rolls for angles leg-out and leg-in. Operating controls in a rolling consoleCapacities, mild steel: Angle iron, leg-out - 4” x 4” x 1/2” Angle iron, leg-in - 4” x 4” x 3/8” Flat bar on flat - 6-1/4” x 1-3/8” Flat bar on edge - 4” x 3/4” “T” iron, leg out 4”, “T” iron, leg in 3-1/2” Square bar - 2-3/8” Round bar - 3” (SP) Channel iron, leg-in - 6.3” Channel iron, leg-out - 6.3” Pipe - 4” Schedule 40 (SP) Round tubing - 5” x 12 ga. (SP) Square tubing – 3-1/8” x 3-1/8” x 3/16” Rectangular tubing, hard way - 4” x 1-1/2” x 10 ga. The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the standard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Specifications: Diameter of the rolls - upper and lower - 12-3/8” Diameter of the rolls shafts - 3.94” Rolls adjustment - powered hydraulic Rolling speeds - 23 feet per minute Motor HP - 10 Working plane - combination horizontal/vertical Dimensions - 58” L x 79” W x 67” H Weight - 8800# All three rolls are driven from a hydraulic motor-powered planetary gearbox. Complete hydraulic system for adjustment of the two bottom rolls. 1 - Set standard rolls for some of the shapes listed above; others require special rolls, details on request. 2 - Electronic digital readouts mounted on the control console for the positions of the adjustable rolls, each with programmable roll position preset and memory. 2 - Mechanical, manually adjusted, 3-axis guide rolls for angle leg-out and leg-in. Electric main motor. Electrics for 3/60/220/440 operation. Push button operating controls in a rolling console. Low voltage at the controls. Emergency stop control. |
