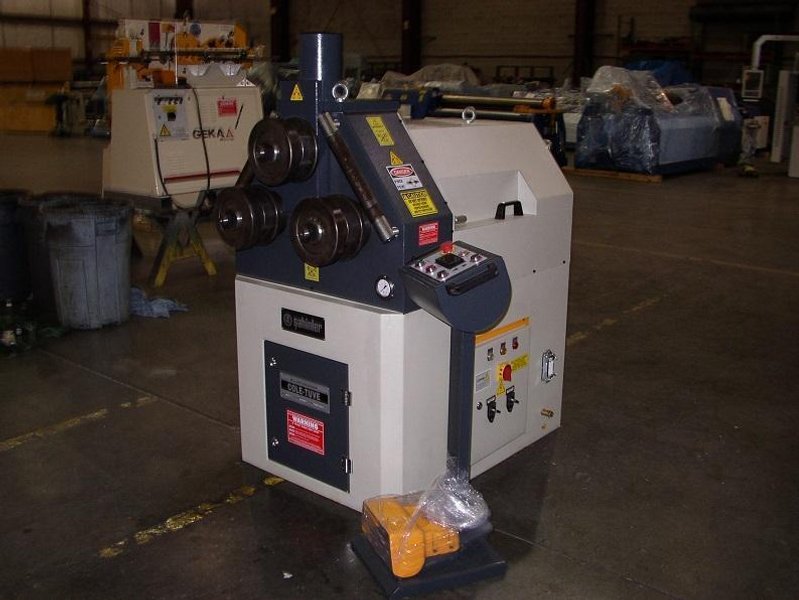

New SAHINLER Angle Bending Roll
Model ARS-3 (HPK-60)
Capacities:
Pipe.....: 3" Schedule 40 (SP)
Tubing...: 4" x .080" Round (SP)
: 2-3/4" x .125" Square
: 3-1/8" x 1-1/2" x .125" Rectangle
Flat Bar.: 4-3/4" x 1" Easy Way
: 3-1/8" x 5/8" Hard Way
Solid Bar: 2" Square and Round (SP)
Angle....: 3" x 3" x 1/4" Leg Out
3" x 3" X 1/4" Leg In (SP)
Channel..: 4-3/4"
Note: Shapes above marked (SP) require optional special rolls. The other
shapes can normally be rolled with standard rolls supplied with machine.
Rolling leg in requires optional leg-in guide rolls and may require special
rolls.
Specifications:
Diameter of Shaft : 2-3/8"
Rolling Speeds : 13 fpm
Electrics : 2 HP, 220/440 Volt, 3 Phase
Weight : 1,900 lbs.
Features:
Electronic Digital Readout w/Programmable Position Memory
Three Rolls Driven
Hydraulic Powered Roll Adjustment
Hardened and Ground Shafts and gears
Lateral Guide Rolls
Horizontal and Vertical Operation
Movable Foot Control
FOB: Maryland
|
