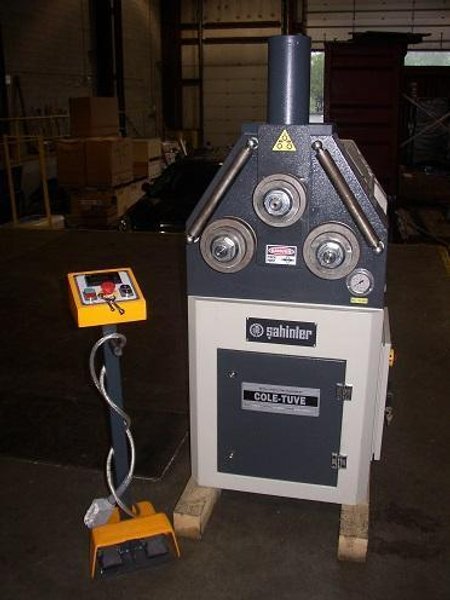

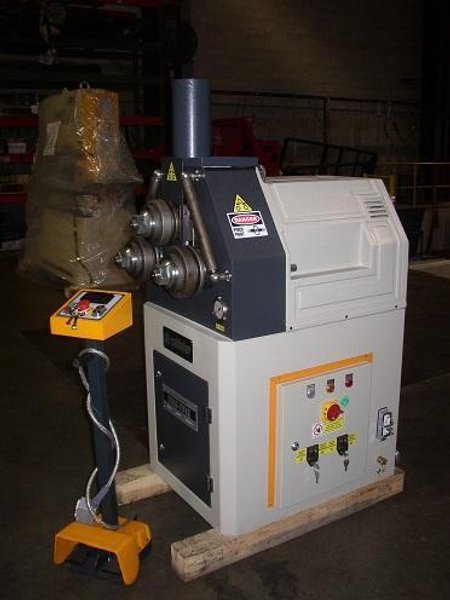

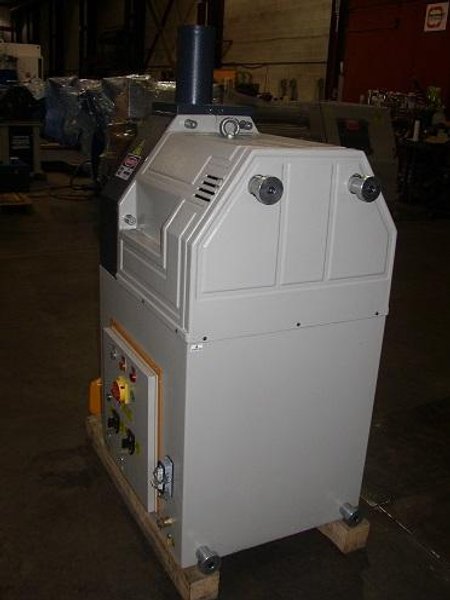

New Sahinler Angle Bending Roll - 3 Roll Drive
Hydraulic Power Vertical Roll Adjustment w/ LED Readout
Model HPK-50
Capacities:
Pipe.....: 2" Schedule 40 (SP)
Tubing...: 2-3/4" x .080" Round (SP)
: 2-3/8" x .125" Square
: 2" x 1-1/2" x .125" Rectangle
Flat Bar.: 4" x 9/16" Easy Way
: 2-3/8" x 3/8" Hard Way
Solid Bar: 1-3/8" Square and Round
Angle....: 2" x 2" x 1/4"
Note: Shapes above marked (SP) require optional special rolls. The other
shapes can normally be rolled with standard rolls supplied with machine.
Rolling leg in requires optional leg-in guide rolls and may require special
rolls.
Specifications:
Diameter of Shaft : 1.97"
Rolling Speeds : 14-1/2 fpm
Electrics : 1-1/2 x 1/2 HP, 3 phase
Weight : 1,200 lbs
Features:
Steel Frame
Three Rolls Driven
Power adjusted vertical roll
Hardened and Ground Shafts and gears
Shafts rotate on opposed tapered roller bearings
Lateral straightening rolls
LED Readout to indicate position of vertical roll
Horizontal and Vertical Operation
Full Cabinet Base with Door
Movable Foot Control
FOB: Maryland
Delivery - Stock, Subject to prior sale
|
