MACHINE# 13314

SPECIFICATIONS:

Manufacture: DMS (France)
Year of Manufacture: 1992
Model: ZR22-BBS-52

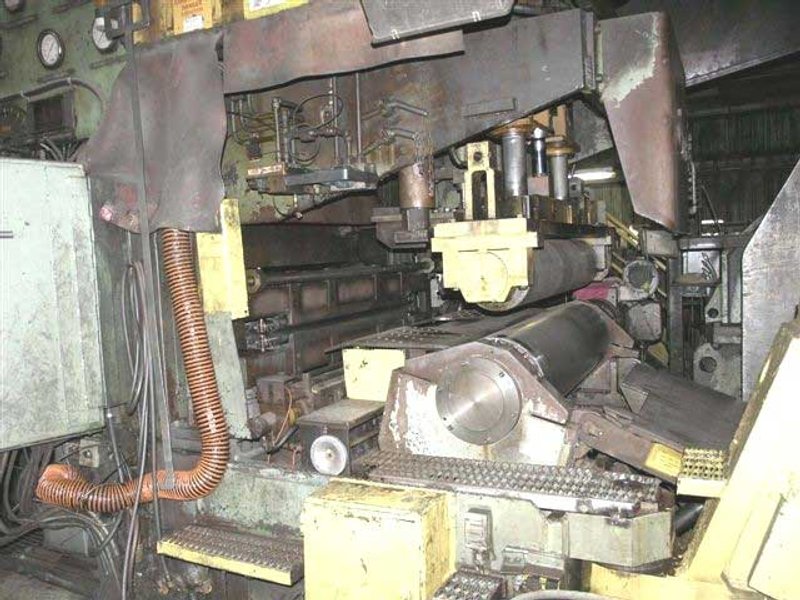

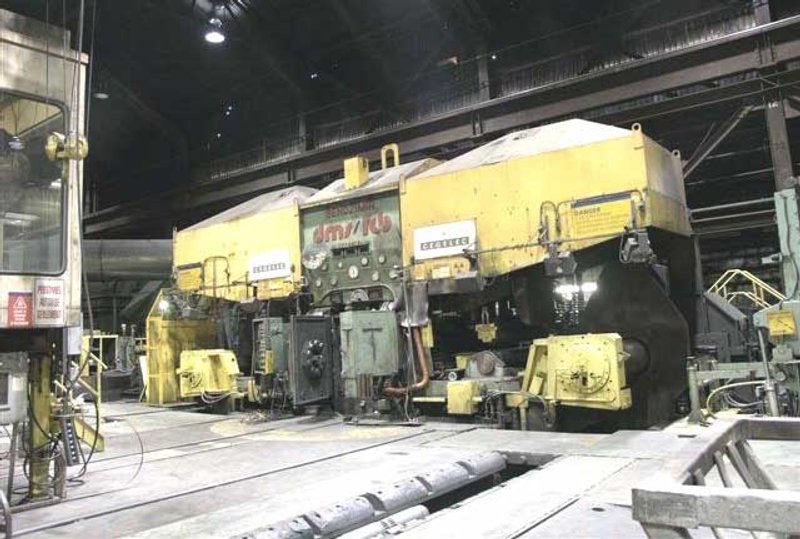

Design: 20-High Z-Mill/Sendzimir Reversing Mill

Material: High Carbon / Low carbon / Stainless Steel
Material Travel: Right to Left
Material Width: 18" - 52" (467 mm - 1320 mm)
Material Gauge:
 Entry: .0250" (6.3 mm)
 Exit: .009" (.22 mm)

Coil Data: 35.8" - 72" (910 mm - 1830 mm) O.D., 24" (610 mm) I.D.
Coil Weight: 45,000 Lb. (20,000 Kg.)

Mill Data:
 Type: Closed Top Housing Design
 Roll Opening: .345", (876 mm)
 Mill Speed: 2500 FPM (762 mpm)
 Annual Production: 250,000 TPA (short ton)

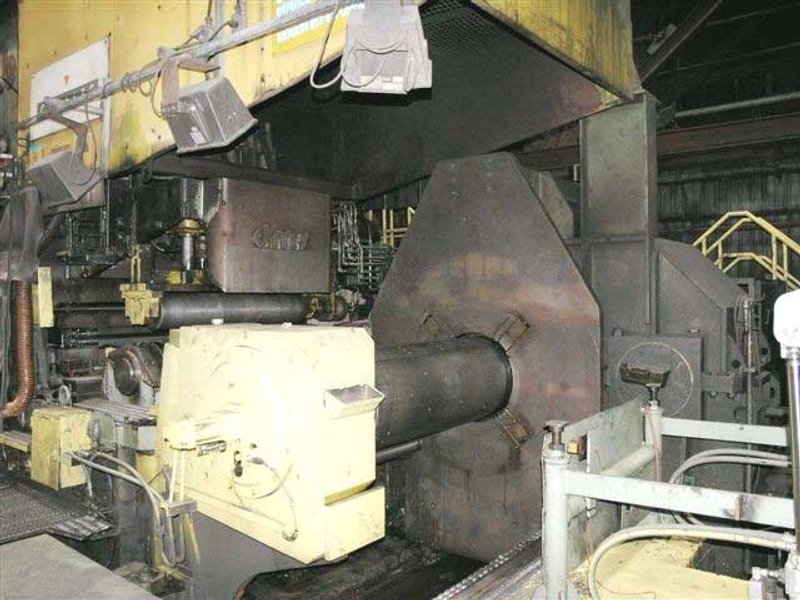

 Mandrel Type: Tension Reels w/Outboard Supports
 Mill Tension: 90,000 Lb. (40,000 Kg.) max.

Roll Data:

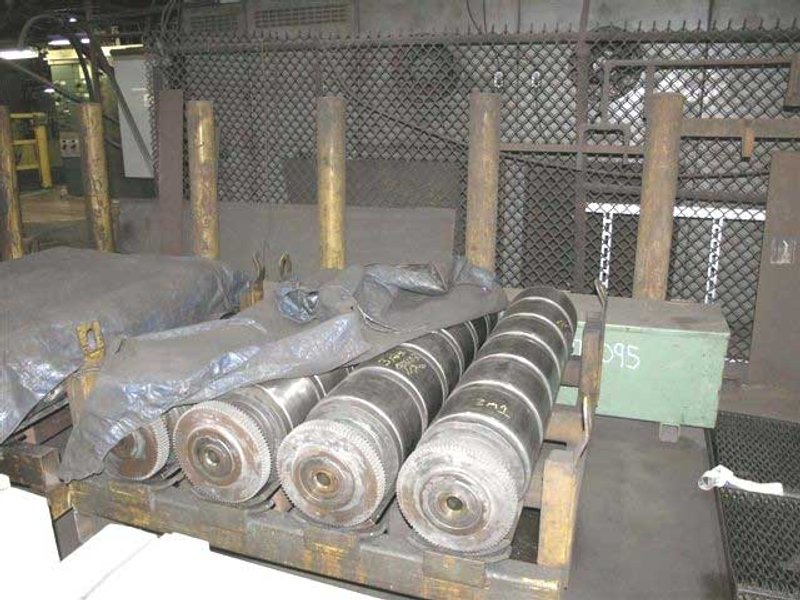

 Back-Up Bearings: 11.750" / 11.810" (298 mm / 300 mm)
 Second Intermediate Rolls: 6.875" / 7.200" (175 mm / 183 mm)
 First Intermediate Rolls: 3.90" / 4.20" (99 mm / 107 mm)
 Work Rolls: 2.9" / 3.40" (74 mm / 86 mm)

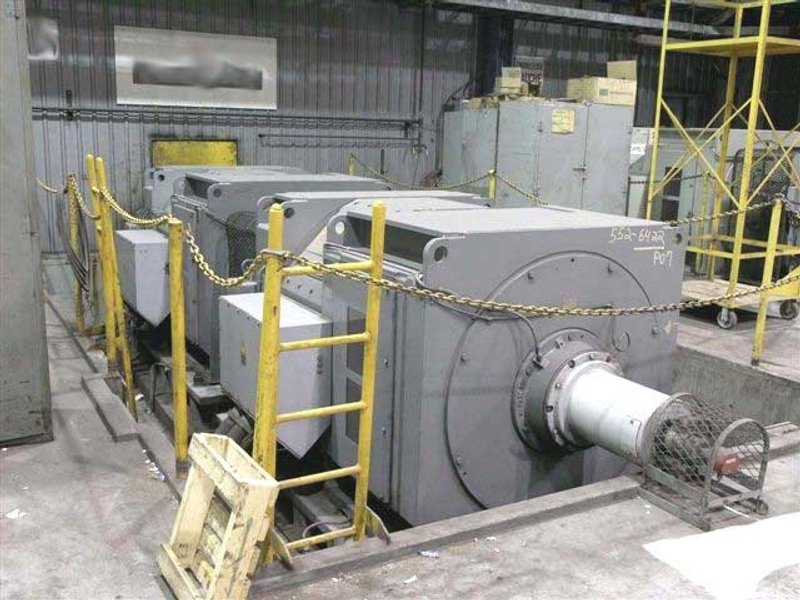

Main Drive Motor Data:
 Manufacturer: GEC Alstom
 Main Mill Drive: 2 x 2,012 HP, (1500 kW), 395/1000 RPM, 730 V-DC
 Pay-Off Reel: 160 HP, (120 kW), 770 / 2300 RPM, 400 V-DC
 Tension Reel Drive Motors:
 - Entry: 2 x 2,012 HP, (1500 kW), 395/1000 RPM, 730 V-DC
 - Delivery: 2 x 2,012 HP, (1500 kW), 395/1000 RPM, 730 V-DC

Mill Equipped with:
 Electric Drive and Control

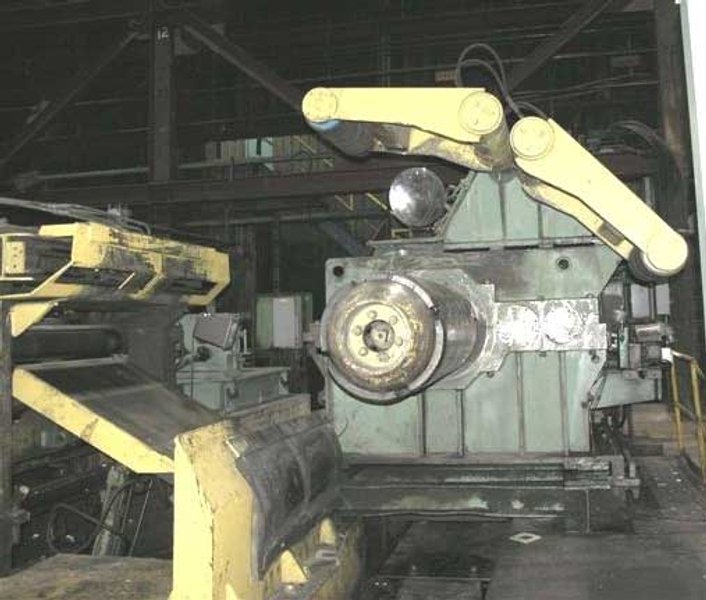

 Mandrel Type Pay-Off Reel
 Automatic Gauge Control, Hydraulic Operation
 Side Guides, Hydraulic Operation
 Entry & Exit Gamma Gauges (2)
 Entry & Exit Rotary Shears (2)
 Hydraulic Systems
 Lubrication System

Inclusive of all available spare parts, drawings, operators and maintenance

manuals

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
