SPECIFICATIONS

TABLE SIZE ---------- ( WORKING AREA ) -------- 20" X 40"
TRAVEL -------------- ( X AXIS ) --------------------------- 30"
TRAVEL -------------- ( Y AXIS ) ------------------------- 18.1"
TRAVEL -------------- ( Z AXIS ) ------------------------- 17.7"
SPINDLE END TO TABLE SURFACE ----------- 6.3" TO 24"
SPINDLE SPEED RANGE ----------------- 50 TO 7000 RPM
SPINDLE TAPER ------------------------------------- CAT #40
RAPID TRAVERSE RATE - ( X & Y AXIS ) --------- 1181 IPM
RAPID TRAVERSE RATE - ( Z AXIS ) --------------- 645 IPM
CUTTING FEED RATE ------------------------------- 394 IPM
TOOL MAGAZINE CAPACITY ----------------------------- 20
SPINDLE DRIVE MOTOR - ( 30 MIN./CONT.) --- 10/7.5 HP

WEIGHT: 12125 LBS.
DIMENSIONS (IN.): 89 X 68 X 98

EQUIPPED WITH

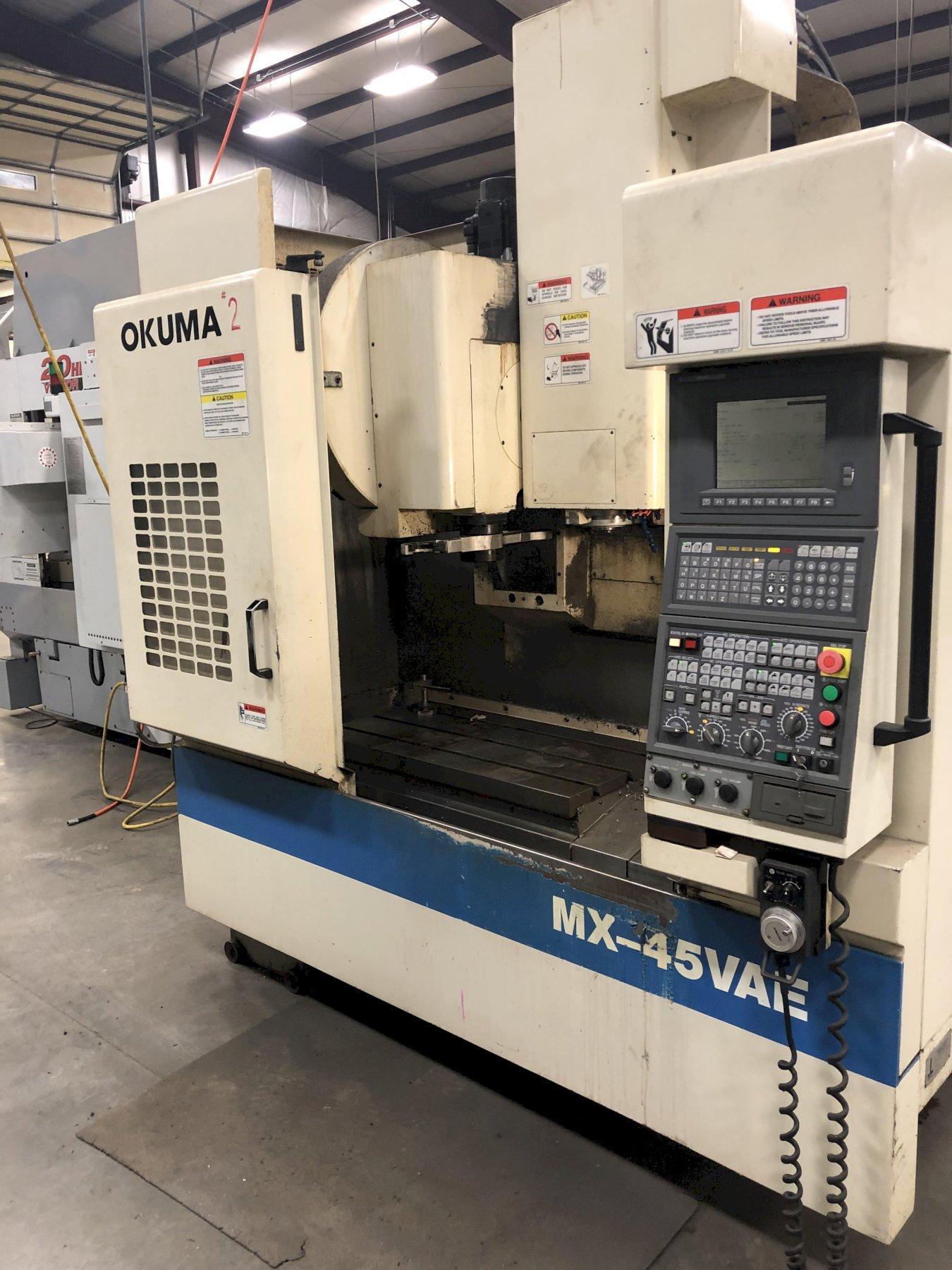

OSP 700M CNC CONTROL
FULL ENCLOSURE

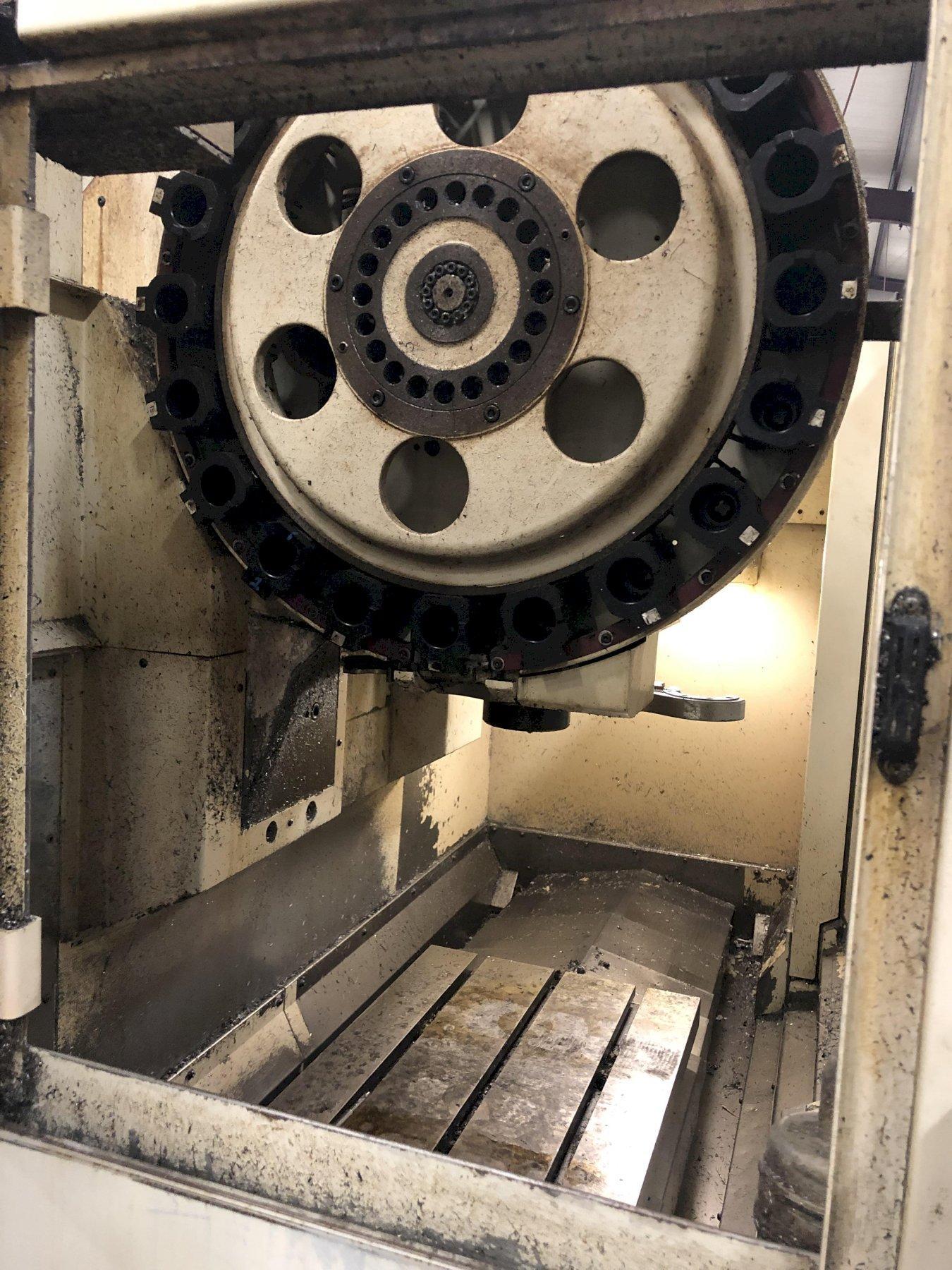

20 STATION TOOL CHANGER
COOLANT SYSTEM
AUTOMATIC LUBRICATION
MANUAL PULSE GENERATOR
