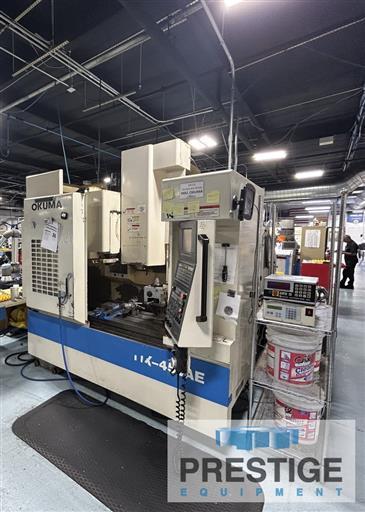

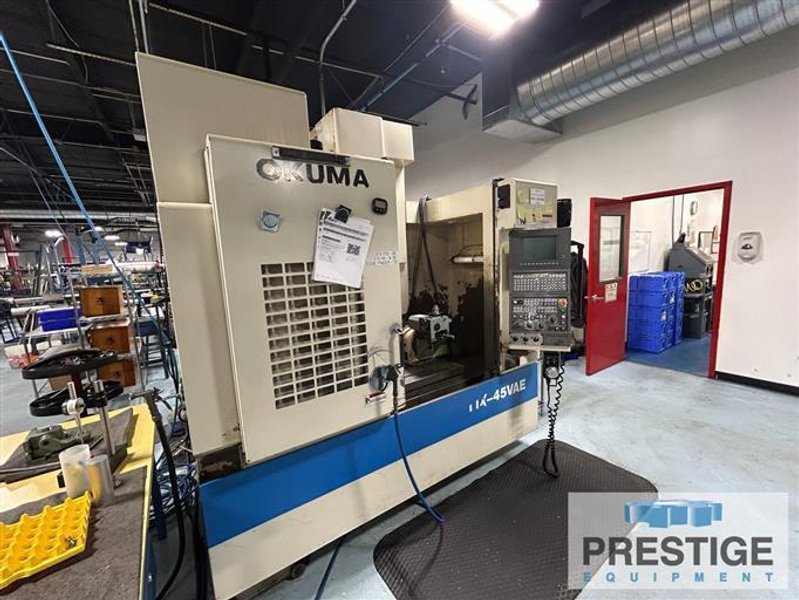

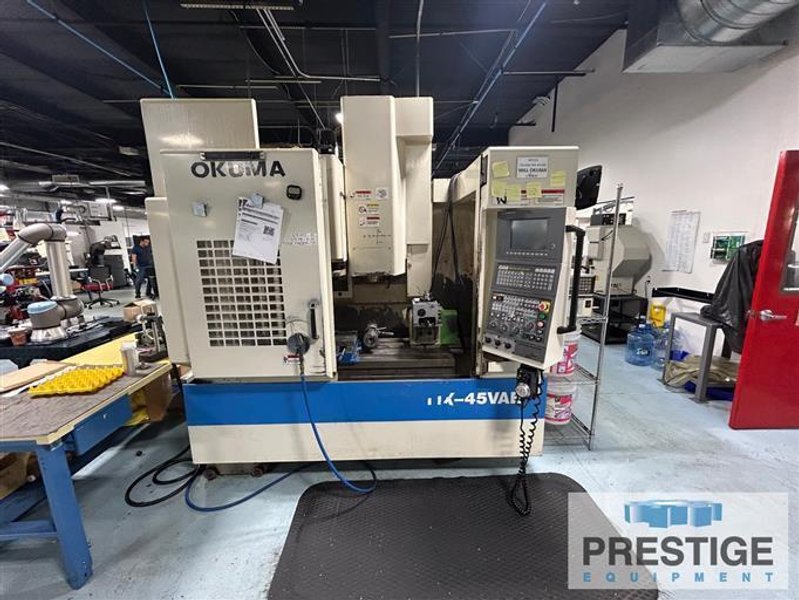

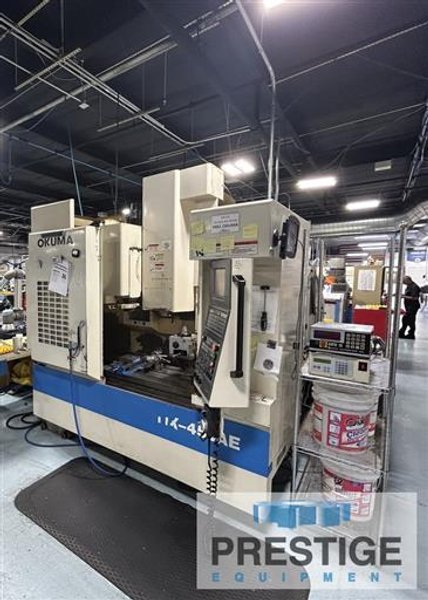

Okuma MX-45VAE CNC Vertical Machining Center

SPECIFICATIONS:
X-Axis Travel 30.00"
Y-Axis Travel 18.11"
Z-Axis Travel 17.72"
Table Size 39.37" x 20.1"
Table Load Capacity 1100 lbs
Table Surface to Floor Level 29.5"
Spindle End to Table Surface 6.3"-24.02"
Spindle Speeds 50-7000 RPM
Spindle Taper CAT 40
Spindle Drive Motor (AC Drive) 10 HP / 7.3 HP
Rapid Traverse (X/Y Axes) 1,181.1 IPM
Rapid Traverse (Z Axis) 944.9 IPM
Tool Changer 20 ATC
Tool-To-Tool 1.5 sec
Max. Tool Dia. w/ Adjacent Tools 3.54"
Max. Tool Dia. w/o Adjacent Tools 4.92"
Max. Tool Length 15.7"
Max. Tool Weight 17.6 Lbs.
Dimensions 87"x 94"x 104"
Approx. Weight 14,000 Lbs.
Electrics 220/3/60



Equipped With:

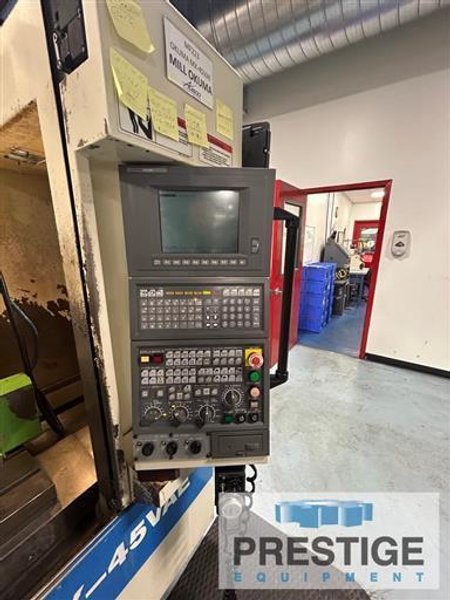

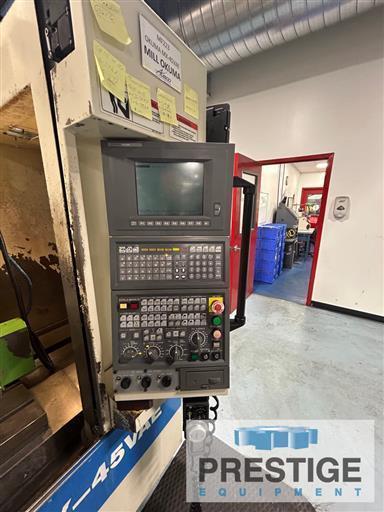

OSP-700M CNC Control
20-Position Automatic Tool Changer

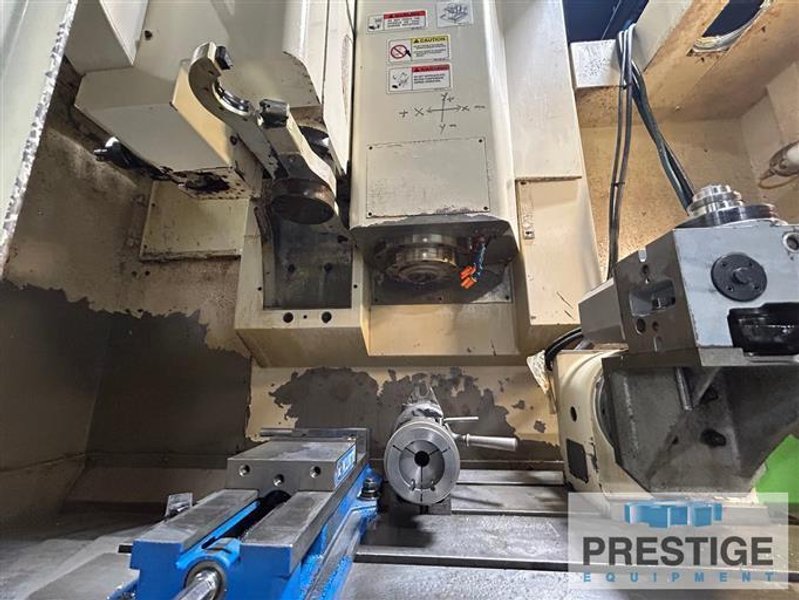

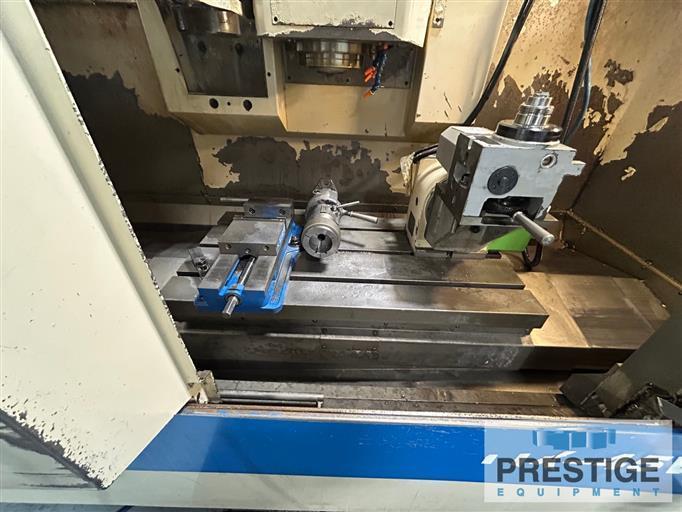

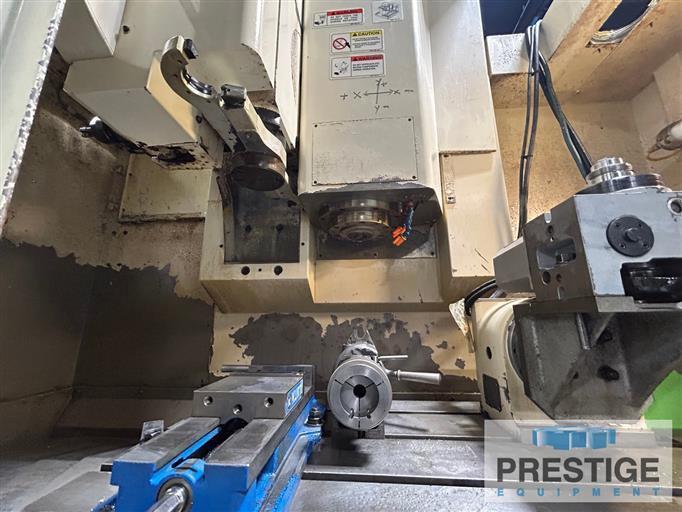

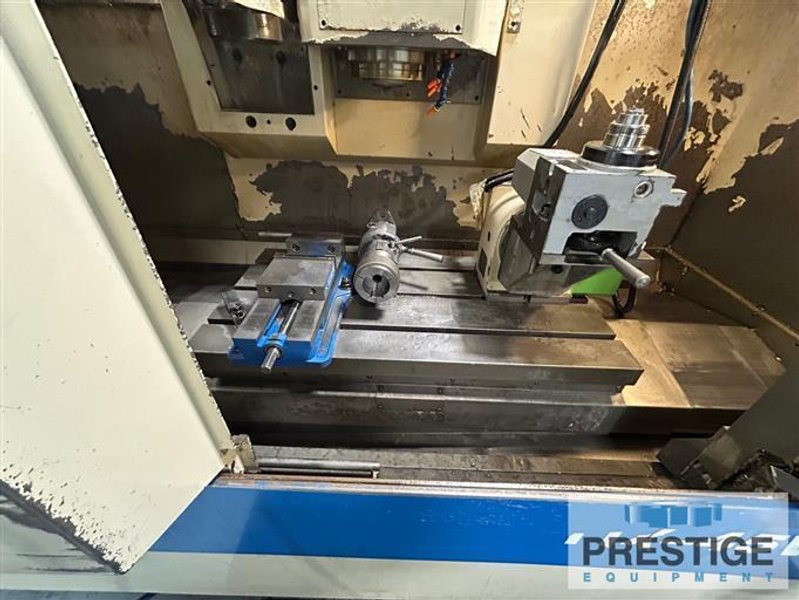

4/5 Axis Table
Hand-Held Pendant
Fully Enclosed
