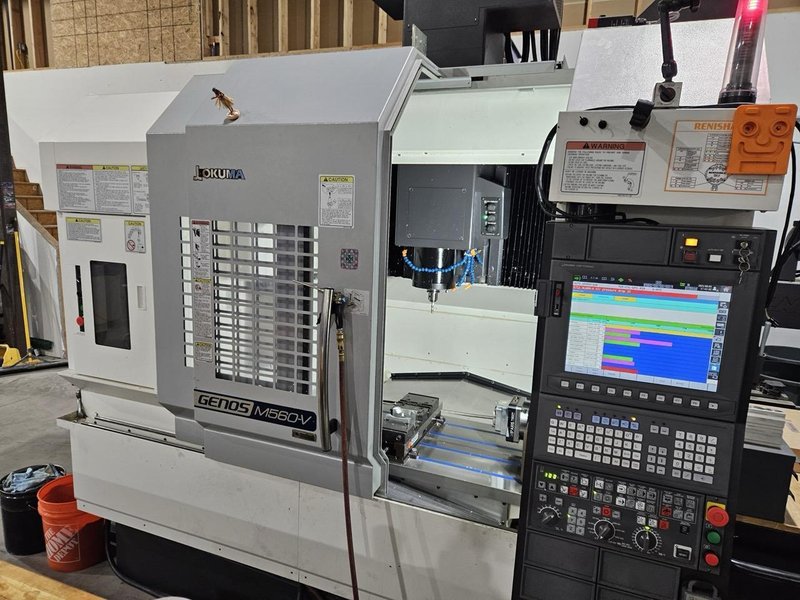

Okuma Genos M560-V CNC VMC, 2022 – Low Hours, TSC, Probes, 4th Axis, Chip Conveyor, 15K Spindle

Travels: X-axis: 41.34″ Y-axis: 22.05″ Z-axis: 18.11″ Rapid Traverse: X/Y-axes: 1,575 IPM Z-axis: 1,260 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tooling Capacity: 32

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 51.18″ x 22.05″ Table Load Capacity: approx 1,980lbs

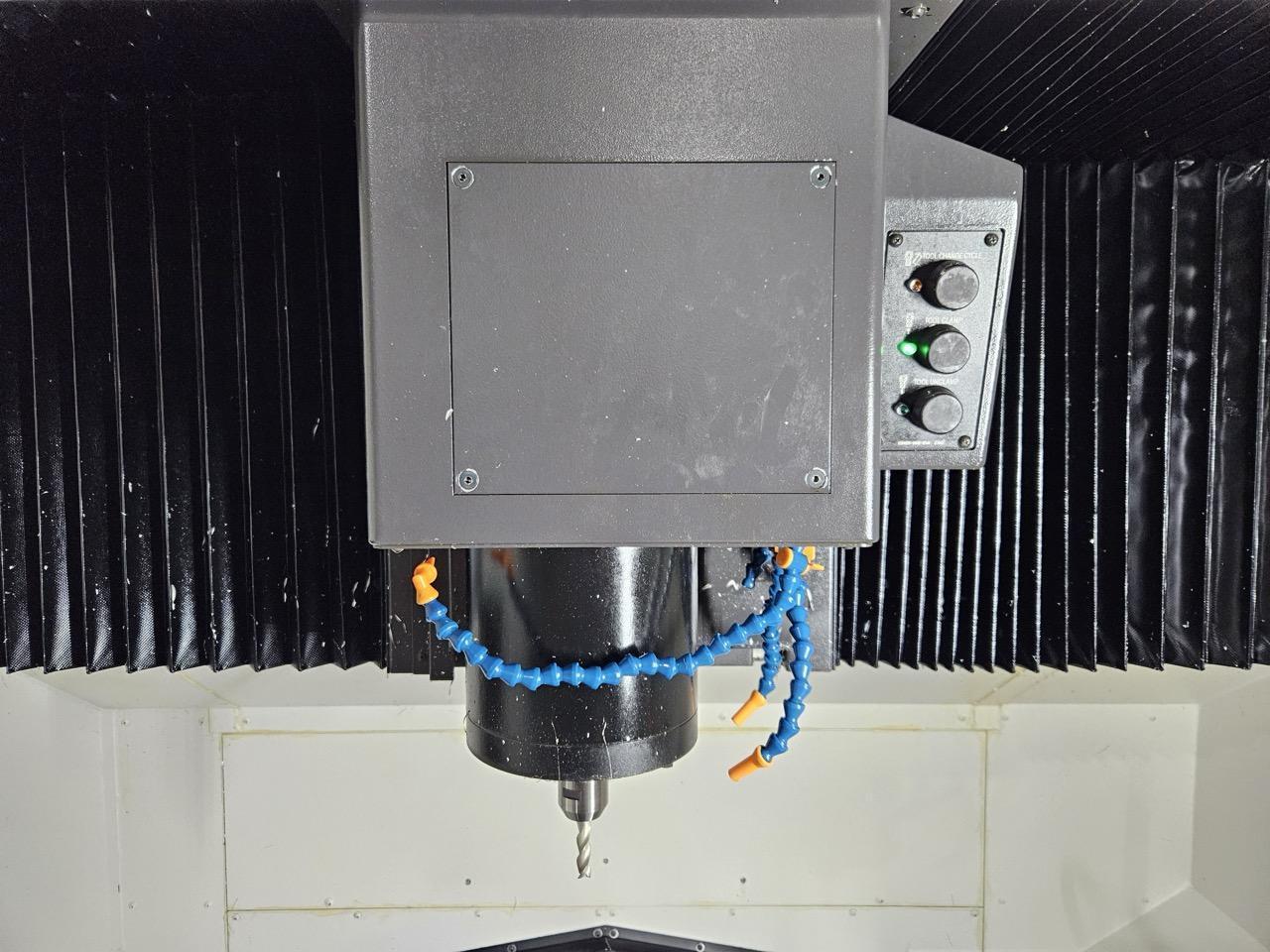

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: Max Speed: 15,000 rpm Motor Power: 30HP Taper: CAT-40 Big Plus

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: approx 122″ x 99″ x 108″ Weight: approx 17,000lbs Electrical Requirements: 220/480V; 3 Phase; 60Hz

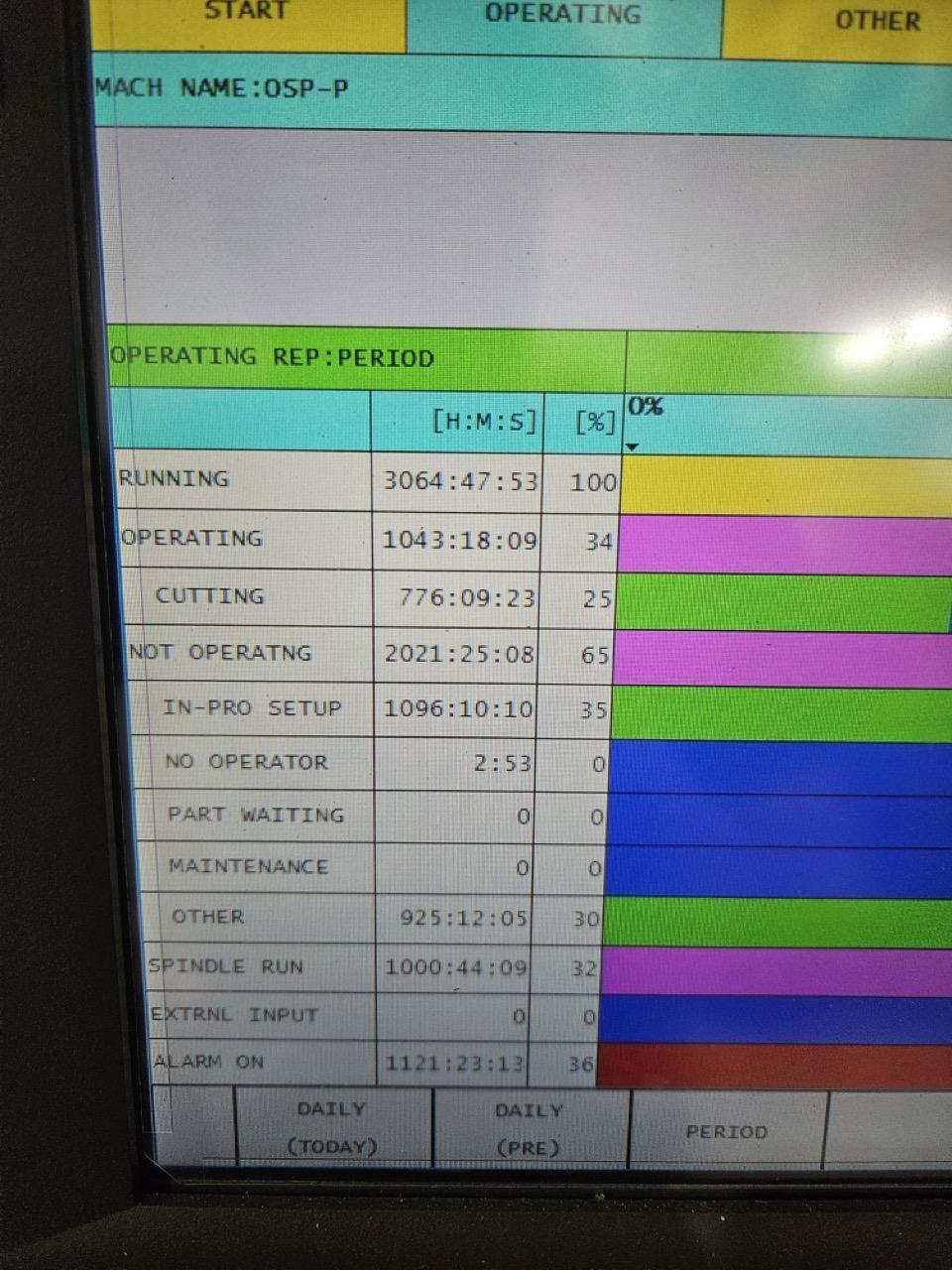

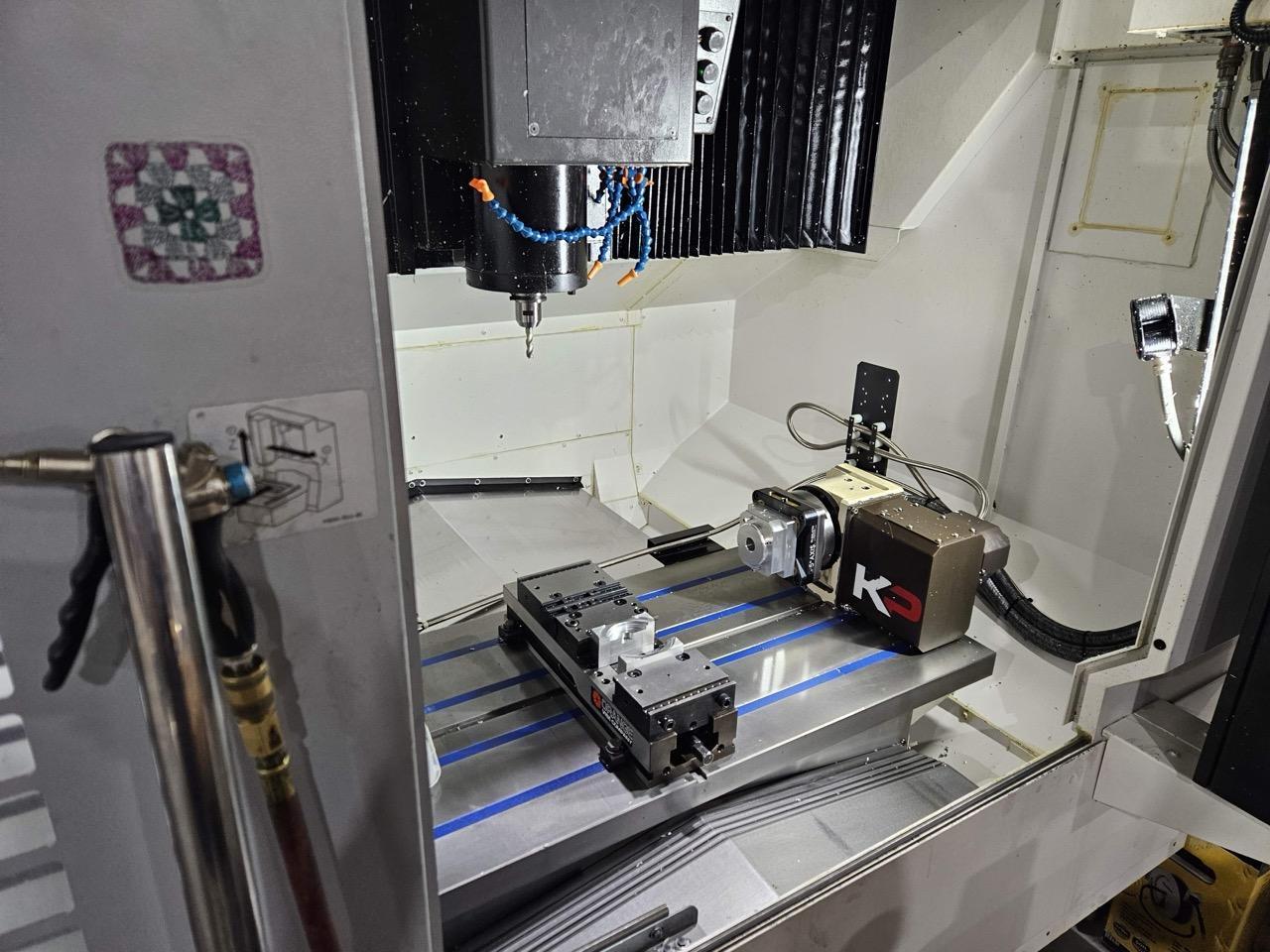

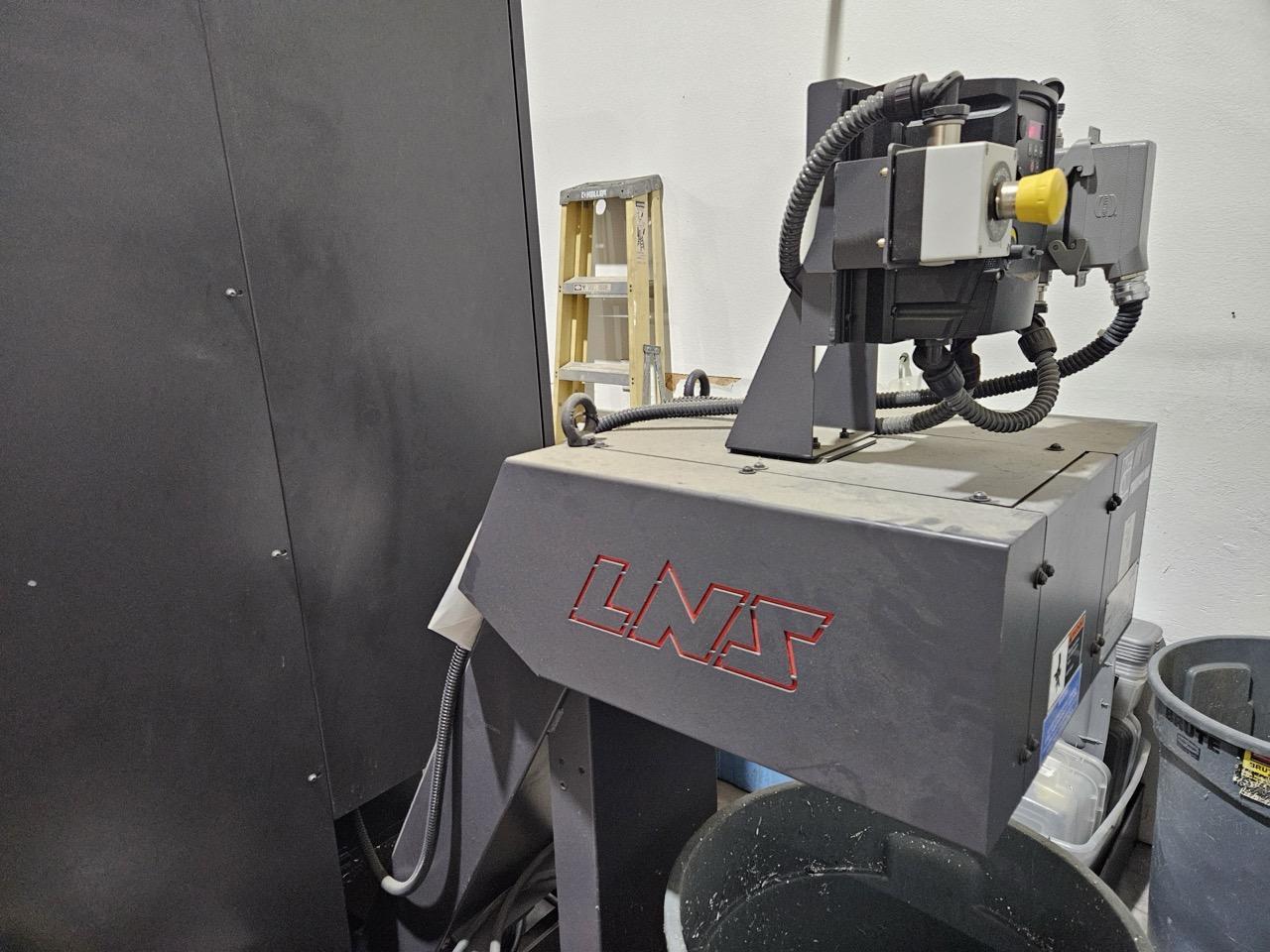

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Low hours Coolant Through Spindle Probes 4th Axis Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
