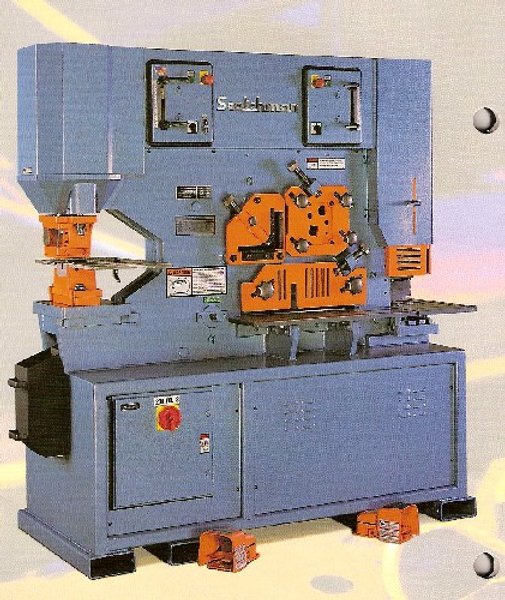

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: DO 8514-20M

STANDARD FEATURES

Dual Operator Allows For Two Operators To Work At The Same Time At Full Capacity
85 Ton Punch Station
Keyed Punch Ram For Safety
Punch Gauging Table With Fence and Scale
Die Holder Complete With 2" Die Insert
Punch Nut With Wrench and Stripper
Adjustable Swing-Away Stripper
Punch Jog Control
Two Adjustable Electric Stroke Controls With Scale
Two Electric Remote Foot Pedals
Two 2-Stage Hydraulic Pumps
Two Valves
6" x 6" x 1/2" Slug-Less Angle Shear
Built-In Rectangle Notcher: Can Be Converted To 3" x 3" V-Notcher, 50 Ton Punch Station,
 and 6" Open End Brake
20" Flat Bar Shear
Shear Table With Miter Fence
Rod Shear: 1/2", 3/4", 1", 1-1/2" Round and 1-1/2" Square
Slug Receptacles
Electrical Box Supplied With Emergency Palm Button and Lock-Out
Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
Three Year Warranty
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 85 Ton, 1-1/16" In 1"
Special Tooling: 4" Maximum Diameter
Throat Depth: 14"
Flat Bar Shear: 20" Length
 1" x 16"
 3/4" x 20"
Angle Shear, 90 Degrees: 6" x 6" x 1/2"
Angle Shear, 45 Degrees: 4" x 4" x 1/2"
Brake 12"*: 85 Ton
Brake 24"*: 85 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher: 2" x 4" x 1/2"
90 Degree V-Notcher (Notcher Station): 3" x 3" x 1/2"
90 Degree V-Notcher (Punch Station): 9" x 6" x 5/16"
Punch Attachment (Notcher Station): 50 Ton, 1-1/4" in 1/2"
Throat Depth With Punch Attachment: 4-7/16"
Channel Shear: 2" to 6"
Rod Shear
Round Rod: 1/2", 3/4", 1", 1-1/2"
Square Rod: 1-1/2"
Square Tube Shear*: 1/2" to 2", 12 Gauge
Picket Tool Housing*: 1/2", 3/4", 1", 16 Gauge
Offset Die Holder: Maximum 40 Ton
Strokes Per Minute, Light Material: 48 SPM
Strokes Per Minute, Heavy Material: 20 SPM
Hydraulics: 3350 PSI
Standard Motor: 10 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 10 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 30"W x 70"L x 77"H
Approximate Weight: 5500 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS, SUBJECT TO CHANGE AND/OR MODIFICATION
