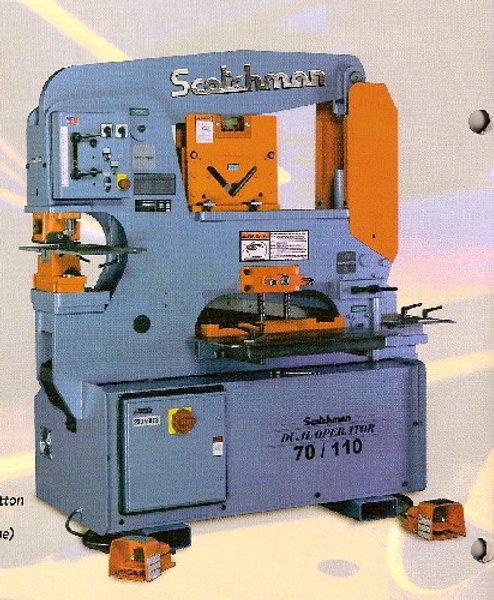

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER
MODEL: DO 70/110-24M

STANDARD FEATURES

Dual Operator Allows For Two Operators To Work At The Same Time At Full Capacity
70 Ton Punch Station
Keyed Punch Ram For Safety
Punch Gauging Table With Fence and Scale
Die Holder Complete With 2" Die Insert
Punch Nut With Wrench
Adjustable Swing-Away Stripper
Punch Jog Control
Two Adjustable Electric Stroke Controls With Scale
Two Electric Remote Foot Pedals
Two 2-Stage Hydraulic Pumps
Two Valves
Rectangle Notcher
Notcher Table With Guides
110 Ton, Bar Shear With Saber Blade
Low Rake Angle For Minimal Distortion
Shear Table With Scale and Miter Fence
Tool Table Work Area
Slug Receptacles
Electrical Box Supplied With Emergency Palm Button and Lock-Out
Tag-Out Accomodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accomodations
Three Year Parts Warranty
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 70 Ton, 1-1/8" In 3/4"
Special Tooling: 4" Maximum Diameter
Throat Depth: 9"
Flat Bar Shear: 110 Ton, 24" L
1" x 6"
3/4" x 10"
1/2" x 14"
3/8" x 24"
Angle Shear, 90 Degrees: 6" x 6" x 1/2"
                     45 Degrees: 4" x 4" x 1/2"
Brake 12"*: 65 Ton
Brake 24"*: 45 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher: 3" x 5" x 3/8"
V-Notch: 3" x 3" x 3/8"
90 Degree V-Notcher*: 6" x 6" x 5/16"
Notching In Leg Of Channel: 6" x 10"
Channel Shear*: 2" to 6" Adjustable
Rod Shear*
Round Rod: 1/4" to 1-1/4", 9 Cavity
Square Rod: 1/4" to 1", 1 Cavity
Square Tube Shear*: 1/2" to 2", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Offset Die Holder: Maximum 40 Ton
Strokes Per Minute, Light Material: 25 SPM
Strokes Per Minute, Heavy Material: 17 SPM
Hydraulics: 2400 PSI
Standard Motor: 10 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 10 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 30"W x 65"L x 72"H
Approximate Weight: 3790 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
