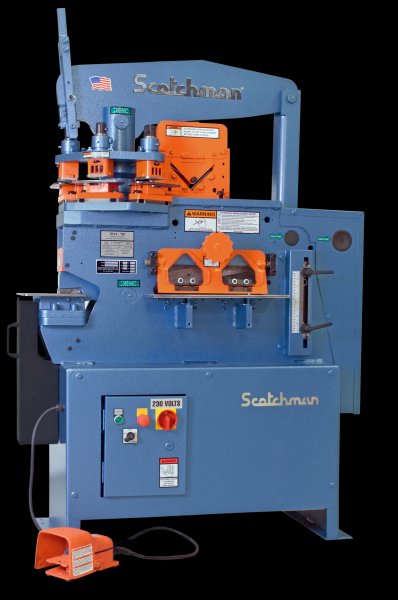

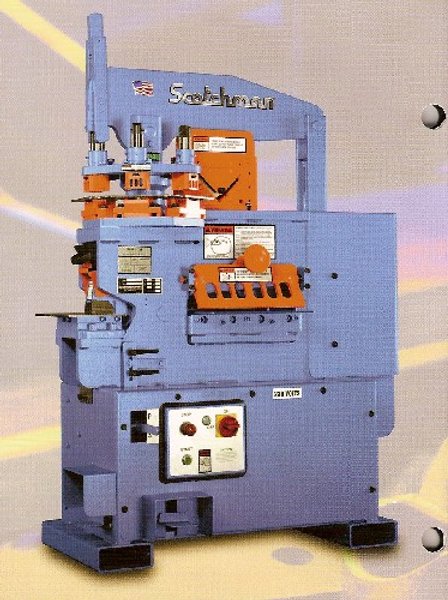

4" x 4" x 3/8" Scotchman Hydraulic Ironworker 5014-ET, 50 Ton, 3-Station Revolving Turret, New

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER
MODEL: 5014-ET

STANDARD FEATURES

Single Operator, 7 Stations
50 Ton Punch Station With 3-Station Revolving Turret
Keyed Punch Ram For Safety
4" Throat Depth
Three 2" Die Holders, Three Punch Nuts With Wrench and Three Strippers
One Round Punch & Die: Maximum Diameter 1"
Adjustable Electric Stroke Control With Scale
Electric Remote Foot Pedal
Flat Bar Shear With 4-Way Reversible Blade
Tool Table Work Area
Slug Receptacle
Electrical Box Supplied With Emergency Palm Button and Lock-Out
 Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
Three Year Warranty On Parts
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 50 Ton
1-1/4" In 1/2"
13/16" In 3/4"
Special Tooling: 2-1/4" Maximum Diameter
Throat Depth: 4"
Flat Bar Shear: 14" Length
3/4" x 4"
1/2" x 8"
3/8" x 10"
1/4" x 14"
Optional Saber Blade: 1/2" x 10", 3/8" x 12"
Angle Shear, 90 Degrees: 4" x 4" x 3/8"
Angle Shear, 45 Degrees: 2" x 2" x 3/8"
Brake 8"*: 25 Ton
Brake 12*: 25 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher: 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8"
90 Degree V-Notcher*: 6" x 6" x 1/8"
Rod Shear*
Round Rod, 5 Cavity: 1/4" to 1"
Square Rod, 1 Cavity: 1/4" to 3/4"
Square Tube Shear*: 1/2" to 1", 12 Gauge
Picket Tool Housing*: 1/2", 3/4", 1", 16 Gauge
Strokes Per Minute, Light Material, 1/4" Stroke: 40 SPM
Strokes Per Minute, Heavy Material, 3/4" Stroke: 17 SPM
Hydraulics: 2350 PSI
Standard Motor: 3 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 5 HP, 1 Phase 220 V

*Optional Equipment Available

Dimensions: 23"W x 48"L x 70"H
Approximate Weight: 1575 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS, SUBJECT TO CHANGE AND/OR MODIFICATION
