Title: SOUTHWESTERN INDUSTRIES TRAK TRM 2--AXIS CNC BED MILL
Type: Millers, Vertical
Brand: SOUTHWESTERN INDUSTRIES
Model: TRM
Year: 1995
Message
Information

SOUTHWESTERN INDUSTRIES TRAK TRM 2--AXIS CNC BED MILL

Model
TRM
Stock #
14143
Year
1995
Condition
Used
Location
Illinois

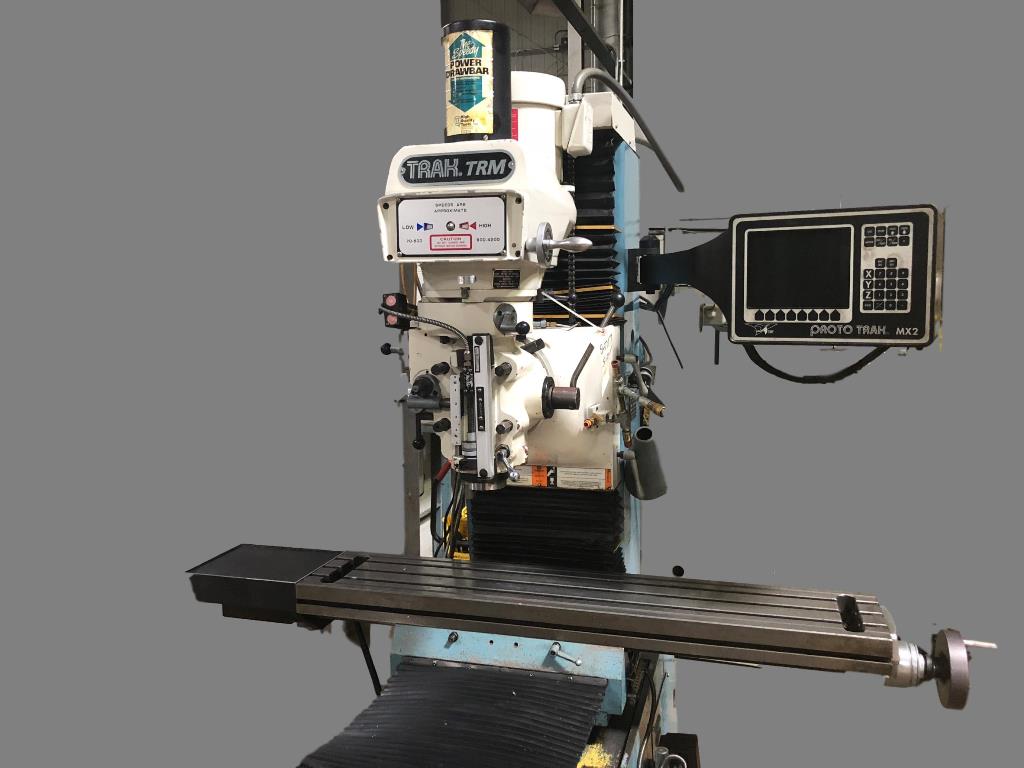

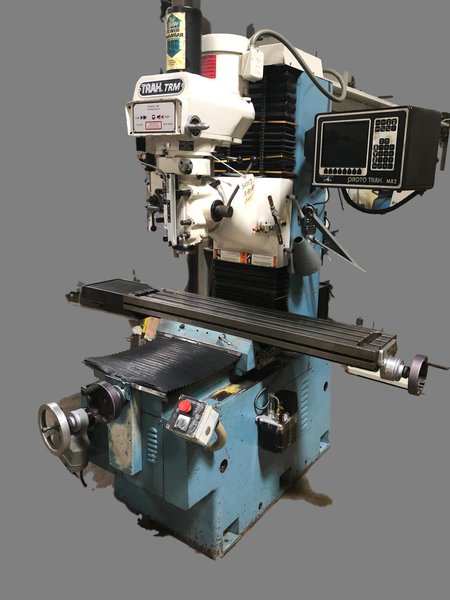

SOUTHWESTERN INDUSTRIES TRAK TRM 2--AXIS CNC BED MILL

New 1995

Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor & Controls

EQUIPPED WITH: Trak A. G. E. 3 CNC Controls, Power Draw Bar, Power Feed For Elevation,  RS232 Port, Coolant

SPECIFICATIONS:
Table Size                             10" x 50"
Travels
         X - Axis 31"
         Y - Axis 17"
         Z - Axis 25"
Quill Diameter   3-15/16"
Spindle Taper 40 NST/NMTBA
Spindle Speeds  (Variable)                70-4200 RPM
Spindle Center to Column Face                        17.3"
Max. Quill Travel 5"
Quill Feed Per Rev. in Auto Feed 0.002, 0.004, 0.006 IPR
Max. Weight on Work Table 1,320 Lbs.
Drilling Mild Steel 1.5"
Tapping Capacity 1.25"
Milling Capacity 3" Cubed/Min
Boring Capacity 4.75"
Approximate Dimensions 70" x 72" 89"
Approximate Weight 4,500 Lbs.

No files or videos to display

Want to request a quote from the owner of this listing?
