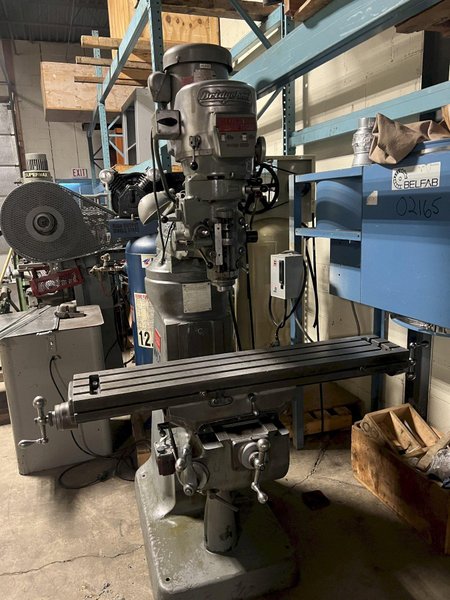

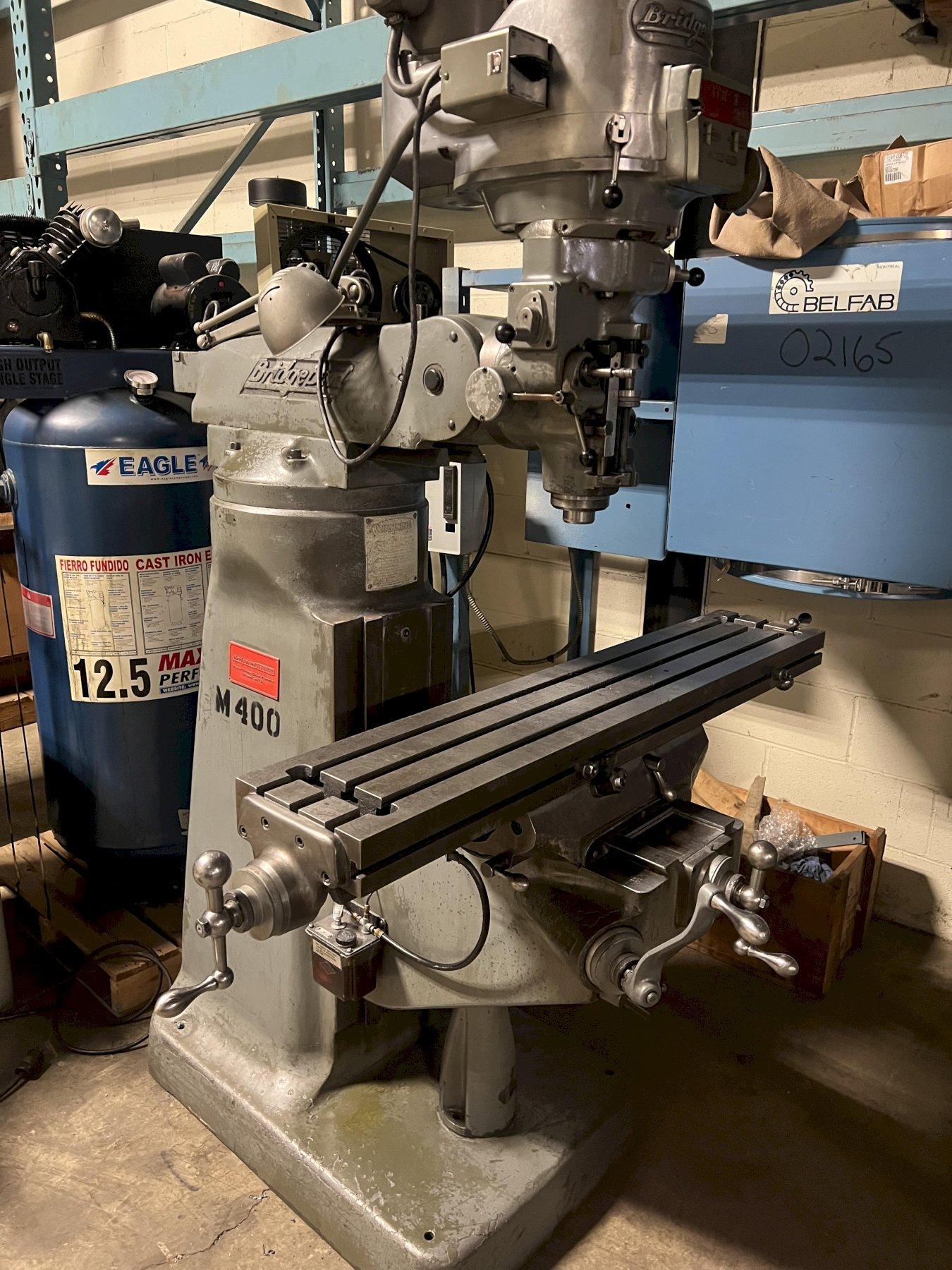

BRIDGEPORT VERTICAL MILLING MACHINE, MODEL: SERIES I
Brand
Category
Type
Model
Series 1
Stock #
5080
Year
1981
Condition
Used
Location
Not specified
|
BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES 1 SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE. 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... #30 QUICK CHANGE
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS
EQUIPPED WITH:
CHROME WAYS
BIJUR AUTOMATIC LUBRICATION SYSTEM

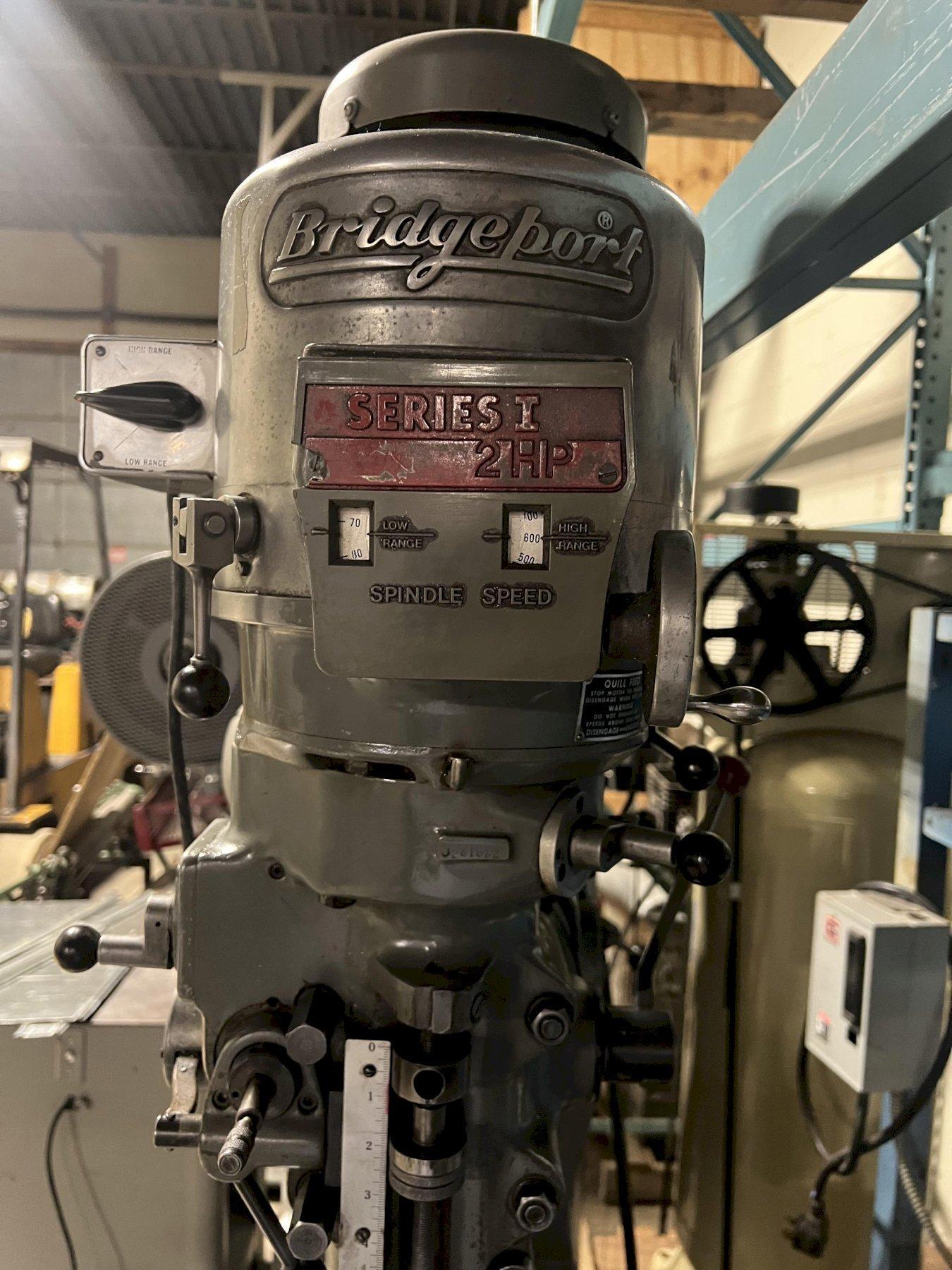

BRIDGEPORT SERIES I MILLING HEAD

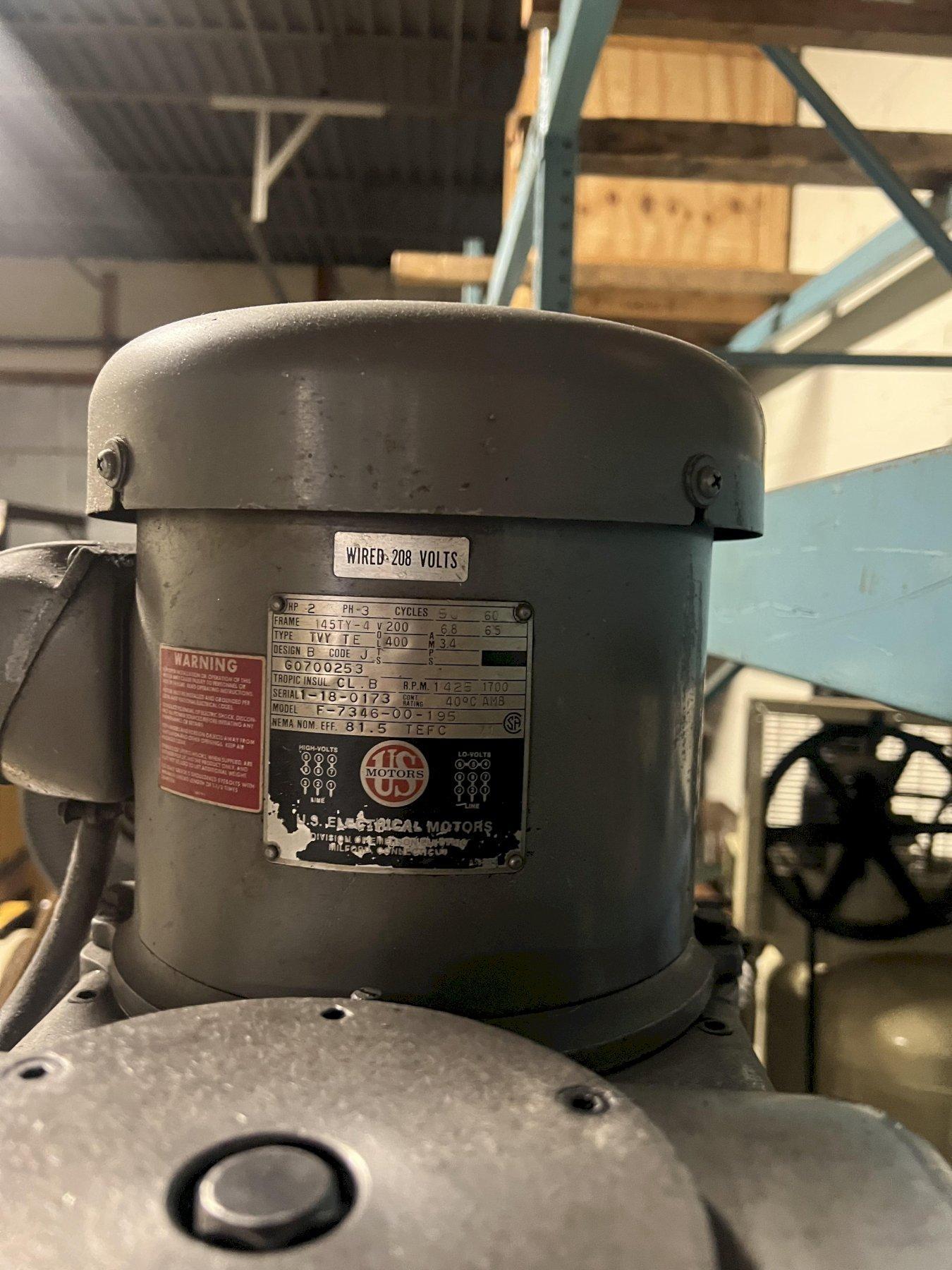

2 HORSEPOWER SPINDLE MOTOR
FOB: Ronkonkoma, NY |
