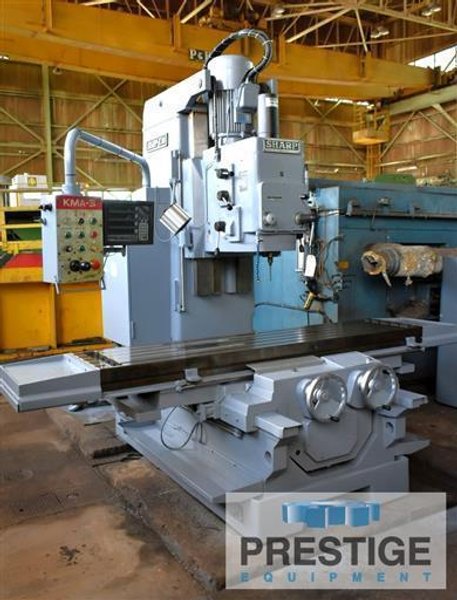

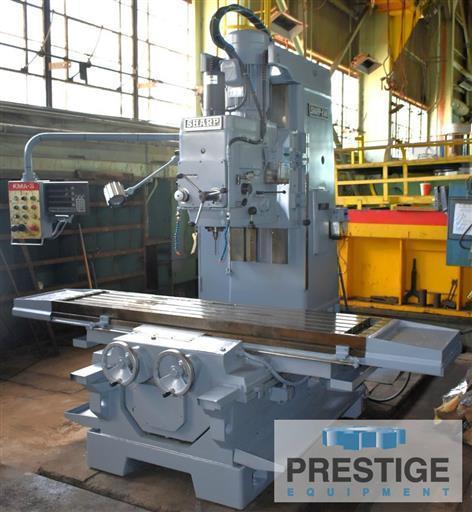

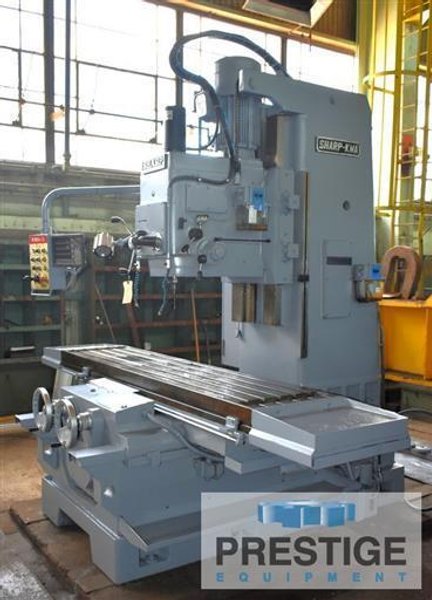

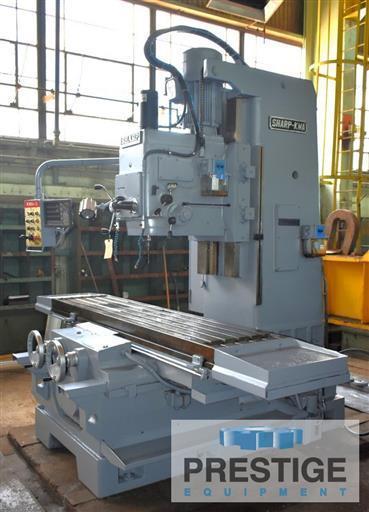

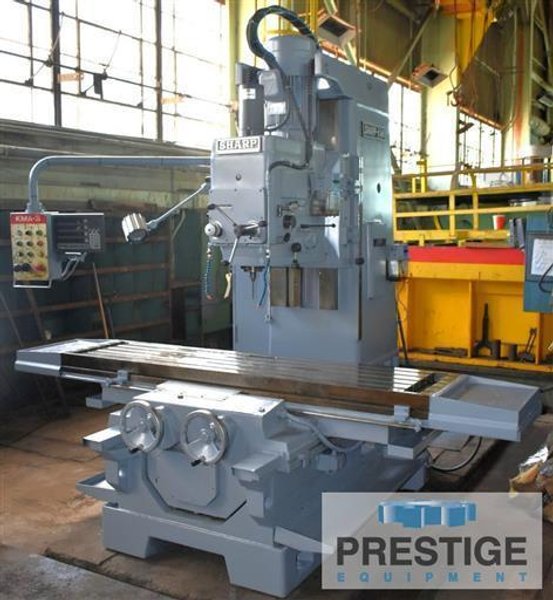

Mill Vertical

SPECIFICATIONS:
Table Dimensions 20" x 87"
Table Travel, X-Axis 59"
Saddle Cross Travel, Y-Axis 23.62"
Spindle Travel, Z-Axis 27.56"
Spindle Taper #50NST
Spindle Nose - Table 3.93 - 31.5"
Spindle Speeds 45 - 1500 RPM
Spindle Center - Column 21.625"
Longitudinal/Cross Feeds 1.125 - 39.375 IPM
Vertical Head Feed .002 - .008 IPM
Power Rapid Traverse 130 IPM
Spindle Motor 20 HP
Electrics 220/440V, 3PH, 60Hz
Approx. Machine Dimensions 175" x 100"
Approx. Machine Weight 15,400 Lbs



Equipped With:
Newall DP 1200 3-Axis Digital Readout
Align Power Draw Bar
Pendant Control
Double Nut Backlash Eliminator
Pneumatic Locks for Table, Spindle, & Saddle
Tri Lever Handle Vertical Head Control
Coolant
