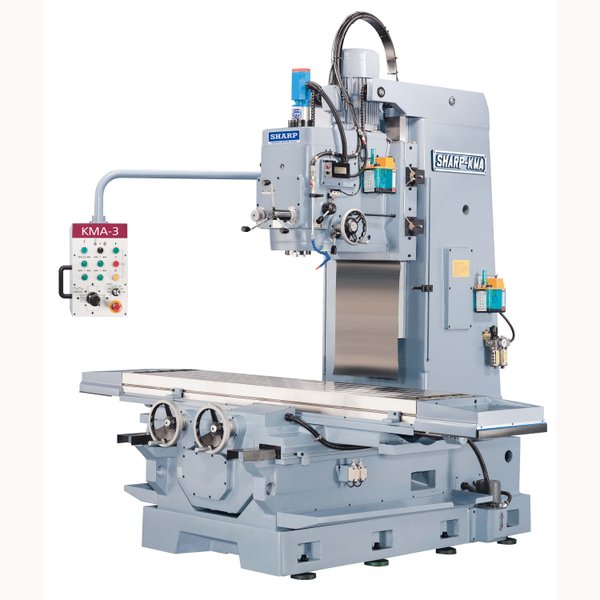

NEW 20" x 87" SHARP MODEL KMA-3 VERTICAL BED MILL
Heavy duty vertical bed mill equipped with geared head spindle and massive hardened and ground bed ways for heavy milling
Table travel (longitudinal) |
59" |
Saddle travel (cross) |
24" |
Spindle head travel |
31-1/2" |
(Spindle nose to table top vertical) |
4”-35-1/2” |
Spindle center to column front |
22” |
Horizontal head travel (up & down) |
na |
Dist. bet horiz.and vert head |
na |
TABLE |
|
Table working area |
87”x 20” |
T-slot (Wide x No. x pitch) |
0.7x5x3-9/16” |
Table top to floor |
33-7/8” |
SPINDLE HEAD |
|
Vertical spindle taper |
NST#50 |
Horizontal spindle taper |
na |
Vertical spindle speeds (rpm) |
45-1,500 |
Horizontal spindle speed (rpm) |
na |
No. of speeds (vert. and horiz) |
12 |
FEED RATE |
|
Vertical Head (ipr) |
0.002-0.008 |
Table and saddle feeds (ipm) |
0-39 |
Rapid traverse (ipm) |
130 |
Horizontal head down feed(ipm) |
na |
Horizontal head rapid down (ipm) |
na |
No. of feeds (steps) |
variable |
MOTORS |
|
Vertical spindle (HP) |
20 HP |
Horizontal spindle (HP) |
na |
Table and saddle feed (HP) |
2-1/2 HP |
Horizontal head feed |
na |
Coolant (HP) |
1/8 HP |
DIMENSIONS |
|
Machine height |
113" |
Floor space (l x w) |
175” x 100” |
Net weight (approx) (lbs) |
15,000 |
STANDARD ACCESSORIES:
- Coolant system
- Auto lube system
- 4 way toggle control of table (KMA-2, KMA-3, KMA-3H)
- Pneumatic power locks on spindle, table and saddle (KMA-3, KMA-3H)
- Variable speed feed rate on table and saddle (KMA-3, KMA-3H)
- Auto lube on vertical slide ways (KMA-3, KMA-3H)
- 5 HP horizontal head, #50 taper spindle (KMA-3H)
- Ball screw and AC servo drive on horizontal head (KMA-3H)
- Tools and Tool Box (1 set)
- Leveling blocks. (6 pcs, KMA-3, 8 pcs)
- Leveling bolts and nuts. (6 sets, KMA-3 8 pcs)
- Draw-in bolt. (1 pcs)
- Forward and reverse spindle control (KMA-2 & KMA-3)
OPTIONAL ACCESSORIES:
- Digital read out
- Halogen work light
- Power draw bar
- Spindle speed (60-1800 rpm) (KMA-3)
|
