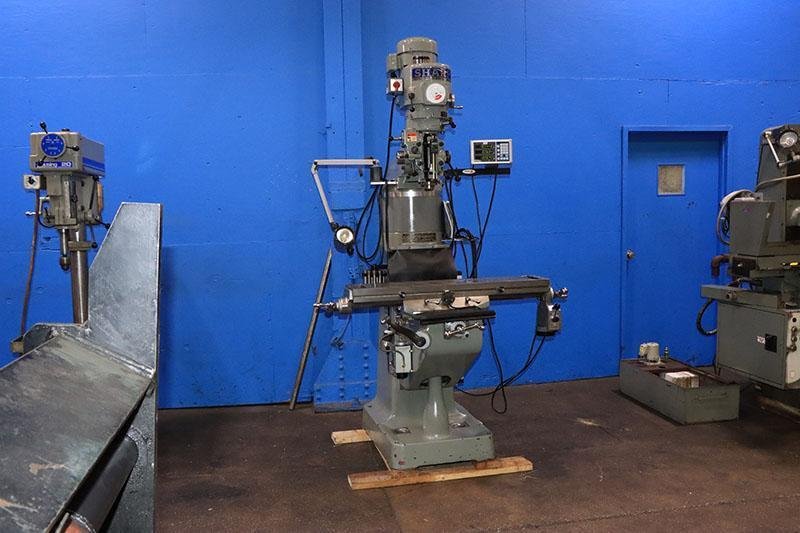

SHARP VARI-SPEED MILLING MACHINE, MODEL: LMV

Brand
SHARP
Category
Milling Machines
Type
Vertical Millers
Model
LMV
Stock #
5072
Year
2007
Condition
Used

Location

New Jersey
REQUEST FINANCING

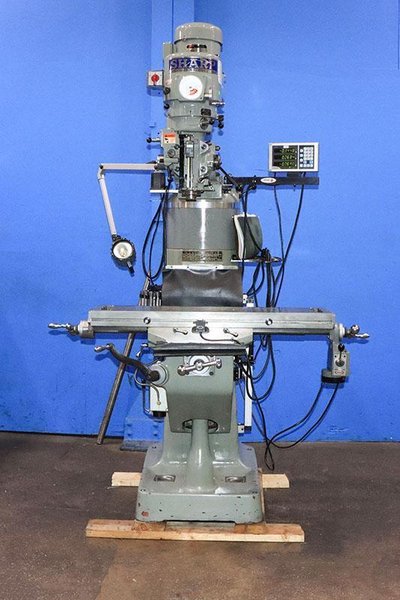

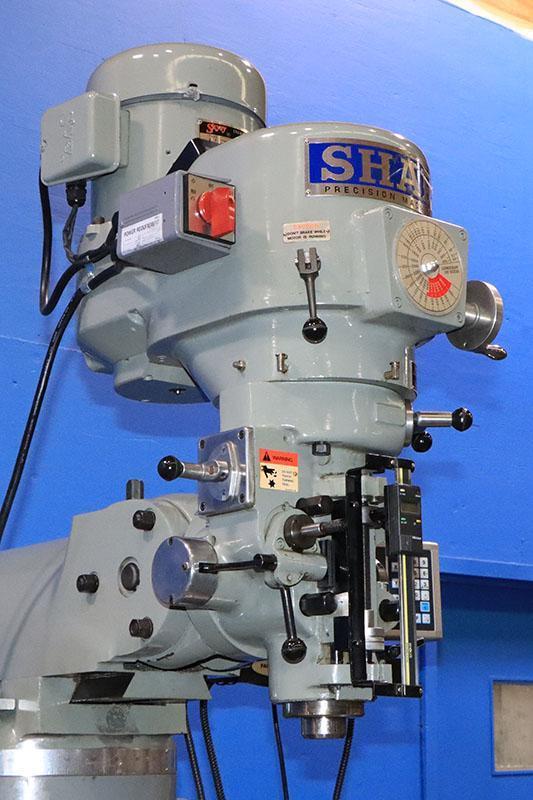

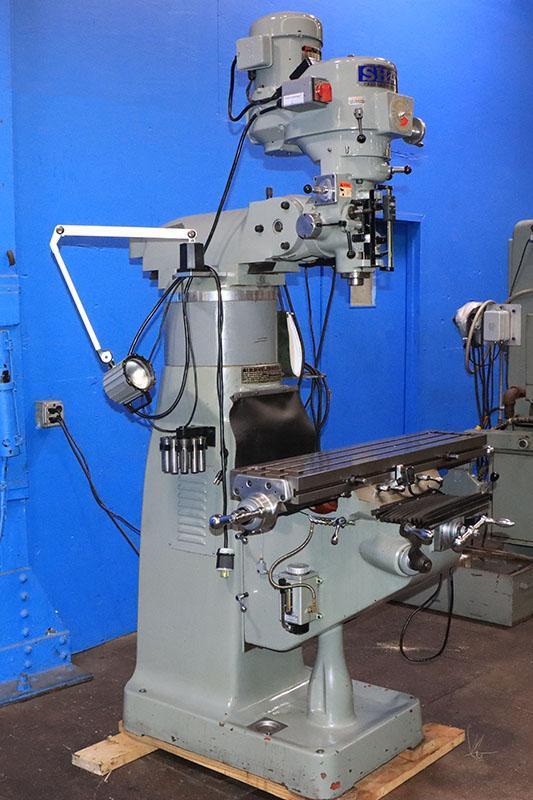

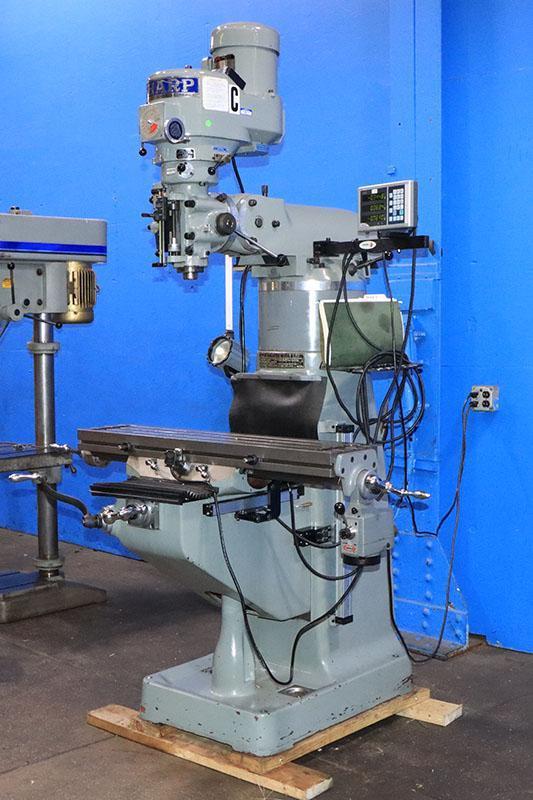

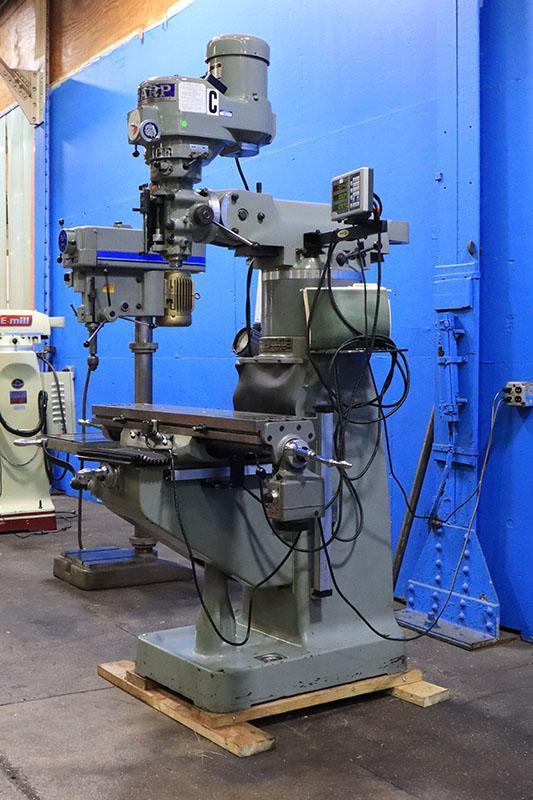

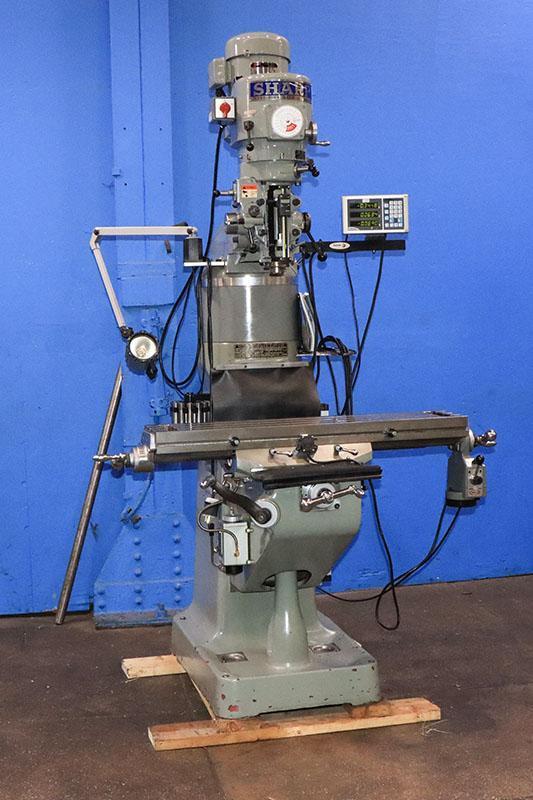

SHARP VARI-SPEED MILLING MACHINE
MODEL: LMV
NEW: 2007

SPECIFICATIONS:

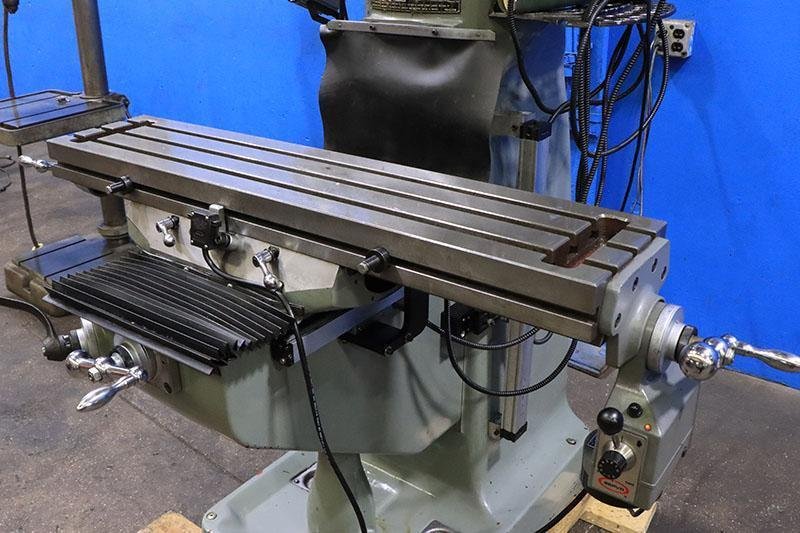

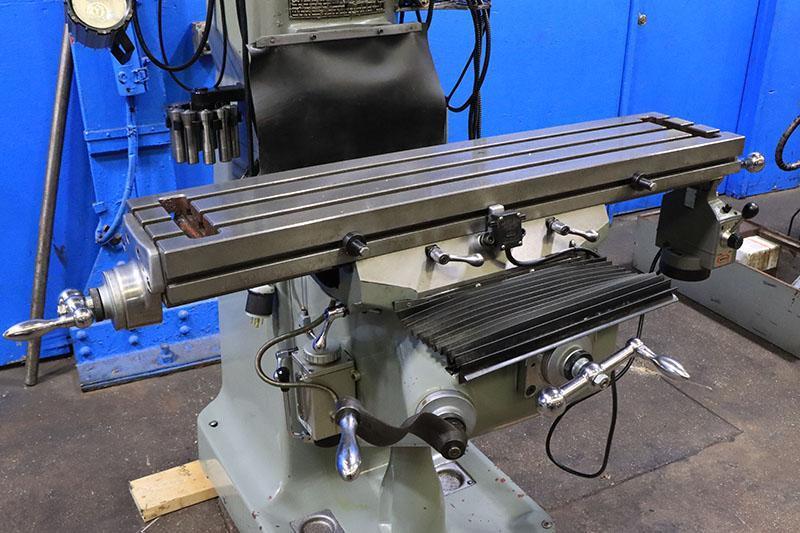

WORKING AREA OF TABLE ................ 9" x 42"
TABLE LONGITUDINAL TRAVEL ............ 30"
TABLE CROSS TRAVEL ................... 12"
VERTICAL KNEE TRAVEL ................. 16"
RAM TRAVEL ........................... 12"
SPINDLE QUILL TRAVEL ................. 5"

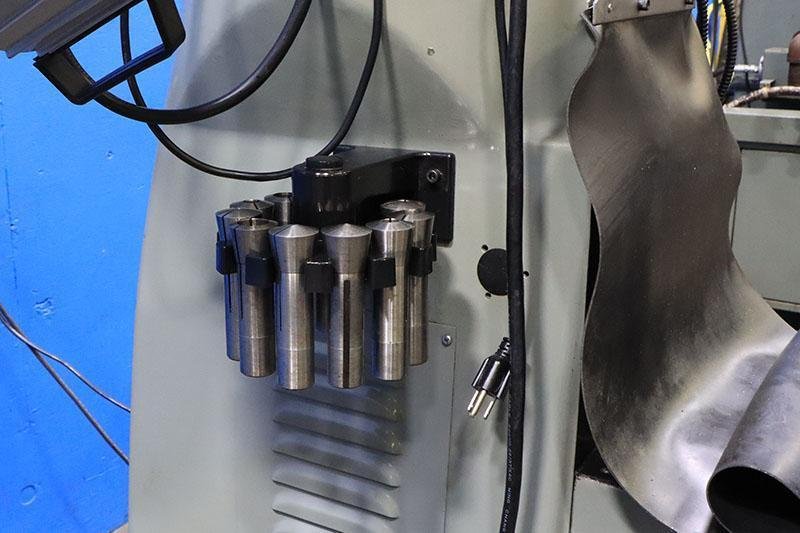

SPINDLE TAPER ........................ R-8
SPINDLE SPEED RANGE .................. 60 - 4500 RPM
SPINDLE FEEDS (31 PER REV OF SPINDLE). .0015, .003, .006
HEAD SWIVEL .......................... 360 DEGREES
HEAD TILT (RIGHT TO LEFT) ............ 45 DEGREES
HEAD TILT (UP AND DOWN) .............. 45 DEGREES
APPROX WEIGHT ........................ 2,400 LBS

EQUIPPED WITH:

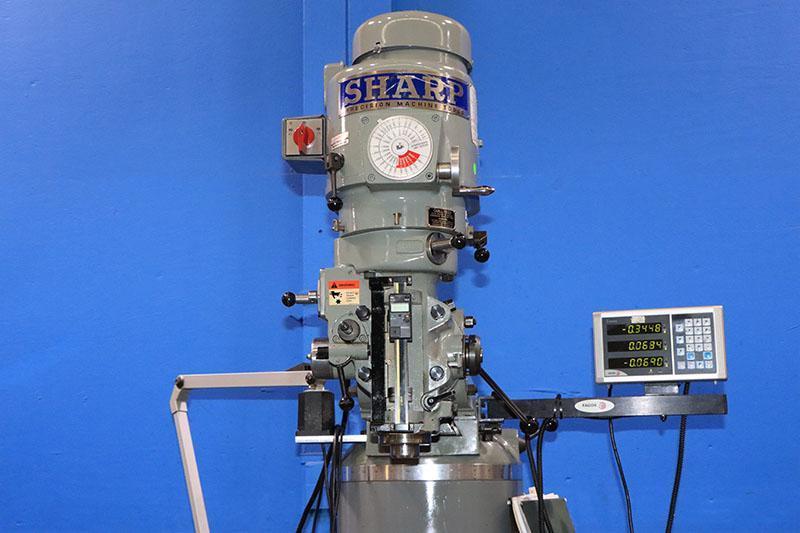

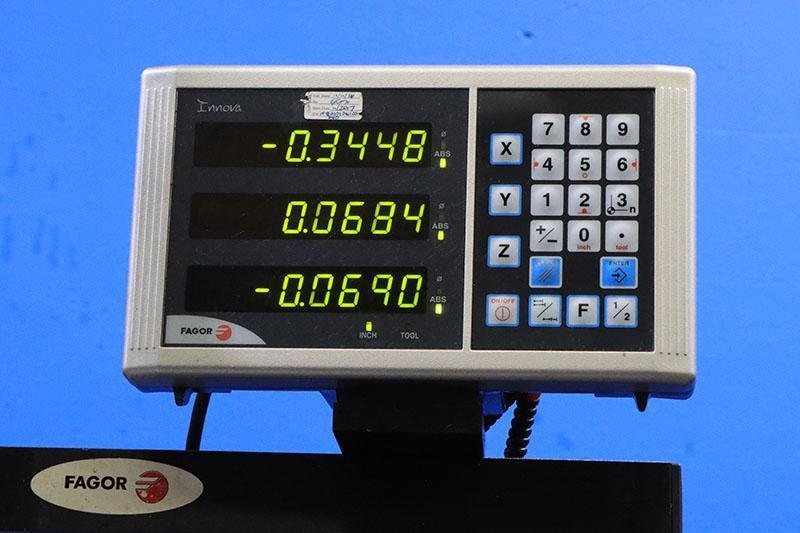

FAGOR THREE AXIS DIGITAL READOUT
   FOR TABLE LONGITUDINAL, CROSS & KNEE TRAVELS

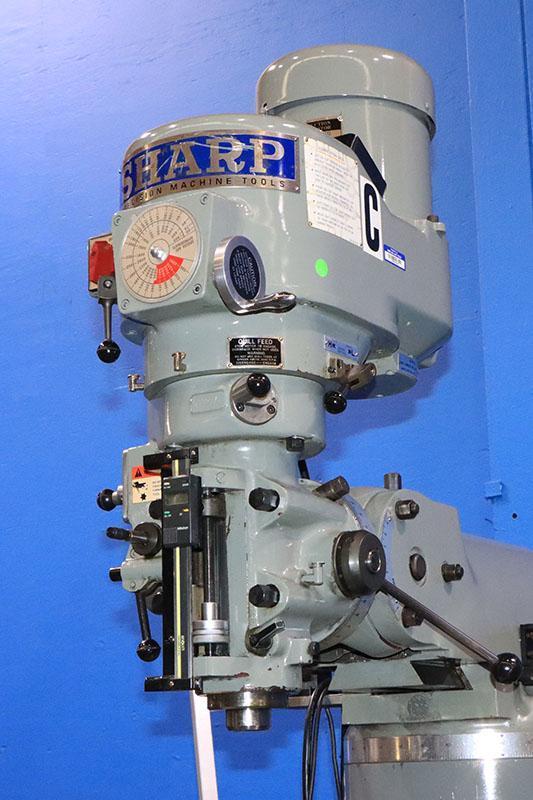

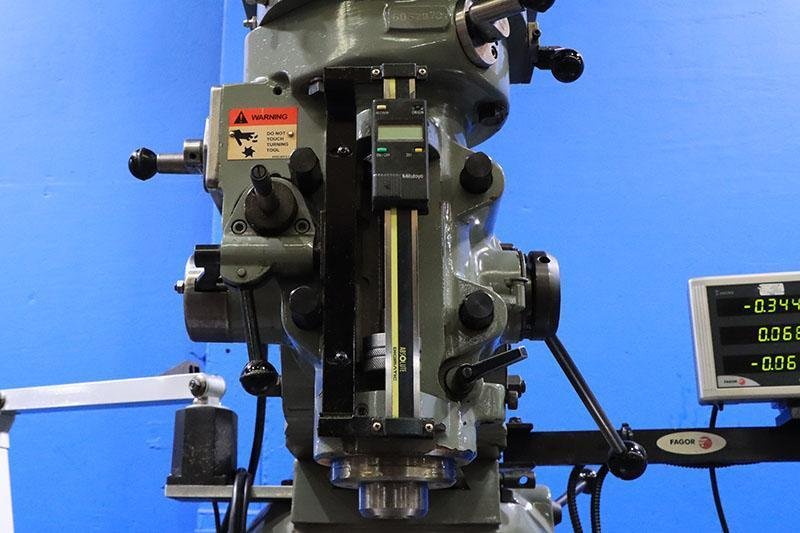

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL

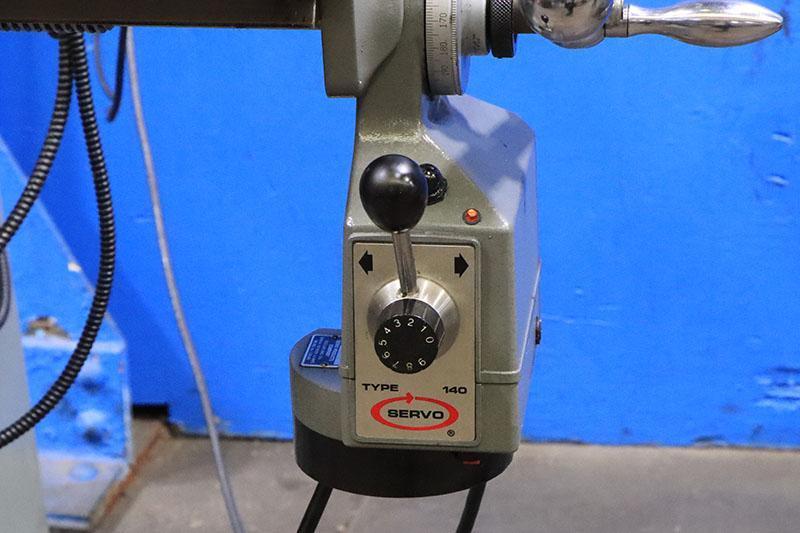

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
8" RISER BLOCK

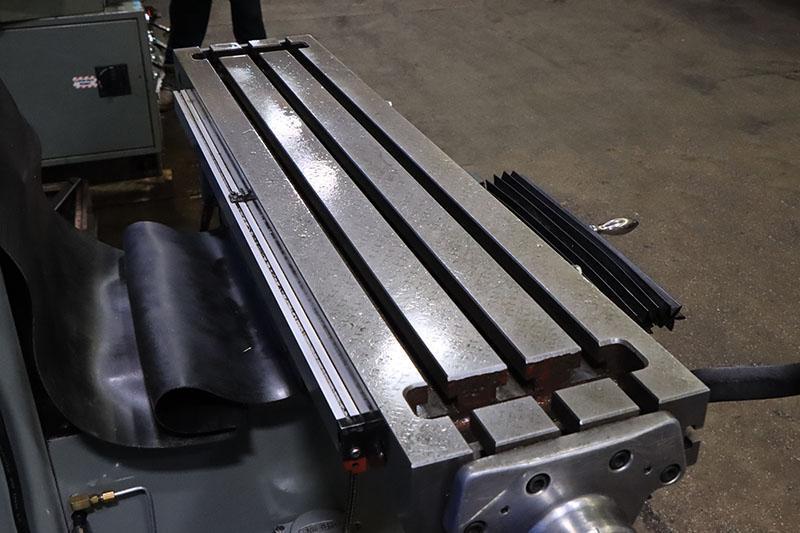

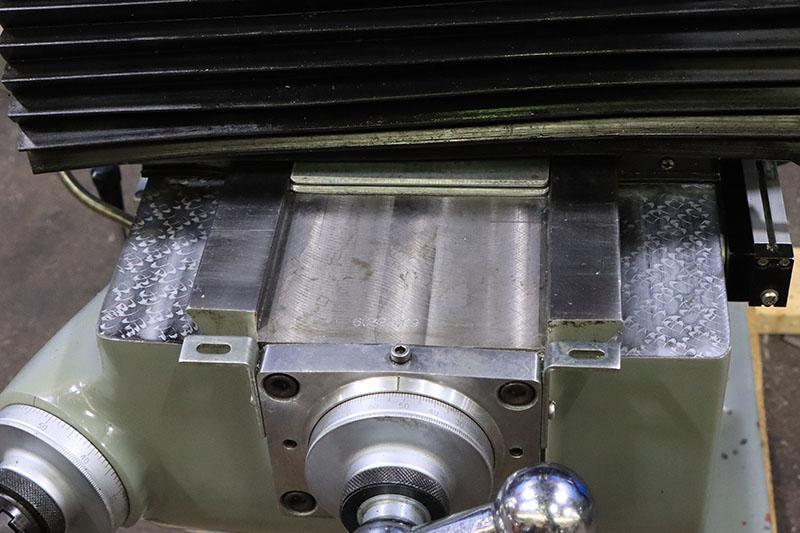

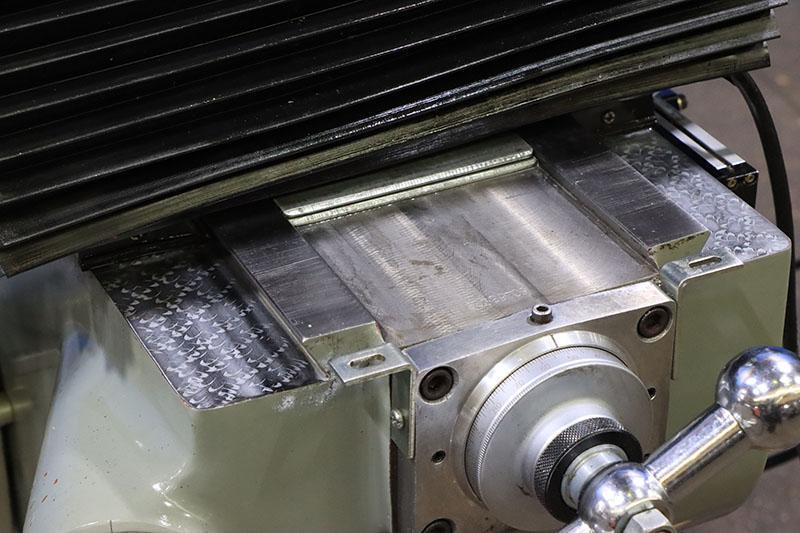

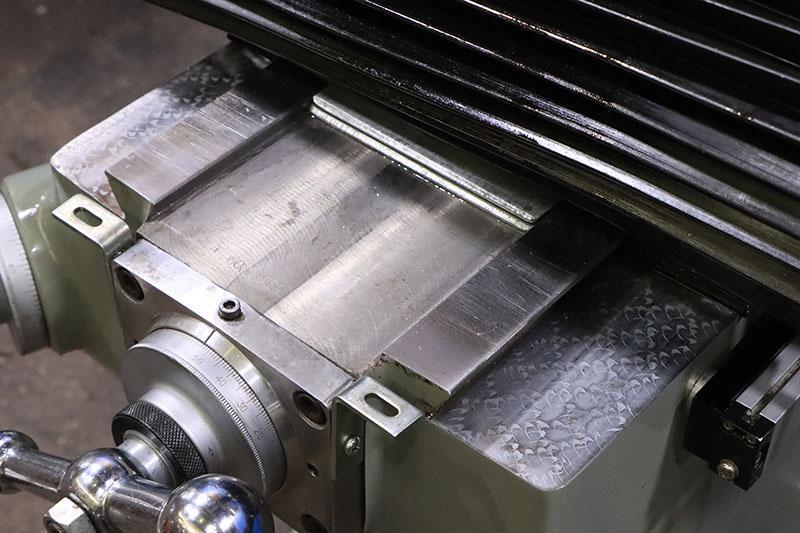

CHROME WAYS
HALOGEN WORK LIGHT

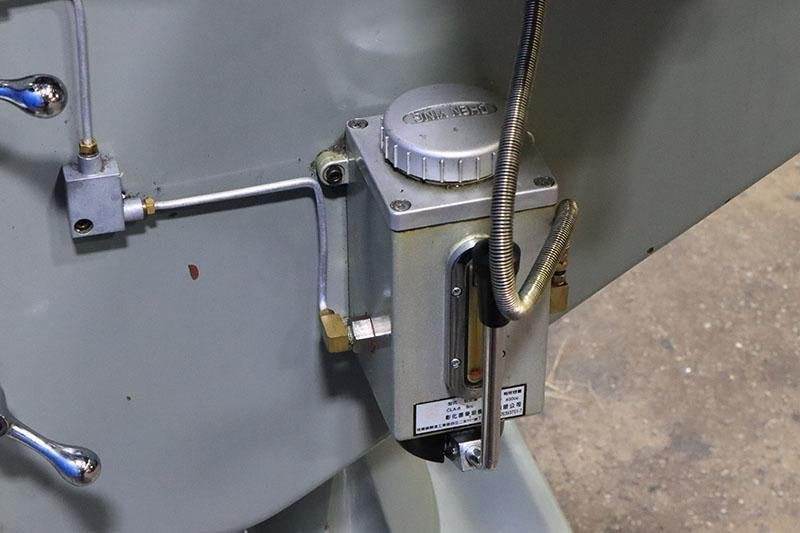

ONE SHOT LUBRICATION
3 HORSEPOWER SPINDLE MOTOR

FOB: ORIGIN
