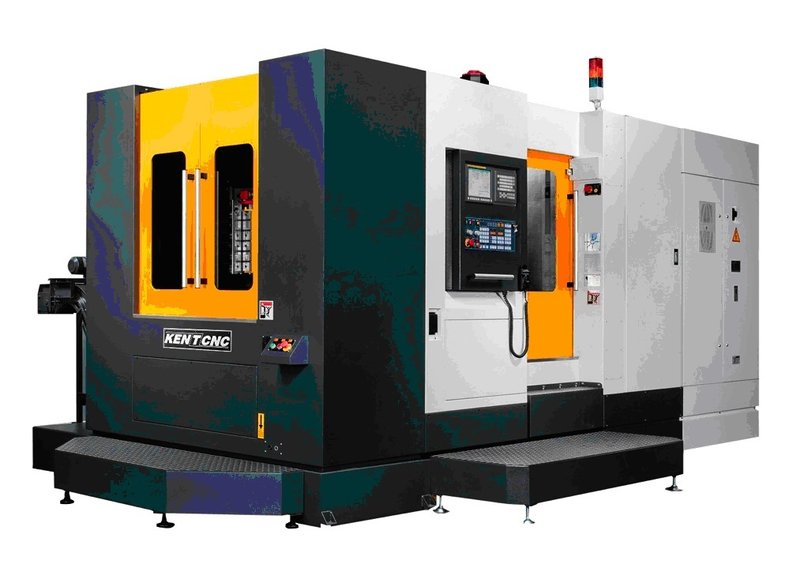

Reliability and Precision…these are the keywords you will repeatedly hear from the worldwide users of KENT CNC machine tools, if they are asked to describe the most remarkable characteristics of our machines. Achieving dramatically shorter lead-times and reduced machining costs in horizontal machining are mandatory requirements to competing in today's global manufacturing market arena. Whether your needs are entry-level or high-tech Horizontal Machining Centers, Kent CNC machines are designed to meet your highest demands and prevail in all industries worldwide. The Kent CNC High Output KH Series of 4 & 5-Axis machines with “Box-In-Box design is capable of “Done-In-One” manufacturing. This provides uninterrupted processes for fluid precision and faster production, while machining deep cores or cavities for improved surface finish. In a single set-up, Multiple Axis CNC machining centers combine all axes simultaneously to machine everything from extremely complicated geometries to simple basic shapes.

• Rotary table size: 31.5” × 31.5” × 2pcs (1 degree)
• Max.loading: 4,409 lbs
• Three axes travel: 50” × 41.3” × 41.3”
• Spindle nose to worktable surface: 1.97 ~ 43.3”
• Fanuc 0imd controller (10.4” lcd)
• Data server + manual guide i + aicc i function + ethernet
• Spindle taper: BT 50
• Spindle diameter: 3.93”
• Spindle speed: 6000 RPM
• Fully splash guard
• 60 tools chain type ATC (fanuc absolute type servo motor)
• Heat exchanger
• M code air blasting
• Auto power off
• Chain type chip conveyor+cart
• Remote mpg (handwheel)
• Rigid tapping
• Spindle oil cooler
• Spindle motor: 15/18.5 kw
• CTS-20 bar w/ filter system
• Powerful gear head (Hamada)
• Slide ways: 2 pcs linear guide ways (roller type)
• Full package of fanuc servo system
• Transformer

OPTIONAL ACCESSORIES

• Rotary Table in 0.001 Degrees
• Deep hole adapter
• CTS 50 BARS w/ Filter system
• 80 Tools ATC + Fanuc Absolute Servo Type
• 90 Tools ATC + Fanuc Absolute Servo Type
• 100 Tools ATC + Fanuc Absolute Servo Type
• 120 Tools ATC + Fanuc Absolute Servo Type
• Oil skimmer
• Oil mist collector Auto tools measurement (Laser Type)
• Auto tools measurement (Fix Type)
• Renishaw work piece measurement
• Air condition for electric cabinet
• DDS 8000RPM w/ oil cooler (By Alpha 15iT CTS motor)(ZF Gear box)
• DDS 10000RPM w/ oil cooler (By Alpha 15iT CTS motor)(ZF Gear box)
• Fanuc 0iMD 3D Die-Mole software package: Included: (AICCII + Jerk Control + Nano smoothing + Simple Spindle Sync + Bell Type Acc Adjustment + Machine Condition + Titled Working Plane)
• Fanuc 31iMB Controller
• Heidenhain iTNC 530 Controller
• 3 Axis linear scale (Heidenhain)
• 6 Table station with automation control system
• 3 Axis ball screw centre cooler system

TRAVELS                                                                              S.A.E.

¨   X Axis Travel                                                                  50”
¨   Y Axis Travel                                                                   41.3”
¨   Z Axis Travel                                                                   41.3”
¨   Spindle Nose To Work Table                                        1.97 ~ 43.3”
¨   Spindle Center To Work Table                                     9.05 ~ 50.4”


TABLE

¨   Table Surface to Floor                                                   51.9”
¨   Table Size                                                                        31.5” x 31.5”
¨   T-Slot / Bolt Spec.                                                          24-M16 x P2.0
¨   Max Loading                                                                   4409 lbs
¨   Divide Angle                                                                   1°

SPINDLE

¨   Taper                                                                                BT-50
¨   Method Spindle                                                               Gear Head
¨   Spindle Diameter                                                            3.93”
¨   Spindle Speed                                                                 6000 RPM

RAPID FEEDRATE

¨   Spindle Motor (cont/30min)                                           20/25 (30/35HP)
¨   3-Axes Cutting Feedrate                                                0.03/236 ipm
¨   3-Axes Rapid Feedrate                                                   590/473/473 ipm
¨   3-Axes Min. Setting Unit                                                            0.0000393”

ATC

¨   Tool Selection                                                                 60 (Opt. 90, 120)
¨   Max Tool Diameter                                                         4.9”
¨   Max Tool Length                                                             23.6”
¨   Max Tool Weight                                                             44 lb
¨   Tool Shank                                                                      P50T-I
¨   Tool-To-Tool Time                                                         2.9 Sec.

APC

¨   Number of Pallets                                                           2
¨   Method of Pallet Change                                               Rotary
¨   Pallet Change Time                                                       12 Sec.


 MISCELLANEOUS

¨   Approximate Weight                                                      60,627 lb
¨   Dimensions – Machine (LxW)                                   319” x 154”
