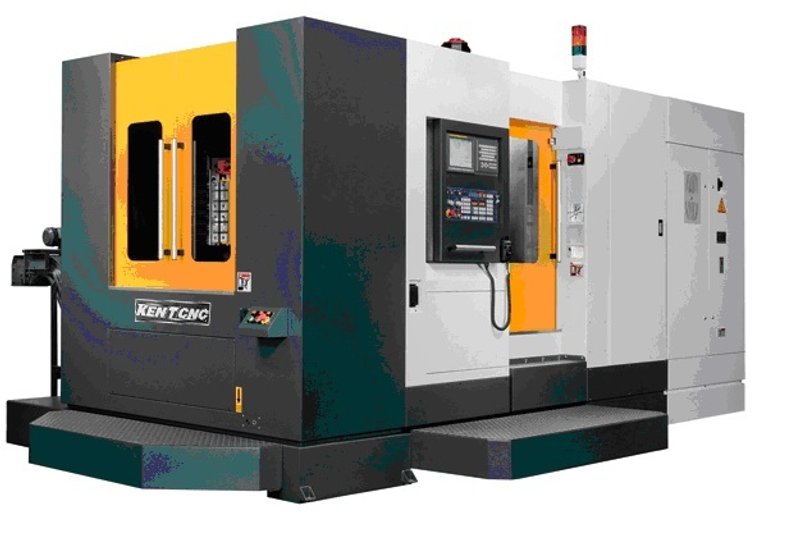

KENT USA JMH-500 CNC HORIZONTAL MACHINING CENTER - NEW

Brand
Model
JMH-500
Stock #
12932
Year
Not specified
Condition
New
Location
Not specified
KENT USA JMH-500 CNC HORIZONTAL MACHINING CENTER - NEW



STANDARD ACCESSORIES
  • 19.7” x 19.7” Rotary Table Size
  • 993 lbs Max Loading
  • 31.5” x 28.54” x 28.54” Three Axes Travel
  • 5.91” ~ 34.45” Spindle Nose to Worktable Surface
  • Fanuc 0iMD Controller
  • CAT 40 Spindle Taper
  • 2.75” Spindle Diameter
  • 8,000 RPM Spindle Speed
  • Full Splash Guard
  • 40-Tool chain type ATC
  • Heat Exchanger
  • M Code Air Blasting
  • Auto Power Off
  • Chain type chip conveyor & cart
  • Remote MPG (Handwheel)
  • Rigid Tapping
  • Spindle Oil Cooler
  • Spindle Motor: 20/25HP
  • Linear Guide Ways
  • Water Gun
  • Transformer
  • Two Year Parts Warranty


OPTIONAL ACCESSORIES

¨   Fanuc 31iMB Control
¨   ZF Gear Box
¨   Coolant Through Spindle (20 Bar)
¨   Coolant Through Spindle (50 Bar)
¨   60 Tools ATC (Servo Motor)
¨   80 Tools ATC (Servo Motor)
¨   90 Tools ATC (Servo Motor)
¨   100 Tools ATC (Servo Motor)
¨   120 Tools ATC (Servo Motor)
¨   Oil Skimmer
¨   Oil Mist Collector
¨   Auto Tool Measurement (Laser Type)
¨   Auto Tool Measurement (Fix Type)
¨   Renishaw Work Piece Measurement
¨   Air Condition for Electric Cabinet





TRAVELS

¨   X Axis Travel                                                                  31.5”
¨   Y Axis Travel                                                                   28.54”
¨   Z Axis Travel                                                                   28.54”
¨   Spindle Center To Table Surface                                 1.97 ~ 30.51”
¨   Spindle Nose To Table Center                                      5.91” ~ 34.45”

 PALLETS (Digital Servo)

¨   Size                                                                                   19.7” x 19.7”
¨   Bolt Holes Per Pallet                                                      25
¨   Max Table Load                                                              1,764 lbs
¨   Rotation RPM                                                                  25 rpm
¨   Standard Index Degree                                                  0.001
¨   Rotation Motor                                                                4 hp
¨   Repeatability                                                                   +/- 2 sec

AUTOMATIC PALLET CHANGER (Digital Servo)

¨   Number of Pallets                                                           2
¨   Number of Available Pallets in Pool                             12
¨   Pallet Change Method                                                    Rotary
¨   Pallet Change Time                                                        8 sec

 SPINDLE

¨
Taper                                                                                CT-40
¨   Bearing Diameter                                                            2.75”
¨   Drive Motor                                                                    20/25 HP
¨   Max Speed                                                                       8,000 RPM



AUTOMATIC TOOL CHANGER (Digital Servo)

¨   Tool Capacity                                                                  40 (Opt. 60, 90, 120)
¨   Max Tool Diameter                                                         3.34”
¨   Max Tool Length                                                             11.8”
¨   Max Tool Weight                                                             17.6 lb
¨   Selection Method                                                            Bi-Directional / Random
¨   Tool-To-Tool Time                                                         3-4 Sec.



MOTION CONTROL

¨   Rapid Traverse                                                               1,181 ipm(Opt.1,417)
¨   Cutting Feed Rate                                                           394 ipm



ACCURACY

Positioning (+/-)                                                                    0.0001”

Circularity                                                                        0.0002”



MISCELLANEOUS

Approximate Weight                                                     29,768 lb
Floor Dimensions – Machine (LxW)                                 151.1” x 190.35”
