47" x 197" KENT USA SGS-T5012 AHD DOUBLE COLUMN DESIGN SURFACE GRINDER - NEW

Brand
Model
SGS-T5012AHD
Stock #
12760
Year
Not specified
Condition
New
Location
Not specified

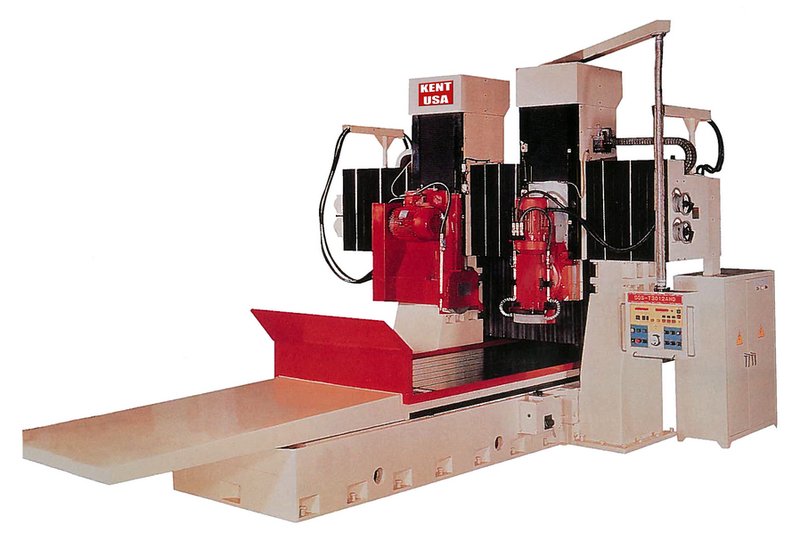

47" x 197" KENT USA SGS-T5012 AHD DOUBLE COLUMN DESIGN SURFACE GRINDER - NEW


STANDARD ACCESSORIES
  • Toolbox with tools
  • Wheel flange
  • Wheel balancing base
  • Wheel balancing arbor
  • Grinding wheel
  • Flange extractor
  • Diamond dresser
  • Diamond dresser base
  • Work light




OPTIONAL ACCESSORIES
  • Coolant equipment
  • Dust suction equipment
  • Cooling & dust suction equipment
  • Coolant equipment with paper filter & magnetic separator
  • Manual type overhead parallel dressing attachment
  • Hydraulic type overhead parallel dressing attachment
  • Permanent magnetic chuck
  • Electromagnetic chuck
  • Inclinable electromagnetic chuck
  • Angle forming attachment
  • Radius forming attachment
  • Sine bar
  • Precision vise
  • Electrodemagnetized equipment


  • Working Surface
  • Grinding Surface
  • Horizontal Travel
  • Distance Between Two Columns
  • Distance Between Table Surface and Spindle Center
  • Distance Between Table Surface and Wheel Top
  • Inclination of Universal Head
  • Table Speed
  • Automatic Crossfeed of Spindle Seat (60 Hz)
  • Downfeed Handwheel Min Scale
  • Crossfeed Handwheel (1 gra)
  • Crossfeed Handwheel (1 rev)
  • Longitudinal Travel
  • Crossfeed Travel
  • Spindle Motor (H. Axle)
  • Spindle Motor (V. Axle)
  • Hydraulic Pump Motor
  • Crossfeed Motor
  • Downfeed Motor
  • Grinding Wheel (OD x T x ID) (H. Axle)
  • Grinding Wheel (OD x T x ID) (V. Axle)
  • Grinding Wheel (OD x T x ID) (H. Axle)
  • Grinding Wheel (OD x T x ID) (V. Axle)
  • Flow Rate of Coolant Pump
  • Max Load Capacity
  • Net Weight
  • SGS-T4012AHD

  • 47.2" x 196.9"
  • 51.2" x 200.8"
  • 204.7"
  • 63" ~ 75"
  • 45.3"
  • 33.5"
  • ±90°
  • 5 ~ 25M/min (16 ~ 80 ft/m)
  • 0 ~ 1"
  • 0.0002"
  • 0.001"
  • 0.2"
  • 7.9" x 208.7"
  • 0" ~ 55.1"
  • 20HP x 4P (Opt. 30P x 4P)
  • 10HP x 4P (Opt. 15HP x 4P)
  • 30 HP x 6P
  • 1/4 HP x 6P
  • DC Servo
  • 20" x 2" x 5" (Opt. 20" x 3" x 8")
  • 16" x 2" x 5"
  • 1250 RPM / 1050 RPM
  • 1750 RPM / 1450 RPM
  • 90 L/min
  • 15,400 lbs
  • 78,100 lbs
